Quick Answer

A garage door that won't close completely is often due to misaligned safety sensors or incorrect travel limit settings on the opener. Start by checking for obstructions in the door's path and cleaning the safety sensor lenses. If these aren't the culprits, the most common fix involves adjusting the 'down' travel limit on your garage door opener. This is typically done with a screwdriver on designated screws or buttons on the opener unit, making small, precise adjustments until the door fully closes and makes firm contact with the ground without reversing.

The Problem

You push the button, the garage door starts to descend, but then it stops a few inches or even a foot off the ground. Or perhaps it closes, touches the ground, and immediately reverses, opening back up. This common and frustrating issue leaves your home vulnerable and your garage exposed to the elements. It’s not just an inconvenience; a partially closed garage door compromises your home’s security and can even be a safety hazard if sensors aren’t functioning correctly. While it might seem like a major malfunction, more often than not, the culprit is something relatively simple that a homeowner can diagnose and fix in a matter of minutes with basic tools.

How It Works

To understand why your garage door isn't closing, it helps to know a bit about how the system operates. Modern garage door openers are complex electromechanical systems designed with safety and convenience in mind. When you activate the opener, an electric motor inside the main unit drives a chain, belt, or screw mechanism, pulling the door along tracks via a trolley. Limit switches, either mechanical or electronic, are crucial components. They tell the opener when the door has reached its fully open and fully closed positions. These are known as the "travel limits." If the 'down' travel limit is set too high, the motor stops before the door makes firm contact with the floor. If it's set too low, the door might hit the floor, sense resistance, and activate the auto-reverse safety feature, interpreting the resistance as an obstruction.

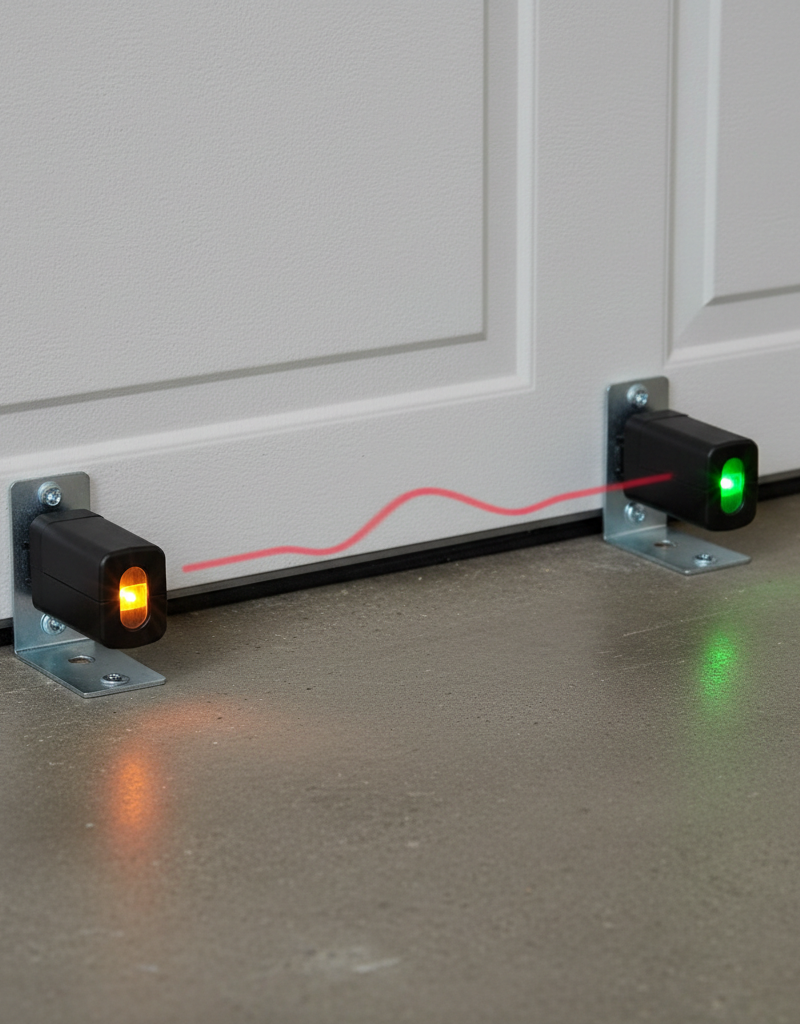

Another critical safety feature involves the photoelectric safety sensors, typically mounted about 6 inches off the ground on each side of the garage door opening. These sensors project an invisible infrared beam across the doorway. If anything breaks this beam while the door is closing, the opener’s logic board immediately stops the door and reverses its direction, preventing injury or damage. This is a federal safety standard for all garage door openers manufactured after 1993. A misaligned sensor, a dirty lens, or even direct sunlight interfering with the beam can trick the opener into believing there's an obstruction, causing the door to refuse to close fully or to reverse prematurely. Understanding these primary components—travel limits and safety sensors—is key to diagnosing and fixing the problem.

Step-by-Step Fix

Before you begin any work on your garage door opener, always unplug the unit from the ceiling outlet. This prevents accidental activation and potential injury. Always wear eye protection when working with tools.

1. Check for Obstructions – Clear the path.

   • Inspect the garage door tracks and the floor directly beneath the door. Look for anything that might be physically blocking the door's path, even small items like a stray broom handle, a child's toy, or a piece of debris. Even a small pebble can cause the door to stop or reverse.
   • Remove any obstructions you find. Try to close the door again.
   • If this doesn't work: Proceed to sensor inspection.

2. Inspect Safety Sensors – Ensure clear beam and alignment.

   • Safety First: Unplug the garage door opener before touching the sensors.
   • Locate the two small boxes, usually on either side of the garage door opening, about 6 inches off the ground. One has a green LED (the sender), the other an amber or red LED (the receiver).
   • Check for dirt, dust, spiderwebs, or anything obscuring the lenses. Gently wipe them clean with a soft, damp cloth.
   • Check their alignment. The LEDs should be continuously lit. If either is blinking or off, the sensors are misaligned. Gently nudge each sensor until both lights are solid. You might hear a click when they align.
   • Ensure no direct sunlight is shining into a sensor's lens, as this can interfere with the beam. Try shading the sensor with your hand if sunlight is an issue.
   • If the lights don't go solid: The sensor wiring might be loose or damaged. Check connections at the sensor unit and at the opener head. If wiring looks good, you might have a faulty sensor, which would require replacement.

3. Adjust 'Down' Travel Limit – Fine-tune the closing position.

   • Safety First: Ensure the door is fully open and the opener is plugged in, but be ready to unplug if needed.

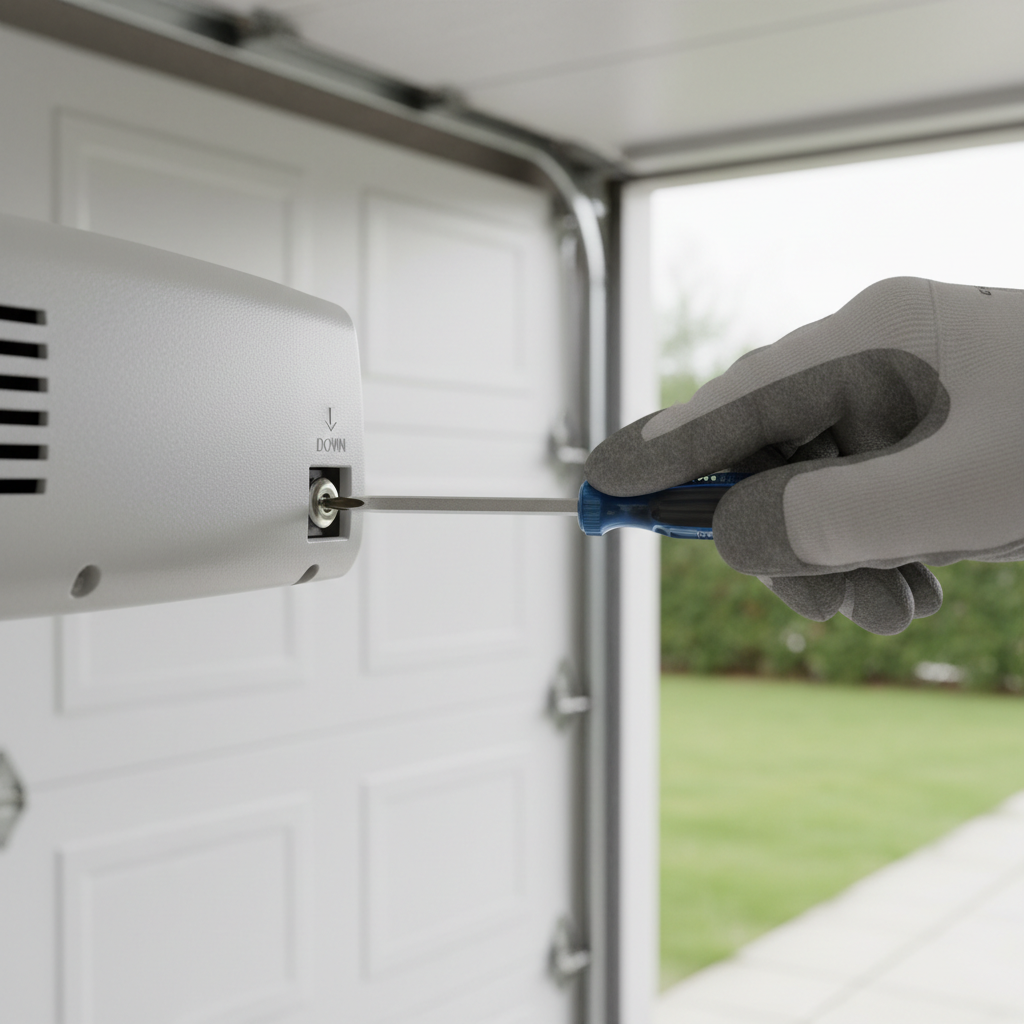

   • Locate the 'travel limit' adjustment screws or buttons on your garage door opener unit. These are usually labeled 'DOWN' or 'CLOSE', and sometimes 'UP' or 'OPEN'. On older models, they are typically small screws. Newer models may have +/- buttons or dials.
   • Use a flathead or Phillips screwdriver (or press the buttons) to make very small adjustments to the 'DOWN' limit. Turn the screw a quarter turn clockwise to increase the distance the door travels down, or press the '+' button. If the door closes and immediately reverses, turn the screw a quarter turn counter-clockwise or press the '-' button to slightly decrease the travel.
   • After each small adjustment, run the door down and observe. Repeat the process until the door closes firmly but doesn't reverse.
   • If the door reverses immediately after touching the floor: This indicates the downforce (or closeforce) setting might be too high or the down limit is too low, making the door think it hit an obstruction. You may need to slightly decrease the down limit or, on some models, adjust the force setting (consult your opener manual, as force adjustment is model-specific and can be dangerous if set incorrectly). Start by adjusting the travel limit first.

4. Test the Auto-Reverse Safety Feature – Crucial safety check.

   • Place a 2x4 piece of wood flat on the garage floor, directly in the door's path. Ensure it's thick enough to provide significant resistance.
   • Attempt to close the door. When it hits the 2x4, it must reverse and open back up completely. This confirms the safety mechanism is working.
   • If the door does not reverse, or struggles to reverse, your downforce setting is too high and needs to be reduced immediately. Consult your opener's manual for how to properly adjust the force settings for your specific model. Do not use the garage door if the auto-reverse feature is not working correctly. This is a critical safety function.

Common Causes

• Misaligned or Dirty Safety Sensors: This is by far the most common reason. If the infrared beam between the two sensors is broken or obstructed, the door will not close. Dirt, spiderwebs, or even a slight bump can knock them out of alignment.
• Incorrect Down Travel Limit Settings: Over time, or after power fluctuations, the opener's internal programming for how far down the door should travel can drift. If the 'down' limit is set too high, the door thinks it has closed before it actually reaches the floor.
• Obstructions in the Door's Path: Anything, even a small object like a leaf pile, a tool, or a child's toy, can trigger the safety sensors or physically prevent the door from closing.
• Loose or Damaged Wiring to Safety Sensors: The low-voltage wires connecting the safety sensors to the opener unit can become loose at the terminals or suffer damage, breaking the circuit.
• Worn or Damaged Rollers/Tracks: If the door is binding or sticking in the tracks, the opener might interpret the increased resistance as an obstruction, causing it to reverse.
• Remote Control Battery Low: While less common for a door that stops partially, a very low battery in the remote can sometimes send an intermittent signal, contributing to erratic behavior.

Common Mistakes

• Ignoring the Safety Sensors: Many homeowners immediately jump to adjusting limits without checking the sensors first. Always start with the simplest, most common culprits.
• Making Large Adjustments to Travel Limits: Small, quarter-turn adjustments are key. Big turns can throw the limits off significantly, sending you on a frustrating chase to find the correct setting.
• Not Testing the Auto-Reverse Feature: This is a crucial safety step. Failing to test it after adjusting limits could lead to serious injury or property damage if the door closes on an obstruction.
• Over-tightening Sensor Mounting Bolts: This can crack the plastic housing of the sensors, leading to further issues or requiring replacement.
• Confusing Force Settings with Travel Limits: While related, these are distinct adjustments. Travel limits dictate how far the door moves, while force settings dictate how much power the motor applies. Improperly adjusting force can be dangerous; always consult your manual if you suspect a force issue.
• Forgetting to Unplug the Opener: Always disconnect power before performing any hands-on work, especially near moving parts or electrical components.

Cost & Time Breakdown

Tips & Prevention

• Routine Sensor Check: Every few months, quickly check that both safety sensor LEDs are glowing steadily. Give them a gentle wipe. Ensure nothing is blocking their beam.
• Clear the Door Path: Make it a habit to keep the area directly under your garage door clear of stored items, tools, and toys. This prevents false sensor trips and potential damage.
• Annual Auto-Reverse Test: Once a year, place a 2x4 on its side under the closing door to ensure the auto-reverse safety feature is still functioning properly. Adjust force settings if it fails, or call a pro.
• Lubricate Moving Parts: Lightly lubricate the rollers, hinges, and springs with a silicone-based garage door lubricant every 6 months. This reduces strain on the opener and helps the door move smoothly, preventing binding that could mimic an obstruction.
• Check Track Alignment: Occasionally inspect the vertical tracks for any bends or damage. The tracks should be parallel and firmly mounted. Misaligned tracks can cause the door to bind.
• Remote Battery Replacement: Replace remote control batteries annually to prevent intermittent signal issues that might contribute to erratic door behavior.

When to Call a Professional

While many garage door closing issues are DIY-friendly, some problems warrant calling a licensed professional. If, after checking sensors and adjusting travel limits, your door still fails to close correctly, or if you suspect issues with the opener's motor, circuit board, or spring system, it's time to call a pro. Specifically, if the door is excessively heavy, moves unevenly, or makes grinding noises not related to simple lubrication, it could indicate worn springs or cables, which are under extreme tension and can be very dangerous to work with. Never attempt to repair or adjust torsion springs yourself. Furthermore, if you’ve adjusted the travel limits repeatedly and the door still behaves erratically, there might be an underlying electrical problem or a faulty opener component that requires specialized diagnostic tools and expertise. A professional can quickly and safely identify the root cause and ensure your door operates safely and reliably.
