Quick Answer

To install floating shelves into drywall, the most secure method is to screw directly into wall studs using a stud finder. If studs are not in the desired location, use appropriate heavy-duty drywall anchors such as toggle bolts or high-strength molly bolts. Always ensure your chosen anchors can support the combined weight of the shelf and anything you plan to put on it.

The Problem

Floating shelves offer a clean, minimalist look, but installing them securely into drywall can be a challenge. Drywall alone is not strong enough to hold significant weight, and improper installation can lead to sagging shelves, wall damage, or even injury if the shelf falls. Homeowners often struggle with choosing the right fasteners and ensuring the shelf remains level and stable over time, especially when studs aren't where they need them.

Step-by-Step Fix

Safety Note

Always wear safety glasses when drilling. Before drilling or cutting into any wall, use a stud finder and be aware of potential electrical wires or plumbing pipes. If you encounter unexpected resistance, stop immediately.

1. Gather Your Tools and Materials: Lay out all your tools and the shelf components. Read the instructions provided with your floating shelf kit, as specific hardware might be included.

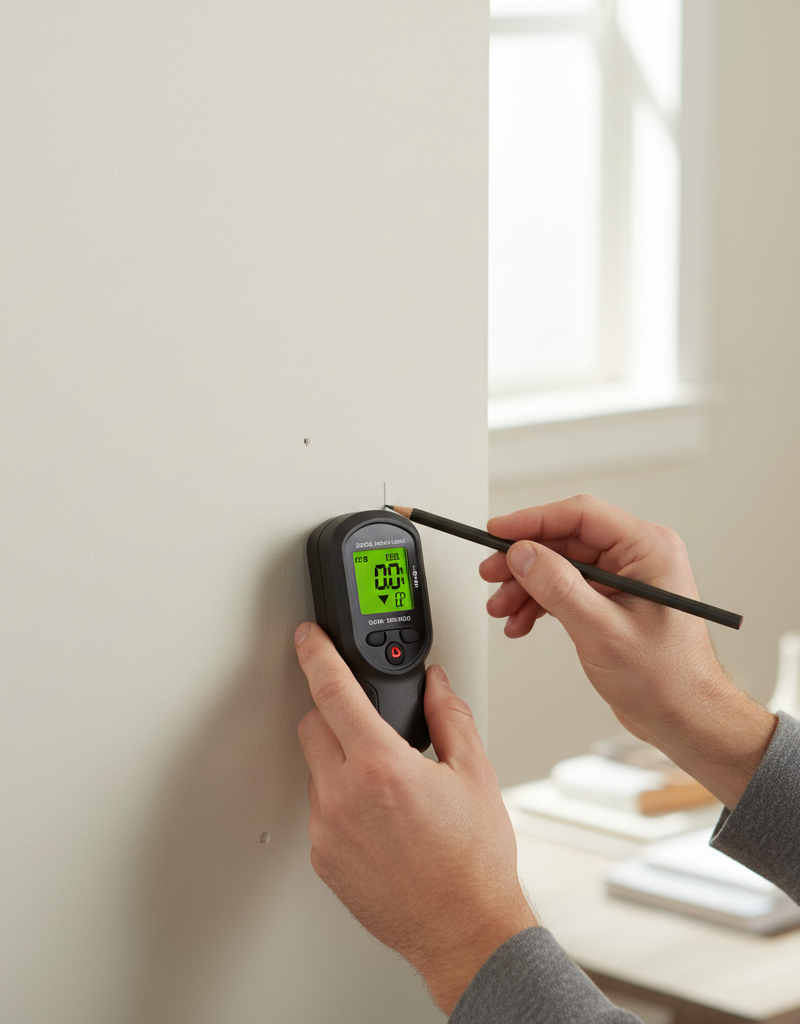

2. Locate Wall Studs: Use a stud finder to locate vertical wooden studs behind your drywall. Mark the edges of the studs lightly with a pencil. Ideally, you want to mount your shelf bracket into at least one, if not both, studs for maximum strength. If your shelf is long, aim to hit two studs.
3. Mark Shelf Placement: Hold the floating shelf bracket against the wall at your desired height and location. Use a level to ensure it's perfectly horizontal. Mark the screw hole locations on the wall with a pencil. Double-check that these marks align with your stud markings, if applicable.

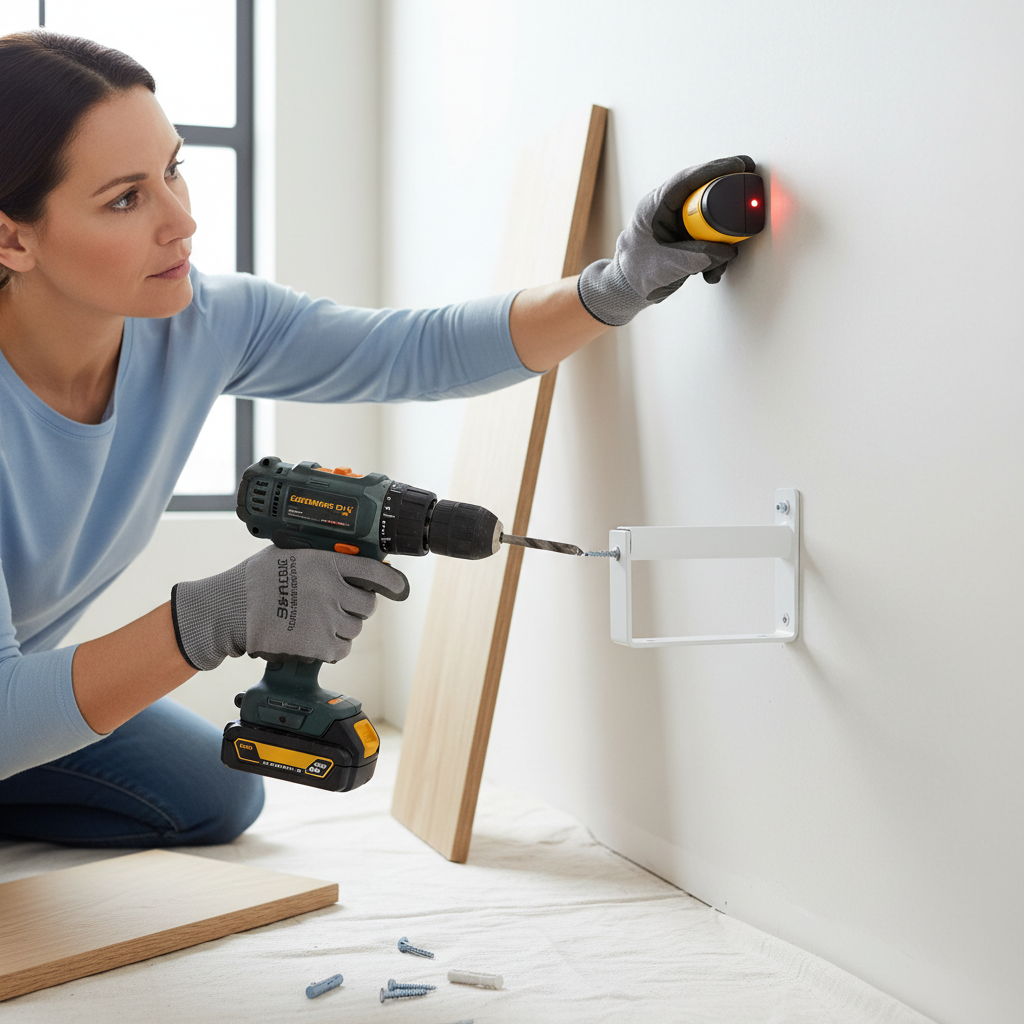

4. Pre-Drill Pilot Holes:
   • For Stud Mounting: If you're screwing into a stud, use a drill bit slightly smaller than your shelf bracket screws to pre-drill pilot holes. This prevents the wood from splitting.
   • For Drywall Anchors: If you need to use drywall anchors, follow the anchor manufacturer's instructions. Most require a specific drill bit size to create the initial hole for the anchor. For toggle bolts, mark the center of the bolt location and drill a hole large enough for the toggle wings to pass through when closed.
5. Install Drywall Anchors (If Needed):

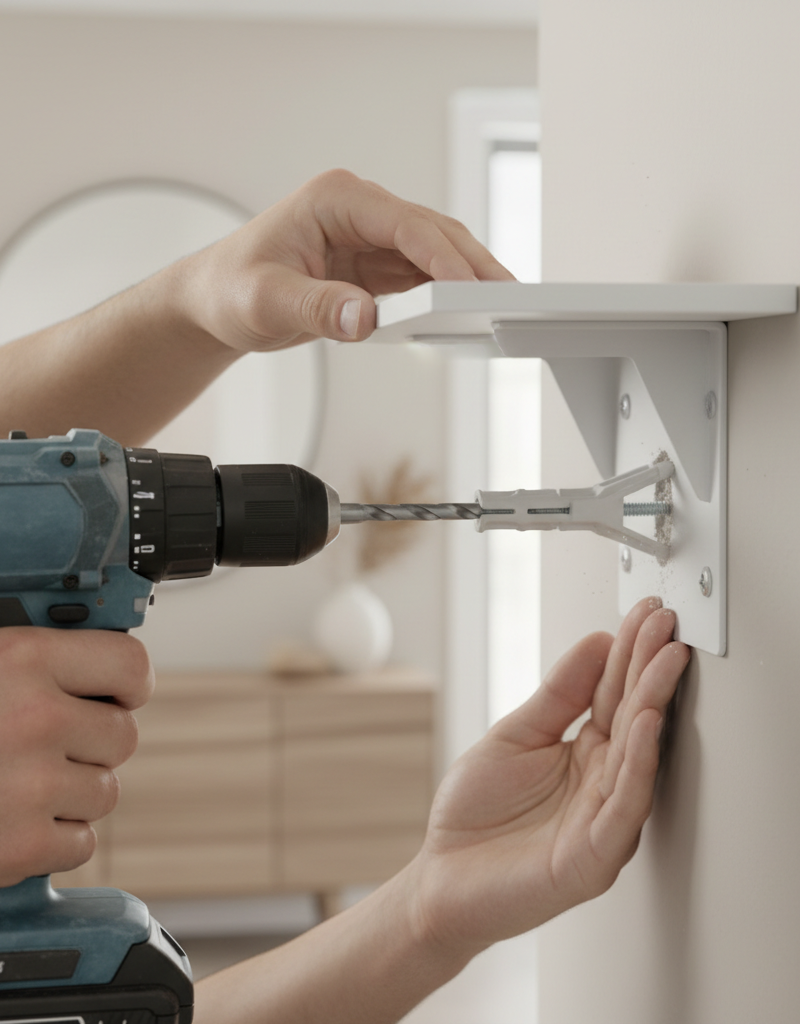

   • Toggle Bolts: Push the toggle wings through the pre-drilled hole. The wings will spring open behind the drywall. Pull the bolt back slightly to set the wings against the back of the drywall, then tighten the screw.
   • Molly Bolts/Expansion Anchors: Insert the molly bolt into the pre-drilled hole and tap it flush with a hammer. Tighten the screw, which will expand the anchor behind the drywall. Once tight, remove the screw, attach your bracket, and re-insert the screw to secure it.

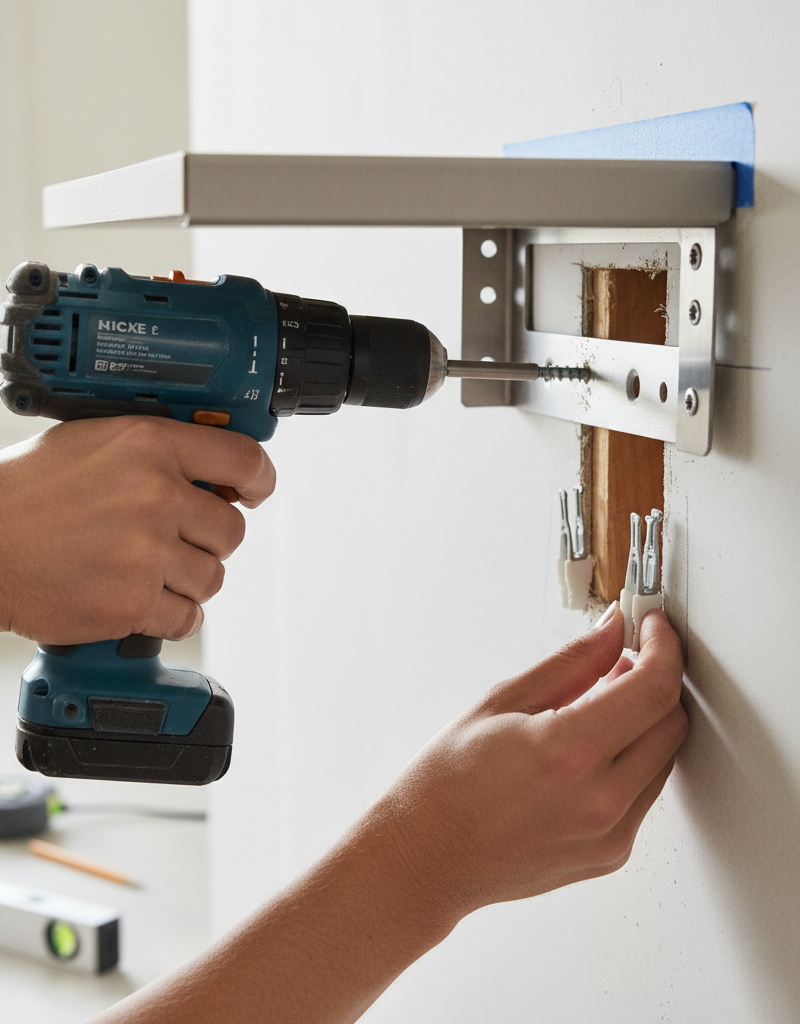

6. Mount the Shelf Bracket: Align the shelf bracket with your pre-drilled holes (or installed anchors). Drive the screws through the bracket into the studs or anchors. Ensure all screws are fully tightened and the bracket is firmly secured to the wall.
7. Attach the Shelf: Slide the floating shelf onto the mounted bracket. Most floating shelves have a channel or pre-drilled holes that slide over the bracket’s arms. Secure the shelf to the bracket according to the manufacturer's instructions, often with small set screws from the underside.
8. Test for Stability: Gently apply downward pressure to the shelf to test its stability. Ensure it doesn't wobble or pull away from the wall. Gradually add weight, starting with lighter items, to confirm it can hold the intended load.

Common Causes

The most common cause of floating shelves failing is inadequate anchoring to the wall. This includes:

• Using standard drywall screws: These are not designed to hold significant weight in drywall and will pull out.
• Underestimating weight: Not accounting for the combined weight of the shelf itself and all the items placed on it.
• Incorrect anchor selection: Using anchors not rated for the shelf's weight or the type of drywall.
• Not finding studs: Failing to leverage the strength of wall studs when available.
• Improper installation of anchors: Not following the anchor manufacturer's specific instructions can compromise their holding power.

Tips & Prevention

• Always check weight ratings: Both for your shelf and your chosen anchors. It’s better to overestimate the weight capacity you need.
• Use a reliable stud finder: A good quality stud finder is invaluable for any wall-mounting project.
• Pilot holes are key: They prevent cracking drywall and ensure screws go in straight.
• Level, level, level: Use a good level at every step to avoid a crooked shelf.
• Read instructions: Shelf and anchor manufacturers provide specific guidance for a reason.
• Consider blocking: If you're undertaking a more extensive renovation, consider adding wood blocking between studs before closing up the drywall for ultimate shelf support.

When to Call a Professional

If you are installing very large or heavy custom floating shelves, or if you are unsure about locating studs or selecting the correct anchors for a substantial load, it's wise to call a professional handyman or carpenter. They have the experience and specialized tools to ensure your shelves are installed safely and securely, especially when dealing with complex wall structures or valuable items.
