Quick Answer

When your central AC isn't cooling effectively, the most frequent, yet often misdiagnosed, issue is restricted airflow. This can stem from a clogged air filter, blocked return vents, or even a frozen evaporator coil. Addressing airflow problems first can save you money and prevent more severe system damage.

The Problem

Imagine a marathon runner trying to breathe through a tiny straw. That's essentially what happens to your central air conditioner when airflow is restricted. Instead of efficiently circulating cool air throughout your home, the system struggles, leading to lukewarm air, uneven cooling, higher energy bills, and eventually, system breakdown. Many homeowners jump to conclusions like a refrigerant leak or a failing compressor, but the root cause is often far simpler and cheaper to fix: an airflow blockage. This seemingly minor issue can cascade into a myriad of problems, including a frozen evaporator coil, overworked components, and eventually, costly repairs or premature system replacement. Understanding how air moves through your AC is the first step to diagnosing and fixing this pervasive problem.

How It Works

Your central AC system operates on a closed-loop principle, moving heat from inside your home to the outside. It’s essentially a giant refrigerator for your entire house. The core components are the indoor evaporator coil and the outdoor condenser coil, connected by refrigerant lines. Here’s a simplified breakdown:

First, warm, humid air from your home is drawn into the return air vents, often located in central areas or hallways. This air then travels through your ductwork to the air handler, which houses the blower fan and the evaporator coil.

The blower fan pulls the warm air across the cold evaporator coil. The refrigerant inside the coil, which is at a low pressure and temperature, absorbs the heat from the air. As the heat is absorbed, the refrigerant changes from a liquid to a gas. Simultaneously, moisture in the air condenses on the cold coil, effectively dehumidifying your home. The now cooled and dehumidified air is pushed by the blower fan through the supply ductwork and out of registers into your rooms.

The refrigerant, now a hot gas, travels to the outdoor unit (condenser). Here, it enters the compressor, which pressurizes the gas, further increasing its temperature. The hot, high-pressure gas then flows through the condenser coil, where a large fan pulls outdoor air across the coil. The outdoor air absorbs the heat from the refrigerant, causing it to cool down and condense back into a high-pressure liquid. This liquid refrigerant then travels back indoors to the evaporator coil, and the cycle repeats. Efficient operation hinges entirely on unimpeded airflow at every stage – from return vents to filters, coils, and supply registers. Any restriction breaks this delicate balance.

Step-by-Step Fix

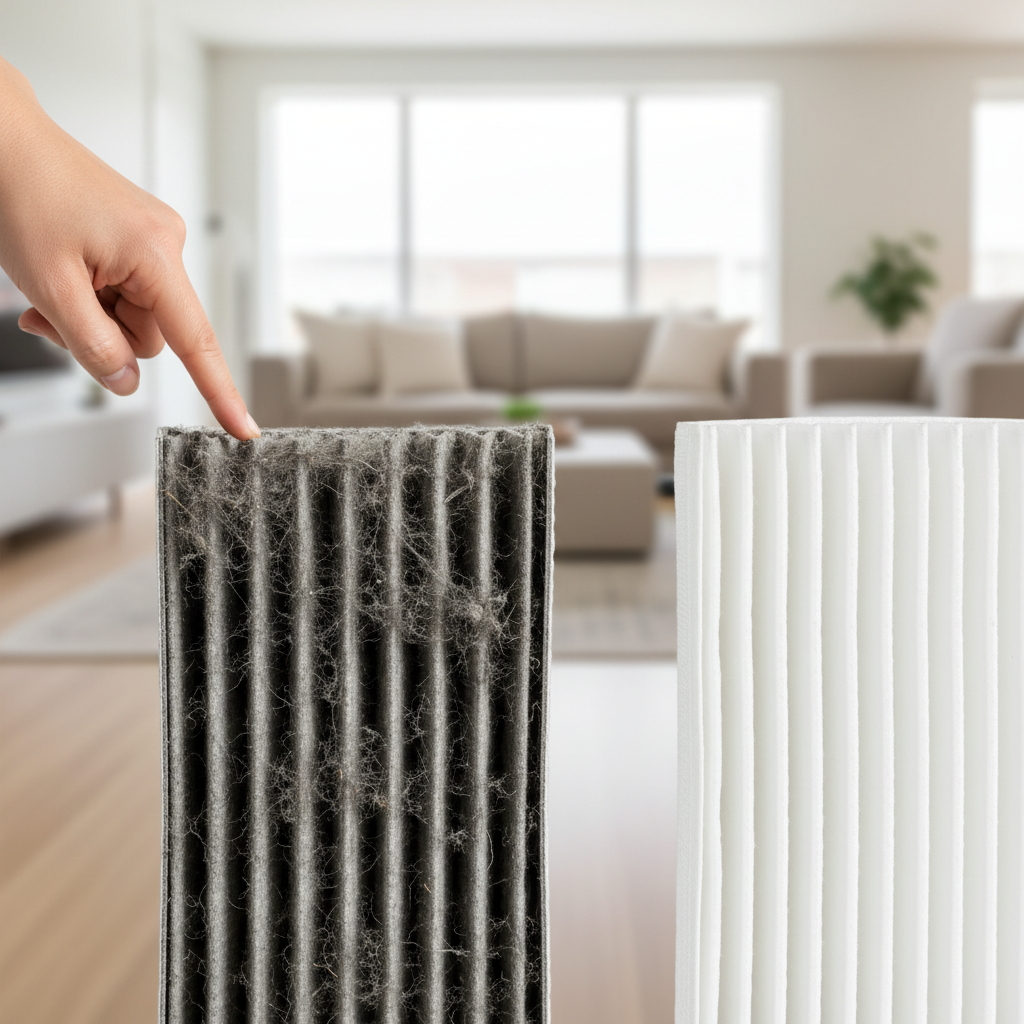

1. Check and Replace Your Air Filter — A clogged air filter is the number one cause of restricted airflow.

• Action: Locate your air filter, typically in the return air vent, air handler, or furnace. Inspect it for accumulated dust, pet hair, and debris. Filters should be replaced monthly, or every 90 days for pleated filters.
• Tools/Materials: New air filter (matching size and MERV rating).
• Safety: Turn off your AC unit at the thermostat and outdoor disconnect before changing the filter.
• If this doesn't work: Proceed to check your return air vents.

2. Clear Blocked Return Air Vents — Obstructed return vents prevent the AC from drawing in enough warm air.

• Action: Walk through your home and identify all return air vents (these are usually larger than supply registers). Ensure no furniture, rugs, curtains, or other items are blocking them. Clear at least 12 inches of space around each vent.
• Tools/Materials: None.
• Safety: No specific safety concerns.
• If this doesn't work: Check your supply registers for blockages.

3. Inspect Supply Registers — Blocked supply registers prevent cool air from reaching your rooms.

• Action: Check all supply registers (the vents where cool air comes out) in each room. Ensure they are fully open and not obstructed by furniture, drapes, or children's toys. While often overlooked, even partially closed registers can impact airflow.
• Tools/Materials: None.
• Safety: No specific safety concerns.
• If this doesn't work: The issue might be a frozen evaporator coil.

4. Look for a Frozen Evaporator Coil — A lack of airflow or low refrigerant can cause the indoor coil to freeze over, blocking more airflow.

• Action: Turn off your AC at the thermostat immediately. Locate your indoor air handler or furnace. Carefully open the access panel to the evaporator coil. Look for a buildup of ice on the coil fins or refrigerant lines. If present, the system needs to completely thaw before proceeding. This can take 2-24 hours.
• Tools/Materials: Flashlight.
• Safety: Ensure the power to the air handler is OFF before opening any panels. Watch for sharp edges on metal panels.
• If this doesn't work: A frozen coil usually indicates a deeper issue. After thawing, replace the filter, ensure all vents are clear, and if it refreezes, call a professional. Do NOT run the AC with a frozen coil.

5. Clean the Outdoor Condenser Coil — A dirty outdoor unit can inhibit heat transfer and reduce efficiency, though it's less about airflow restriction and more about heat exchange.

• Action: Turn off the power to the outdoor unit at the disconnect switch (a small box mounted on the wall near the unit). Use a garden hose with moderate pressure to gently spray down the condenser fins, working from the inside out if possible. Remove any leaves, grass clippings, or debris from around the unit and between the fins.
• Tools/Materials: Garden hose, soft-bristle brush (optional).
• Safety: Absolutely ensure the power to the outdoor unit is off before performing any cleaning. Avoid spraying water directly into electrical components.
• If this doesn't work: If cleaning the coil doesn't restore cooling, the issue is likely elsewhere.

6. Check the Thermostat Settings — Incorrect thermostat settings can trick you into thinking your AC isn't working.

• Action: Verify your thermostat is set to "Cool" and the desired temperature is significantly lower than the current room temperature. Ensure the fan setting is on "Auto" (the fan runs only when cooling) rather than "On" (the fan runs continuously, potentially circulating warmer air at times).
• Tools/Materials: None.
• Safety: No specific safety concerns.
• If this doesn't work: Replace the thermostat batteries if applicable.

7. Power Cycle Your AC System — A simple reset can sometimes resolve minor electrical glitches.

• Action: Turn off your AC at the thermostat. Go to your home's electrical panel and locate the breaker for your AC unit (it might be labeled "AC," "HVAC," or "Furnace"). Flip the breaker to the "Off" position, wait 5 minutes, then flip it back to "On." Return to your thermostat and set it back to "Cool."
• Tools/Materials: None.
• Safety: Exercise caution when working with your electrical panel. If you are unsure, do not touch the breakers.
• If this doesn't work: The problem is likely mechanical or refrigerant-related.

Common Causes

• Clogged Air Filter: The most common culprit. A dirty filter severely restricts airflow, forcing your AC to work harder and reducing its cooling capacity.
• Blocked Return or Supply Vents: Furniture, drapes, or debris obstructing air vents prevent proper air circulation, leading to uneven cooling and system strain.
• Frozen Evaporator Coil: Often a symptom of extremely restricted airflow or low refrigerant. Ice buildup completely blocks heat exchange.
• Dirty Outdoor Condenser Coil: Accumulation of dirt, leaves, and debris on the outdoor fins traps heat, preventing the unit from releasing heat efficiently.
• Low Refrigerant (Leak): While not directly an airflow issue, insufficient refrigerant prevents the system from properly absorbing and releasing heat, leading to poor cooling and often a frozen coil. This requires professional attention.
• Failing Blower Motor or Capacitor: If the indoor blower isn't moving air effectively, or the outdoor fan isn't spinning, it directly impacts airflow or heat exchange. A failing capacitor is a common cause for motors not starting.

Common Mistakes

• Ignoring the Air Filter: Many homeowners forget about their air filter for months on end, leading to severe blockages and system inefficiency. Check it monthly!
• Closing Vents in Unused Rooms: Closing supply registers to "save energy" actually imbalances the system, increasing static pressure and potentially damaging the blower motor. Keep all vents open for optimal airflow.
• Setting the Thermostat Too Low: Cranking the thermostat down to 60°F won't cool your house faster; it only makes the system run longer and can lead to coil freeze-ups. Set it to a comfortable 72-78°F.
• Not Cleaning Around the Outdoor Unit: Letting bushes or debris accumulate around the condenser unit restricts its ability to dissipate heat, crucial for efficient operation. Maintain at least 2 feet of clear space around the unit.
• Attempting DIY Refrigerant Recharges: Refrigerant is not a "top-off" fluid. Low refrigerant indicates a leak, which requires a licensed professional to diagnose, repair, and properly recharge the system. Adding refrigerant yourself can overcharge the system and cause severe damage.
• Overlooking the Disconnect Switch: Forgetting to turn off power at the outdoor disconnect before cleaning or inspecting the condenser unit can lead to serious electrical shock.

Cost & Time Breakdown

Tips & Prevention

• Regular Filter Changes: Replace your air filter at least every 1-3 months, or more frequently if you have pets or allergies. This is the single most effective maintenance task you can perform.
• Keep Vents Unobstructed: Ensure all return and supply registers are clear of furniture, rugs, and drapes to allow for proper airflow throughout your home.
• Seasonal Coil Cleaning: Annually, before the cooling season begins, clean your outdoor condenser unit to remove accumulated debris. Clear any foliage or obstructions within two feet around the unit.
• Check Drain Line: Periodically check the condensate drain line (a PVC pipe exiting the indoor unit) for blockages from algae or mold. A blocked drain can cause water to back up and trigger safety switches, shutting down your AC.
• Schedule Professional Tune-ups: Aim for an annual AC tune-up by a licensed HVAC technician. They can identify minor issues before they become major problems, check refrigerant levels, and ensure all components are operating optimally.
• Monitor for Warning Signs: Pay attention to unusual noises, reduced airflow, strange odors, or ice buildup on the outdoor lines – these are all indicators that something isn't right.

When to Call a Professional

While many AC cooling issues can be resolved with simple DIY steps, some problems require the expertise and specialized tools of a licensed HVAC professional. If your evaporator coil repeatedly freezes after you've ensured clean filters and clear vents, it
