Your garage door opener is flashing but not opening because a safety feature has been triggered. The most common cause is misaligned or obstructed safety sensors near the bottom of the door track, which prevents the door from closing. It can also indicate issues like a disconnected trolley, incorrect travel settings, or a fault in the opener's logic board.

The Problem

You push the button on your wall control or remote. You hear the familiar click from the motor unit, maybe a low hum for a second, but the garage door doesn’t budge. Instead, the main light on the motor housing begins to flash a specific number of times, pauses, and repeats the pattern. You try again, and the same thing happens. This isn't a malfunction in the traditional sense; it's your garage door opener trying to talk to you. That flashing light is a diagnostic error code, a specific signal designed to tell you exactly what’s wrong. In most cases, it's indicating that one of the system's safety features has been activated, preventing the door from moving and potentially causing injury or damage. Your job is to decipher that code and fix the underlying—and usually simple—problem.

How It Works

A modern garage door opener is a sophisticated system with a primary goal: to lift and lower a very heavy door safely and reliably. At its heart is a powerful electric motor, either AC or DC, that drives the door. This motor connects to the door via a trolley that rides along a rail. The connection is made by a drive mechanism, which is typically a chain, a belt (for quieter operation), or a screw.

The "brain" of the operation is the logic board inside the motor housing. This circuit board receives signals from your remote and wall control, controls the motor's operation, and monitors all the safety systems. The most critical of these is the Safety Reversal System, which includes the photoelectric safety sensors.

These sensors are two small "electric eyes" located near the bottom of your garage door tracks, about 4-6 inches off the floor. One unit is a sender (transmitter) and the other is a receiver. The sender shoots a harmless, invisible infrared beam across the opening to the receiver. As long as the receiver "sees" this beam, the logic board knows the path is clear. If you command the door to close and anything—a child, a pet, a car bumper, or even a fallen leaf—breaks that beam, the logic board will instantly stop the door and reverse it to the fully open position. If the beam is broken before you even try to close the door, the logic board will refuse to start the closing process at all, typically signaling the fault by flashing its main light. This is why sensor issues are the number one cause of a flashing, non-moving garage door.

Step-by-Step Fix

Follow these diagnostic steps in order to identify and solve the problem. Most issues can be fixed without any special tools.

1. Decode the Flash Code

• The number of times the light flashes is a code. While you should always consult your owner's manual for specifics, here are common codes for major brands:
  • LiftMaster, Chamberlain, Craftsman:
    • 1 or 2 Flashes: Indicates an issue with the safety sensor wiring or alignment. The beam is not being detected by the receiver.
    • 4 Flashes: The safety sensors are slightly misaligned or obstructed.
    • 5 Flashes: The motor has overheated or there may be a problem with the RPM sensor.
  • Genie, Overhead Door:
    • 2 Flashes: The safety beam is obstructed or misaligned.
    • 4 Flashes: The motor has run for too long, indicating a possible travel limit or obstruction issue.

2. Meticulously Inspect the Safety Sensors

• This is the cause of flashing lights over 90% of the time. Go to the bottom of the garage door track and locate the two small sensors.
• Look for Obstructions: Is there a cardboard box, a broom, a soccer ball, or a pile of leaves blocking the beam's path? Remove any items between the two sensors.
• Clean the Lenses: The "eyes" of the sensors can get covered in dust, dirt, or spiderwebs, blocking the infrared beam. Use a soft, clean microfiber cloth to gently wipe both lenses.

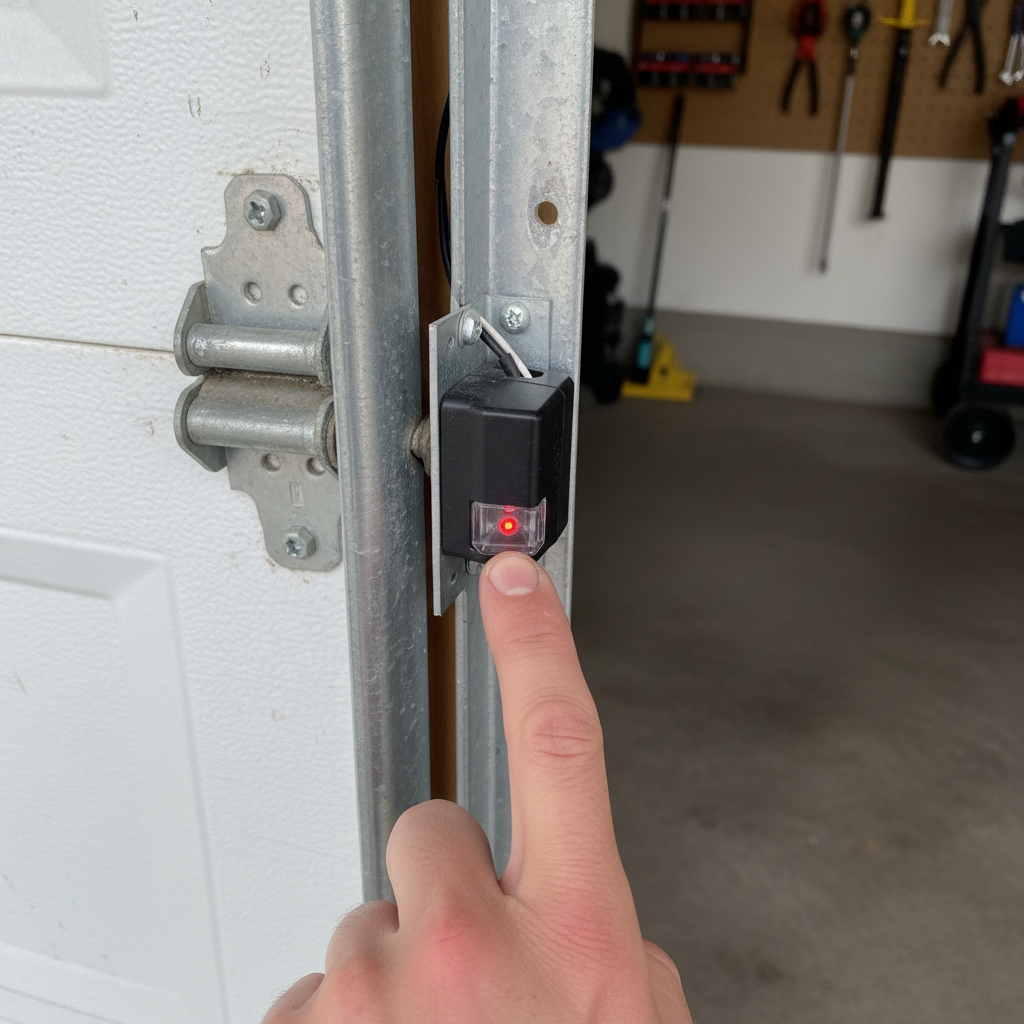

• Check Sensor LEDs: Each sensor has a small LED indicator light. The sending sensor usually has a solid amber/yellow light, indicating it has power. The receiving sensor usually has a solid green light, indicating it has power AND it is "seeing" the beam from the sender. If the receiving sensor's light is off or flickering, the sensors are misaligned or one is faulty.

3. Realign the Safety Sensors

• If the receiver light is off or flickering, the sensors need to be aimed at each other.
• Loosen the bracket: The sensors are attached to the track with a bracket held by a wingnut or a small bolt. Slightly loosen the nut on the receiving (green light) sensor so you can pivot it by hand.
• Adjust and Aim: Slowly move the sensor, aiming it directly across the opening at the sending sensor. You'll know you have it right when the LED on the receiving sensor lights up and stays solid green. It can be a very small, sensitive adjustment.
• Tighten and Test: Once the light is solid green, firmly tighten the bracket's nut. To test, wave a foot through the beam; you should hear a click from the opener and the green light should go out, then come back on when you move your foot.

4. Trace and Inspect the Sensor Wiring

• Look at the low-voltage wires running from each sensor up to the main motor unit. They are often white and white/black striped.
• Look for Damage: Check for any signs of damage—staples that have pierced the insulation, kinks, frays from rubbing against a moving part, or corrosion at the connection points on the sensor itself. A rodent could have also chewed the wire.
• Check Connections: At the back of the motor unit, these thin wires connect to a terminal block. Gently tug on each wire to ensure it is securely fastened in its connector.

5. Check the Manual Lock

• Many garage doors have a manual slide lock on the inside, usually in the middle of the door. If this lock has been accidentally engaged, it will physically prevent the door from moving. The opener will attempt to move the door, detect an immovable object, and fault out, often with a flashing light.

6. Verify the Emergency Release Cord

• The red cord with a handle hanging from the opener rail is the emergency release. If this has been pulled, the trolley (the part that moves along the rail) will be disconnected from the door. The opener will run, but the door won't move.
• To re-engage: Pull the cord down and towards the motor unit to set the release mechanism. Then, run the opener until the trolley travels and clicks back into the connection point on the door arm.

7. Inspect the Door’s Physical Path

• With the door closed, look closely at the metal tracks on both sides. Is there a rock, a tool, or a chunk of ice wedged in the track? This can stop the rollers and cause the opener to fault just like an obstruction in the sensor path.

8. Power Cycle the Opener

• This is the universal fix for many electronic glitches. Unplug the main motor unit from the ceiling outlet. Wait at least 60 seconds for the internal capacitors to fully discharge and the logic board to reset. Plug it back in. This will often clear temporary faults.

9. Adjust the Travel Limits

• If the door starts to move a few inches and then stops and reverses with a flashing light, it might be an issue with the force or travel limits. The opener may think it's hitting an obstruction when it's actually just reaching its programmed "close" position incorrectly.
• Procedure: The specifics vary greatly by model. Generally, there are "up" and "down" adjustment buttons or screws on the motor unit. You typically press a button to enter programming mode, then use the up/down buttons to move the door to the desired fully closed position and save the setting. Consult your owner's manual for the exact procedure to avoid damaging your door or opener.

Common Causes

Here’s a quick summary of the most likely reasons your garage door opener is flashing:

• Misaligned or Obstructed Safety Sensors: The number one culprit. The infrared beam is broken, and the opener is in safety-lockout mode.
• Dirty Sensor Lenses: Dust, cobwebs, or grime on the sensor "eyes" is enough to block the beam.
• Damaged or Loose Sensor Wiring: A staple through the wire or a loose terminal connection will cut power to a sensor, mimicking an obstruction.
• Emergency Release Disengaged: The opener is working, but it
