Quick Answer

A flashing garage door opener light is a built-in error code. Most often, it indicates the safety sensors at the base of the door track are blocked or misaligned, preventing the door from closing. It can also signal issues like faulty wiring, a problem with the opener's logic board, or trouble with the travel limits.

The Problem

You press the button on your garage door remote or wall control, expecting the familiar rumble of your door ascending. Instead, you hear a click from the motor unit, followed by… nothing. The door doesn’t move, or perhaps it starts to close, then abruptly reverses. You look up at the motor unit and see its main light bulb flashing repeatedly. It’s a frustrating scenario, especially when you’re in a hurry to leave or get inside. That blinking light isn't a random glitch; it's your garage door opener’s way of communicating. It’s a diagnostic code telling you exactly what’s wrong, and in most cases, it’s a problem you can easily fix yourself without needing to call a professional.

How It Works

Your garage door opener is a system of interconnected parts, and its "brain" is a central logic board housed within the motor unit. This board receives signals from your remote and wall controls and directs the motor to operate. The motor, typically an AC or quieter DC type, turns a long screw, chain, or reinforced belt. This drive mechanism moves a trolley, which is connected to the garage door via an arm, pulling it up or pushing it down.

The most critical components in this diagnostic puzzle are the safety features, mandated by federal law (UL 325) since 1993. The most prominent of these are the photoelectric safety sensors. These are two small "eyes" located about six inches from the floor on either side of your garage door opening. One sensor (the sender) shoots a continuous, invisible infrared beam to the other (the receiver). If this beam is ever broken while the door is closing, the logic board immediately stops the door and reverses it to prevent entrapment.

The logic board also constantly monitors the door’s travel limits (how far to open and close) and the force required to move it. If it detects an unexpected obstruction or resistance, it assumes something is wrong and stops. When the logic board detects any fault—be it an obstructed safety beam, a wiring issue, or an internal error—it stops normal operation and flashes its light in a specific pattern to tell you the source of the problem.

Step-by-Step Fix

Follow these steps in order to diagnose and resolve the cause of your flashing garage door opener.

Safety Note: A garage door can be heavy and its springs are under extreme tension. For these steps, we will only be working on the low-voltage opener system. Do not attempt to adjust, remove, or repair the large springs, cables, or bottom brackets yourself. Unplug the garage door opener before inspecting any wiring.

1. Safety First — Disconnect Power. Before you touch any wires or components, unplug the garage door opener unit from the ceiling outlet. This eliminates any risk of electric shock. You’ll also want to ensure the door is fully closed. If it’s stuck partially open, use the manual release cord (the red rope hanging from the trolley) to disconnect the door and carefully lower it by hand.

2. Decode the Flashes — Consult Your Manual. That flashing light isn’t random; it’s a code. The number of flashes between pauses corresponds to a specific error in the opener's diagnostic system. Find the model number on your opener unit and search online for the owner's manual. The manual will have a troubleshooting chart that decodes these flashes. For example:

   • LiftMaster/Chamberlain/Craftsman: Often, 1 or 2 flashes indicate the safety sensor wires are shorted or broken, while 4 flashes mean the sensors are misaligned or obstructed.
   • Genie/Overhead Door: Some models use a continuously blinking red light to signal an obstructed sensor beam.

3. Check for Obstructions — The Obvious First. Start with the simplest solution. Look for anything that could be blocking the path of the door. A stray shovel, a bicycle, a trash can, or even a build-up of leaves can be enough to block the safety sensors. Clear the entire area around the door's path and the sensors.

4. Inspect the Safety Sensors — The Most Common Culprit. This is the cause of flashing lights over 90% of the time. The two sensors must be able to "see" each other perfectly.

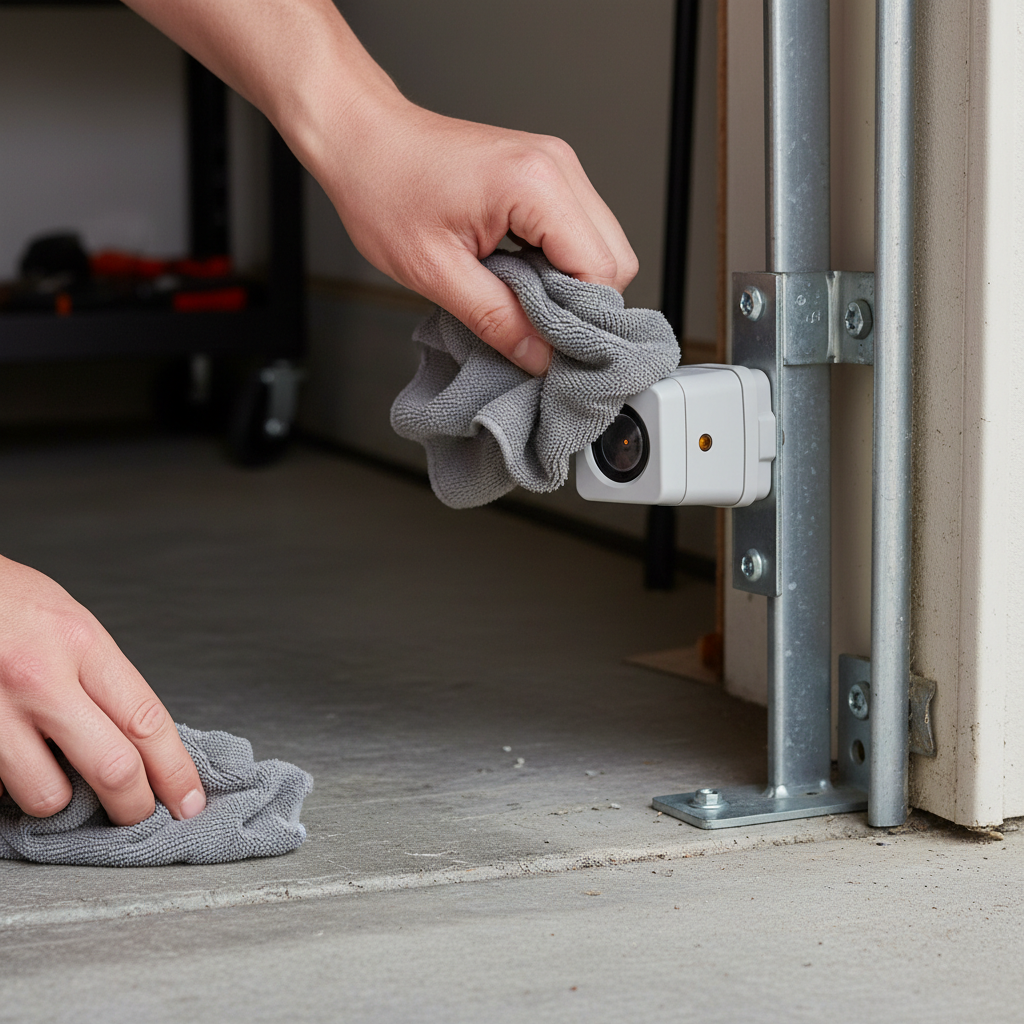

   • Clean the Lenses: The sensor "eyes" are small lenses that can easily get covered in dust, cobwebs, or dirt. Wipe them clean with a soft, dry cloth.

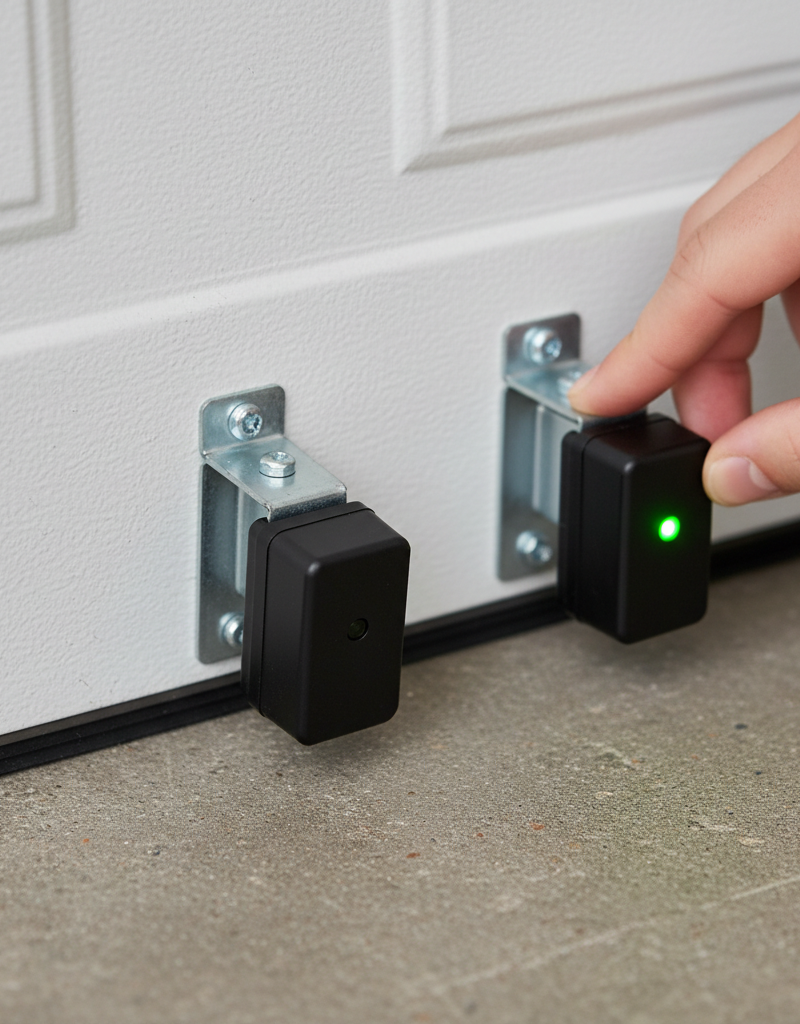

   • Check Alignment: Each sensor has a small LED indicator light. On most models, both the sending and receiving sensors should have a solid, lit LED. The sender will usually be amber, and the receiver green. If either light is flickering or off, the sensors are misaligned. Loosen the wingnut on the bracket of the flickering sensor and gently pivot it by hand until its LED light becomes solid, then tighten the nut. You can use a level to ensure they are pointing perfectly at each other.

5. Examine Sensor Wiring — Look for Damage. Trace the two thin bell wires from each sensor all the way back to the motor unit. Look for any signs of damage. Common issues include:

   • A staple from the installer that has pinched or severed the wire.
   • Corrosion or moisture damage, especially near the floor.
   • A wire that has been accidentally cut or chewed by a pest.
   • Loose connections at the back of the motor unit. The wires are usually connected to small screw terminals. Gently tug on each wire to ensure it’s secure.

6. Test the Wall Control — Rule Out Remotes. Sometimes, outside radio frequencies can interfere with your remotes. Try operating the door using the main, hard-wired wall control. If the wall control works but your car remotes don't, the issue may be weak remote batteries or RF interference from nearby devices like LED light bulbs or even a neighbor's new opener.

7. Check the Disconnect Cord — Is It in Manual Mode? Look at the trolley assembly on the track. The emergency release cord should be engaged for normal operation. If the handle was pulled, the door is in manual mode. You can often re-engage it by pulling the cord down and back, or by running an open/close cycle until the trolley latches back onto the door connection point.

8. Inspect the Door Track and Hardware — Look for Binding. Visually inspect the metal tracks on both sides. Are they bent or clogged with debris? Check the rollers that run inside the tracks. A seized or broken roller can cause the door to bind, making the opener think it’s hit an obstruction.

9. Reset the Opener's Logic Board — The Soft Reboot. Just like a computer, the opener's logic board can sometimes benefit from a reset. With the unit still unplugged, wait for a full 60 seconds. This allows the capacitors on the board to fully discharge and clears any lingering memory glitches. Plug the opener back in.

10. Adjust Travel Limits — If the Door Reverses. If your door starts to close, hits the floor, and then reverses and flashes, its "close limit" setting is likely off. The opener thinks the floor is an obstruction. On older models, you'll see two plastic adjustment screws on the motor unit, one with an up arrow and one with a down arrow. To decrease the close travel, you would turn the "down" screw a small amount (about a quarter turn) in the opposite direction of the arrow. On newer models, this is done with electronic buttons. Consult your manual for the exact procedure.

11. Restore Power and Test — The Moment of Truth. After trying these fixes, it's time to test. Stand clear of the door and press the wall control. Watch for normal operation. If the lights are no longer flashing and the door moves correctly, you’ve solved the problem.

Common Causes

To summarize, a flashing garage door opener is almost always pointing to one of these issues:

• Misaligned or Obstructed Safety Sensors: The infrared beam is broken, preventing the door from closing as a safety precaution.
• Damaged or Loose Sensor Wires: A short, break, or loose connection in the wiring prevents the sensors from communicating with the logic board.
• Incorrectly Set Travel or Force Limits: The opener is either trying to close too far (hitting the floor) or the force setting is too sensitive, causing it to reverse with minor resistance.
• Radio Frequency Interference: External signals are scrambling the communication between your remote and the opener's receiver.
• Engaged Manual Disconnect Lock: The door is disconnected from the opener trolley, so the motor runs but the door doesn’t move.
• Faulty Logic Board: In rare cases, the electronic brain of the opener has failed and needs to be replaced.
• Binding or Unbalanced Door: Physical resistance from a bent track, bad rollers, or, most seriously, a broken spring, is causing the opener's safety mechanism to engage.

Common Mistakes

Avoid these common pitfalls that can make the problem worse or introduce new dangers:

• Ignoring the Blink Code: The flashes are a specific message. Don't just guess; look up the code to work efficiently.
• Bypassing the Safety Sensors: Never tape the sensors together or disable them in any way. They are a critical safety feature that prevents serious injury.
• Cranking Up the Force Setting: If your door is reversing, it's for a reason. Increasing the force setting to overcome the issue can damage the door or opener and creates a massive safety hazard.
• Not Unplugging the Unit: Always disconnect the power before working on wiring or internal components of the opener.
• Splicing Wires Improperly: If you find a broken wire, use secure wire nuts or butt connectors for the repair. A simple twist-and-tape connection can easily come loose.

Cost & Time Breakdown

Tips & Prevention

• Monthly Sensor Test: Once a month, test your safety sensors. Start the door closing, then wave a broom handle through the beam. The door should immediately reverse.
• Quarterly Cleaning: Wipe down the sensor lenses every few months to prevent dust and grime buildup.
• Annual Lubrication: Lubricate your door's hinges, rollers (not the tracks), and bearings once a year with a garage-door-specific lubricant to ensure smooth operation.
• Semi-Annual Balance Test: With the opener disconnected (pull the red cord), lift the door by hand to about waist height and let go. A well-balanced door should stay put or drift down very slowly. If it slams down or shoots up, your springs need professional attention.
• Keep Wires Tidy: Ensure sensor wires are neatly stapled and secured away from foot traffic or potential snags.

When to Call a Professional

While many flashing-light issues are simple DIY fixes, some situations absolutely require a trained technician. Your safety is not worth the risk.

The number one rule is springs. If you perform the balance test and find the door is extremely heavy or difficult to lift by hand, you almost certainly have a broken torsion or extension spring. These springs are under immense tension—enough to cause serious injury or even death if they are released improperly. Never attempt to adjust, repair, or replace garage door springs yourself. This is a non-negotiable job for a professional.

Call a pro if you’ve traced the issue to a failed logic board and aren't comfortable swapping out electronic parts. If you have inspected the wiring and cannot find a break, or if there is extensive damage, a technician has tools to test for continuity and find the fault quickly. Finally, if you’ve been through all the troubleshooting steps and are still stumped, a professional diagnostic visit can save you hours of frustration and is well worth the cost. '''
