Quick Answer

If your garage door is refusing to close completely, stopping an inch or a foot short of the ground, the likely culprits are either an obstruction, misaligned safety sensors, or incorrect travel limit settings on your garage door opener. The good news is that these are often simple fixes you can perform yourself with minimal tools and basic troubleshooting skills. Start by inspecting the door's path for obvious blockages, then move on to checking and realigning the safety sensors. If those prove not to be the issue, you'll need to adjust the 'down' travel limit on your opener to tell the door how far it needs to descend.

The Problem

You press your garage door opener, and the door starts its descent, only to stop short of the ground, leaving a gap. This isn't just an inconvenience; it can compromise your home's security, expose your garage to the elements, and even allow pests inside. The door might reverse immediately after hitting the ground, or it might simply stop just shy of a full close. This issue almost always points to the garage door opener system detecting an imaginary obstruction or being improperly calibrated to its closing path. It's a common problem with several identifiable causes, most of which are designed for safety reasons.

How It Works

Understanding how your garage door system operates is key to diagnosing why it won't close. At its core, a garage door opener is an electric motor connected to a rail system. The motor pulls or pushes a trolley, which in turn moves the door along tracks via an arm. Garage door openers employ several safety mechanisms. The most critical for this specific problem are the photoelectric safety sensors and the travel limit settings.

Photoelectric Safety Sensors: These are located a few inches off the ground on each side of the garage door opening. One sensor emits an invisible infrared beam, and the other receives it. If anything breaks this beam while the door is closing, the opener system interprets this as an obstruction and immediately reverses the door to prevent injury or damage. Even a small obstruction, like a leaf, spiderweb, or a misaligned sensor that prevents the beam from reaching its target, will trigger this safety feature. Most sensors have indicator lights – usually a green light on the sender and a yellow or red light on the receiver – to show they are powered and aligned. If either light is off or flickering, it suggests a problem with the beam.

Travel Limits: Built into your garage door opener unit are 'travel limit' settings. These tell the opener how far the door should travel up (open) and down (close) before stopping. These limits are usually set at the factory but can shift slightly over time due to vibrations, wear, or if the door's balance changes. If the 'down' limit is set too high, the opener will think the door has reached the ground and stop prematurely, even if there's still a gap. Conversely, if it's set too low, the door might try to force itself into the ground, triggering the force-sensing mechanism and reversing or straining the motor.

Force Settings: In addition to travel limits, openers also have 'force' settings. These dictate how much force the opener motor should exert to move the door and how much resistance it can encounter before reversing. If the door encounters too much resistance before reaching its 'down' travel limit (e.g., due to stiff tracks, worn rollers, or an uneven door), the opener's force sensor might interpret this as an obstruction and stop or reverse the door. While less common for a door that consistently stops short, it can be a contributing factor if the door seems to struggle.

Step-by-Step Fix

1. Clear the Path – The simplest obstruction might be the culprit.

Even a small object can trigger your safety sensors. Before doing anything else, visually inspect the entire garage doorway for anything that could be blocking the invisible beam.

• Look for toys, tools, leaves, or even an errant broom handle.
• Check the tracks themselves for debris that might be causing the door to bind.
• Pay close attention to the area between the two safety sensors, near the floor.
• If this doesn't work: Move on to inspecting the sensors directly.

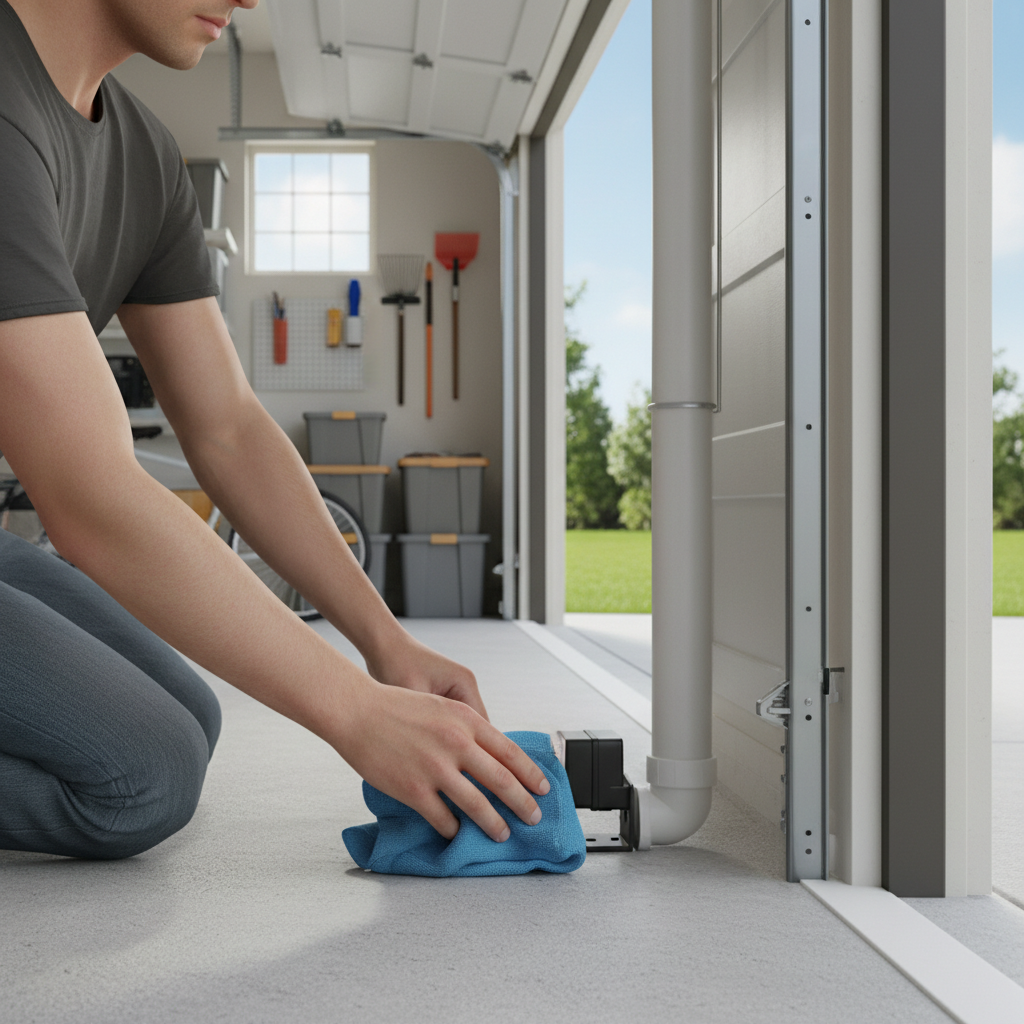

2. Clean the Safety Sensors – Dust and dirt can blind your sensors.

The photoelectric sensors can become obscured by dust, dirt, spiderwebs, or even water spots, preventing the beam from transmitting or receiving properly.

• Tools: Clean cloth or paper towel.
• Locate the two small boxes, typically mounted a few inches off the floor on either side of the garage door opening.
• Wipe down the lenses on both sensors thoroughly with a clean, soft cloth. If stubborn grime is present, a slightly damp cloth followed by a dry one can help.
• If this doesn't work: Proceed to sensor alignment.

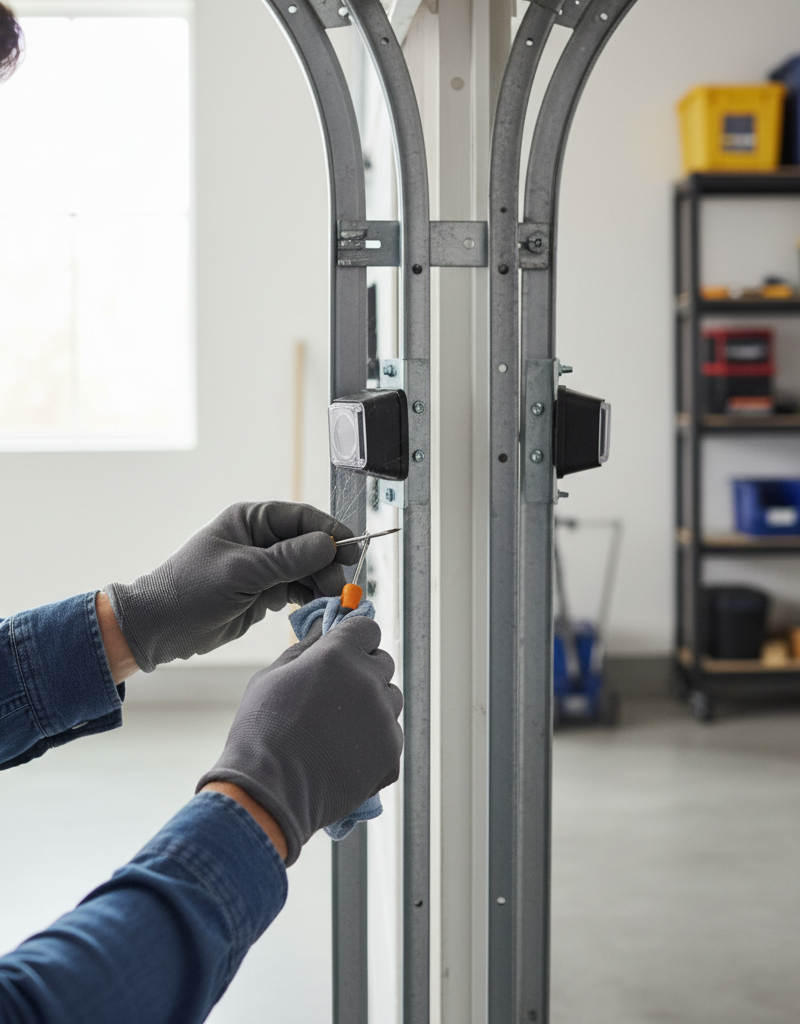

3. Align the Safety Sensors – A bumped sensor is a common cause.

If the sensors are out of alignment, the beam won't connect, and the door won't close. Look for the indicator lights on each sensor; a solid light (usually green on the sender, yellow/red on the receiver) indicates alignment. If one is off or blinking, they're misaligned.

• Safety Note: Always disconnect power to the opener before making significant adjustments if you need to physically move a bracket extensively, though minor nudges can often be done with power on to see the light response.
• Gently adjust each sensor. Start by loosening the wing nut or screw holding the sensor bracket in place. Make small, incremental adjustments to the angle of the sensor.
• Watch the indicator lights. Adjust until both lights are solid and not flickering. You may need to have someone help you by standing on the other side and telling you when the light comes on.
• Tighten the wing nuts or screws once both lights are solid. Test the door.
• Pro Tip: Use a straightedge (like a level or a 2x4) to confirm both sensors are pointing directly at each other at the same height.
• If this doesn't work: The issue might be with the travel limits.

4. Adjust the Down Travel Limit – Tell your door how far to go.

Your opener's travel limits dictate how far the door opens and closes. If the down limit is set too high, the door will stop short. The adjustment screws are typically found on the side or back of the garage door opener motor head unit, labeled 'UP' and 'DOWN' or with arrows.

• Tools: Flathead screwdriver or Phillips head screwdriver (depending on your opener model).
• Locate the 'DOWN' limit adjustment screw. Consult your owner's manual if you can't find it; it's usually near the UP limit and force adjustment screws.
• Turn the 'DOWN' limit screw clockwise in small increments (quarter turns) to increase the downward travel. This tells the door to close further.
• Test the door after each small adjustment. Close the door, observe its stopping point, and adjust again if necessary. The door should close fully, resting gently on the floor without reversing or straining.
• Crucial: Do not over-adjust. If the door slams into the ground or reverses immediately after closing, you've gone too far. Back off the adjustment slightly (counter-clockwise).
• If this doesn't work: Consider checking the door's balance.

5. Inspect the Force Settings (and Door Balance) – A heavy door needs more push.

While less common for a door that just stops short, if the door is binding or unusually heavy, the opener's force setting might be too low, causing it to prematurely reverse. Also, check the door's balance.

• Safety Note: Adjusting force settings incorrectly can be dangerous. Only make small adjustments. NEVER attempt to adjust garage door springs yourself. This is a job for a professional due to extreme tension.
• First, test the door's balance: Close the door manually about halfway. Let go. If it stays in place or moves slightly, it's balanced. If it slams down or springs up, the springs are out of whack, and you need a pro.
• If the balance is good, locate the 'FORCE' adjustment screws on your opener (often labeled 'CLOSE FORCE' or similar). Make very small, quarter-turn clockwise adjustments to increase the closing force.
• Important Safety Test: After adjusting force, perform the safety reversal test. Place a 2x4 flat on the floor in the door's path. The door must reverse upon contact with the 2x4. If it doesn't, the force is too high, and it's dangerous. Immediately decrease the force and re-test until it reverses. If it doesn't reverse even at the lowest setting, call a pro.
• If this doesn't work: It's time to consider a professional diagnosis.

Common Causes

• Obstructed Path: Something as simple as a trash can, a child's toy, or even a pile of leaves blocking the invisible beam between the safety sensors.
• Misaligned Safety Sensors: The most frequent culprit. If the two photoelectric sensors on either side of the door opening are bumped or slightly out of alignment, the beam won't connect, signaling an obstruction.
• Dirty or Damaged Sensor Lenses: Dust, dirt, spiderwebs, or moisture on the sensor lenses can prevent the beam from transmitting or receiving properly.
• Incorrect Down Travel Limit Setting: The garage door opener has a setting that tells it how far down the door needs to travel. If this limit is set too high, the opener stops the door before it reaches the ground.
• Worn or Damaged Rollers/Tracks: The door might be binding in the tracks, creating excessive resistance that triggers the opener's safety reversal feature, causing it to stop prematurely. This is less common for a door that consistently stops at the same height but can contribute.
• Weak Spring Tension (Less Common for Stopping Short): While primarily causing the door to feel heavy and possibly reverse, an improperly balanced door can sometimes trigger force sensors and lead to inconsistent stopping.

Common Mistakes

• Ignoring the Safety Sensors: Many homeowners immediately jump to adjusting travel limits without first ensuring the safety sensors are clean and properly aligned. This often leads to unnecessary adjustments.
• Over-Adjusting Travel Limits: Making large turns on the 'UP' or 'DOWN' limit screws can throw the door's operation completely off, making it harder to fine-tune. Small, incremental adjustments are key.
• Not Performing the Safety Reversal Test: After adjusting force settings, it's critical to test the door's reversal mechanism with a 2x4. Failing to do so can result in a dangerous door that won't reverse if it encounters an obstruction, posing a serious safety hazard.
• Forgetting to Check for Obstructions in the Tracks: While the floor sensors are primary, sometimes debris or a bent track can cause the door to bind and stop prematurely, even if the sensors are clear.
• Attempting to Adjust Torsion Springs: Garage door torsion springs are under extreme tension and can cause severe injury or death if handled improperly. Never attempt to repair or adjust these yourself. This is a job for a licensed professional.
• Skipping the Owner's Manual: Modern garage door openers have specific instructions and often unique adjustment points. Referring to your manual (or finding it online) can save significant time and frustration.

Cost & Time Breakdown

Tips & Prevention

• Routine Visual Inspection: Make it a habit to visually inspect your garage door path and sensors every few weeks. Look for debris, spiderwebs, or any obvious misalignment.
• Keep Sensors Clean: Regularly wipe down the lenses of your safety sensors with a clean, dry cloth to prevent dust and grime buildup.
• Periodic Balance Test: Perform the door balance test (disconnect the opener, manually open halfway – it should stay put) every six months. If the door isn't balanced, consult a professional for spring adjustment or replacement.
• Lubricate Moving Parts: Annually lubricate the rollers, hinges, and springs with a silicone-based garage door lubricant (never WD-40). This helps the door operate smoothly and reduces strain on the opener.
• Check Track Fasteners: Ensure all bolts and screws holding the tracks to the wall are tight. Loose fasteners can cause the tracks to shift, leading to binding.
• Educate Family Members: Teach everyone in the household to avoid leaving objects in the garage door's path and to report any unusual operation immediately.

When to Call a Professional

While many garage door closing issues are DIY-friendly, some problems require the expertise and specialized tools of a licensed garage door technician. You should call a professional immediately if you suspect issues with the garage door springs (torsion or extension springs), as these are under extreme tension and can cause serious injury or death if mishandled by an untrained individual. Similarly, if your garage door opener motor is making grinding noises, smoking, or smelling of burning, discontinue use and call a pro. If the door is visibly crooked, binding severely in the tracks, or appears to have structural damage, a professional can safely diagnose and repair these complex mechanical issues. Any electrical wiring problems beyond simply plugging in the opener should also be left to a licensed electrician or garage door technician to avoid shock hazards. If, after following all troubleshooting steps, the door still refuses to close correctly and you've verified all accessible components are functioning, a professional can provide an in-depth diagnosis and solution.
