Quick Answer

Protecting your outdoor sprinkler system from the destructive forces of freezing temperatures is a critical annual task for any homeowner in a cold climate. The quickest and most reliable method involves using an air compressor to forcefully purge all water from the irrigation lines, sprinkler heads, and valves. This blow-out technique ensures no residual water remains to expand, freeze, and crack your system's components, saving you from expensive repairs come spring. Skipping this step or performing it incorrectly is the leading cause of burst pipes and damaged sprinkler heads.

The Problem

As temperatures consistently drop below 32°F (0°C), any water remaining in your sprinkler system's pipes, valves, and sprinkler heads will freeze and expand. Water expands by about 9% when it turns to ice, and this seemingly small increase in volume generates immense pressure, often exceeding 2,000 pounds per square inch (PSI). Residential irrigation systems are typically rated for pressures between 70-100 PSI during operation. This enormous discrepancy means that even minor amounts of trapped water can easily rupture PVC pipes, destroy delicate seals in valves, and crack sprinkler heads. Not only is this an expensive repair, often requiring excavation, but it can also lead to significant water waste and landscape damage when the system is reactivated in the spring.

How It Works

An irrigation system, at its core, is a network of pipes, valves, and sprinkler heads designed to deliver water efficiently to your lawn and garden. Water is drawn from your main water supply, often through a backflow preventer to protect your potable water from contamination, and then distributed through a series of underground pipes to various zones. Each zone is controlled by an electric solenoid valve, which opens and closes based on signals from your irrigation controller. When a zone activates, water flows through the specific lateral lines to a set of sprinkler heads, which then spray water onto the designated area.

During winterization, the goal is to remove all water from this intricate network. Simply draining the system by opening valves is often insufficient because gravity alone cannot overcome sags in the lines, small pockets of water trapped in fittings, or the intricate pathways within sprinkler heads and valves. The blow-out method bypasses this limitation by using compressed air. The air compressor forcefully pushes air into the system, creating a high-velocity flow that sweeps the water out through the opened sprinkler heads. The key is to introduce air gradually and at a controlled pressure, ensuring the water is pushed out without damaging the system components. The backflow preventer, which often contains internal check valves, also needs to be drained and protected, as it is a common failure point.

Step-by-Step Fix

1. Shut Off Water Supply — Crucial first step to prevent water from re-entering the system.

Locate your main irrigation shut-off valve, typically near where the sprinkler system connects to your home's main water line. Turn it completely off. This valve is often a ball valve or gate valve. Once off, open a nearby outdoor faucet to relieve any residual pressure in the domestic water line connecting to the sprinkler system. This ensures no new water infiltrates the system during the blow-out process.

2. Drain the Backflow Preventer — Protect this critical, often expensive component.

Locate your backflow preventer (it's usually above ground, often brass or heavy plastic). On most models, there are two test cocks and two shut-off valves. Close the shut-off valve closest to the water source (supply side). Open the two test cocks by turning the small screws counter-clockwise with a flathead screwdriver until water drains, then open the second shut-off valve (system side). Leave all valves and test cocks open at a 45-degree angle for drainage and protection. Some backflow preventers may have drain plugs, which you should remove.

• If your backflow preventer is below ground: Some systems have in-ground backflow preventers, which may require careful excavation or specialized access. Consult your system's manual or a professional if unsure.
• Safety Note: Wear eye protection when working with backflow preventers, as residual water can spray out.

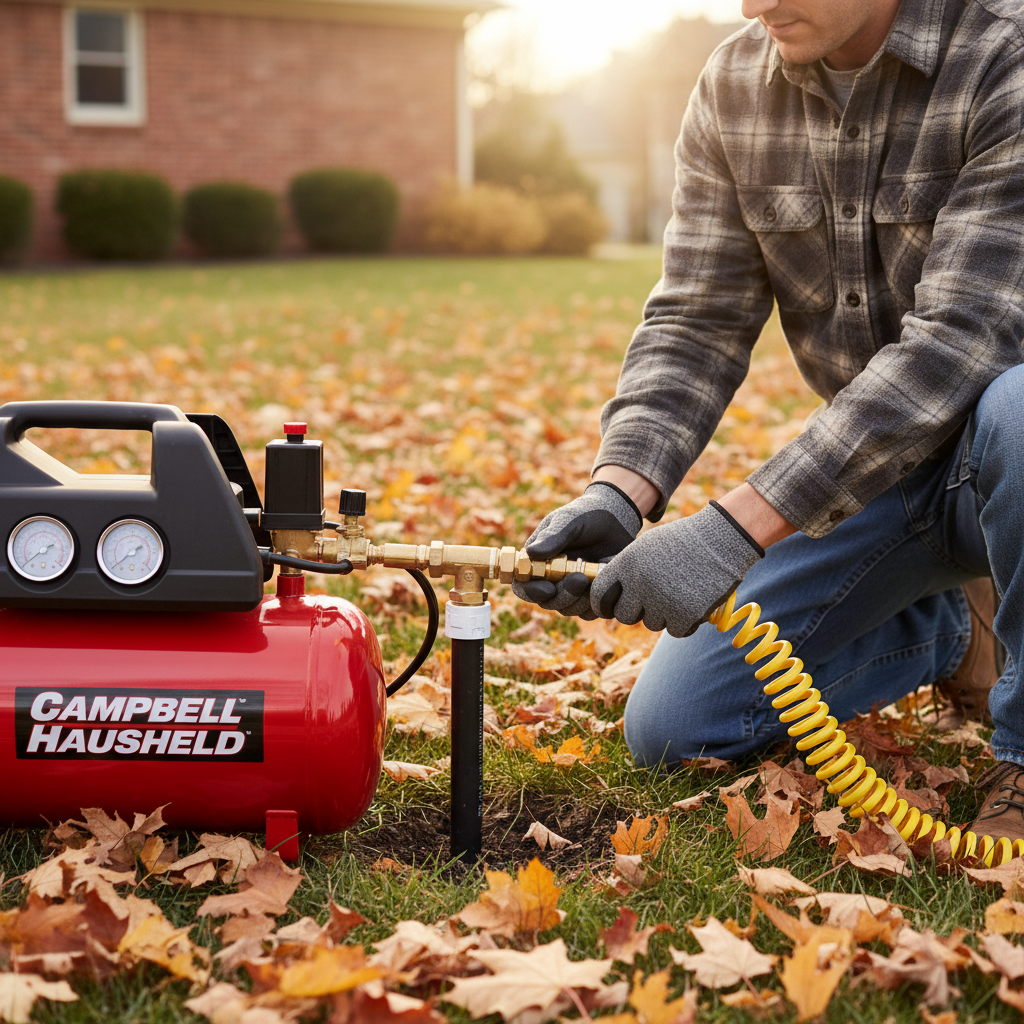

3. Connect the Air Compressor — Proper connection prevents damage.

Find the compressor connection point, usually a male threaded fitting located downstream of the backflow preventer. This might be a dedicated blow-out port or a connection within the main manifold. Attach your air compressor hose to this fitting. Ensure the connection is secure to prevent air leaks and maintain pressure. Set your air compressor's regulator to a maximum of 50 PSI for PVC systems and 80 PSI for polyethylene (black flexible pipe) systems. Never exceed these pressures, as structural damage to pipes and components can occur.

• Tool Tip: Use Teflon tape on threaded connections to ensure a tight, leak-free seal for the compressor hose.
• If you don't have a dedicated blow-out port: You might need an adapter to connect to a different point, such as a garden hose spigot, but ensure it's on the system side of the main shut-off valve and backflow preventer.

4. Start with the Furthest Zone — Systematic purging ensures complete water removal.

Turn on only one zone at a time using your irrigation controller. Begin with the zone physically furthest from where your air compressor is connected. Start the air compressor. Allow compressed air to flow through the zone until only a mist or no water at all comes out of the sprinkler heads, indicating all water has been purged. This usually takes 2-3 minutes per zone. Do not run the compressor for extended periods once dry, as this can generate friction and heat, potentially damaging sprinkler heads and seals.

5. Cycle Through All Zones — Repeat the process for comprehensive drying.

Once the first zone is clear, turn off the compressor, then turn off that zone on your controller. Move to the next furthest zone and repeat the process: turn on the zone, start the compressor, wait for mist or no water, then turn off the compressor and the zone. Continue this systematic process until every single zone in your sprinkler system has been thoroughly blown out. Pay close attention to any areas that appear to retain water for longer, as these may indicate low spots.

• If water continues to emerge: It might mean your main shut-off isn't fully closed, or you have a very significant low point. Double-check your main valve, and if the problem persists, you may need a higher volume of air or professional intervention.

6. Bleed Main Line & Master Valve (If Applicable) — Don't forget the primary artery.

If your system has a master valve (a main valve that opens only when any zone is active) or a dedicated main line drain, ensure these are also bled of water. With all zone valves closed, connect the compressor, and briefly open the master valve manually or via the controller to purge any remaining water from the main supply line itself. Some systems have a manual drain valve at the lowest point of the main line; open this until water ceases.

7. Disconnect Compressor & Relieve Air — Safety first when finishing.

Once all zones are purged, turn off the air compressor and disconnect it from your irrigation system. It's essential to relieve any remaining air pressure in the system. Open one of the main shut-off valves or a test cock on the backflow preventer to allow any trapped air to escape slowly. Store your compressor in a clean, dry place.

8. Close All Valves & Controller Off — Final protective measures.

Ensure all drain valves, test cocks on the backflow preventer, and any other opened valves are left open or partially open (45-degree angle) to prevent water from accumulating. Turn your irrigation controller to the
