Quick Answer

A chimney leaking during rain is most commonly caused by a damaged chimney crown, which is the concrete slab protecting the top of your chimney structure. Cracks in the crown allow water to penetrate the masonry below, leading to interior leaks and potential structural damage, often mistaken for flashing problems. Addressing a damaged chimney crown promptly prevents further water infiltration and costly repairs.

The Problem

You've noticed the tell-tale signs: dampness on an interior wall near your fireplace, water stains on the ceiling, or even active drips from inside the firebox after a heavy rain. Your chimney, an otherwise robust structure, is failing its primary job: keeping water out. While many homeowners immediately suspect the flashing where the chimney meets the roof, a far more frequent—and often overlooked—culprit is the chimney crown. This concrete or stone slab sits atop your chimney, acting as an umbrella, directing water away from the flue and the vulnerable masonry below. Over years of exposure to sun, rain, freeze-thaw cycles, and general wear and tear, this crucial component can develop cracks, spalling (flaking or pitting), or even pieces breaking off. When the crown is compromised, rain no longer sheds properly. Instead, it seeps into the chimney structure, migrating down through the brickwork, flue liner, and eventually manifesting as water damage inside your home. Ignoring a damaged chimney crown can lead to significant issues, including deteriorated mortar joints, damaged flue liners, rotted wood framing, and extensive interior water damage, none of which are pleasant to deal with.

How It Works

To understand why a faulty chimney crown leads to leaks, it helps to visualize the chimney's anatomy and how it interacts with the elements. The chimney stack itself extends above the roofline, exposed to the full force of weather. At its very top is the chimney crown, typically a slab of concrete, stone, or pre-cast metal designed to overhang the chimney masonry by at least two inches. This overhang, often called a drip edge, is critical because it ensures that rainwater falling on the crown flows clear of the vertical brickwork, preventing it from running down the sides and saturating the mortar joints and bricks. Rain and snow hitting the crown are shed outwards, protecting the entirety of the chimney structure below.

Below the crown, the flue liner—made of clay, metal, or a cast-in-place material—carries smoke and combustion byproducts safely out of your home. The crown also seals the top of the flue liner, preventing water from directly entering the flue passage and potentially traveling down to your firebox. When the chimney crown develops cracks or becomes porous, its protective barrier is compromised. Instead of shedding water, the cracks act as direct conduits, allowing rainwater to penetrate the crown and seep into the underlying masonry. This water then saturates the brick and mortar, which are naturally porous to some degree. Once the masonry is wet, gravity takes over. The water finds the path of least resistance, wicking downwards through the brickwork and collecting on internal ledges, eventually making its way into your home. This internal water travel can be complex, often appearing far from the actual entry point, leading many homeowners to misdiagnose the problem as a roof or flashing issue. A properly constructed crown is slightly sloped away from the flue to promote drainage, a design feature that is lost when cracks emerge.

Step-by-Step Fix

Before undertaking any work on your chimney, especially on the roof, assess your comfort level and safety. If you are uncomfortable with heights or working on a ladder, or if your roof pitch is steep, it's always best to call a professional.

1. Safety First — Working on a roof can be dangerous. Safely set up a sturdy ladder. Ensure it extends at least three feet above the roof edge and is secured. Wear non-slip shoes, gloves, and protective eyewear. If working alone, let someone know your plans. Avoid working in wet, windy, or icy conditions.

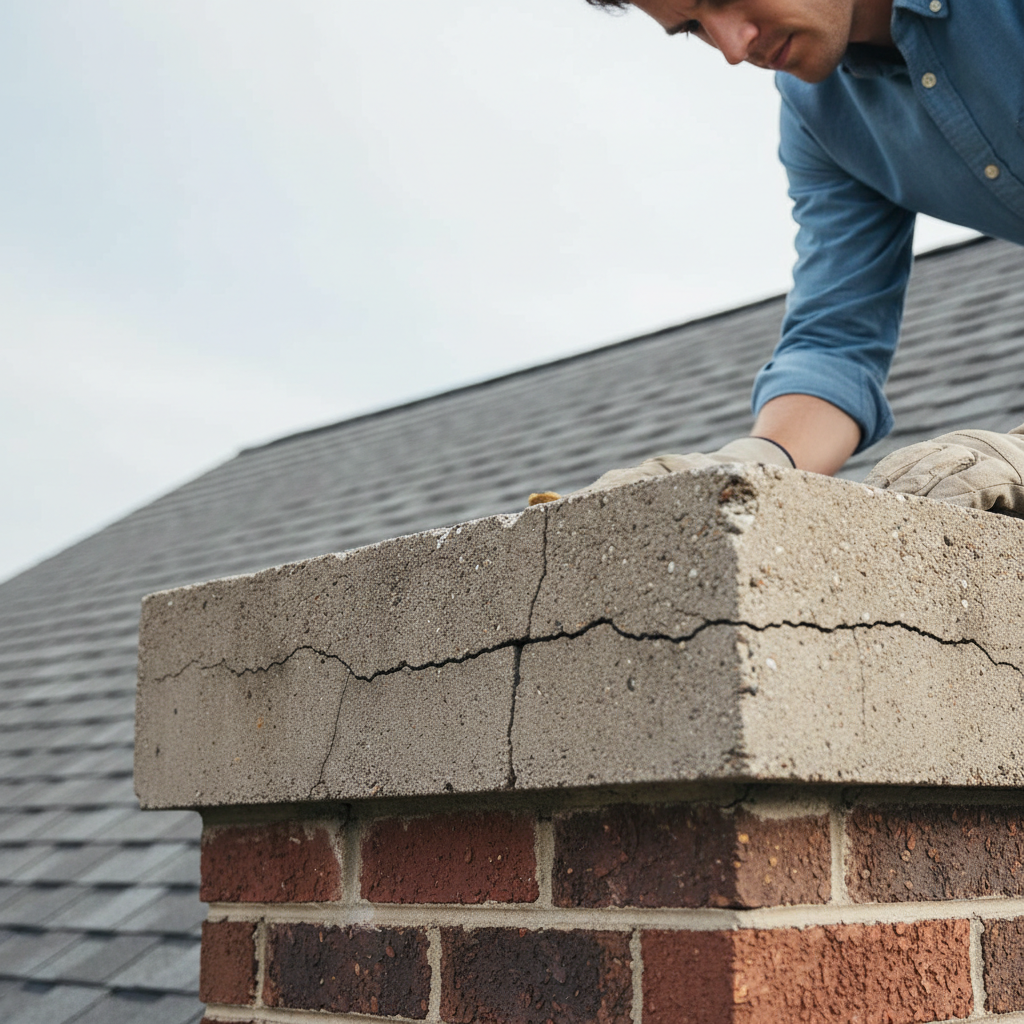

2. Assess the Damage — Inspect the chimney crown thoroughly. Carefully climb onto the roof (if safe to do so) and examine the chimney crown. Look for any visible cracks, from hairline fractures to larger, more significant breaks. Check for crumbling concrete, pitting, or areas where the crown doesn't overhang the chimney masonry sufficiently. Pay close attention to the seal around the flue liner. You might need to gently clean off any moss or debris to get a clear view. Take photos for reference.

3. Clean the Crown — Prepare the surface for repair. Using a stiff wire brush, thoroughly clean the entire surface of the chimney crown. Remove all loose debris, dirt, moss, and any flaking concrete. A shop vacuum can help remove fine dust. The surface must be clean, dry, and free of any loose material for the bonding agent and sealant to adhere properly. For very stubborn moss or mildew, a diluted bleach solution (1 part bleach to 10 parts water) followed by a rinse and thorough drying can be used.

4. Apply Bonding Agent (Optional but Recommended) — Improve adhesion for the new material. For significant cracks or spalling, applying a concrete bonding agent (often a liquid acrylic emulsion) to the clean, dry crown surface will improve the adhesion of the repair material. Follow the manufacturer's instructions for application and drying time. This step is particularly important if you are using a cement-based repair mix.

5. Repair Cracks and Surfaces — Fill and smooth the damaged areas. For hairline cracks, a high-quality, flexible chimney crown sealant or elastomeric patching compound designed for exterior masonry is usually sufficient. Apply it directly into the cracks with a caulk gun, smoothing it with a trowel or putty knife. For larger cracks, spalling, or missing chunks, use a cement-based chimney crown repair mix or a mortar repair compound. Mix the material according to the manufacturer's instructions, aiming for a consistency similar to peanut butter. Apply the mixture with a trowel, pressing it firmly into the cracks and building up any spalled areas. Feather the edges so it blends seamlessly with the existing crown and maintains a slight slope away from the flue.

• Small cracks (under 1/8 inch): Use a high-quality elastomeric sealant or 100% silicone caulk designed for masonry.
• Larger cracks (over 1/8 inch) or spalling: Use a patching compound or a pre-mixed chimney crown repair product.
• If you expose the flue liner while cleaning: Ensure the new material creates a watertight seal around the flue, without blocking it.

6. Ensure Proper Slope and Overhang — Prevent future water accumulation. As you apply the repair material, ensure the finished surface has a slight slope (at least 1/8 inch per foot) away from the flue liner and towards the edges of the crown. This helps water run off efficiently. Also, verify that the crown material extends slightly beyond the chimney masonry on all sides (ideally 1.5 to 2 inches) to form a drip edge, preventing water from clinging to and running down the brickwork. If your existing crown lacks a proper overhang, you can often build it up carefully with a repair mix, creating a new, effective drip edge.

7. Apply Masonry Sealer (Optional but Recommended) — Add an extra layer of protection. Once the repair material has fully cured (check manufacturer's instructions, usually 24-72 hours), consider applying a clear, breathable masonry sealer to the entire surface of the chimney crown (and potentially the top few courses of brick). This will add an extra layer of water repellency, further protecting against future water penetration and freeze-thaw damage.

8. Reinspect Periodically — Maintain your repair. Regularly (at least annually) inspect your chimney crown, especially after harsh weather seasons. Catching small cracks early makes for much simpler, quicker repairs. Look for any new cracks or signs of deterioration and address them promptly.

Common Causes

• Weather Exposure and Freeze-Thaw Cycles: The most significant factor. Constant exposure to sun, rain, snow, and ice causes materials to expand and contract. Water seeping into tiny micro-cracks can freeze, expanding and widening those cracks, a process that compounds over years.
• Improper Crown Construction: Many older or builder-grade crowns were constructed using a simple mortar mix, which is not as durable or waterproof as a proper concrete crown. Crowns that do not have an adequate overhang (drip edge) or are not properly sloped also fail prematurely.
• Lack of Maintenance: Ignoring small cracks or minor spalling allows them to worsen over time, leading to significant structural compromise.
• Chimney Cap Installation Issues: If a chimney cap was installed improperly, or not sealed correctly, it can trap water on the crown, or cause damage during removal or reinstallation.
• Poor Flue-to-Crown Seal: The interface where the flue liner exits through the crown must be perfectly sealed. If this seal degrades, water can enter directly into the flue system and then migrate outwards.

Common Mistakes

• Ignoring Small Cracks: Many homeowners overlook hairline cracks, believing they are minor. These tiny cracks are entry points for water, which, through freeze-thaw cycles, will inevitably grow into larger, more problematic fissures.
• Using the Wrong Repair Material: Applying standard exterior caulk or roofing tar to a chimney crown is a temporary fix at best. These materials often lack the specific elasticity, adhesion, and UV resistance needed for a durable crown repair and will fail quickly.
• Not Cleaning the Surface Properly: Any dirt, loose debris, or organic growth on the crown will prevent the new repair material from bonding effectively, leading to premature failure of the patch.
• Failing to Create a Drip Edge: Repairing cracks without ensuring the crown has a proper overhang and drip edge means water will continue to run down the sides of the chimney masonry, saturating it and potentially causing new problems.
• Working in Unsuitable Weather: Attempting repairs during cold, wet, or excessively hot conditions can compromise the curing process of cement-based or sealant materials, leading to a weak or ineffective repair.
• Forgetting About the Flue Seal: It's easy to focus on the flat surface of the crown, but the seal where the flue liner exits the crown is a critical point of failure. Ensure this area is also watertight during your repair.

Cost & Time Breakdown

Tips & Prevention

• Annual Visual Inspection: Make it a habit to visually inspect your chimney crown from the ground with binoculars every fall and spring. Look for any visible cracks, spalling, or missing pieces. If you can safely access the roof, a closer inspection once a year is highly recommended.
• Consider a Chimney Cap: While not directly preventing crown cracks, a good chimney cap protects the flue from rain, debris, and animals. Ensure it's properly installed and sealed at its base.
• Proper Crown Construction: If you ever replace your chimney crown, ensure it's built with reinforced concrete (e.g., with rebar mesh) and has a proper overhang (at least 2 inches) and slope for optimal water shedding abilities.
• Elastomeric Crown Sealer: After repairs, or on an intact but aging crown, consider applying a breathable elastomeric chimney crown sealer every 5-10 years. This liquid membrane creates a flexible, waterproof barrier that can bridge minor hairline cracks and extend the life of your crown.
• Address Issues Promptly: Small cracks or minor issues are much easier and cheaper to fix than extensive damage. Don
