Quick Answer

Older homes frequently utilize a wiring configuration called a switch loop, where a single electrical cable runs to the light fixture and then down to the switch. A critical safety concern arises when the white wire in this loop, traditionally neutral, carries 'hot' (live) power, often unmarked. This non-standard use can lead to dangerous DIY mistakes and improper repairs if not correctly identified and handled.

The Problem

You're upgrading an old light fixture or replacing a faulty switch, and you encounter a white wire that, against all your instincts, tests as 'hot.' This isn't a mistake; it's a common, albeit confusing, wiring method known as a switch loop, especially prevalent in homes built before the 1970s or 80s, and even sometimes after. The danger isn't just confusion; it's the very real risk of electrical shock, short circuits, or property damage if these wires are misidentified or haphazardly connected. A homeowner expecting a white wire to always be neutral can inadvertently connect a hot leg where it doesn't belong, or worse, believe a circuit is de-energized when a 'neutral' wire is still live. Understanding this specific wiring nuance is crucial for any electrical work in older homes, ensuring both safety and proper functionality.

How It Works

To grasp the switch loop, first consider standard wiring: power (hot) goes to the device, then the device completes the circuit back to the panel via neutral, and ground provides safety. In a typical light fixture setup, you'd have a Romex (NM-B) cable containing black (hot), white (neutral), and bare copper (ground) wires running to the fixture box, and another such cable running from the fixture box down to the switch box. The black wire would bring power to the fixture, the white would return neutral, and a separate black wire would carry switched power from the switch back to the fixture.

A switch loop, however, economizes cable. Instead of two separate runs, one 14/2 or 12/2 (with ground) Romex cable runs from the light fixture box down to the switch box and back up to the fixture. Here's the trick: the constant 'hot' power, which originates at the fixture box, travels down to the switch on one wire, and the switched hot power travels back up to the fixture on the other wire in the same cable. Because 14/2 or 12/2 cable only contains black, white, and ground, one of these wires has to do double duty. Historically, the white wire was often chosen to carry the constant hot power down to the switch, and the black wire carried the switched hot power back up to the fixture. This means the white wire, which is conventionally neutral, becomes a hot conductor. The bare copper wire always serves as the ground.

This configuration saves on cable and simplifies rough-in, but it creates a visual anomaly: a white wire that's not neutral. Modern electrical codes (NEC 2011 and later) often require that any 'ungrounded' (hot) conductor repurposed to a color other than black, red, or blue must be re-identified at both ends with colored electrical tape (typically black or red) to indicate its function as a hot wire. However, in older installations, this re-identification was rarely done, leaving homeowners to decipher the wiring without clear visual cues.

Step-by-Step Fix

Safety First — Always turn off the power at the main breaker panel before attempting any electrical work. Verify the circuit is dead using a non-contact voltage tester. Even once turned off, double-check!

1. Identify Your Wiring — Carefully open the light fixture box and the switch box. You'll likely see a single 2-wire (plus ground) cable entering both the fixture and the switch boxes. In the fixture box, look for the cable coming from the power source (typically black to source hot, white to source neutral) and the cable going down to the switch. The switch loop cable will have its black and white wires connected to the fixture. In the switch box, the black and white wires are connected to the switch terminals. If you see more complex wiring than described, stop and call a professional electrician.

   • Tool Tip: A flashlight and careful observation are your best friends here. Don't rush.

2. Test for Live Wires (When Shut Off) — Even after turning off the breaker, use a non-contact voltage tester to confirm no power is present at the switch and the fixture. Touch the tester to each wire individually (black, white, bare copper ground) in both boxes. The tester should remain silent and dark.

   • Safety Note: Never assume a wire is dead simply because the switch is off or a breaker is flipped. Always test.

3. Identify Hot and Switched Hot — With the power still off, mentally trace the path. Assuming an older switch loop: the white wire typically brings constant hot power down to the switch, and the black wire brings switched hot power back up to the fixture. In the fixture box, the white wire from the switch loop cable will be connected to the incoming power hot (black wire from the source). The black wire from the switch loop cable will connect to the light fixture's hot terminal (usually black).

   • If this doesn't match: Your wiring might be different. Take a clear picture, document the connections, and consult an electrician. Do not proceed if unsure.

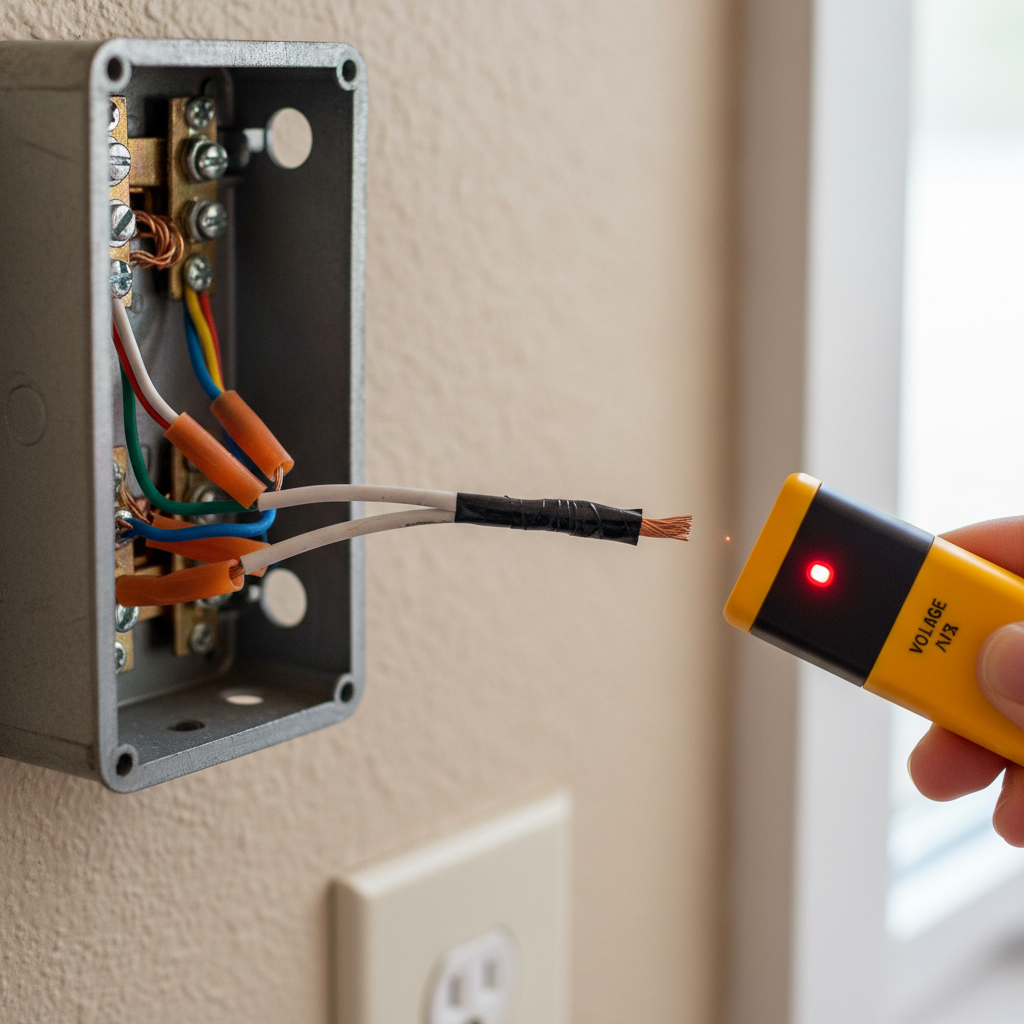

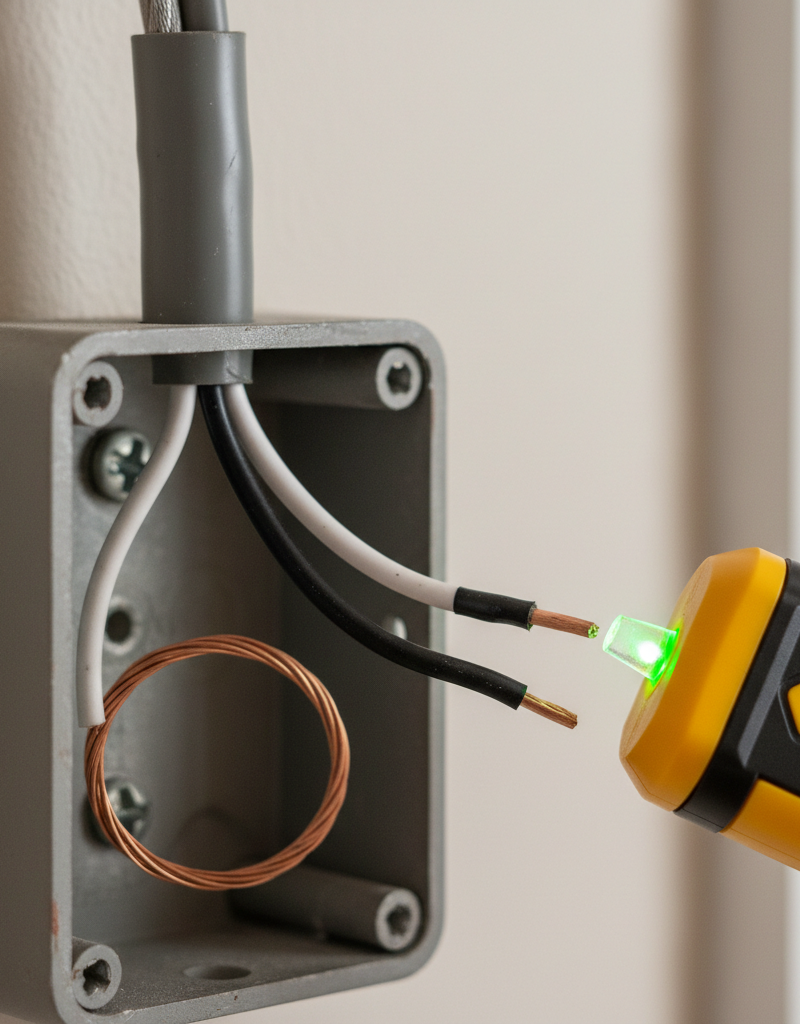

4. Mark the 'Hot' White Wire — If you confirm the white wire in the switch loop is carrying ungrounded (hot) power, use black or red electrical tape to wrap around both ends of this white wire for several inches. This clearly identifies it as a hot conductor, preventing future confusion.

   • Material: High-quality electrical tape (black or red).

5. Disconnect Safely — Carefully disconnect the wires from the old switch or fixture. Take photos before you disconnect anything to serve as a reference. Use wire nuts to cap off any exposed live wires if you need to temporarily leave them, ensuring they are not touching anything.

6. Connect the New Switch/Fixture — Follow the instructions for your new device. If it's a simple switch replacement, connect the marked 'hot' white wire to one terminal and the 'switched hot' black wire to the other terminal. Connect the bare copper ground wire to the switch's green ground screw. For a new fixture, ensure the black wire from the switch loop (the switched hot) connects to the fixture's black wire, and the neutral from the power source connects to the fixture's white wire. The constant hot (taped white wire from the loop) connects to the incoming black from the power source.

   • Tip: Don't overtighten screws on switches, but ensure they are snug to prevent loose connections.

7. Secure and Test — Gently push the wires back into the electrical box. Install the new switch or fixture cover plate. Restore power at the main breaker. Test the switch and light fixture for proper operation.

Common Causes

The primary 'cause' of switch loop wiring with a repurposed white wire is historical convention and cost-saving measures in residential electrical installations. Before more stringent code requirements and the widespread availability of 14/3 or 12/3 (black, red, white, ground) Romex cable, electricians would use a single 14/2 or 12/2 cable to run power to a switch and back to a fixture. This minimized material costs and simplified the wiring path, especially when the power source was at the light fixture box rather than the switch box. The intent was to get the necessary conductors to the switch using the fewest wires possible, even if it meant repurposing a conventionally neutral-colored wire for a hot function.

Common Mistakes

• Assuming White is Always Neutral: This is the number one mistake. Always test a white wire for voltage, especially in older homes, before assuming it's neutral. Not doing so can lead to severe shocks.
• Forgetting to Mark Repurposed Wires: Failing to mark a white wire carrying hot power with black or red electrical tape perpetuates the confusion for future homeowners or electricians, creating a potential hazard down the line.
• Ignoring Ground Wires: Neglecting to connect the bare copper ground wire to the fixture or switch housing significantly increases the risk of shock in case of a fault. Always ensure proper grounding.
• Overloading Circuits: While not directly related to switch loops, adding new fixtures without understanding the circuit's capacity can lead to tripped breakers or, worse, electrical fires. Consult an electrician if adding significant loads.
• Working with Power On: Attempting any electrical work with the power still on at the breaker is extremely dangerous and can result in electrocution. Always verify the circuit is dead.
• Using the Wrong Wire Gauge: Mismatched wire gauges can lead to overheating and fire hazards. Ensure replacement wires (if any) match the existing gauge (e.g., 14-gauge for 15-amp, 12-gauge for 20-amp circuits).

Cost & Time Breakdown

Tips & Prevention

• Document Everything: When working on your home's electrical system, take photos of the wiring before you disconnect anything. Label wires clearly, especially if they deviate from standard color codes.
• Regular Inspections: Periodically inspect visible wiring for signs of damage, fraying, or loose connections. This is especially true for older homes.
• GFCI Protection: Consider upgrading outlets in bathrooms, kitchens, and outdoors to Ground Fault Circuit Interrupter (GFCI) outlets for enhanced safety against electrical shock.
• Arc-Fault Circuit Interrupter (AFCI) Breakers: For bedrooms and other living areas, AFCI breakers can detect dangerous arcing faults that might not trip a standard breaker, providing an additional layer of fire prevention.
• Know Your Breaker Panel: Familiarize yourself with your home's main electrical panel. Label circuits clearly so you can quickly identify and shut off power to specific areas.
• Avoid DIY Overreach: For complex electrical issues, always err on the side of caution and call a licensed electrician. Electrical work is not one-size-fits-all, and specific local codes may apply.

When to Call a Professional

While identifying and correctly marking a switch loop can be a manageable DIY task for many homeowners, there are clear indicators when it's time to put down the tools and call a licensed professional. If you encounter aluminum wiring, which requires specialized connectors and handling, or if the wiring in your switch or fixture box is extremely old, brittle, or crumbly, an electrician is essential. Any signs of burnt wiring, persistent flickering lights that aren't resolved by simple fixes, or strange buzzing sounds from switches or outlets warrant immediate professional inspection. Furthermore, if you're attempting to add new circuits, upgrade your electrical panel, or if you simply feel overwhelmed or unsure about any step in the process, a licensed electrician can ensure the work is done safely and up to code, protecting your home and family from potential hazards.
