Quick Answer

When your gas stove burner refuses to ignite, it's often a simple fix. Most problems stem from a clogged burner port, food debris on the igniter, or a loose electrical connection to the spark module. Before attempting any repairs, ensure your stove is unplugged or the gas supply is turned off. A thorough cleaning of the burner components and inspecting the igniter for proper function can resolve the issue in many cases. If cleaning doesn't work, a multimeter can help diagnose electrical faults.

The Problem

You're cooking dinner, go to ignite a burner, and... nothing. No click-click-click, or maybe it clicks but never lights the gas. This isn't just an inconvenience; it can throw off your entire meal plan and potentially indicate a safety concern if gas is flowing without ignition. A non-lighting burner can be frustrating, especially when other burners work perfectly fine. The good news is that many of the underlying causes, from simple clogs to minor electrical interruptions, are entirely within the realm of a confident DIYer to diagnose and often fix.

How It Works

Understanding how a gas stove burner lights helps in troubleshooting. When you turn a burner knob to the 'light' position, two primary actions occur simultaneously. First, the gas valve opens, allowing natural gas (or propane) to flow through a small orifice and into the burner head. The burner head is designed with precisely drilled ports that distribute this gas evenly. Second, an electrical circuit is completed, sending a high-voltage pulse to a ceramic igniter (also called a spark electrode) positioned near the gas ports. This igniter creates a continuous spark, jumping across a small air gap to a grounded metal part of the stove. When the gas flowing from the burner ports mixes with air and comes into contact with this spark, it ignites, producing a flame. The spark continues for a few seconds after ignition to ensure the flame is established, then stops. If any part of this sequence — gas flow, spark generation, or the interaction between the two — is interrupted, the burner will fail to light. Modern stoves often use a 'spark module' that supplies power to all igniters, while individual igniters connect to this module via heat-resistant wires. Some systems also include a flame sensor that detects if a flame is present, shutting off gas if it isn't, though this is more common on ovens.

Step-by-Step Fix

Before you begin any work, SAFETY FIRST: Always unplug the stove or turn off the circuit breaker supplying power to the stove. For gas issues, turn off the main gas supply valve to the range or even to the house if you suspect a gas leak.

1. Inspect and Clean Burner Components — The most common culprit

   • Remove the grates, burner caps, and burner heads. These usually lift straight off. Keep track of which cap belongs to which burner if they vary in size.
   • Look for food debris, grease, or spills obstructing the small gas ports around the burner head. Use a straightened paperclip, needle, or a small wire brush to clear these ports. Be gentle to avoid widening or damaging the ports.
   • Clean the underside of the burner cap and the entire burner head with warm, soapy water and a non-abrasive sponge or brush. Ensure all soap residue is rinsed thoroughly.
   • If this doesn't work: Verify the gas orifice (the small brass fitting directly under the burner head) isn't clogged. You might need a small wire or compressed air, but be careful not to push debris further in.

2. Clean the Igniter (Spark Electrode) — Often overlooked

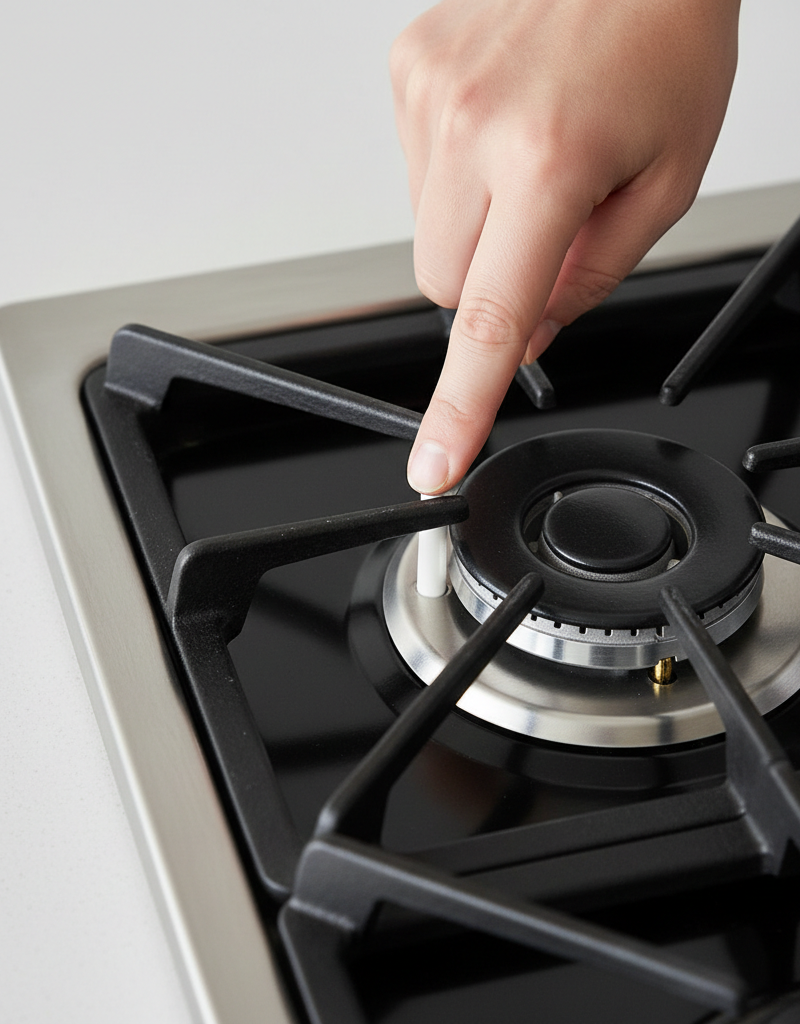

   • Locate the ceramic igniter, a small, white pin with a metal tip, usually found next to the burner.

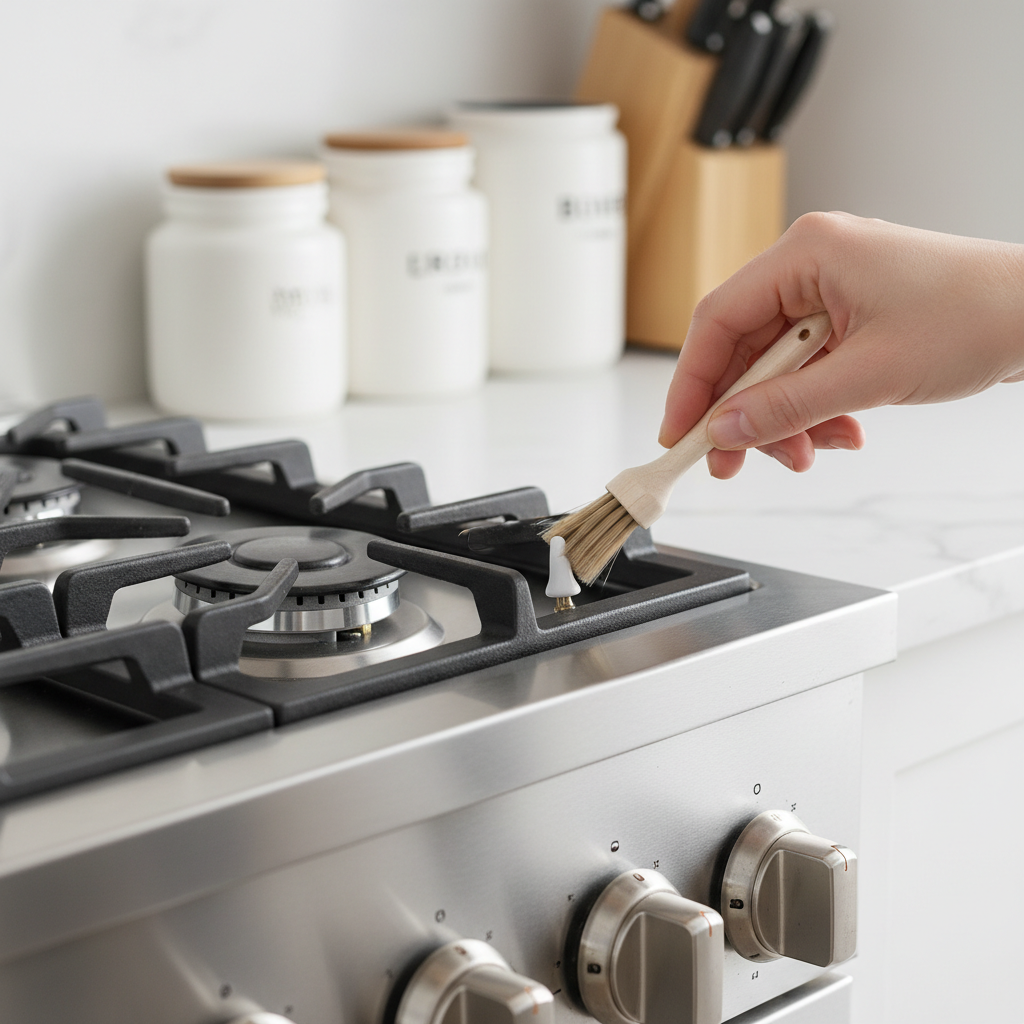

   • Gently clean the ceramic and metal tip with a dry toothbrush or a small piece of fine-grit sandpaper (like 400-grit) to remove any caked-on food, grease, or carbon buildup. Avoid harsh chemicals as they can leave residues.
   • Ensure the igniter is not cracked or chipped. A damaged igniter will not spark properly.
   • If this doesn't work: Check the igniter's proximity. It should be very close to the burner head. If it's bent, gently bend it back into position with needle-nose pliers, ensuring it doesn't touch the burner head.

3. Check for Spark — Diagnosing igniter function

   • After cleaning and while the burner components are still off (but grates are removed), plug the stove back in or turn the breaker on.
   • Turn the problematic burner knob to the 'light' position. You should hear a rapid clicking sound, and see a strong, consistent spark jumping from the igniter tip to the metal base of the stove or burner assembly.
   • If no spark: The igniter is likely faulty, there's a wiring issue, or the spark module is failing.
   • If weak or inconsistent spark: Re-clean the igniter and ensure connections are tight. A weak spark often indicates a partial obstruction or a dying igniter.

4. Inspect Wiring Connections — Loose connections are culprits

   • Unplug the stove again. Access the spark module. This often involves removing the back panel of the stove or lifting the cooktop. Consult your appliance's user manual for specific access instructions.
   • Locate the spark module (a small, often black box with multiple wires coming out of it) and the wires leading to the problematic igniter.
   • Visually inspect all wire connections, ensuring they are firm and free from corrosion or烧焦 marks. Gently tug on each wire to confirm it's seated securely.
   • If a wire is loose or damaged: Reconnect it firmly. If visibly damaged (frayed, cracked insulation, or burn marks), the wire needs to be replaced. This often requires a service professional.
   • Note on continuity: If you have a multimeter, you can check for continuity between the igniter and the spark module. With power off, disconnect the wire from both ends and test. No continuity means a broken wire.

5. Test Gas Flow — Is gas actually getting there?

   • With the burner components removed, carefully turn the gas supply back on to the stove.
   • Briefly turn the problematic burner knob to 'light' (DO NOT SPARK if you smell gas). You should hear a faint hiss of gas coming from the orifice. If you smell gas, immediately turn off the gas supply and ventilate the area. If no hiss, the orifice might be clogged, or there's an issue with the gas valve or supply line.
   • Safety Note: Do not perform this step for more than a few seconds. If you smell gas and there's no ignition, turn off the gas immediately and ventilate the area. A buildup of unignited gas is an explosion hazard.

6. Replace the Igniter — If spark is the problem

   • If you've confirmed no spark or a weak spark despite cleaning, and wiring is good, the igniter itself might be bad.
   • Purchase a replacement igniter specific to your stove's make and model.
   • Unplug the stove. Disconnect the old igniter's wire, then unthread or unclip the igniter from its mounting bracket. Install the new igniter in reverse order. Ensure it's securely fastened and the wire connection is tight.
   • Cost Note: Igniters typically cost $15-$40.

7. Replace the Spark Module — A last resort

   • If all igniters are failing, or only one fails but the igniter itself and its wiring test good, the spark module might be the issue.
   • This is less common for a single burner issue unless the module has individual outputs for each burner and one has failed. If multiple burners are affected, or if there's no clicking at all, the module is a strong suspect.
   • Unplug the stove, access the module (usually at the back or under the cooktop), disconnect all wires, and remove its mounting screws. Install the new module, ensuring all wires are correctly reconnected.
   • Cost Note: Spark modules typically cost $50-$150.

Common Causes

• Food Debris & Grease Buildup: The most frequent cause. Cooked-on food or grease clogs the tiny gas ports on the burner head or coats the igniter, preventing proper gas flow or spark generation. This is especially true after a boil-over or a messy meal.
• Moisture: Water from cleaning or a spill can get into the igniter assembly, temporarily preventing a spark. Given time to dry, it often resolves itself.
• Loose or Corroded Wiring: Vibrations from use or inadequate initial connections can cause wires leading to the igniter or the spark module to loosen. Corrosion from spills can also disrupt electrical continuity.
• Faulty Igniter: Over time, the ceramic igniter can crack or wear down, failing to produce a strong enough spark. While durable, they aren't immortal.
• Clogged Orifice: Less common, but sometimes debris can get into the small brass orifice where gas enters the burner, restricting flow. This usually results in a very weak flame or no flame, even with a strong spark.
• Spark Module Failure: If multiple burners stop sparking simultaneously, or if there's no clicking from any igniter, the main spark module is likely at fault. It's the central hub for the ignition system.

Common Mistakes

• Ignoring Safety Precautions: Failing to unplug the stove or turn off the gas before working is a serious safety hazard and can lead to electric shock, gas leaks, or fire. Always prioritize safety.
• Using Abrasive Cleaners on Igniters: Using steel wool or harsh chemical cleaners can damage the delicate ceramic and metal tip of the igniter, making the problem worse or requiring premature replacement. Gentle cleaning is key.
• Forgetting to Dry Components: Reassembling wet burner caps or igniters can lead to immediate ignition failure. Ensure all cleaned parts are thoroughly dry before placing them back on the stove.
• Over-tightening Burner Caps: While they need to be seated correctly, over-tightening or forcing burner caps can damage the burner head or misalign the igniter, affecting gas distribution or spark placement.
• Bending the Igniter Too Far: Bending the igniter too much can break the ceramic or cause it to short against the metal burner, preventing a spark. Adjust it gently and only if visibly misaligned.
• Jumping to Spark Module Replacement: The spark module is an expensive component. Don't replace it until you've thoroughly ruled out clogs, igniter issues, and wiring problems. Many DIYers waste money by not systematically troubleshooting first.

Cost & Time Breakdown

Tips & Prevention

• Regular Cleaning: Make it a habit to wipe down your stove after each use and perform a deeper clean of burner components monthly. This prevents food and grease from building up.
• Immediate Spill Cleanup: Address boil-overs and spills immediately to prevent them from drying and clogging burner ports or coating igniters.
• Proper Cap Placement: Always ensure burner caps are seated correctly and level after cleaning. Misaligned caps can interfere with gas flow and ignition.
• Check for Strong Blue Flame: When your burners are working, observe the flame. It should be mostly blue with little to no yellow or orange. A yellow/orange flame can indicate improper gas-to-air mixture, which might point to partially clogged ports that cleaning can address.
• Inspect Wires Periodically: If you have easy access to the back of your stove, a quick visual check of the wiring leading to the spark module and igniters every few years can catch loose connections before they become a problem.
• Avoid Over-Boiling: Use appropriately sized pots and pans and monitor boiling liquids to prevent them from overflowing onto the burner components.

When to Call a Professional

While many igniter issues are DIY-friendly, certain situations warrant calling a licensed appliance repair technician. If you smell gas at any point without ignition, immediately turn off the gas supply, ventilate your home, and call a professional; this indicates a potential gas leak, which is a significant safety hazard. You should also contact a pro if you've followed all troubleshooting steps and are still unable to get a strong spark or consistent gas flow, or if you suspect a problem with the internal gas valves or regulator. Any issues requiring extensive disassembly of the stovetop, especially those involving gas lines or complex electrical components beyond simple wire connections, are best left to experienced hands. Furthermore, if your stove is still under warranty, attempting repairs yourself might void it, so check your warranty terms before proceeding.
