Quick Answer

An extension cord repeatedly tripping a circuit breaker is a clear warning sign from your home's electrical system, indicating an issue that needs immediate attention. The most common culprits are an overloaded circuit, a damaged extension cord, or a problem with the appliance connected to the cord. To resolve this, start by unplugging all devices from the extension cord and the cord itself from the wall. Inspect the extension cord for any visible signs of damage like cuts, frayed insulation, or melted spots. Then, ensure the total wattage of all connected appliances does not exceed the capacity of the extension cord or the circuit breaker's rating. If the problem persists after these checks, you may need to investigate the appliance or consider that the circuit itself is experiencing issues.

The Problem

Imagine plugging in your trusty power tools or setting up some festive holiday lights, only for the circuit breaker to trip, plunging that section of your home into darkness. This isn't just an inconvenience; it's your home's electrical safety system doing its job. A tripped breaker means the circuit detected an unsafe condition – typically an overload or a short circuit – and automatically shut off power to prevent overheating, damage to wiring, or even fire. When an extension cord is consistently involved in these trips, it points directly to a conflict between the power demand of your devices, the capacity of the extension cord, or the limitations of your home's electrical circuit.

Left unaddressed, this seemingly minor annoyance can lead to serious hazards. Continual overloads can degrade wiring insulation over time, creating a fire risk. A faulty extension cord, especially if it's undersized or damaged, can overheat, melt, and even spark. Understanding why this happens and how to systematically troubleshoot it is crucial for maintaining a safe and functional home electrical system. This guide will walk you through the diagnostics and practical solutions to keep your power flowing safely.

How It Works

To really grasp why an extension cord might be tripping a breaker, it helps to understand the basic principles of your home's electrical system, specifically current, voltage, and resistance, and how circuit breakers play their vital role. Electrical current, measured in amperes (amps), is the flow of electrical charge. Voltage, measured in volts (V), is the electrical 'pressure' that pushes the current. Resistance, measured in ohms (Ω), opposes the flow of current. The relationship between these three is described by Ohm's Law (V = I * R, where I is current), but for our purposes, it’s more useful to think about power, measured in watts (W), which is the rate at which electrical energy is used (P = V * I).

Your home's electrical circuits are designed to safely carry a certain amount of current. In North America, most general-purpose circuits for outlets operate at 120 volts and are protected by 15-amp or 20-amp circuit breakers. A 15-amp circuit can safely handle approximately 1,800 watts (15 amps * 120 volts), while a 20-amp circuit can handle about 2,400 watts (20 amps * 120 volts). If the total wattage of all devices plugged into a single circuit via outlets and extension cords exceeds this limit, the circuit becomes overloaded.

Circuit breakers are safety devices designed to protect these circuits from overloads and short circuits. Inside a common thermal-magnetic circuit breaker, there's a bimetallic strip that heats up and bends when excess current flows through it (an overload), eventually tripping a latch and breaking the circuit. There's also an electromagnet that quickly responds to sudden, very high currents (a short circuit), instantly tripping the breaker. When your extension cord is involved in a trip, it means either you've drawn too much current through that circuit (overload), or there's an immediate, unintended path for current to flow (short circuit) within the cord itself or the connected device.

Extension cords themselves have amperage and wattage ratings that are critical. An extension cord is essentially a temporary wire, and like permanent wiring, it has a gauge (thickness) that determines how much current it can safely carry. A thicker gauge wire (lower AWG number, e.g., 12 AWG) has less resistance and can carry more current than a thinner gauge wire (higher AWG number, e.g., 18 AWG). Using an undersized extension cord for a high-wattage appliance can cause the cord itself to overheat even before the circuit breaker trips, posing a significant fire risk.

Step-by-Step Fix

1. Identify the Tripped Breaker — Locate your electrical panel and the specific breaker that tripped.

First, locate your home's main electrical panel. It's usually a gray metal box in a utility room, garage, or basement. Open the panel door. Look for a breaker switch that is in the "OFF" position or, more commonly, somewhere between "ON" and "OFF" (a tripped state). Some breakers have a red indicator. To reset it, firmly push the switch all the way to the "OFF" position, and then firmly back to the "ON" position. If it immediately trips again, do not force it. There's a persistent problem that needs to be diagnosed first.

• Safety Note: Before opening the main electrical panel, ensure your hands are dry, and you're not standing in water. Never touch the main service wires inside the panel.

2. Disconnect Everything — Unplug all devices from the extension cord, then unplug the extension cord from the wall outlet.

Before you do anything else, safely remove the load from the circuit. Disconnect every appliance, lamp, or tool from the extension cord. Then, unplug the extension cord itself from the wall outlet. This isolates the problem, helping you determine if the issue is with the appliances, the cord, or the circuit itself.

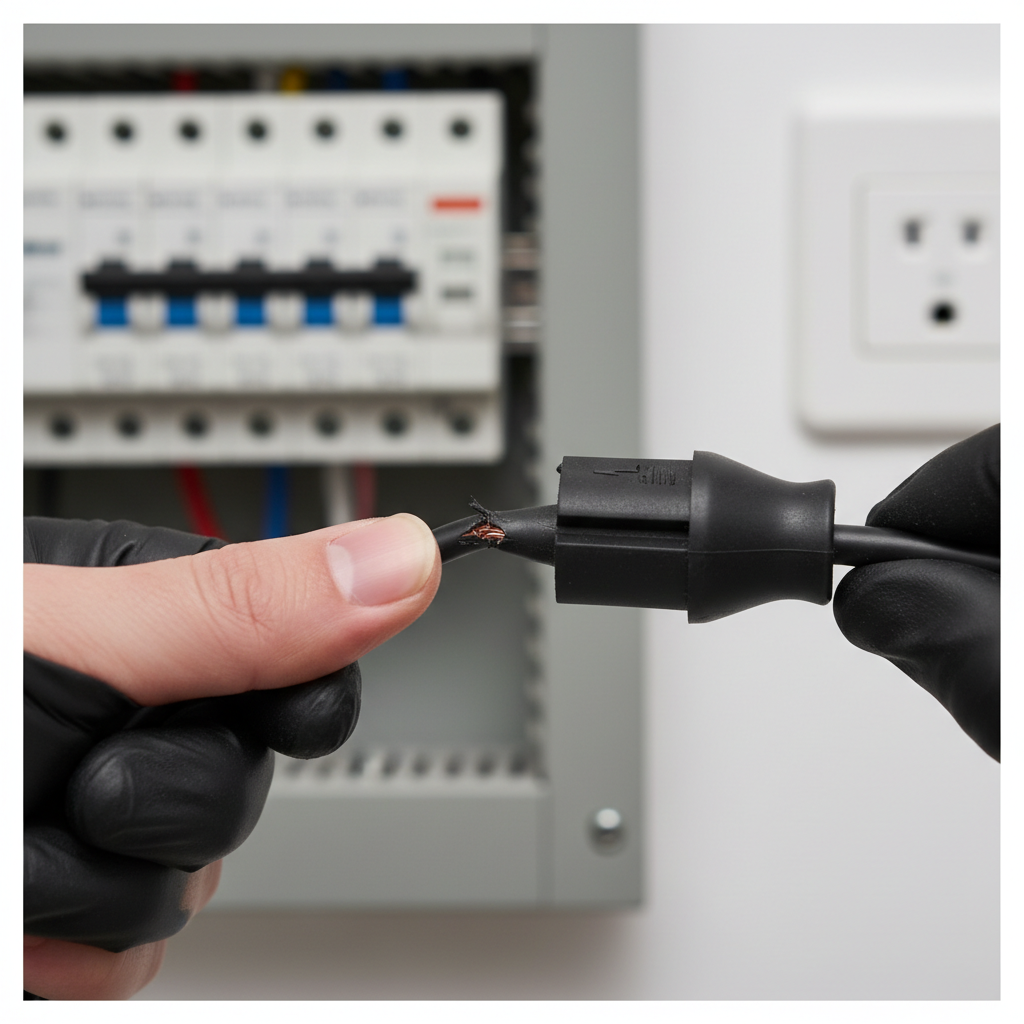

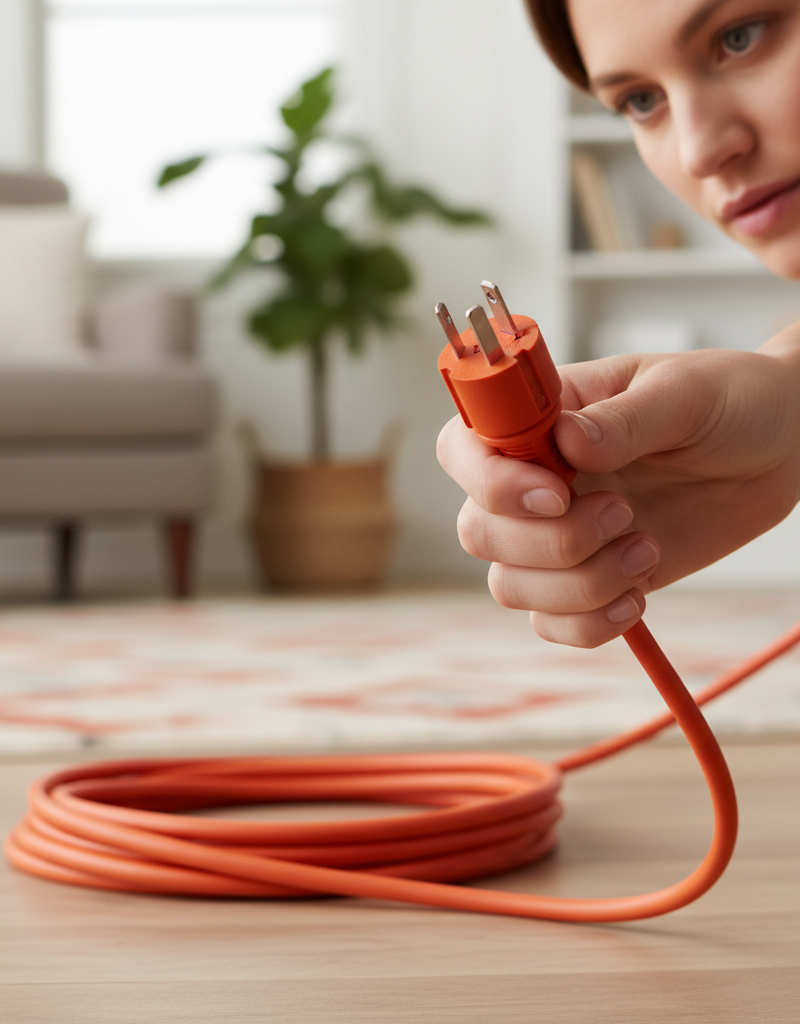

3. Inspect the Extension Cord for Damage — Visually check the entire length of the cord for signs of wear.

Carefully examine the entire length of the extension cord, paying close attention to the plug, the receptacle end, and any points where the cord might have been stepped on, pinched, or run over. Look for:

• Cuts, nicks, or frayed insulation: Exposed wires are a major fire and shock hazard.
• Melted spots or discoloration: These indicate overheating, often from an overload or internal short.
• Bent, loose, or corroded prongs/receptacles: Can cause poor connections and overheating.

If you find any damage, do not use the cord. Replace it immediately with a new, appropriately rated cord.

4. Verify Cord and Circuit Ratings — Ensure the extension cord and your circuit can handle the connected load.

Check the amperage or wattage rating printed on the extension cord itself. This is often on a label near the plug or receptacle end. Compare this to the total wattage of all devices you intend to plug into it. Remember: watts = amps * volts (120V in North America). Never exceed the cord's rating. Next, identify the amperage of the circuit breaker that tripped (e.g., 15A or 20A). The total wattage of all devices plugged into outlets on that circuit, including those using the extension cord, should not exceed 80% of the circuit's maximum capacity for continuous loads (1,440 watts for a 15A circuit, 1,920 watts for a 20A circuit).

• What to do if found overloaded: Redistribute your appliances to different circuits, or use a higher-gauge extension cord (with a lower AWG number) if the original one was undersized.

5. Test Connected Appliances Individually — Plug each appliance directly into a known working outlet.

One by one, plug each appliance that was connected to the extension cord directly into a different, known good wall outlet on a different circuit (if possible). This helps determine if one specific appliance is drawing excessive current or has an internal fault (a short circuit). If an appliance immediately trips a different breaker, it's the culprit and needs repair or replacement.

• If an appliance trips a breaker directly: Discontinue use and have it professionally repaired or replaced.
• If all appliances work individually: The issue likely lies with the extension cord or the original circuit's capacity when combined with multiple devices.

6. Reset the Breaker and Test the Outlet — After disconnecting everything, reset the breaker and test the wall outlet.

With all devices and the extension cord unplugged, go back to your electrical panel and reset the tripped breaker. If it holds without immediately tripping, plug a simple, low-power lamp or phone charger directly into the wall outlet where the extension cord was connected. If the outlet works, the circuit itself is likely fine, and the problem was caused by an overload or fault involving the extension cord or devices.

7. Reintroduce Devices Slowly — Plug in devices one at a time, starting with the least power-intensive.

If the extension cord and individual appliances appear fine, and the circuit holds power, the issue was most likely an overload. Plug the extension cord back into the wall outlet. Then, plug one appliance into the extension cord. If the breaker holds, plug in the next appliance. Continue this process, being mindful of the total wattage. If the breaker trips at a certain point, you've identified the combination of devices that overloads the circuit or the extension cord.

• Tip: If you have several high-power devices, consider moving some to outlets on entirely different circuits.

8. Use the Right Extension Cord — Ensure your extension cord is appropriate for the task and environment.

Beyond just wattage, consider the environment. For outdoor use or damp conditions, use extension cords rated for outdoor use (often labeled with a "W" for weather-resistant). For heavy-duty tools or appliances, opt for a heavy-gauge (e.g., 12 AWG or 10 AWG) cord that explicitly states its suitability for such loads. Avoid using indoor-rated cords outdoors. Never permanently install an extension cord; they are designed for temporary use only.

Common Causes

• Circuit Overload: This is the most frequent cause. Too many devices drawing too much power are plugged into a single circuit, exceeding its amperage rating (e.g., connecting a vacuum, a space heater, and a microwave to the same 15-amp circuit). When an extension cord is used, it often acts as a central point for these multiple appliances, making it seem like the cord is the problem.
• Undersized Extension Cord: Using an extension cord with too small a wire gauge (higher AWG number) for the current being drawn. This causes the cord to overheat and increase resistance, which mimics a short circuit or exacerbates an overload, potentially melting the cord before the breaker trips.
• Damaged Extension Cord: Physical damage like cuts, nicks, frayed insulation, or pinched wires can create a short circuit within the cord itself. This happens when the hot and neutral wires (or hot and ground) touch, causing an immediate, massive surge of current that instantly trips the breaker.
• Faulty Appliance: The appliance plugged into the extension cord may have an internal short circuit or be drawing excessive current due to a malfunction. The extension cord acts merely as the messenger, carrying the fault back to the circuit breaker.
• Overloaded Extension Cord (itself): While similar to circuit overload, this specifically refers to exceeding the cord's own maximum wattage capacity, regardless of the wall circuit. This can lead to overheating of the cord even if the wall circuit could handle more power.
• Daisy-Chaining Extension Cords: Plugging one extension cord into another is a common mistake and extremely dangerous. It creates voltage drop, increases resistance, and significantly raises the risk of overloading and fire.

Common Mistakes

• Ignoring the Amp/Wattage Ratings: Many homeowners overlook the labels on their extension cords and appliances. Always check the wattage of your devices and ensure the extension cord and circuit can handle the combined load. A common mistake is using a thin, light-duty indoor cord for a power-hungry outdoor tool.
• Daisy-Chaining Extension Cords or Power Strips: Never plug one extension cord into another, or an extension cord into a power strip, and then into another extension cord. This practice, known as daisy-chaining, drastically increases the risk of overload, overheating, and fire due to current drop and increased resistance over longer runs.
• Using Indoor Cords Outdoors: Indoor extension cords are not designed to withstand moisture, temperature extremes, or UV exposure. Using them outdoors can lead to deteriorated insulation, exposed wires, and a serious shock or fire hazard.
• Running Cords Under Carpets or Through Doorways: This can pinch the cord, damage the insulation, and create a hidden fire hazard. It also prevents heat from dissipating properly, leading to overheating. Foot traffic can also wear down the cord's protective jacket.
• Overloading Multi-Outlet Extension Cords/Power Strips: Just because an extension cord or power strip has multiple outlets doesn't mean you can plug in numerous high-wattage devices simultaneously. The cord and the wall circuit still have a maximum capacity that must not be exceeded.
• Using Damaged Cords: Continuing to use an extension cord with frayed insulation, exposed wires, or bent/loose prongs is extremely dangerous and a leading cause of electrical fires and shocks. Replace damaged cords immediately.

Cost & Time Breakdown

Tips & Prevention

• Match Cord to Load: Always choose an extension cord with an appropriate AWG (American Wire Gauge) rating for the power demands of your appliance. Lower AWG numbers (e.g., 12 AWG) indicate thicker, more capable wires suitable for heavy-duty tools like saws or space heaters. Higher AWG numbers (e.g., 16 AWG) are for lighter loads like lamps or phone chargers.
• Check Wattage: Before plugging in, calculate the total wattage of all devices you intend to connect to the extension cord. Ensure this total does not exceed the cord's rating or 80% of your circuit breaker's capacity.
• Avoid Permanent Installation: Extension cords are for temporary use. If you need permanent power in a location, have a qualified electrician install a new outlet.
• Regular Inspection: Periodically inspect all your extension cords for signs of wear and tear, paying special attention to the insulation, plugs, and receptacles. Discard any damaged cords.
• Outdoor vs. Indoor: Use only extension cords specifically rated for outdoor use when working outside. These cords have thicker insulation and are designed to withstand environmental factors.
• Unplug When Not In Use: To prevent accidental activation and reduce phantom power draw, unplug extension cords and power strips when they are not in use.
• Invest in GFCI Protection: For outdoor use or in areas near water (like kitchens or bathrooms), always plug extension cords into GFCI (Ground Fault Circuit Interrupter) protected outlets or use a GFCI-equipped extension cord. GFCIs provide crucial protection against electric shock.

When to Call a Professional

While many extension cord issues can be resolved with careful troubleshooting, there are clear instances when you should immediately stop and call a licensed electrician. If the circuit breaker trips immediately upon resetting, even with nothing plugged into the outlet, it indicates a serious wiring fault within the wall, which requires professional diagnosis and repair. Another critical sign is if you notice a burning smell, sparks from an outlet or within the electrical panel, or if an outlet or switch feels warm to the touch. These are potential fire hazards. If you have systematically gone through all the troubleshooting steps – inspecting the cord, testing appliances, and ensuring no overload – and the breaker still trips, the problem likely lies within your home's permanent wiring, the circuit breaker itself, or the electrical panel. An electrician has the diagnostic tools and expertise to safely identify and rectify these complex internal electrical issues that are beyond the scope of a homeowner to address safely.
