Quick Answer

Adjusting a sprinkler's spray pattern involves two main steps: first, fine-tuning the arc (the area it covers) using a flat-head screwdriver on the sprinkler head's top adjustment screw, and second, adjusting the spray distance by turning the distance screw to interrupt the water stream. This ensures efficient watering and prevents overspray onto non-lawn areas, saving water and promoting a healthier lawn.

The Problem

You've invested in a beautiful lawn, but your sprinklers seem to have a mind of their own. One area is a lush green, another is dry and brown, and yet another is soaking your sidewalk or driveway. This uneven watering isn't just an aesthetic issue; it's a significant waste of water and money. Incorrectly adjusted sprinklers lead to runoff, thirsty patches, and even damaged landscaping due to overwatering or underwatering. Many homeowners simply "set it and forget it," or make haphazard adjustments without understanding the mechanics. The result is frustration, higher water bills, and a lawn that never quite thrives. The core problem is a failure to properly calibrate the sprinkler heads to the specific contours and needs of your landscape.

How It Works

Most modern residential sprinkler heads, particularly the pop-up rotor and spray types, operate on a relatively simple mechanical principle. Water pressure enters the base of the sprinkler and is directed upwards through a nozzle. The spray pattern, or arc, in a rotor head is typically controlled by an internal gear drive mechanism. When water flows, this gear system rotates the nozzle, distributing water in a specific arc. Adjusting this arc usually involves a dedicated screw on the top of the sprinkler head. Turning this screw — often with a flat-head screwdriver — physically limits or expands the range of rotation, effectively "setting" the start and stop points of the spray.

Spray heads, on the other hand, often have fixed or adjustable nozzles that don't rotate. Their arc is determined by the nozzle itself, which can sometimes be replaced for different patterns (e.g., quarter-circle, half-circle). For both rotor and some spray heads, the spray distance, or radius, is controlled by a "distance" or "radius reduction" screw located on the top or side of the nozzle. This screw extends a small pin or deflector into the water stream. By turning this screw clockwise, the pin protrudes further into the stream, disrupting it and causing the water droplets to fall closer to the head, thereby reducing the spray distance. Turning it counter-clockwise retracts the pin, allowing the water to spray further. Understanding these two primary adjustment points – arc and distance – is key to achieving precise and efficient watering for your lawn.

Step-by-Step Fix

Before you begin, turn on your sprinkler system to identify which heads need adjustment and observe their current spray patterns. It's helpful to do this in daylight so you can clearly see where the water is landing.

1. Identify the Adjustment Points — Locate the arc and distance adjustment screws.

   • For rotor heads, these are typically on the top of the head. You'll usually see a plus (+) and minus (-) symbol near the arc adjustment for increasing or decreasing the spray. The distance screw is often a slotted screw that protrudes slightly into the nozzle opening.
   • For spray heads, the arc is often adjusted by twisting the nozzle itself, or by replacing the nozzle. The distance screw (if present) will be similar to a rotor head.
   • Safety Note: Avoid operating sprinklers when active irrigation is occurring. It can be hard to see small parts. Make adjustments only when the water is off, except for briefly running the system to check your work.

2. Set the Fixed (Left) Edge of the Arc (Rotor Heads Only) — Establish the starting point.

   • With the water off, manually rotate the top of the sprinkler head to find its furthest left-stop point. This is your fixed left arc position.
   • You may need to gently twist the entire pop-up body of the sprinkler (holding the riser, not the nozzle) to align this fixed-left stop with the desired boundary of your watering area (e.g., the edge of a driveway or garden bed).
   • If this doesn't work: Some rotors have a "clutch" mechanism that allows you to turn the head freely without re-setting the arc. If you can't align the left stop, you might need to try adjusting the arc as described in step 3 and then returning to this step.

3. Adjust the Arc (Rotor Heads Only) — Define the watering area.

   • Insert a flat-head screwdriver into the arc adjustment screw (often marked with an arrow or "arc").
   • Turn clockwise to increase the arc (widen the spray pattern) or counter-clockwise to decrease it (narrow the spray pattern). A typical rotor head can be adjusted from a 40-degree arc up to 360 degrees (a full circle).
   • Tip: Make small adjustments, typically quarter or half turns, then briefly run the system to check the new arc. Repeat until the desired arc is achieved, ensuring it doesn't spray onto hardscapes or non-lawn areas.

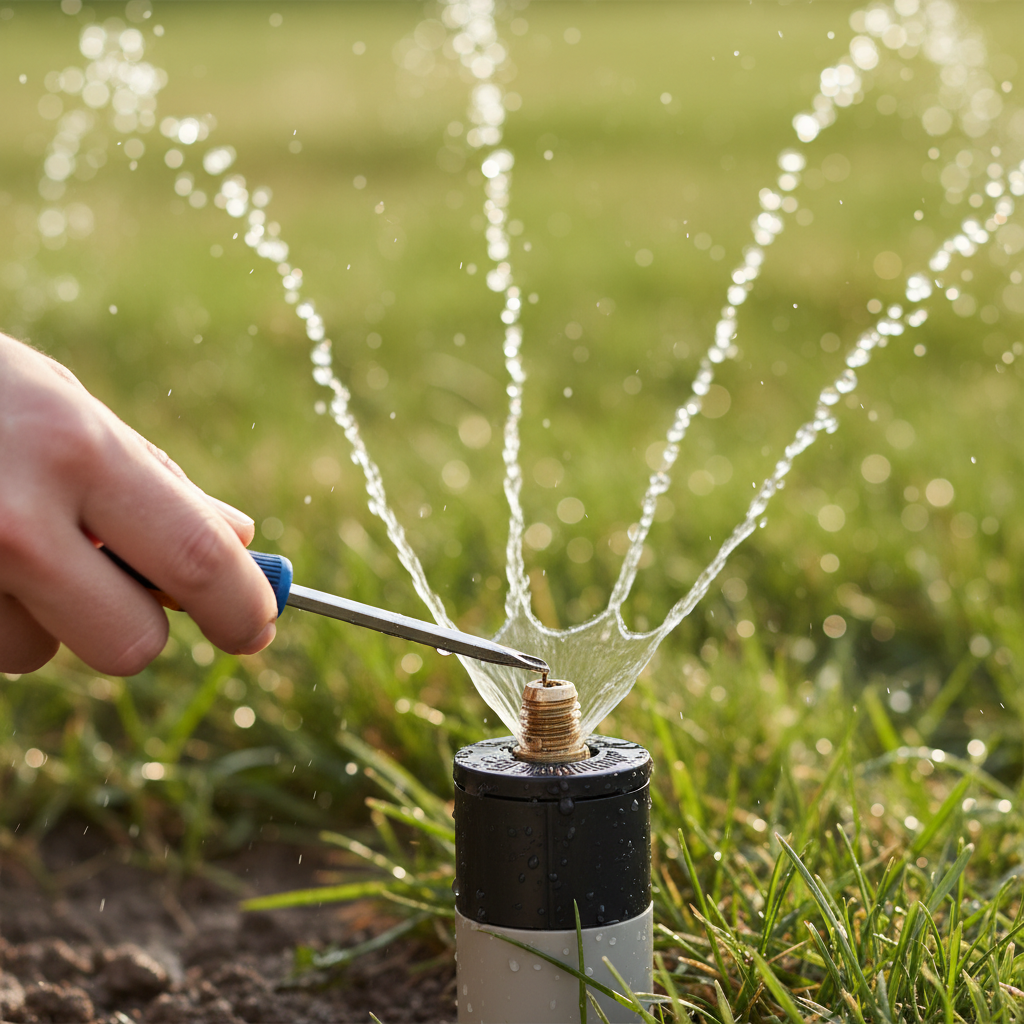

4. Adjust the Distance/Radius — Control how far the water sprays.

   • Locate the distance or radius reduction screw on the top of the nozzle.
   • Using a flat-head screwdriver, turn the screw clockwise to drive a pin into the water stream, reducing the spray distance. Turn counter-clockwise to retract the pin and increase the distance.
   • Important: This adjustment often creates a less uniform spray pattern closer to the head. Aim to reduce the distance only as much as necessary. Over-reduction can lead to "donut" patterns, where the area near the head gets less water.
   • Troubleshooting: If you can't get the distance short enough, or long enough, you might have the wrong nozzle installed for that area. Consult your sprinkler's manual for nozzle replacement options.

5. Re-check Overlap and Coverage — Ensure even watering.

   • Once you've adjusted the arc and distance for all heads in a zone, run the entire zone for several minutes.
   • Walk the area, looking for dry spots or areas where water isn't reaching. Ideally, each spot on your lawn should receive water from at least two different sprinkler heads (head-to-head coverage).
   • Pro Tip: Use catch cups (small, identical containers) placed strategically across your lawn to measure actual water distribution and identify areas needing more or less water. This is the most accurate way to dial in uniformity.

Common Causes

• Original Installation Inaccuracies: Sprinklers were initially set up without meticulous attention to topography or landscape changes over time.
• Settling Soil: Over years, soil can settle, causing sprinkler heads to tilt or sink, altering their spray trajectory.
• Damage from Lawn Equipment: Mowers, edgers, or trimmers can bump or damage sprinkler heads, knocking them out of alignment.
• Clogged Nozzles: Debris in the water supply can partially block nozzles, distorting the spray pattern and reducing distance.
• Changes in Landscape: New garden beds, shrubs, or hardscapes can block existing spray patterns, necessitating adjustments.
• Incorrect Nozzle Selection: Using a nozzle designed for a full circle in a corner, or a high-flow nozzle in an area needing less water, will lead to improper coverage.
• Water Pressure Fluctuations: Significant changes in water pressure can affect how far and wide a sprinkler sprays, though adjustments primarily fix mechanical aim, not pressure issues.

Common Mistakes

• Adjusting While Water is Off (Except for Left Stop): You need to see the spray pattern in real-time to make effective distance and arc adjustments. The left stop, however, is best set when off to avoid getting soaked.
• Over-Adjusting: Making large turns on adjustment screws. Small, incremental turns (quarter or half-turns) are usually sufficient and prevent overshooting the ideal setting.
• Ignoring Head-to-Head Coverage: Not ensuring that each area of the lawn gets water from multiple heads. This is crucial for even watering and preventing dry spots.
• Incorrectly Identifying Adjustment Screws: Mislabelling arc for distance or vice versa can lead to confusion and frustration. Always refer to your sprinkler head's manual if unsure.
• Not Considering Wind: Adjusting sprinklers on a windy day will give you inaccurate results. Wait for calm conditions for the most precise adjustments.
• Forgetting to Check for Clogs: A distorted spray pattern might not be an adjustment issue but a partially clogged nozzle. Always check and clean nozzles before making adjustments.

Cost & Time Breakdown

Tips & Prevention

• Regular Observation: Periodically walk through your active sprinkler zones to spot misaligned heads or uneven coverage. Early detection saves water.
• Clean Nozzles Annually: Before the irrigation season, remove and clean sprinkler nozzles to prevent clogs. A small brush or even a paperclip can clear minor blockages.
• Mower Awareness: Be mindful when mowing or edging near sprinkler heads. Consider marking their locations with small flags if they are frequently hit.
• Proper Zoning: Design your zones so that heads with similar precipitation rates and sun exposure are grouped together. This minimizes the need for drastic individual head adjustments.
• Pressure Check: If you notice significant changes in spray distance across multiple heads, consider checking your main water pressure. An inline pressure regulator might be needed if pressure is consistently too high or low.
• Seasonal Adjustments: As trees and shrubs grow, they can obstruct sprinkler patterns. Make minor adjustments seasonally to account for landscape changes.

When to Call a Professional

While most sprinkler adjustments are well within the DIY homeowner's capability, there are specific situations where calling an irrigation professional is the wisest course of action. If you're experiencing persistently low water pressure across your entire system, or consistently high pressure causing misting and wasted water, a professional can diagnose and install main line pressure regulators or booster pumps. You should also call a pro if you discover a leak in your main irrigation line, notice a zone that won't turn on or off, or suspect electrical issues with your controller or solenoid valves. For complex system redesigns due to significant landscape changes, or if you're struggling to achieve uniform coverage despite diligent individual head adjustments, a professional can offer expert advice and solutions, potentially saving you significant water and repair costs in the long run. Don't hesitate to contact a licensed professional if your efforts aren't yielding the desired results or if you suspect an underlying issue beyond simple adjustments.", meta_title="The #1 Mistake Adjusting Sprinklers & How to Fix Uneven Spray", meta_description="Discover the secret to perfectly adjusted sprinkler spray patterns. Fix uneven watering, save on your water bill, and keep your lawn healthy with our detailed guide.", keywords=["adjust sprinkler spray", "sprinkler arc adjustment", "sprinkler distance adjustment", "fix uneven sprinkler watering", "sprinkler head maintenance", "irrigation spray pattern", "how to adjust rotor sprinkler", "sprinkler water waste"], faq=[default_api.CreateArticleFaq(question="Why is my sprinkler spraying too far or not far enough?", answer="Your sprinkler is likely spraying too far or not far enough due to an incorrectly set distance (radius) adjustment screw on the nozzle. Turning this screw clockwise typically reduces the spray distance by deflecting the water stream, while turning it counter-clockwise increases the distance. Environmental factors like wind or significant water pressure changes can also impact spray distance."), default_api.CreateArticleFaq(question="How do I make my sprinkler only spray a half circle?", answer="To make your sprinkler spray only a half circle (or any specific arc), you need to adjust its arc setting. For most rotor heads, use a flat-head screwdriver on the arc adjustment screw located on the top of the head. Turn it clockwise to widen the arc and counter-clockwise to narrow it, typically until it covers a 180-degree pattern. First, set the fixed-left stop by rotating the sprinkler body to align with one edge of your desired half-circle."), default_api.CreateArticleFaq(question="Can I adjust a fixed spray pattern sprinkler head?", answer="Fixed spray pattern sprinkler heads, by definition, have a set arc that usually cannot be adjusted. However, many fixed spray heads allow you to adjust the distance (radius) via a screw on the nozzle. If you need a different arc (e.g., quarter-circle instead of full-circle), you would typically need to replace the entire nozzle with one designed for the desired pattern. Some newer fixed spray nozzles offer rotatable caps for slight arc adjustments."), default_api.CreateArticleFaq(question="What causes sprinkler misting and how can I fix it?", answer="Sprinkler misting, where water turns into a fine fog, is usually caused by excessively high water pressure. When pressure is too high, the water stream breaks down into tiny droplets, leading to evaporation and inefficient watering. While adjusting the sprinkler head won
