Quick Answer

When a sprinkler head refuses to pop up, the most frequent offender isn't a broken component but rather an obstruction. Dirt, grass clippings, mulch, or even small stones can get trapped around the riser shaft, preventing it from extending fully under water pressure. A simple cleaning, clearing the debris, and manually pulling up the riser can often restore its function within minutes.

The Problem

You've set your irrigation system to run, and while other heads are gushing water, one or more remain stubbornly hidden, refusing to emerge from the ground. This not only creates dry spots in your lawn, leading to uneven watering and potential plant stress, but it can also be a frustrating mystery. A non-popping sprinkler head suggests an issue with its internal mechanism, the surrounding environment, or the water pressure reaching it. Ignoring it will lead to an unhealthy lawn, wasted water, and potentially further damage to the sprinkler system.

How It Works

Most pop-up sprinkler heads operate on a simple hydraulic principle. When the irrigation zone activates, water under pressure enters the sprinkler body. This pressure pushes a spring-loaded internal cylindrical component, known as the riser, upwards. As the riser extends, it brings the nozzle to ground level or slightly above, allowing water to spray. A seal around the riser prevents water from leaking out the side. When the water pressure drops (i.e., the zone turns off), the compressed spring retracts the riser, pulling the nozzle back down into the housing, flush with the ground. This retraction protects the head from lawnmowers and foot traffic. The efficiency of this system relies on a clean, unobstructed path for the riser and adequate water pressure to overcome the spring's resistance and any friction.

Step-by-Step Fix

Here’s how to diagnose and fix a sprinkler head that isn’t popping up.

1. Safety First with Water — Shut off the water to the irrigation system at the main backflow preventer or controller. This prevents accidental water blasts and makes it safe to work on the head.

   • Pro Tip: Mark the problematic sprinkler head with a small flag or stick before turning off the system, especially if your lawn is overgrown.

2. Inspect the Area — Clear away any obvious obstructions around the sprinkler head. Remove grass, soil, mulch, or weeds that might be directly on top of or immediately surrounding the head. Use your hands or a small trowel.

3. Excavate and Expose — Carefully dig around the sprinkler head to expose its body. Use a small hand trowel to excavate soil about 4-6 inches in a circle around the head, and approximately 3-4 inches deep, until you can see the main body and the top of the supply line connection. Be gentle to avoid damaging the pipes.

   • If this doesn't work: If the sprinkler head is buried very deep, you may need a larger trowel or shovel, but maintain caution around the buried pipework.

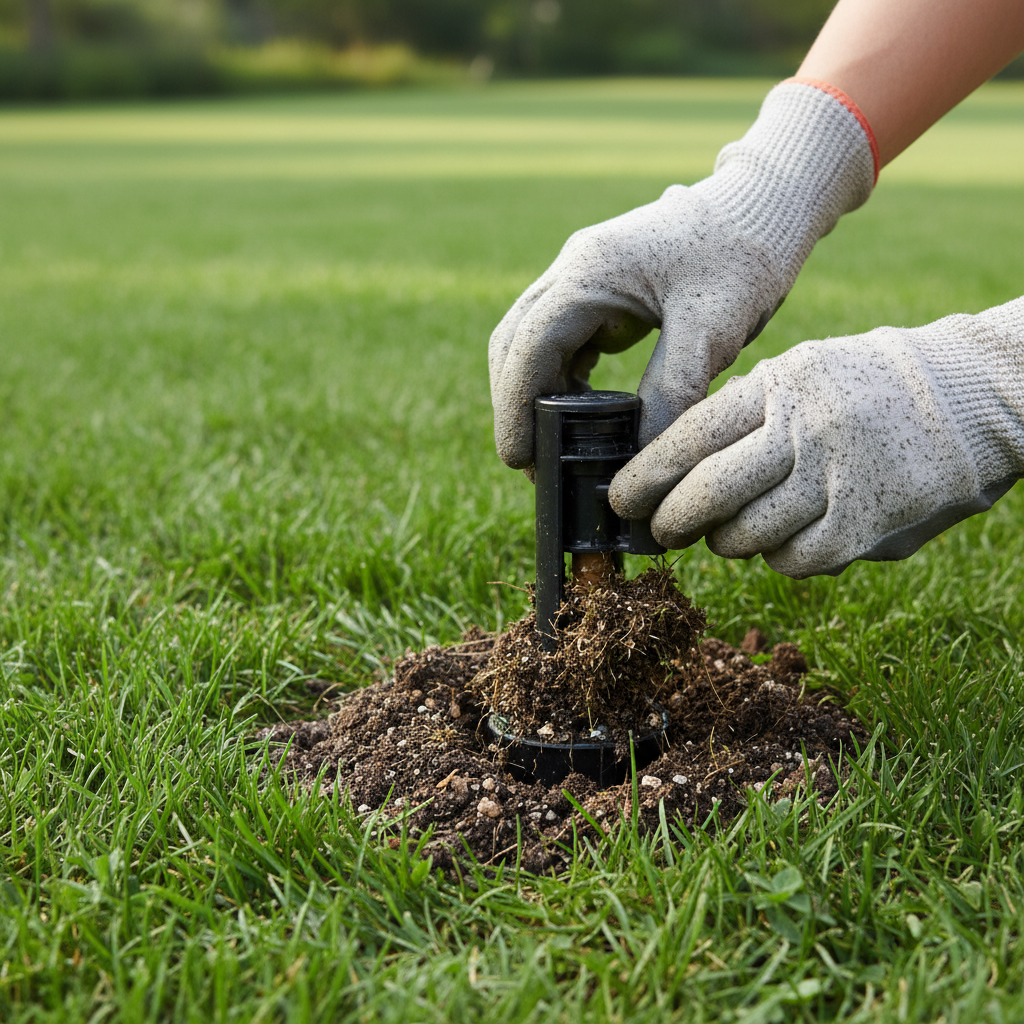

4. Clean the Riser — Grasp the nozzle and pull the riser up manually. With the water off, pull the top of the sprinkler head (the nozzle and riser assembly) upwards until it's fully extended. Inspect the riser shaft for dirt, grit, grass clippings, or other debris. Use an old toothbrush or a damp cloth to thoroughly clean the riser shaft and the inside of the sprinkler body opening. Rinse any stubborn debris with a small amount of water from a bottle or cup. Rotate the riser if possible to ensure full cleaning.

   • Tools: Small hand trowel, old toothbrush or rag, small bucket or bottle of water.

5. Test for Spring Action — Check if the spring provides resistance. Once cleaned, release the riser. It should retract smoothly back into the body, indicating the spring is working. If it doesn't retract, the spring might be damaged, or there's still internal binding.

   • If it doesn't retract: The internal spring may be broken or heavily obstructed. This often points to a need for replacement if the obstruction isn't visible.

6. Check for Clogged Nozzle — Unscrew and clean the nozzle if necessary. Some debris might be lodged inside the nozzle itself. Grip the riser firmly and unscrew the nozzle counter-clockwise. Inspect for blockages and clear with a small wire or needle. Rinse thoroughly before reattaching. Do not overtighten.

   • Caution: Keep track of any small O-rings or filters that may come out with the nozzle. Reinstall them correctly.

7. Inspect for Damage — Examine the sprinkler head for cracks or physical damage. Look for cracks in the plastic body, a bent riser, or a heavily worn seal. If damage is present, the head likely needs replacement. A clear sign of a worn seal is water continuously leaking around the base of the riser when the system is on.

8. Flush the Line (Optional but Recommended) — Briefly turn on the water to flush any remaining debris from the lateral line. After cleaning the head and before fully reassembling, turn the water on for just 5-10 seconds. This will flush the line and might eject any small debris that was in the pipe leading to the head. Be prepared for a gush of water. Then, shut the water off again.

   • Safety: Stand clear of the sprinkler head when flushing. The pressure can be surprisingly strong.

9. Reassemble and Test — Carefully backfill the soil around the sprinkler head, leaving it flush with the ground. Turn the water back on to the irrigation system and observe the problematic head during a test cycle. It should now pop up and spray correctly. If it still doesn't, or pops up weakly, the internal components might be too far gone, or the water pressure to that specific head is insufficient.

10. Adjust Water Pressure — If multiple heads are failing, or the fix is temporary; check water pressure. Low water pressure can cause heads to not pop up fully or at all. This might be due to a partially closed main valve, a leak in the line, or simply too many heads on one zone for your system's pressure. Check your backflow preventer's shut-off valves to ensure they are fully open. If the problem persists across multiple heads, consider consulting a professional to diagnose pressure issues.

Common Causes

• Debris on Riser: The most frequent cause is dirt, sand, grass clippings, mulch, or pebbles accumulating around the pop-up riser, physically preventing it from extending.
• Clogged Nozzle: Debris can enter and block the small opening of the nozzle, preventing water from escaping and relieving the pressure needed to fully lift the riser.
• Low Water Pressure: Insufficient water pressure in the zone can prevent the spring-loaded riser from fully overcoming gravity and extending. This can be due to a main valve not fully open, a leak in the line, or too many heads on a single zone.
• Damaged Spring: The internal spring designed to push the riser up can weaken, break, or become corroded, leading to a failure to pop up.
• Worn Seal: A deteriorating seal around the riser can allow water to leak past it, reducing the pressure needed to lift the head. This often manifests as water bubbling around the head's base.
• Physical Damage: A sprinkler head can be damaged by lawnmowers, foot traffic, or freezing, leading to internal component failure or cracks that prevent proper operation.

Common Mistakes

• Digging Before Inspecting: Many homeowners immediately start digging without first clearing surface debris or manually trying to pull up and clean the riser. Often, the fix is much simpler.
• Ignoring Water Shut-Off: Forgetting to turn off the water before working on the sprinkler head can result in a sudden gush of water, making the repair difficult and messy, and potentially causing minor property damage.
• Overtightening Nozzles: When cleaning or replacing a nozzle, overtightening it can strip the threads or crack the plastic, leading to leaks or further damage.
• Not Flushing the Line: Skipping the line-flushing step can leave small debris in the pipe that quickly re-clogs the cleaned head after reassembly.
• Assuming Replacement is Necessary: Often, a non-popping head just needs a thorough cleaning, not a full replacement. Replacing heads unnecessarily wastes money and time.
• Ignoring Systemic Issues: Focusing only on one head when multiple heads or a whole zone aren't working points to a larger pressure or main valve issue that won't be solved by individual head repairs.

Cost & Time Breakdown

Tips & Prevention

• Regular Inspections: Periodically run your irrigation system visually inspect all heads for proper pop-up and spray patterns. Early detection prevents minor issues from becoming major ones.
• Clear Around Heads: Keep the area around your sprinkler heads clear of excessive soil buildup, mulch, and overgrown grass. Truncate grass around the heads regularly.
• Use Filter Baskets: Ensure your sprinkler heads have internal filter baskets, and clean them annually. These prevent larger debris from entering the nozzle and riser mechanism.
• Winterization: Properly winterize your irrigation system in cold climates to prevent water freezing inside heads and lines, which can cause cracks and damage.
• Mower Awareness: Be mindful when mowing or doing yard work near sprinkler heads to avoid physical damage from equipment.
• Proper Zone Design: If installing new systems or expanding, ensure each zone is properly designed for your system's water pressure and flow rate to prevent low-pressure issues.

When to Call a Professional

While many non-popping sprinkler head issues are DIY-friendly, certain situations warrant calling a licensed irrigation professional. If, after cleaning and inspecting the head, it still fails to pop up, and you suspect a leak in the underground line, a broken pipe, or significant low water pressure affecting an entire zone, a pro can accurately diagnose and repair these more complex issues. Additionally, if the problem is recurring across multiple heads, or you're uncomfortable with digging and working near underground plumbing, a professional has the specialized tools and expertise to efficiently resolve the problem without further damage to your irrigation system or yard. They can also troubleshoot electrical issues at the controller if a specific zone isn't activating at all.
