Quick Answer

A leaky chimney during rain is a frustrating and potentially damaging problem for homeowners. The most common culprits include compromised chimney flashing, a damaged chimney crown, deteriorated mortar joints, or a faulty chimney cap. A thorough visual inspection from the ground and, if safely accessible, from the roofline, is crucial for pinpointing the exact source of water intrusion. Once identified, repairs can range from simple sealing to more involved masonry work or component replacement.

The Problem

You've noticed dampness, water stains, or even active drips coming from around your fireplace or chimney breast after it rains. This isn't just an aesthetic issue; water intrusion can lead to significant structural damage, rot in rafters and ceiling joists, mold growth, and compromise the integrity of your chimney structure itself. The challenge lies in identifying the precise entry point of the water. Rainwater can exploit even the smallest crack or gap, often traveling unseen within the chimney structure before manifesting as a visible leak inside your home.

How It Works

To understand why your chimney might be leaking, it's helpful to visualize how a chimney and roof system work together to shed water. Your chimney penetrates the roof, creating a vulnerability. Various components are designed to protect this intersection and the chimney's top from water.

• Chimney Cap: Sits atop the flue, preventing rain, snow, debris, and animals from entering. Most are made of metal (stainless steel or copper) or concrete.

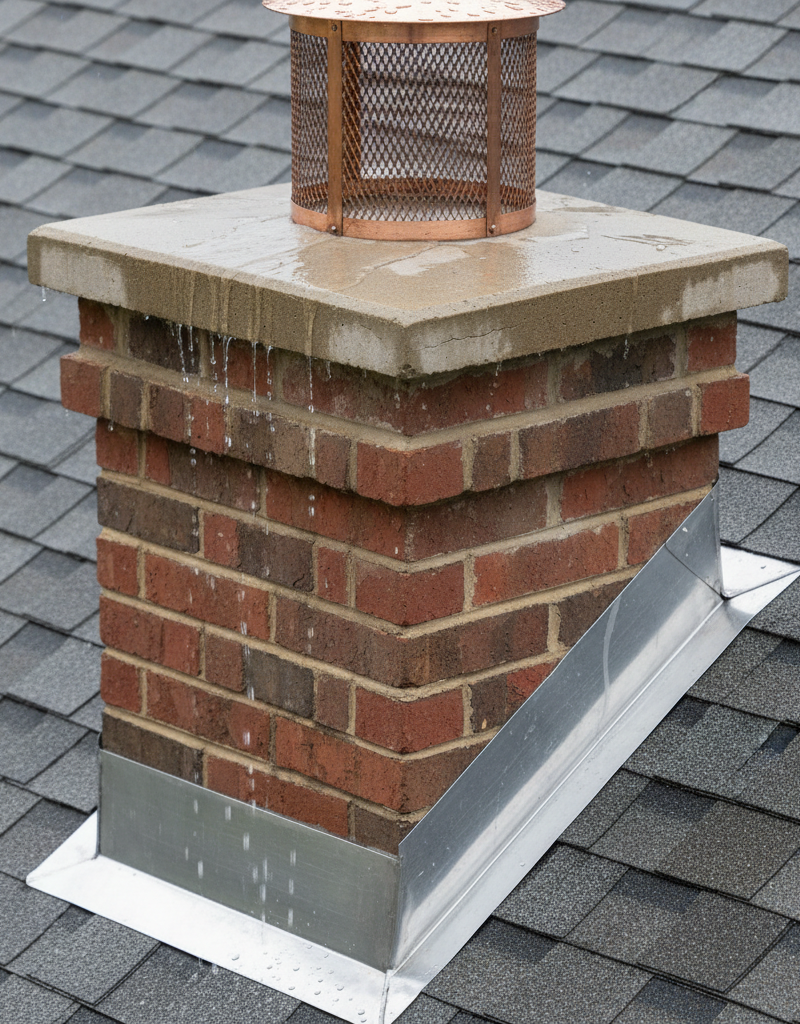

• Chimney Crown: This is the concrete or stone slab that caps the masonry chimney structure itself, extending slightly beyond the brickwork to create a drip edge. Its primary role is to shed water away from the vulnerable top edges of the brickwork and flue liner.

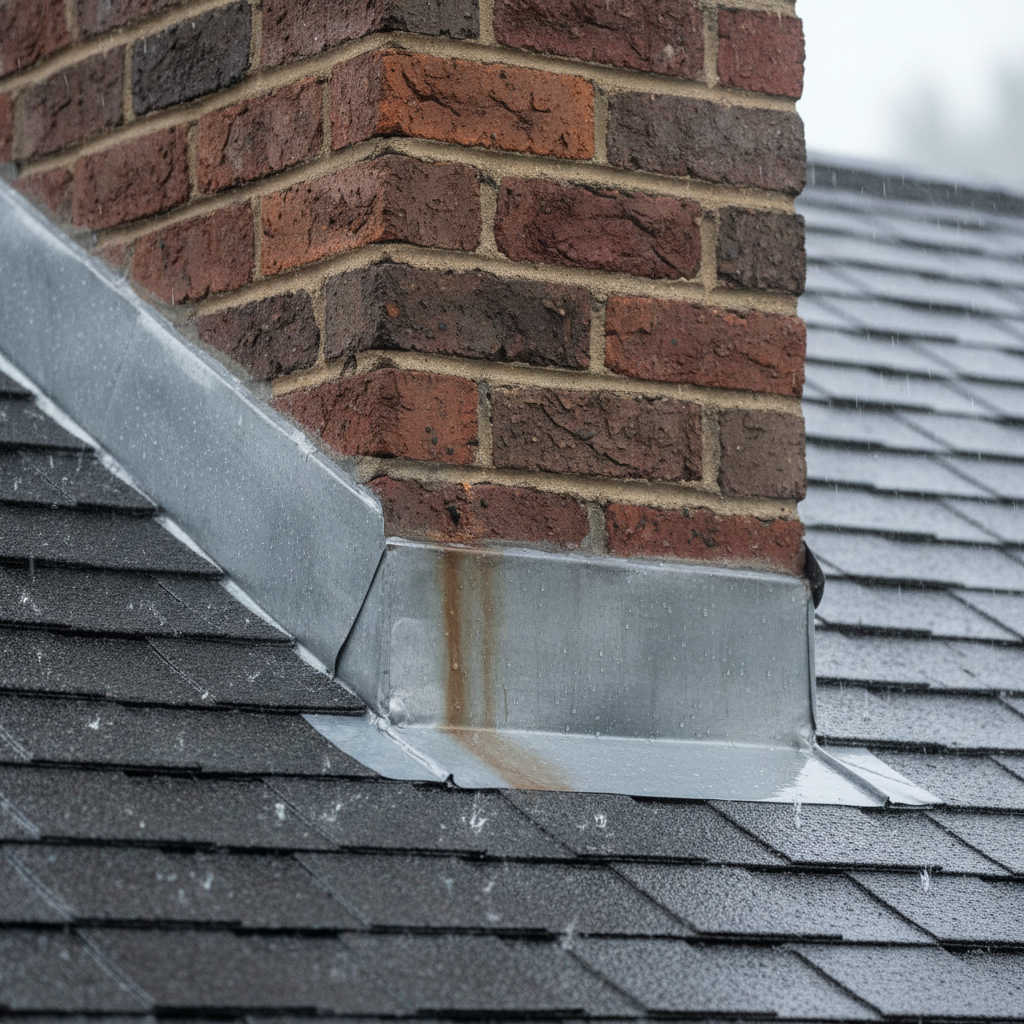

• Flashing: A critical two-part metal barrier where the chimney meets the roof. The step flashing is interwoven with the roof shingles and bent upwards against the chimney. The counter flashing is embedded into the chimney's mortar joints and bent downwards, overlapping the step flashing. This layered design allows for thermal expansion and contraction while creating a watertight seal.
• Mortar Joints: The mortar between bricks protects the interior of the chimney masonry from water. Over time, exposure to weather causes mortar to deteriorate and crack, allowing water to penetrate.
• Bricks: While seemingly solid, bricks are porous. Damaged or spalling (flaking/crumbling) bricks can absorb and wick water into the chimney's interior.

When any of these components fail—a crack in the crown, a lifted piece of flashing, or crumbling mortar—rainwater finds a pathway. Gravity then pulls this water downward, often along the flue liner or interior brickwork, until it reaches a point where it can escape into your living space.

Step-by-Step Fix

1. Conduct a Thorough Visual Inspection – Safety first: never access your roof if it's wet, icy, windy, or if you're uncomfortable with heights. Use a sturdy ladder, and have a spotter if possible.

*   **From the Ground:** Use binoculars to inspect the chimney cap, crown, visible mortar joints, and flashing from a safe distance. Look for obvious cracks, missing pieces, rust, or gaps.
*   **From the Roof (if safe):** If you can safely access your roof, get closer to the chimney. Carefully examine the chimney cap for damage or loose fit. Inspect the entire chimney crown for hairline cracks or larger fractures. Pay close attention to the flashing: look for bent, rusted, missing, or separated sections, especially where the counter flashing meets the mortar and where the step flashing meets the shingles. Check all mortar joints for crumbling, powdery residue, or deep cracks. Also, scrutinize the bricks themselves for any signs of spalling or deterioration.

2. Repair or Replace Damaged Chimney Cap – Ensure the cap is securely fastened and free of rust or holes.

*   If the cap is rusty, bent, or has holes, it may not be effectively diverting water. Smaller holes can sometimes be patched with high-temperature silicone caulk, but often replacement is the best long-term solution.
*   Make sure the cap fits snugly over all flue openings and extends sufficiently to protect them. Concrete wash caps should be free of significant cracks.

3. Repair Cracks in the Chimney Crown – Prevents water from seeping into the masonry from the top.

*   **Hairline Cracks:** Clean the crown surface thoroughly. Apply a high-quality, flexible crown repair sealant (elastomeric crown coating) specifically designed for chimneys. Spread it evenly over the entire crown surface, ensuring it fills all small cracks.
*   **Larger Cracks/Deterioration:** For more significant damage, you might need to chisel out loose concrete, clean the area, apply a bonding agent, and then patch with new mortar or a concrete repair mix. For extensive damage, a professional may need to pour a new crown.

4. Seal or Repair Chimney Flashing – Addresses the most common source of leaks at the roofline.

*   **Minor Gaps/Separations:** If counter flashing has pulled away from the mortar or step flashing has small gaps, clean the area thoroughly. Apply a generous bead of high-quality, exterior-grade polyurethane caulk or roofing cement specifically designed for flashing around all questionable seams and edges. Smooth it out for a watertight seal.
*   **Lifted Flashing:** Gently lift any loose shingles or existing flashing. Apply roofing cement underneath, press the flashing back into place, and then apply more cement over the edges for a seal. Re-secure any lifted shingles.
*   **Damaged/Rusted Flashing:** If flashing is extensively rusted, bent, or has large holes, it needs to be replaced. This is a more involved job, often requiring removal of surrounding shingles and careful installation of new step and counter flashing pieces. **This often warrants a professional, especially if you're not comfortable manipulating roof shingles and metalwork.**

5. Repoint Deteriorated Mortar Joints – Restores the weatherproofing of the brickwork.

*   **Remove Old Mortar:** Use a cold chisel and hammer or a mortar grinding tool (with extreme caution and safety glasses/dust mask) to carefully remove all loose and crumbling mortar from the joints, to a depth of about 1/2 to 1 inch.
*   **Clean and Wet:** Brush out all dust and debris. Lightly wet the joints before applying new mortar to prevent the bricks from drawing too much water out of the fresh mortar.
*   **Apply New Mortar:** Using a tuck-pointing trowel, firmly press new mortar (Type N or S for exterior use) into the joints, making sure it's packed tightly. Scrape off excess. Allow it to set slightly, then tool the joint (usually concave) for a good appearance and better water shedding.
*   **Curing:** Keep the newly repointed areas damp for several days by misting them to ensure proper curing and strength.

6. Repair Damaged Bricks (Spalling) – Prevents water absorption through the masonry itself.

*   Carefully remove spalling or severely damaged bricks. Clean out the surrounding mortar.
*   Apply fresh mortar to the bed and head joints of the opening. Carefully insert a new, matching brick, ensuring it's level and plumb with the surrounding masonry.
*   Tool the joints to match the existing mortar work. Allow to cure as with repointing.

7. Apply Water Repellent (Optional but Recommended) – Adds an extra layer of protection.

*   Once all repairs are complete and the chimney is dry, consider applying a breathable, siloxane-based water repellent specifically designed for masonry chimneys. This penetrates the surface, allowing the chimney to breathe while preventing water absorption.
*   Do NOT use a sealant that creates a film, as this can trap moisture within the masonry, leading to more damage.

Common Causes

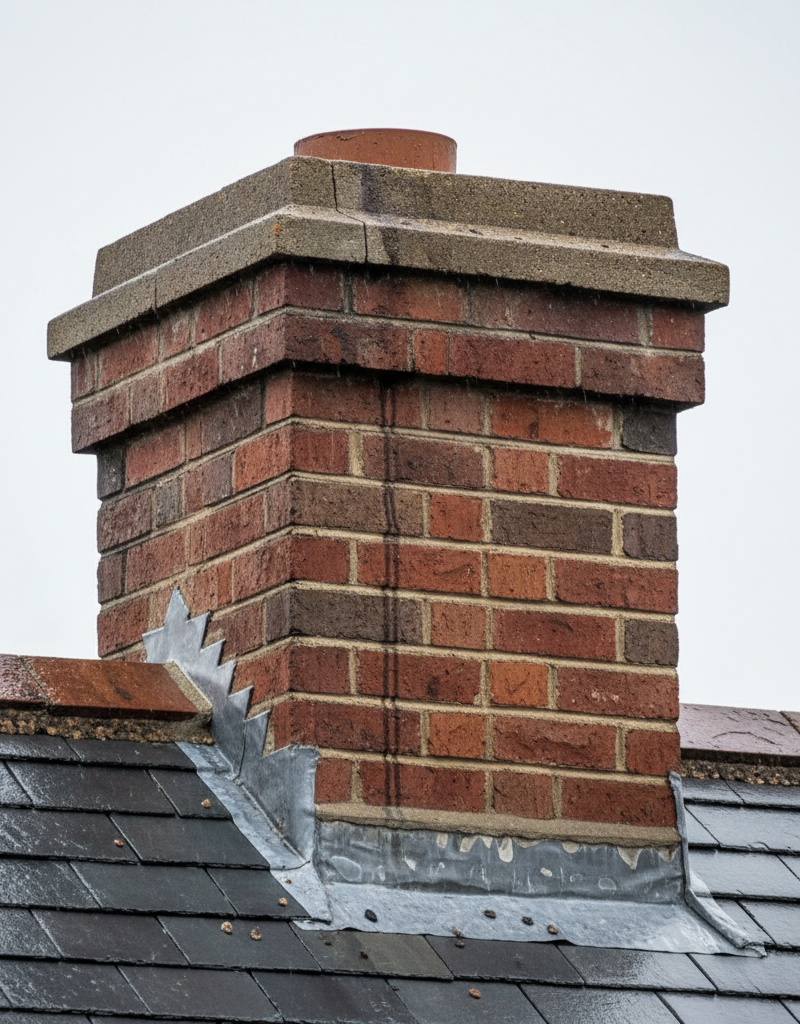

• Deteriorated or Improperly Installed Flashing: This is by far the most frequent cause. Flashing can rust, bend, separate from the chimney or roof, or be installed incorrectly from the start, creating gaps for water entry.
• Cracked Chimney Crown: The concrete cap on top of the chimney is exposed to extreme weather. Over time, it can develop cracks due to freeze-thaw cycles, allowing water to penetrate the chimney's structure.
• Damaged or Missing Chimney Cap: If the cap is absent, insufficient, or damaged, rain can fall directly into the flue, eventually finding its way into the house.
• Deteriorated Mortar Joints: The mortar between bricks breaks down over time, becoming porous and developing cracks. This allows water to seep into the brickwork.
• Spalling Bricks: Bricks themselves can deteriorate, flaking and crumbling, especially after absorbing water and undergoing freeze-thaw cycles. This makes them highly permeable to water.
• Condensation: Less common for direct leaks during rain, but persistent moisture from condensation within the flue (especially with modern, cooler-burning appliances) can mimic a leak. This usually produces a darker, oilier stain.

Common Mistakes

• Assuming the Leak Source: Many homeowners jump to conclusions (e.g.,
