Quick Answer

When an electrical outlet stops providing power, but the corresponding circuit breaker in your electrical panel remains in the 'on' position, the most likely culprits are often overlooked. The primary reasons include a tripped GFCI or AFCI outlet upstream from the dead outlet, a loose wire connection inside the affected outlet itself, a switched outlet that is currently off, a 'half-hot' outlet where only one receptacle works, or a damaged outlet. Diagnosing these common issues typically involves a systematic check of outlets on the same circuit, inspecting outlet mechanisms, and, in some cases, careful testing with a multimeter.

The Problem

You plug in your phone, a lamp, or perhaps a power tool, and nothing happens. Frustration sets in. You head to the electrical panel, only to find the breaker for that circuit is firmly in the 'on' position. Before you panic and call an electrician, understand that this is a surprisingly common household electrical mystery with several logical explanations. The problem isn't always a main circuit issue; often, it's something more localized to the outlet or its immediate wiring. This article will guide you through diagnosing and often resolving these perplexing situations, saving you time, money, and the headache of a dark room or dead device.

How It Works

To understand why an outlet might fail while its breaker is on, it's helpful to grasp the basics of how your home's electrical system delivers power. Electricity flows from your main service panel, through circuit breakers, and then along a network of wires to your outlets and light fixtures. Each circuit breaker acts as a safety device, designed to 'trip' or open the circuit if it detects an overload or a short circuit, preventing overheating and potential fires. When a breaker is on, it means the main current path from the panel to that circuit is theoretically complete.

However, there are other protective devices and configurations within this network. Ground Fault Circuit Interrupter (GFCI) outlets and Arc Fault Circuit Interrupter (AFCI) outlets are designed to trip not from an overload, but from specific fault conditions—ground faults (GFCI) or arc faults (AFCI)—that standard breakers might not detect. These outlets can be wired in a 'daisy chain' fashion, meaning one GFCI/AFCI outlet can protect all subsequent outlets on the same circuit. If that upstream GFCI/AFCI trips, all compliant outlets downstream will lose power.

Furthermore, individual outlets themselves are complex. They contain terminals for hot, neutral, and ground wires. A loose connection on any of these wires—even if the main breaker is on and providing power to the circuit—will prevent current from reaching the receptacle. Some outlets are also 'switched,' meaning they are controlled by a wall switch, often found in living rooms or bedrooms. If the switch is off, the outlet is off, regardless of the breaker. Finally, 'half-hot' outlets are wired so one of the two receptacles is always on, while the other is controlled by a switch. Understanding these nuances is key to effective troubleshooting.

Step-by-Step Fix

1. Check for Tripped GFCI or AFCI Outlets – The most frequent culprit for a dead outlet when the breaker is on.

• Look for 'Test' and 'Reset' buttons: Systematically check every GFCI (usually found in bathrooms, kitchens, garages, and outdoors) and AFCI (can be anywhere, but often bedrooms and living areas) outlet on the same floor or in adjacent rooms. Even if they're not the dead outlet itself, a tripped GFCI/AFCI can cut power to a string of downstream outlets.
• Reset the outlet: Push the 'Reset' button firmly. You should hear an audible click. If it doesn't reset, it might indicate a persistent fault or a bad GFCI/AFCI.
• If it keeps tripping: Unplug everything from all outlets connected to that GFCI/AFCI. If it still trips, the fault is likely in the wiring or the GFCI/AFCI itself. If it holds, plug in devices one by one to identify the faulty appliance.

2. Test Other Outlets on the Same Circuit – Determine if the problem is isolated or widespread.

• Locate the circuit: If you know which breaker controls the dead outlet, test other outlets connected to that breaker. Consult your electrical panel map, if available. If unsure, turn off the suspected breaker and see which other outlets lose power.
• Use a known working device: Plug a lamp or a small appliance you know works into adjacent outlets or any outlet you suspect is on the same circuit. If other outlets are working, the problem is isolated to your specific outlet or its immediate wiring.
• If multiple outlets are dead: If several outlets are dead and the breaker is on, it strengthens the case for a tripped upstream GFCI/AFCI, a loose wire in a junction box upstream, or a rare main wiring fault.

3. Inspect the Outlet for Damage or Loose Connections – A visual check can reveal simple issues.

• Safety First: Turn off the circuit breaker controlling the dead outlet at your electrical panel. VERIFY power is off with a non-contact voltage tester before touching any wires or terminals.
• Remove the cover plate: Unscrew the faceplate of the dead outlet.
• Gently pull out the outlet: Using insulated pliers or your hands, carefully pull the outlet slightly out of the electrical box. Do not tug on the wires.
• Look for loose wires: Check if any wires (black 'hot,' white 'neutral,' bare copper or green 'ground') are loose or disconnected from their screw terminals or push-in connections. Also, look for signs of burning, melted plastic, or frayed insulation.
• Tighten connections: If wires are loose, turn the power off at the breaker again. Gently tighten any loose screw terminals clockwise. If using push-in connections, these are notorious for failing; consider moving the wire to the screw terminal if possible (after stripping a small amount of insulation if needed).
• Damaged outlet: If the outlet itself shows signs of warping, discoloration, or a broken tab, it needs to be replaced.

4. Check for Switched Outlets – A common oversight, especially in living areas.

• Identify wall switches: In living rooms, bedrooms, or dens, one-half of an outlet or even the entire outlet is often controlled by a wall switch.
• Flip all switches: Systematically flip available wall switches up and down. Plug a lamp into the 'dead' outlet to test if any switch activates it.
• Consider 'half-hot' outlets: Look closely at the outlet. Sometimes, only the top or bottom receptacle is switched. If one part works and the other doesn't, you likely have a 'half-hot' setup. Ensure the controlling switch is on if you want the switched half to work.

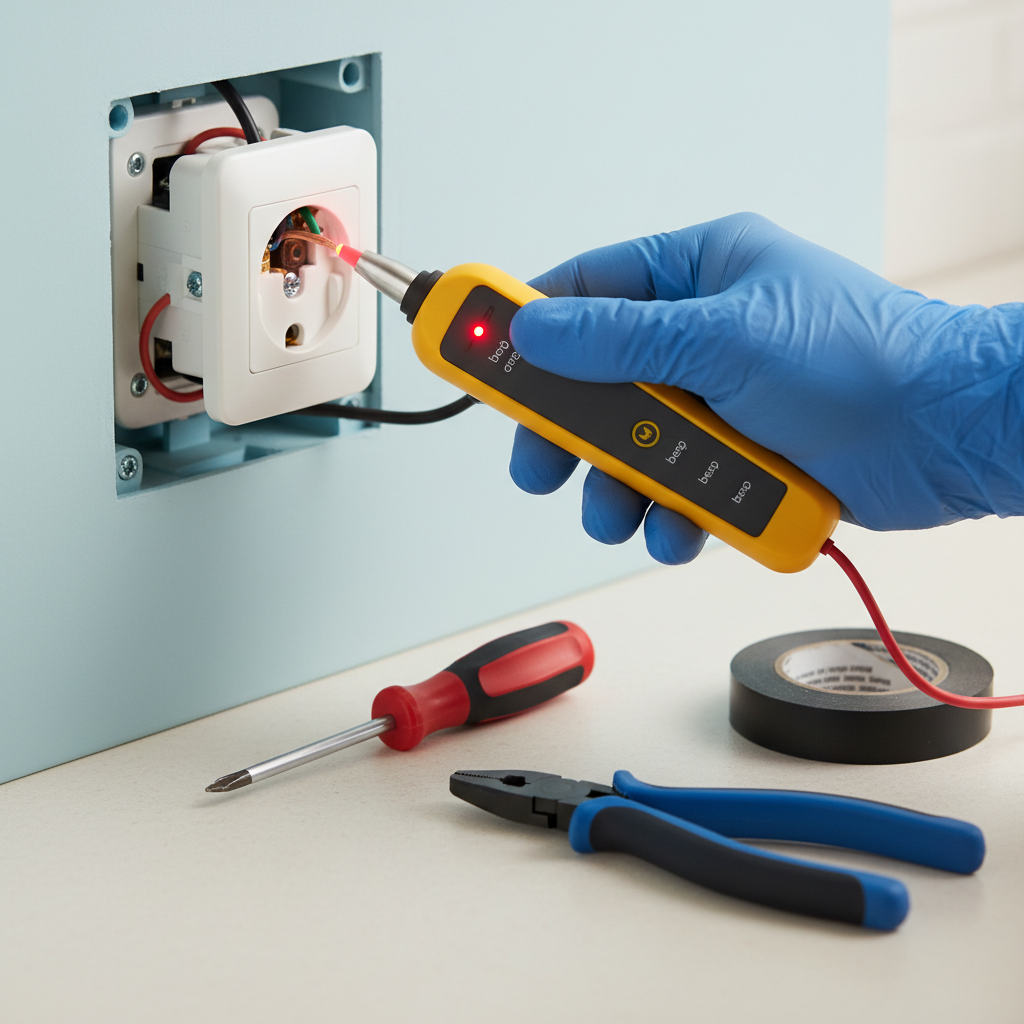

5. Test with a Multimeter or Outlet Tester – Precise diagnostics require proper tools.

• Safety First: Ensure you know how to operate your multimeter or outlet tester. Always assume wires are live until tested and verified safe.
• Outlet tester: A simple plug-in outlet tester (with indicator lights) can quickly tell you if power is present and identify common wiring faults (like open ground, open neutral, or reversed polarity). Plug it into the dead outlet. If no lights illuminate, there's no power.
• Multimeter (advanced): With the breaker ON and extreme caution, set your multimeter to AC voltage (V~). Insert one probe into the smaller vertical slot (hot) and the other into the larger vertical slot (neutral). You should read approximately 120V. Then test between the smaller slot (hot) and the round hole (ground). You should also read 120V. If you read 0V on both, there's no power. If you read 120V hot to ground but 0V hot to neutral, you have an open neutral.
• If no power detected: This confirms the lack of power and, depending on your earlier checks, points towards an upstream issue or a break in the wiring.

6. Replace a Damaged Outlet – When physical inspection or testing reveals a faulty unit.

• Safety First: Turn off the circuit breaker controlling the dead outlet. VERIFY power is off with a non-contact voltage tester.
• Remove the old outlet: After removing the cover plate and pulling the outlet from the box, carefully disconnect the wires from the old outlet. Note which wires go to which terminals (hot to brass/dark screw, neutral to silver/light screw, ground to green screw).
• Install the new outlet: Strip about ¾ inch of insulation from each wire if necessary. Connect the bare copper or green wire to the green ground screw. Connect the white neutral wire to one of the silver screws. Connect the black hot wire to one of the brass screws. Ensure connections are tight and no stray wire strands are touching.
• Secure and test: Gently push the new outlet into the box, ensuring wires are neatly tucked. Screw it in securely, replace the cover plate, and turn the breaker back on. Test with a lamp or outlet tester.

Common Causes

• Tripped GFCI/AFCI Outlet: This is hands-down the most common reason for a dead outlet when the main breaker is on. A GFCI/AFCI upstream from the problematic outlet has tripped due to a ground fault or arc fault, cutting power to all subsequent outlets on that segment of the circuit.
• Loose Wire Connection: Over time, wires can slightly loosen from their terminal screws or push-in connections within the outlet box. This breaks the circuit at that point, preventing power flow.
• Switched Outlet: Many rooms have outlets (or part of an outlet) controlled by a wall switch. If the switch is off, the outlet won't have power.
• Damaged Outlet or Receptacle: Internal components of an outlet can wear out, overheat, or break from physical stress, leading to a loss of power.
• 'Half-Hot' Wiring: In this configuration, one of the two receptacles on an outlet is always live, while the other is controlled by a wall switch. If you're testing the switched half and the switch is off, it will appear dead.
• Open Circuit/Loose Wire Upstream: Less common for a single isolated outlet, but a loose wire connection in a junction box earlier on the circuit could cut power to everything downstream.

Common Mistakes

• Ignoring GFCI/AFCI Outlets: Assuming that because the main breaker is on, GFCIs/AFCIs aren't relevant is a huge mistake. Always check these first.
• Not Verifying Power is Off: Touching wires without confirming the circuit is de-energized with a reliable tester is extremely dangerous and can lead to severe electric shock.
• Assuming the Breaker is Truly 'On': Sometimes a breaker appears fully on but is actually slightly tripped internally. Firmly pushing it to the 'off' position and then back to 'on' can often reset it if it was subtly tripped.
• Overlooking Switched Outlets: Forgetting to check nearby wall switches is a common and easily avoidable error.
• Tugging on Wires: When pulling an outlet out of its box for inspection, pulling too hard can worsen a loose connection or create a new one.
• Ignoring Signs of Damage: Reusing a visibly burnt, melted, or otherwise damaged outlet is dangerous; always replace it with a new one.

Cost & Time Breakdown

Tips & Prevention

• Label Your Electrical Panel: A clearly labeled electrical panel map indicating which outlets and lights are on each circuit breaker is invaluable for troubleshooting.
• Regular GFCI/AFCI Testing: Test your GFCI and AFCI outlets monthly by pressing the 'Test' button, ensuring they trip, and then pressing 'Reset.' This verifies their functionality.
• Avoid Overloading Outlets: Plugging too many high-draw appliances into a single outlet or circuit can lead to overheating and premature outlet failure, or a tripped breaker.
• Inspect Outlets Periodically: During cleaning or painting, take a moment to visually inspect outlets for any signs of damage, loose cover plates, or discoloration.
• Use Proper Tools: Invest in a non-contact voltage tester and an inexpensive outlet tester. They are essential for safe and effective electrical troubleshooting.
• Secure Wire Connections: If you're undertaking any electrical work that involves opening an outlet box, always ensure all wire connections are tight and secure. Consider using pigtails instead of connecting multiple wires directly to a single screw terminal.

When to Call a Professional

While many 'outlet dead but breaker on' issues are DIY-friendly, certain situations warrant calling a licensed electrician immediately. If you've systematically followed the troubleshooting steps and still cannot identify the cause, or if the problem reoccurs frequently, a professional diagnostic is necessary. You should call an electrician if: you smell burning plastic or chemicals, see sparks or smoke from an outlet or the electrical panel, feel heat from an outlet or wall, repeatedly trip a GFCI/AFCI outlet after resetting it (especially without anything plugged in), or if multiple outlets or entire sections of your home lose power simultaneously. These signs can indicate serious wiring faults, damaged circuit components, or deeper issues that require expert knowledge and specialized tools to resolve safely and effectively, preventing potential electrical fires or hazards.
