Quick Answer

You can replace a standard deadbolt lock in most doors in about 15-30 minutes using a Phillips head screwdriver. The process involves removing the old lock's screws, extracting the two halves of the bolt from the door, and then installing the new components in reverse order. Most new deadbolt kits are designed for DIY installation and include all necessary hardware.

The Problem

Your existing deadbolt might be sticking, difficult to turn, or perhaps you've lost a key and want to rekey the entire lock. Maybe you're upgrading your home's security with a newer model, or simply want to match your existing hardware's finish. While a locksmith can certainly handle this, replacing a deadbolt is one of the most straightforward home security upgrades a homeowner can tackle. The common misconception is that lock replacement is complex or requires specialized tools, leading many to needlessly pay for professional services. However, a standard deadbolt replacement in a pre-drilled door is a surprisingly quick and simple task.

How It Works

A deadbolt lock consists of two primary parts: the lock cylinder (where you insert the key) and the bolt mechanism. The lock cylinder is housed within the trim plates that are visible on either side of your door. These plates are typically held together by two long screws that pass through the door and thread into the interior trim plate. The bolt mechanism, often called the 'latch' or 'strike bolt,' slides into the edge of the door and engages with the strike plate on the door frame. When you turn the key or the thumb turn, a cam inside the cylinder rotates, extending or retracting the bolt. This cam connects to the bolt mechanism via a spindle or tailpiece. When properly installed, the bolt extends far enough into the door frame’s strike plate to provide significant resistance against forced entry. The magic of a successful DIY replacement lies in understanding that most residential deadbolts are standardized for a 2-1/8 inch bore hole (the main hole in the door) and a 1-inch edge bore hole (where the bolt goes). This standardization means that a new deadbolt from virtually any major brand will fit into the existing holes left by your old one, making the replacement process largely a matter of unscrewing the old and screwing in the new.

Step-by-Step Fix

1. Gather Your Tools — *Success starts with preparation.

• Before you begin, ensure you have all the necessary tools and your new deadbolt kit. Most deadbolt replacements only require a Phillips head screwdriver. A flathead screwdriver might be useful for prying stubborn parts, and a tape measure can verify your backset measurement if you're unsure.

2. Remove the Interior Thumb Turn Plate — The first component to come off.

• On the interior side of the door, locate the two visible screws on the deadbolt's trim plate. These are almost always Phillips head screws. Use your screwdriver to loosen and remove both screws completely. Keep these screws in a small container so they don't get lost, though you'll likely use the new screws provided with your new deadbolt.

3. Remove the Exterior Lock Cylinder Plate — Gently separate the lock halves.

• Once the interior screws are removed, the interior thumb turn plate should pull away easily. The exterior lock cylinder plate on the other side of the door might also come loose or require a gentle pull. Take care not to scratch the door's finish. Some deadbolts have a small spindle connecting the two halves; this will generally pull out with one of the halves or be free-floating.

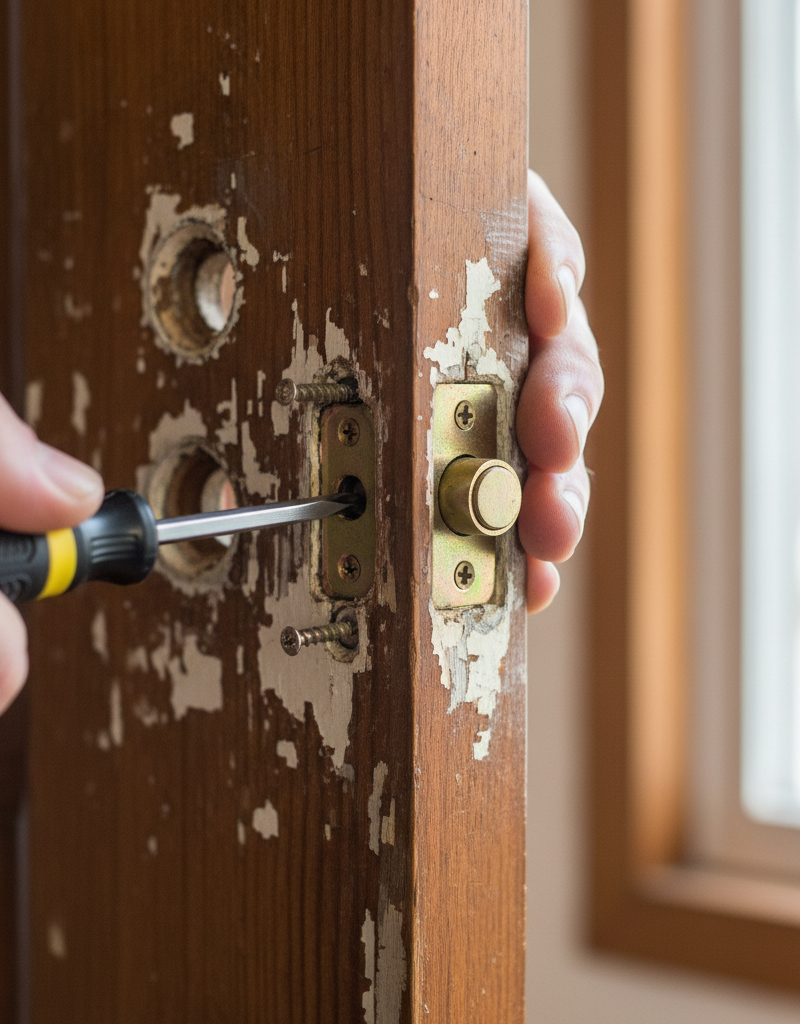

4. Remove the Deadbolt Latch/Bolt Mechanism — The heart of the lock.

• With the two main trim plates off, turn your attention to the edge of the door where the bolt extends. You'll see another small plate held in place by two smaller screws. Remove these screws. Once loosened, the entire bolt mechanism should slide out of the door's edge. Some mechanisms might be a bit snug, so a slight wiggle might be needed. Pay attention to the orientation of the bolt (which way the 'up' side is facing) for reference when installing the new one, though it's usually intuitive.

5. Verify Backset and Bolt Orientation — Crucial for proper function.

• Before installing the new deadbolt, examine the new bolt mechanism. Many modern deadbolts have an adjustable backset, meaning the bolt can be set for either a 2-3/8 inch or 2-3/4 inch distance from the door's edge to the center of the main bore hole. Adjust it by twisting or pulling the bolt end if necessary to match your door. Ensure the correct side of the bolt assembly faces up (often indicated by arrows or text) and that the angled side of the bolt faces the door frame for smooth closing.

6. Insert the New Deadbolt Latch/Bolt — Slide the new hardware into place.

• Slide the new bolt mechanism into the edge of the door, ensuring the correct backset and orientation. Secure it with the two small screws provided in your new deadbolt kit. Do not overtighten, as this can impede the bolt's smooth operation.

7. Install the Exterior Lock Cylinder — Position the keyed side.

• Insert the exterior lock cylinder (the keyed side) into the main bore hole from the outside of the door. Ensure the tailpiece (the flat metal bar that extends from the cylinder) is correctly oriented to slide through the slot in the bolt mechanism. It should be relatively flush with the door's exterior surface.

8. Install the Interior Thumb Turn Assembly — Connect the internal components.

• Align the interior thumb turn assembly with the tailpiece from the exterior cylinder and the bolt mechanism. The tailpiece should slide into a receiving slot within the thumb turn assembly. Gently push the two halves together, making sure the tailpiece isn't pinched or bent. There should be no significant gap between the door and the trim plates.

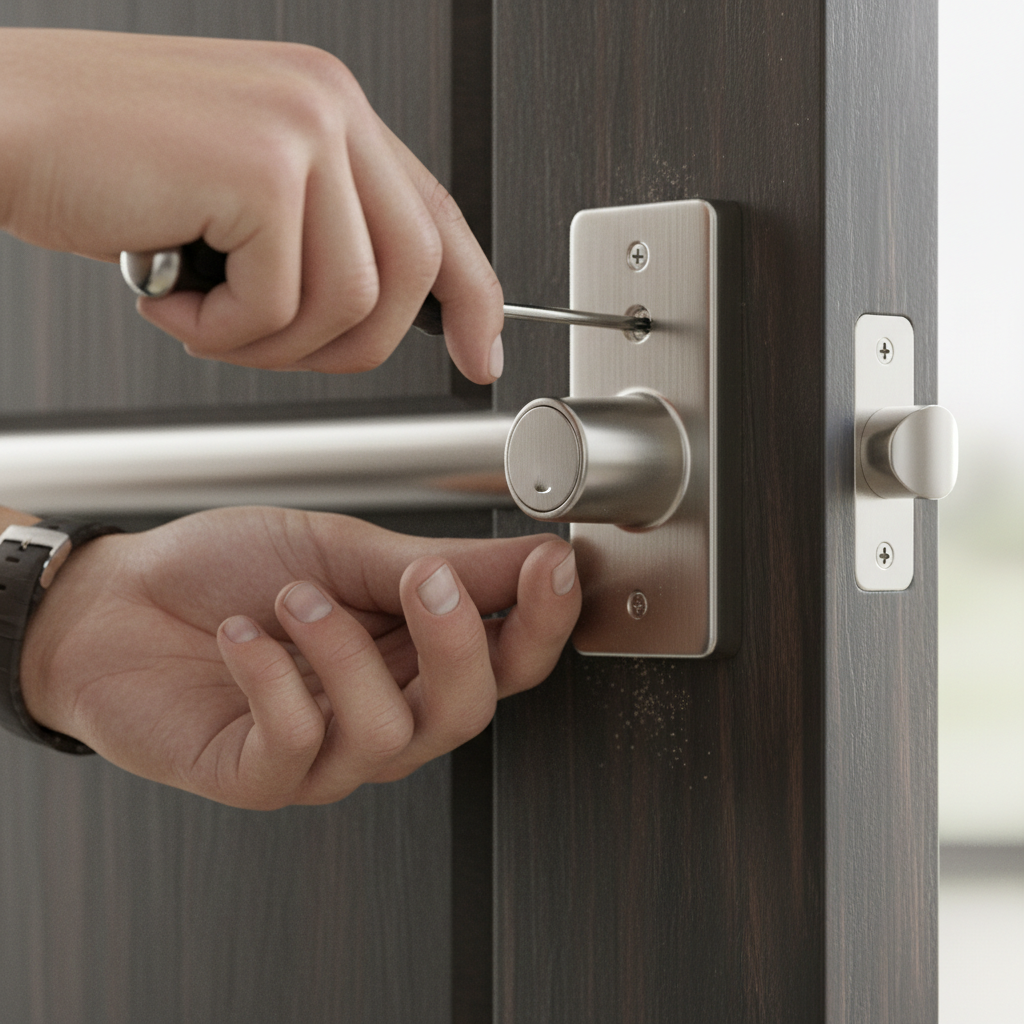

9. Secure the Deadbolt with Long Screws — Tighten for security.

• Insert the two long Phillips head screws (provided with your new deadbolt) through the interior thumb turn plate and thread them into the exterior lock cylinder. Alternate tightening each screw a little at a time, ensuring the deadbolt pulls snugly and evenly against the door. Over-tightening can deform the lock or the door, causing the mechanism to bind. Test the thumb turn frequently as you tighten to ensure smooth operation.

10. Test the Deadbolt — Check functionality before closing the door.

• With the door open, test the deadbolt several times using both the thumb turn and your key from the exterior. The bolt should extend and retract smoothly without catching or requiring excessive force. If it feels stiff, slightly loosen the main screws and re-test. If it's still stiff, you might have overtightened or the tailpiece isn't perfectly aligned.

11. Adjust the Strike Plate (If Necessary) — Ensure a perfect fit.

• Close the door and test the deadbolt. It should slide easily into the strike plate on the door frame. If it snags, rubs, or doesn't fully extend, you may need to adjust the strike plate on the frame. Often, the previous deadbolt may have slightly worn the wood, or the new bolt is a different size. You can slightly enlarge the opening in the strike plate with a file or carefully chisel out a tiny bit of wood from the door frame mortise. In some cases, replacing the old strike plate with the new one provided can resolve minor alignment issues, but this requires unscrewing the old plate and screwing the new one in.

12. Final Check — Confirm security and smooth operation.

• Once the deadbolt operates smoothly with the door both open and closed, double-check that all screws are sufficiently tightened (but not overtightened) and that the lock feels secure. Try to jiggle the exterior cylinder to ensure it doesn't have excessive play. Your new deadbolt is now installed and ready to secure your home.

Common Causes

Homeowners typically replace deadbolts for several key reasons:

• Lost or Stolen Keys: The most common reason, as it compromises security. Replacing the deadbolt is often simpler and more secure than rekeying, especially if the old lock is very basic.
• Worn or Damaged Mechanism: Over time, internal components can wear out, leading to a stiff, sticky, or grinding deadbolt that's hard to operate, indicating it's time for a replacement.
• Security Upgrade: Older deadbolts may not offer the same level of pick or bump resistance as newer models. Upgrading to a Grade 1 or Grade 2 deadbolt significantly enhances security.
• Aesthetic Upgrade: Matching door hardware finishes or updating the look of a door can be a strong motivator for replacing a deadbolt.
• New Home or Tenant: To ensure no previous occupants have keys, many new homeowners or landlords opt to replace all exterior locks.
• Damage from Forced Entry Attempt: After an attempted break-in, a deadbolt may be compromised or damaged, necessitating replacement even if it appears to function.

Common Mistakes

• Overtightening Screws: This is a very common mistake. Overtightening the long mounting screws can warp the lock body or crush the door material, causing the bolt mechanism to bind and operate stiffly. Instead: Tighten until snug, then give a quarter-turn more. Test the lock frequently during tightening.
• Ignoring Backset Measurement: Not checking and adjusting the backset (distance from door edge to hole center) on an adjustable bolt. If the backset is wrong, the bolt won't align with the strike plate or may not operate at all. Instead: Before installing the bolt mechanism, always confirm it's set to match your door's existing backset (2-3/8 or 2-3/4 inches).
• Incorrect Bolt Orientation: Installing the bolt mechanism with the angled side facing into the door when closed. The angled side of the bolt should always face the door frame to allow for smooth closing. Instead: Double-check that the slanted part of the bolt is oriented towards the door jamb. Many bolts have an 'up' indicator.
• Forcing the Tailpiece: Bending or forcing the tailpiece (the flat bar from the cylinder) into the thumb turn assembly. This can damage the tailpiece or the internal mechanism, leading to a dysfunctional lock. Instead: Gently align the tailpiece with the slot in the interior assembly. Wiggle the lock halves slightly to help it seat properly.
• Not Testing Before Closing Door: Installing the lock fully and only testing it after closing the door, making it harder to diagnose issues if the bolt binds. Instead: Always test the deadbolt with the door open several times (key and thumb turn) to ensure it operates smoothly before closing the door and testing against the frame.

Cost & Time Breakdown

Tips & Prevention

• Regular Lubrication: Apply a graphite-based lubricant (avoid oil-based sprays which can attract dirt) into the keyway once a year to keep the mechanism smooth and prevent sticking. Turn the key several times after lubricating.
• Check for Looseness: Periodically check the screws on both the interior and exterior plates of your deadbolt. Loose screws can lead to a wobbly lock and compromise security and function. Tighten them gently if needed.
• Key Management: Keep track of all your keys. Consider having a trusted neighbor or friend hold a spare rather than hiding one outside (which many burglars are aware of).
• Upgrade to Higher Security Grades: When replacing, consider deadbolts rated ANSI/BHMA Grade 1 or 2 for superior pick resistance, drill resistance, and overall durability. These often feature longer throw bolts and hardened steel pins.
• Door and Frame Maintenance: Ensure your door itself isn't warped and that the door frame is solid. A strong deadbolt is only as good as the door and frame it's attached to. Repair any rot or damage promptly.
• Strike Plate Reinforcement: For enhanced security, consider reinforcing the strike plate on your door frame with longer, 3-inch screws that penetrate into the wall stud. This makes it much harder to kick in the door.

When to Call a Professional

While deadbolt replacement is a straightforward DIY task for most standard doors, there are specific situations where calling a licensed locksmith or handyman is the safer and more effective option. If your door is not pre-drilled for a deadbolt, and you need new holes bored, or if the existing holes are uncommon sizes or severely damaged, a professional has the specialized tools to create clean, accurate openings. Similarly, if your door is made of metal, fiberglass, or a material other than standard wood, a professional installation might prevent damage to the door and ensure proper lock function. If a deadbolt replacement is part of a larger security system integration, or if you're dealing with complex multi-point locking systems, a locksmith will have the expertise to ensure everything is correctly configured. Finally, if you've attempted the DIY replacement and the lock is still binding, sticking, or not operating smoothly after troubleshooting, a professional can diagnose underlying issues with the door or frame that might be beyond a simple lock swap, saving you frustration and potential further damage.
