Soffit and Fascia Damage? 5 Warning Signs and the Step-by-Step Fix

Quick Answer

If you want to fix damaged soffit and fascia, start with the source of the moisture—usually overflowing gutters, a missing drip edge, or ice dams—before you touch a saw. Pull the gutters off, pry down the rotted fascia board with a flat pry bar, and get the bad soffit panels out from underneath. Measure twice, cut your replacement primed spruce, cedar, or PVC trim to match, seal every cut end with exterior primer, and nail the new boards right into the rafter tails with 2-1/2-inch hot-dipped galvanized or stainless steel ring-shank nails. Don’t rush that part. A sloppy eave repair comes back to bite you.

The Problem

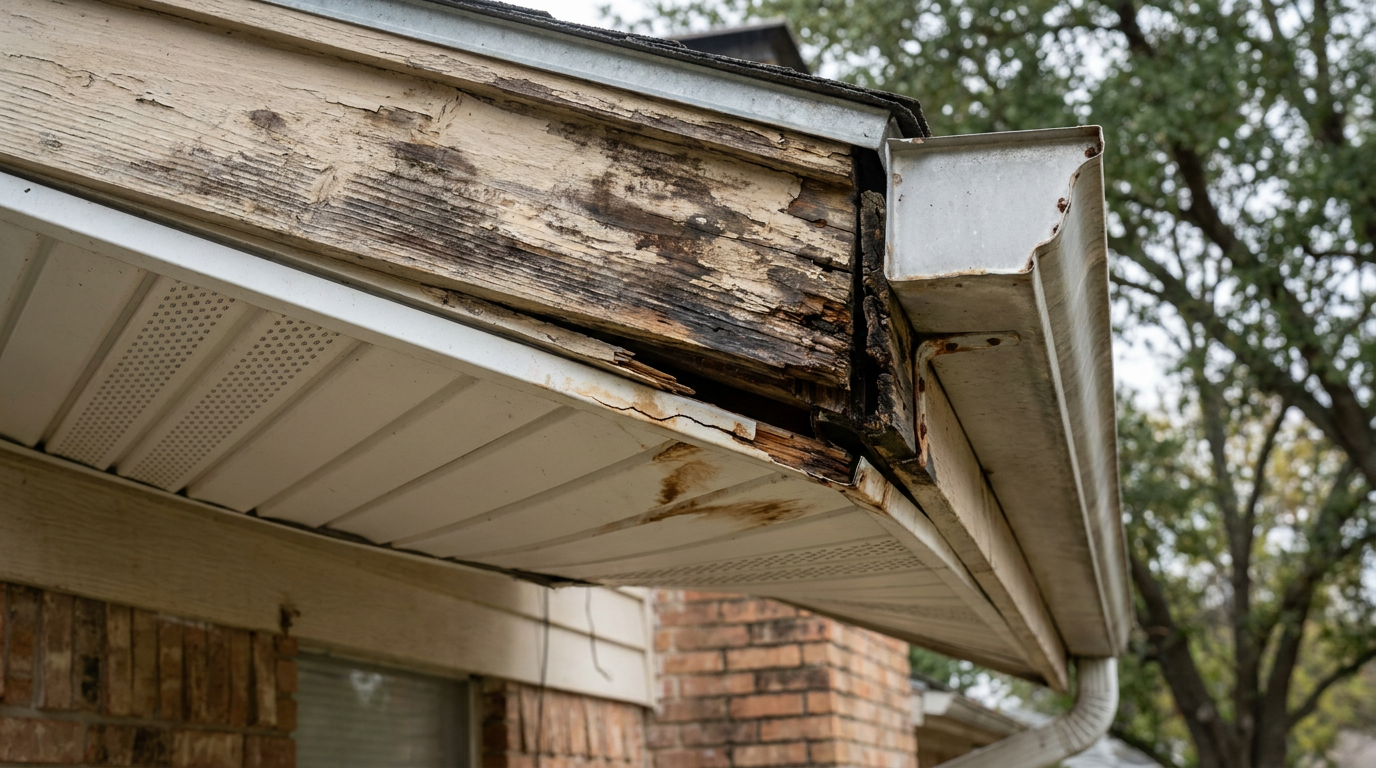

Walk around the outside of your house and look straight up under the roof overhangs. Do you see peeling paint, soft, spongy wood, or dark water streaks running down the vertical boards behind your gutters? That’s rotted fascia.

Now look underneath the overhang at the horizontal panels running from the wall to the roofline—that’s your soffit. When soffit panels bow, crack, pick up mildew, or show gnaw marks from squirrels and wasps, your roofline’s telling you it’s had enough.

Leaving damaged soffit and fascia alone is a gamble you’ll lose. Water doesn’t stop at the trim. Once rot chews through the exterior fascia, moisture sneaks back into the ends of your structural rafter tails, breaks down your roof decking, and dumps humidity right into attic insulation. In places like North Texas, where summer humidity teams up with those ugly sudden downpours, damp timber turns into a welcome mat for wood-destroying fungi and carpenter ants in no time. I pulled a water heater in Frisco last month that had exactly this leak—by the time the homeowner noticed, the fascia was soft as wet cardboard. Fix it now, and you’re stopping a small trim repair from turning into roof framing work.

How It Works

Your roof overhang is doing two jobs at once: it protects the structure and it helps your attic breathe.

The fascia is the vertical board mounted across the cut ends of your roof rafters. Its job is simple enough: give the roofline a clean edge and hold the gutters in place. When a downpour hits, those gutters can carry 5 to 8 pounds of water per linear foot without blinking. The fascia takes that load through fasteners driven into the end-grain of rafters spaced 16 or 24 inches on center.

The soffit is the horizontal underside between the back of the fascia board and the exterior wall of the house. Soffit panels aren’t just there to look pretty; they’re perforated or slotted so cool outside air can enter the lower part of the attic.

That sets up a natural thermodynamic siphon: cool air comes in through the soffit vents, warms up in the attic cavity, rises toward the roof ridge, and escapes through ridge or box vents.

        Roof Decking & Shingles
             \
              \   <-- Drip Edge (flashing)
               \_________________
               | Rafter Tail     |
               |                 | [Fascia Board] <-- Gutters mount here
               |                 |
  [Attic]      |_______   _______|
                       | |
                  [Soffit Panel] (vents cool air into attic)
                       | |
                  [J-Channel]
                       | |
               =================== Exterior Wall

When gutters clog, water backs up behind the rear wall of the gutter trough. Capillary action pulls that trapped moisture between the gutter and the fascia. If the metal drip edge was installed wrong and doesn’t hang out 1/4-inch over the gutter rim, water clings to the wood. Wood soaks it up, the cellulose fibers soften, and rot starts spreading downward into the soffit grooves. Pretty soon the fasteners are shot and you’ve got open gaps for roof rats, squirrels, and yellow jackets to move right into the attic.

Step-by-Step Fix

Before you start, check the slope and stability of your work area. Set extension ladders on firm, level ground and use a ladder standoff stabilizer so you don’t crush the gutters or dent aluminum trim. Common sense stuff, but it gets skipped more than you’d think.

1. Identify the failure zone and uncover the leak source — Walk the perimeter with a stiff putty knife and a bright flashlight, poking the underside of the fascia and soffit panels every few feet. Soft, crumbly wood means rot, even if the paint still looks decent from the ground. Look up inside the gutters and see whether the metal drip edge is tucked behind the gutter backplate instead of hanging over it, because that’s the usual repeat offender.

   • Tools required: Stiff 1-1/2-inch putty knife, ladder, flashlight.
   • Safety check: Wear ANSI-approved eye protection; falling rot and insect nests will drop straight toward your face when you start probing.

2. Dismount the gutter section — Back out the gutter bracket screws or pry out the old gutter spikes holding the gutter trough to the damaged fascia board. Lower the gutter section carefully with rope loops, or have a helper hold one end so the aluminum doesn’t bend, crease, or kink.

   • If screws are seized: Cut through rusted brackets with an oscillating multi-tool fitted with a bi-metal blade instead of yanking the aluminum free and tearing the metal.

3. Slice paint and caulk seams — Score every caulked seam between the fascia and adjacent boards, the soffit J-channel, and the roof shingles with a sharp utility knife. That keeps you from ripping good paint, siding, and the vapor barrier when you pull the rotten lumber off.

   • Pro tip: Don’t yank a board loose before scoring; it’ll peel strips of good wood off the adjoining pieces.

4. Pry off the damaged fascia board — Slide a wide, flat pry bar behind the rotted fascia board right where it meets a rafter tail. Work it down the length of the damaged section and ease the board outward to loosen the nails. Pull the board free and toss it right away so rusted nails don’t end up in your lawn or driveway.

   • Tools required: Wonder bar or flat pry bar, 16-ounce claw hammer.
   • Watch out: If the fascia is rotted clean through, it may break apart in splinters. Use pliers to pull any leftover fasteners still stuck in the rafter tails.

5. Remove the soffit panels — If you’ve got plywood or wood-plank soffits, pry down the damaged section by loosening the fasteners holding it to the sub-fascia nailing strip and the wall-side ledger board. For vinyl or aluminum soffits, pop the locking tabs apart with a vinyl siding removal zip tool, slide the damaged panel out of the J-channel, and set it aside.

   • Attic warning: Check for bat droppings, squirrel nesting debris, or live wasp colonies before you start pulling panels down. Keep wasp spray within arm’s reach.

6. Inspect and treat exposed rafter tails — Scrape away all mold, fungal growth, and soft fibers on the structural rafter tails with a stiff wire brush. If soft wood goes less than 1/2-inch into the rafter tip, saturate it with a liquid borate wood preservative to kill active spores, then let it dry for 24 hours.

   • If rot is deep: When rot goes more than 1/2 inch into the structural rafter tail, you can’t just paint over it; you’ve got to sister a 2-foot section of matching 2x4 or 2x6 framing lumber against the side of the damaged rafter and secure it with three 3-inch exterior structural screws.

7. Cut the replacement materials to dimension — Measure the opening carefully, and note whether your fascia joints meet on a 45-degree miter or a flat 90-degree butt joint over the center of a rafter tail. Cut your replacement material—cellular PVC trim, Western red cedar, or primed spruce—using a circular saw or miter saw fitted with a 40-tooth carbide-tipped finish blade.

   • Measurement rule: Join two adjoining fascia boards directly over the center of a rafter tail so both ends have solid 3/4-inch wood meat to anchor into.
   • Critical detail: Cut replacement soffit panels 1/4-inch shy of the total width between the wall and sub-fascia so there’s room for seasonal thermal expansion.

8. Prime and seal all cut ends — Factory-primed boards only protect the flat faces; every saw cut exposes raw, porous end-grain that’ll soak up water if you leave it bare. Brush two coats of an exterior-grade oil-based primer or acrylic bonding primer over every fresh cut edge, letting it dry to the touch before you install it.

   • Materials: Fast-drying exterior primer, 2-inch disposable chip brush.

9. Install the new soffit panels — Slide the new soffit panel into the wall-mounted J-channel or nail it flush against the underside of the ledger board along the wall. Tack the outer edge to the bottom edge of the rafter tails using 1-1/4-inch stainless steel brad nails or narrow-crown staples driven every 12 inches.

   • Ventilation check: Don’t cover up the existing venting routes. If you’re using solid soffit, cut openings and install louvered aluminum intake vents so the attic still gets airflow.

10. Hang and secure the replacement fascia board — Set your new fascia board flush against the rafter tails, lining the top edge up with the plane of your roof decking. Fasten the board with two 2-1/2-inch (8d) hot-dipped galvanized or stainless steel ring-shank nails per rafter tail, driving the heads flush without burying them too deep into the grain.

    • Fastener note: Don’t use standard electro-galvanized drywall or interior wood screws; they’ll rust and snap within two seasons outside.

11. Caulk and waterproof all perimeter joints — Fill nail indentations with an exterior wood filler or two-part epoxy paste. Run a clean, continuous 3/16-inch bead of paintable polyurethane or high-grade elastomeric sealant along every joint where the fascia meets adjacent boards, trim corners, and soffit edges.

    • Do not caulk: Never caulk the bottom lip where the drip edge overlaps the fascia, since that traps stray water behind the metal.

12. Reinstall gutters and correct the drip edge overlap — Put the gutters back up with heavy-duty screw-in gutter hangers spaced every 24 to 30 inches, keeping a continuous slope of 1/4-inch drop per 10 linear feet toward the downspouts. Make sure the metal drip edge extends at least 3/8-inch beyond the outer edge of the fascia, so water gets kicked straight into the gutter instead of running down the face of the board.

Common Causes

• Missing, Misaligned, or Flush Drip Edges: A lot of builders skip the drip edge or lay it flat against the fascia. When rain runs off the shingles, surface tension pulls the water around the edge, and it tracks backward down the fascia instead of dropping into the gutter.
• Undersized, Clogged, or Overflowing Gutters: Oak leaves, pine needles, and roof grit clog downspouts fast. In a heavy downpour, water backs up in the gutter trough, climbs above the back wall, and soaks the fascia board from behind.
• Pest Infiltration and Nesting: Squirrels, raccoons, and mice love chewing through softened soffit corners to get into warm attics. Once they’ve made a hole, moisture gets in, insulation gets shoved aside, and the pests keep widening the damage.
• Ice Dams: During freezing snaps, snow melts over warm upper attic zones and refreezes into an ice barrier near the cold roof eaves. Liquid water pools behind that ice dam, backs up under the shingles, and pours into the soffits and exterior walls.
• Unsealed End-Grain Cuts: DIYers and sloppy contractors cut lumber on-site and nail it up without sealing the fresh raw wood edges. End grain wicks water deep into the timber fibers up to twelve times faster than face grain.

Common Mistakes

• Painting Over Rotted Timber: Slapping fresh acrylic latex paint over soft, moisture-damaged wood traps the moisture inside instead of protecting it. The rot keeps working under the paint skin, and sooner or later you’ve got a real mess on your hands.
• Using Smooth Interior Drywall Screws: Drywall and zinc interior screws don’t have the rust resistance or shear strength for this job. Once gutters fill with heavy rain or debris, smooth-shank fasteners rust, shear off under the load, and the whole gutter run can drop off the house.
• Nailing Fascia Joints Between Rafters: Butting two fascia boards together over open space instead of right on the centerline of a rafter tail creates a weak floating hinge. That joint will buckle, pop the caulk, and open up within months.
• Blocking Attic Intake Airflow: Stuffing insulation rolls over the interior soffit openings during an attic upgrade chokes the ventilation. Without incoming air, attic humidity can soar above 70%, cooking roof shingles from underneath and rotting the soffits from the inside out.
• Caulking the Drip Edge to the Fascia: Some homeowners think every joint needs caulk and seal the bottom of the roof drip edge to the fascia wood. That creates a water trap; any condensation running under the shingles gets locked against the wood with no drainage path.

Cost & Time Breakdown

Tips & Prevention

• Clean Gutters Twice Annually: Clear gutter troughs in late spring and late autumn. If your place sits under heavy tree cover, check the downspout strainers monthly so back-ups don’t get a foothold.
• Verify Drip Edge Kick-Out: Make sure your metal drip edge projects at least 3/8 to 1/2 inch beyond the fascia board face. If water dribbles down the wood when you run a garden hose on the lower shingles, slip a metal drip edge extender under the existing flashing.
• Inspect Soffit Vent Openings Every Spring: Clear dust, spiderwebs, and insulation clogs from your exterior soffit vents with a stiff nylon bristle brush or a blast from a leaf blower. Good airflow keeps attic humidity balanced with outside air.
• Upgrade to Cellular PVC: When you’re replacing rotted exterior wood, choose cellular PVC trim over primed pine or spruce. PVC cuts and nails just like wood, holds paint a whole lot longer, and doesn’t care about rot, insects, or fungal decay.
• Conduct the Annual Screwdriver Poke Test: Once a year, stand on a ladder and gently press the flat end of a screwdriver into suspect joints, corners, and gutter backing boards. Any spot that gives like a ripe avocado needs attention before the rot spreads into structural framing.

When to Call a Professional

Soffit and fascia repairs are manageable for a homeowner who’s comfortable working at ladder height, but structural roof rot crosses into pro territory fast.

If poking your fascia shows rot has traveled deep into multiple consecutive roof rafters—softening more than a quarter of the structural rafter ends—you’re dealing with compromised roof support that needs temporary roof shoring and structural framing repairs.

Call a professional roofing or carpentry contractor right away if you see sagging rooflines, wavy shingles, rotted tongue-and-groove roof decking sheets, or active water pooling inside attic insulation.

Homes with complex multi-tier rooflines, two-story elevations on steep yard slopes, or asbestos-cement soffit panels common in pre-1975 homes should always be handled by licensed, insured trade crews with the right scaffolding, fall-arrest gear, and environmental remediation equipment.

       ROOF VENTILATION SYSTEM (AIRFLOW BALANCE)
======================================================
 Ridge Vent (Warm, moist attic air exits here)
     ▲
    / \
   /   \
  /     \
 / Attic \  <-- Attic Temp: 110°F-130°F (Summer)
/         \
===========  <-- Ceiling Insulation (must not block soffit)
  ▲     ▲
  |     |   <-- Continuous airflow siphon
[Soffit Vents] (Cool, dry exterior air enters here)
======================================================
