Quick Answer

Furnace short cycling is when your heating system repeatedly turns on for a short duration, then quickly shuts off without completing a full heating cycle. This isn't just annoying; it prematurely wears out components, inflates energy bills, and leaves your home unevenly heated. The fix often involves straightforward diagnostics like checking your air filter, examining the thermostat, or ensuring vents aren't blocked, though more complex issues like an oversized furnace or a dying flame sensor can also be culprits.

The Problem

Imagine this: your furnace kicks on, runs for a mere five to ten minutes, and then shuts down, only to start up again a short while later. This constant on-again, off-again behavior is known as short cycling. It's a sign something isn't quite right with your heating system and it's a problem you shouldn't ignore. Not only does it make your home uncomfortable due to inconsistent heating, but it also puts a significant strain on the furnace's components, leading to increased wear and tear on motors, heat exchangers, and ignition systems. This accelerated degradation can result in costly repairs or even premature system failure if left unaddressed. Furthermore, each startup sequence consumes more energy than a continuous run, so short cycling can lead to noticeably higher utility bills as your furnace struggles to maintain the desired temperature.

How It Works

To understand why a furnace short cycles, it helps to know how a healthy heating cycle should operate. When your thermostat detects that the room temperature has fallen below the set point, it sends a signal to the furnace's control board. The control board then initiates a sequence of events: the inducer motor starts, clearing any residual combustion gases; the igniter (either a hot surface igniter or a pilot light) fires up; the gas valve opens, allowing fuel to flow to the burners; and the flame sensor confirms that a flame is present. Once the heat exchanger is warmed, the blower motor activates, pushing heated air through your home's ductwork. The furnace continues to run until the thermostat's sensor registers that the desired temperature has been reached. At that point, the control board closes the gas valve, the flame extinguishes, the blower continues to run for a short period to dissipate residual heat, and then the whole system shuts down, waiting for the next call for heat.

Short cycling disrupts this normal flow. Instead of completing a full cycle, one of the system's safety mechanisms or sensors prematurely signals the control board to shut down. This could be due to an overheating heat exchanger (perhaps from a restricted airflow), a faulty flame sensor failing to detect a flame, or even the thermostat erroneously registering that the set temperature has been met. Each component plays a crucial role in the sequence, and a malfunction in any one can throw the entire cycle into disarray, prompting the furnace to shut off unexpectedly.

Safety Note: Always turn off the power to your furnace at the breaker switch before performing any inspection or maintenance. Gas furnaces involve combustible fuel and high voltage electricity; never attempt repairs if you smell gas or are uncomfortable working with electrical components. When in doubt, call a professional.

Step-by-Step Fix

Here are the common culprits and how to address them when your furnace is short cycling:

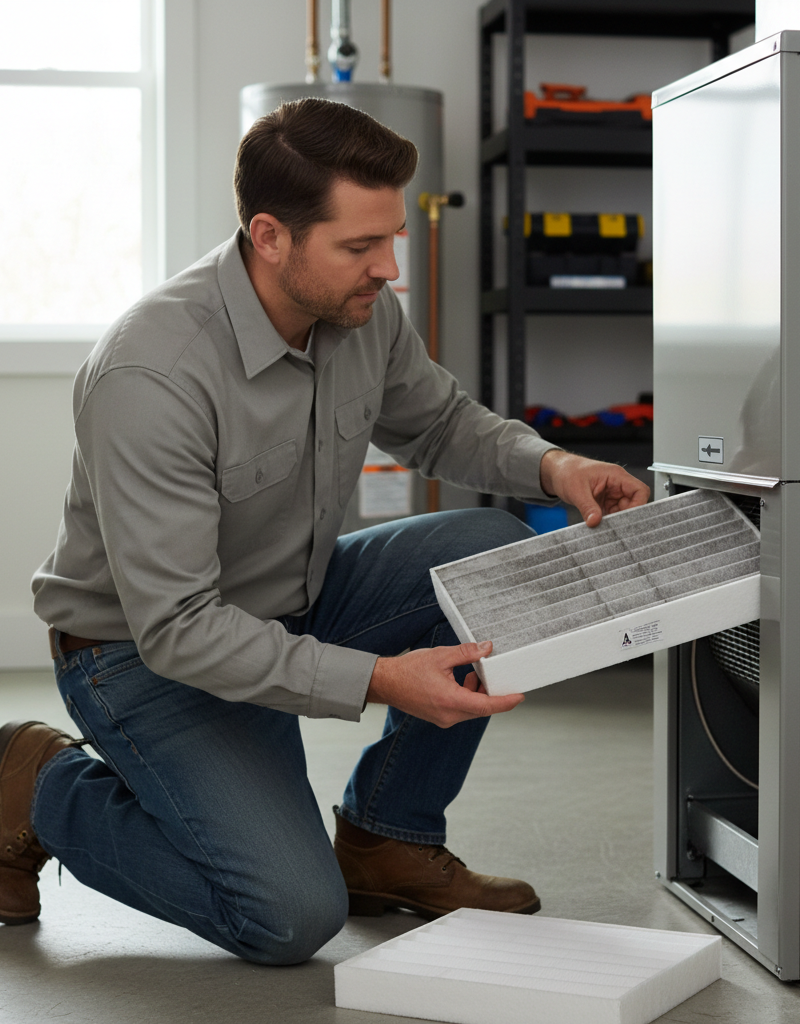

1. Check Your Air Filter – A clogged filter chokes your furnace.

• What to do: A dirty air filter is the most common and easiest issue to fix. A clogged filter restricts airflow to the furnace, causing it to overheat. When the heat exchanger gets too hot, the furnace’s high-limit switch, a safety device designed to prevent damage, shuts the system down. Begin by locating your furnace’s filter slot, usually found at the return air duct or within the furnace unit itself. Slide out the old filter. If it's dark with accumulated dust and debris, it's definitely restricting airflow. Replace it with a new, correctly sized filter. For most homes, checking the filter monthly and replacing it every 1-3 months is a good practice, especially if you have pets or allergies.
  • If this doesn't work: Even with a new filter, restricted airflow can persist if other parts of the system are blocked.

2. Inspect Vents and Registers – Blockages can trap heat.

• What to do: Walk through your home and ensure all supply vents (where warm air comes out) and return air registers (where cool air is drawn back into the system) are open and unobstructed. Furniture, rugs, or even drapes can inadvertently block these critical pathways, leading to poor air circulation. Closed vents, especially in unused rooms, can also create pressure imbalances that hinder proper airflow throughout the entire system. Make sure no vents are completely closed, as this can back up air and cause the furnace to overheat and short cycle. Partially closing a few vents in unused rooms is generally acceptable, but never close more than 20% of the home's registers.
  • Tools: No specific tools, just your eyes and hands.
  • If this doesn't work: If vents are clear, the issue might be deeper within the ductwork or related to the blower.

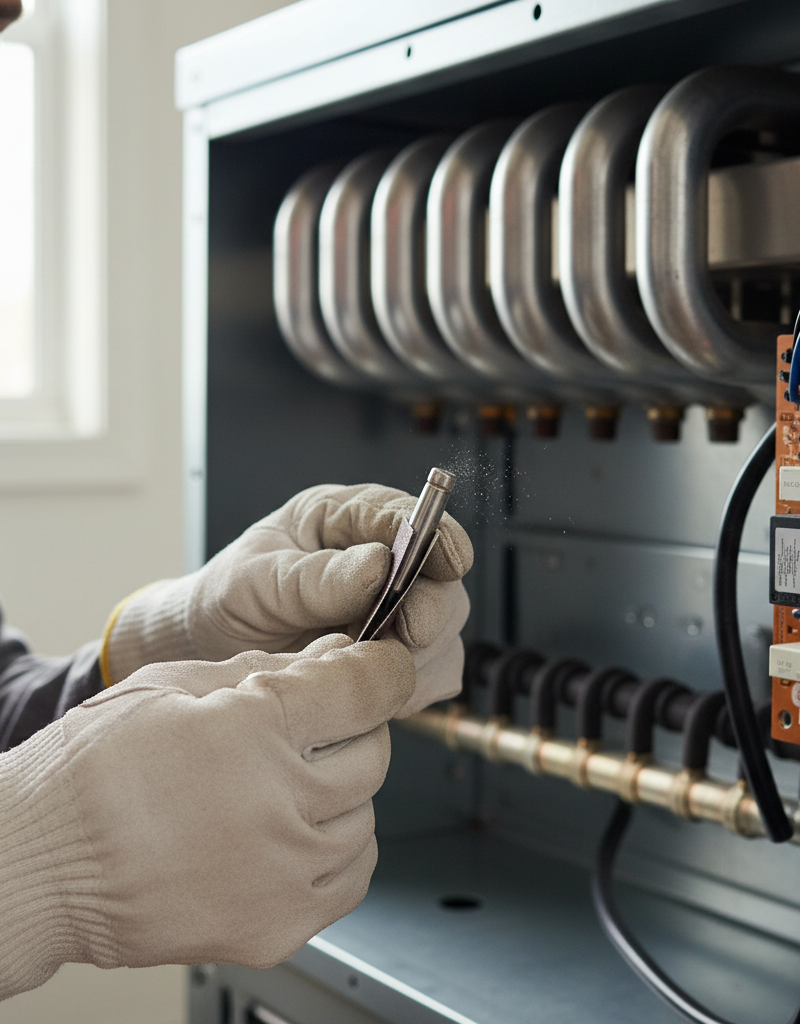

3. Clean the Flame Sensor – A dirty sensor can't see the flame.

• What to do: The flame sensor is a thin metal rod, typically located directly in the path of the burner flame. Its job is to detect if a flame is present when the gas valve opens. If the sensor is coated with carbon buildup, it can't detect the flame reliably, causing the furnace to shut off as a safety precaution, believing there's no ignition. Turn off power to the furnace at the breaker. Locate the flame sensor (it often has a single wire leading to it). Carefully remove it, usually by unscrewing one or two screws. Use a fine-grit Emory cloth or steel wool to gently clean off any black carbon buildup. Reinstall the sensor securely. This simple cleaning can often resolve persistent short cycling issues.
  • Tools: Screwdriver (Phillips or flathead, depending on your furnace), fine-grit Emory cloth or steel wool.
  • Safety: Ensure the gas valve is off and the power is completely disconnected before touching any internal components.
  • If this doesn't work: If cleaning doesn't help, the flame sensor itself might be faulty and need replacement.

4. Examine the Thermostat – A faulty thermostat can give false readings.

• What to do: Your thermostat is the brain of your heating system. If it's malfunctioning, it might be prematurely signaling the furnace to shut off. First, ensure the thermostat is set to
