Quick Answer

Your outdoor AC unit freezing up is almost always a symptom of restricted airflow or low refrigerant, forcing the coil temperature to drop below freezing. The most common culprit is a dirty air filter, which restricts air moving over the evaporator coil, causing ice to form and spread. Other common causes include a dirty evaporator coil, a blocked condensate drain line, or low refrigerant levels due to a leak. Addressing these issues promptly can prevent costly repairs and maintain your AC's efficiency.

The Problem

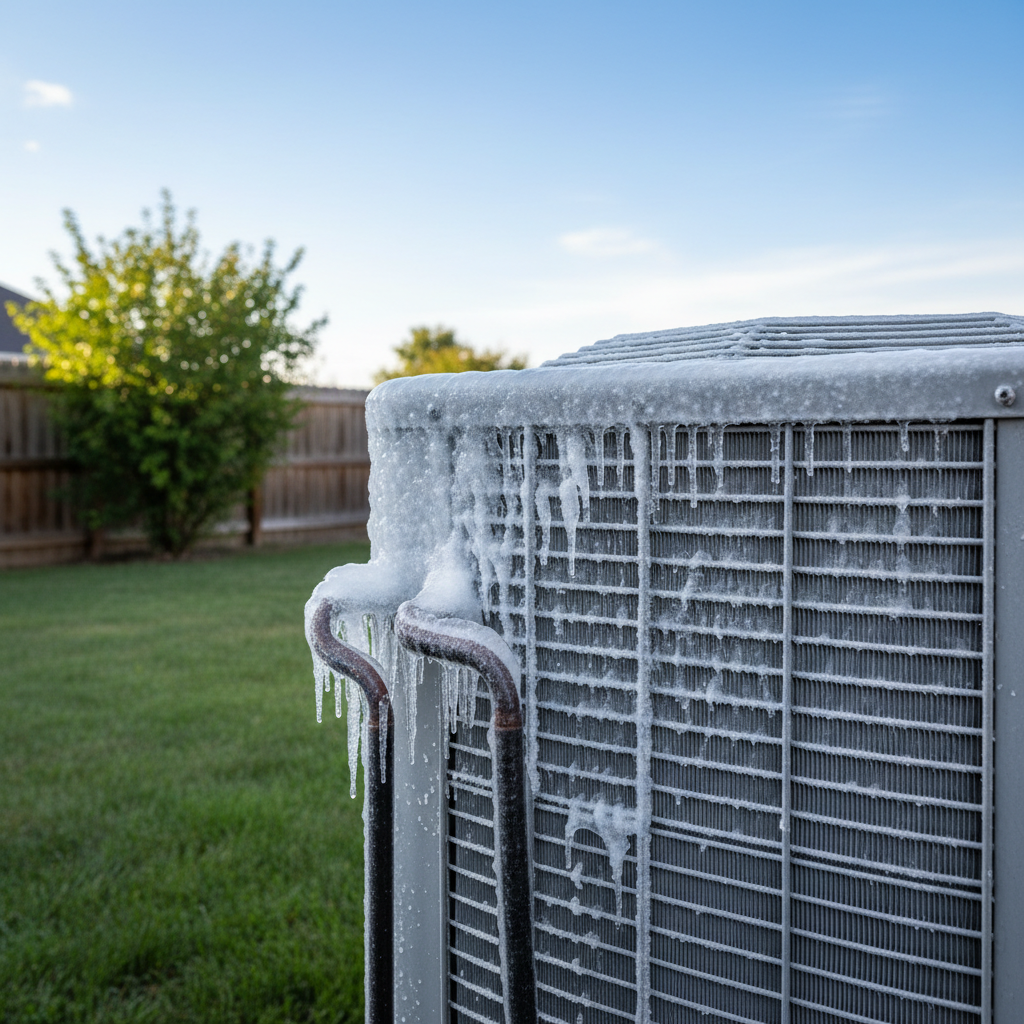

You walk outside on a hot summer day, perhaps to check your mail, and notice something alarming: your outdoor air conditioning unit, or condenser, is covered in ice. It might be a thin layer, or it could be a thick sheet encasing the refrigerant lines and even the coil fins. This isn't just a cosmetic issue; an iced-up AC unit is a clear sign of an underlying problem that is severely impacting your system's ability to cool your home. When the evaporator coil inside your home – or sometimes even the outdoor condenser coil – gets too cold, moisture in the air condenses and freezes on its surface. This ice build-up acts as an insulator, preventing the coil from absorbing heat effectively, and ultimately leading to your AC blowing warm air or failing to cool your home at all. Ignoring the issue can lead to compressor damage, which is often the most expensive component to repair or replace in an AC system.

How It Works

To understand why your AC freezes, it helps to grasp the basic refrigeration cycle. Your AC system operates on a principle of heat transfer, moving heat from inside your home to the outside. The key components are the evaporator coil (indoor), the condenser coil (outdoor), the compressor, and the expansion valve.

Inside your home, warm, humid air is drawn over the evaporator coil. This coil contains a liquid refrigerant that, at low pressure, has a very low boiling point. As the warm air passes over the coil, the refrigerant absorbs the heat, causing it to evaporate and turn into a low-pressure gas. This process cools the air, which is then circulated back into your home. The now gaseous refrigerant then travels to the outdoor unit.

In the outdoor unit, the compressor increases the pressure and temperature of the refrigerant gas. This hot, high-pressure gas then flows into the condenser coil. Here, the heat absorbed from inside your home is released into the cooler outdoor air. As the refrigerant loses heat, it condenses back into a high-pressure liquid. Finally, this high-pressure liquid passes through an expansion valve, which drastically reduces its pressure and temperature, preparing it to re-enter the evaporator coil and repeat the cycle.

Freezing occurs when the temperature of the evaporator coil drops below 32°F (0°C). This can happen if there isn't enough warm air flowing over the coil to absorb the refrigerant's coldness (airflow issues) or if the refrigerant itself is operating at an abnormally low pressure, causing it to get excessively cold (refrigerant issues). When the coil gets too cold, the moisture naturally present in the air freezes onto the coil instead of simply condensing and draining away as water.

Step-by-Step Fix

Before you begin, turn off your AC unit at the thermostat and then at the outdoor disconnect switch to prevent any accidental activation while you're working. Allow the unit to completely thaw, which can take several hours depending on the amount of ice. You can speed this up by operating the fan (without cooling) if your thermostat allows, but never chip away at the ice, as you can easily damage the coils.

1. Check and Replace Your Air Filter — A dirty air filter is the most common cause of restricted airflow.

• Locate and inspect: Your air filter is typically found in the return air vent, often in a ceiling or wall, or in a slot at the indoor air handler/furnace. Pull it out and hold it up to a light. If you can’t see light through it, it's definitely dirty.
• Replace: Note the size printed on the filter (e.g., 20x25x1). Purchase a new filter of the correct size and MERV rating (typically MERV 8-11 is good for most homes). Slide the new filter in, ensuring the airflow arrow points towards the furnace/air handler. Replace filters every 1-3 months, or more frequently if you have pets or allergies.

2. Inspect and Clean the Evaporator Coil — A neglected indoor coil can accumulate a thick layer of dirt and grime, hindering heat absorption.

• Access the coil: The evaporator coil is housed in the indoor air handler or furnace. You'll likely need to remove an access panel. Consult your owner's manual for specific instructions.
• Clean carefully: With a soft brush attachment on a vacuum cleaner, carefully remove loose dust and debris. For tougher grime, use a no-rinse evaporator coil cleaner (available at most hardware stores). Spray it on, let it work according to product directions, and it will typically drip off with the condensate.
  • Safety Note: Wear gloves and eye protection when using chemical cleaners. If you're uncomfortable accessing the coil or it's heavily impacted, call an HVAC professional.
  • If this doesn't work: If the coil remains heavily clogged or you suspect mold, professional cleaning might be necessary.

3. Clear the Condensate Drain Line — A clogged drain prevents water from escaping, backing up and sometimes freezing in cold spots.

• Locate the drain line: This is usually a PVC pipe extending from the indoor evaporator coil's drain pan, often leading outside or to a utility sink.
• Check for clogs: Look for standing water in the drain pan. If the line is accessible, you can try to clear minor clogs. Many lines have an access port with a cap.
• Flush the line: Mix a cup of distilled white vinegar with an equal amount of warm water. Pour this solution into the access port. Let it sit for 30 minutes, then flush with plain water. You can also use a wet/dry shop vac to try and suck out clogs from the outdoor end of the drain line.
  • If continuous clogs: Persistent clogs may indicate algae growth or a collapsed line, requiring professional attention.

4. Examine Supply and Return Vents — Blocked vents restrict crucial airflow throughout your home.

• Open all vents: Ensure all supply registers (where cool air comes out) and return air grilles (where warm air goes back to the AC) are fully open and unobstructed by furniture, rugs, or curtains.
• Check for leaks: Feel for air leaks around the edges of ductwork near the air handler. Seal minor leaks with metallic foil tape.

5. Inspect Refrigerant Lines for Damage (Visual) — Visible damage can indicate a refrigerant leak.

• Examine insulation: Look at the large, insulated copper line running from your outdoor unit to your home. The insulation should be intact and cover the entire line. Damaged or missing insulation can cause the refrigerant inside to absorb heat prematurely, affecting system efficiency and potentially causing freezing.
• Look for ice/frost: If you see ice or frost specifically on the smaller (liquid) line, it's a strong indicator of low refrigerant or an issue with the expansion valve. If you see ice on both lines, it's more likely a severe airflow issue.
  • Pro Caution: Never attempt to add refrigerant yourself. This is a complex task requiring specialized tools and knowledge, and it's illegal without proper certification. High-pressure refrigerant can cause severe injury. If you suspect a leak or low refrigerant, call an HVAC professional immediately.

6. Clean Outdoor Condenser Unit — A dirty outdoor coil can inhibit heat dissipation.

• Turn off power: Absolutely ensure the power to the outdoor unit is OFF at the disconnect switch (usually on the wall near the unit).
• Clear debris: Remove any leaves, grass clippings, or other debris from the fins and the base of the unit. Use a soft brush or a garden hose on a gentle setting to spray the fins from the inside out to push dirt outwards. Do not use a high-pressure washer, as it can bend the delicate fins.
• Straighten bent fins: If you notice bent aluminum fins, you can carefully straighten them with a fin comb (a specialized tool available at hardware stores). This improves airflow over the coil.

7. Check Blower Motor and Fan Operation — Ensuring proper air movement.

• Listen and observe: With the AC unit powered on (after thawing and performing other steps), listen for the indoor blower motor operating smoothly. Go outside and ensure the condenser fan on top of the outdoor unit is spinning freely and at a consistent speed.
  • If either fan isn't working: This indicates a potential motor or capacitor issue, requiring professional diagnosis and repair.
  • If fan spins slowly: A capacitor might be failing, which is often a DIY fix for the mechanically inclined, but still involves working with electricity. If unsure, call a pro.

Common Causes

• Dirty Air Filter: This is by far the most common culprit. A clogged filter blocks the airflow over the evaporator coil, causing the coil's temperature to drop too low and freeze the moisture in the air.
• Low Refrigerant (Refrigerant Leak): If your system is low on refrigerant, the pressure inside the coils drops, causing the evaporator coil to get excessively cold and freeze. Low refrigerant is almost always due to a leak, not just a
