How it works

An electric dryer's heating system is a dedicated 240-volt circuit that operates independently from the 120-volt circuit powering the motor, drum, and controls. When you start a cycle, the timer or control board sends power to both the drive motor and the heating circuit. Electricity flows to the heating element, a large coil of resistant wire similar to one in a toaster. As current passes through it, the coil glows red and generates intense heat.

To prevent overheating and regulate the temperature inside the drum, this circuit includes several critical safety and control components. Air is pulled into the dryer by a blower wheel, flows over the heating element to get hot, circulates through the drum to absorb moisture from the clothes, passes through a lint filter, and is finally exhausted outside through the vent ducting.

The path of electricity to the element is governed by a series of switches:

1. Cycling Thermostat: This component monitors the air temperature inside the drum. It cycles the heating element on and off throughout the drying cycle to maintain the selected temperature (e.g., 125°F for low heat, 150°F for high heat).
2. High-Limit Thermostat: This is a safety backup. If the cycling thermostat fails and doesn't shut off the element, the temperature will rise. Once it reaches a preset high limit (e.g., 250°F), this thermostat cuts power to the element to prevent damage.
3. Thermal Fuse: This is the final, one-time-use safety device. It’s designed to blow and permanently break the circuit if the temperature becomes dangerously high, a condition almost always caused by a severe airflow blockage in the vent. Once the thermal fuse blows, it must be replaced to restore heat.

Step-by-Step Fix

This guide outlines the complete process for safely diagnosing and replacing a thermal fuse in a standard electric dryer. The primary cause of a blown fuse is restricted airflow; therefore, cleaning the vent system is a mandatory part of this repair.

Safety First: This repair involves working with a 240V appliance. Accidental contact with live circuits can be fatal. Disconnect all power before opening any panels.

• Tools:
  • Multimeter with continuity/ohms (Ω) setting
  • Screwdrivers (Phillips and flat-head)
  • Nut driver set (typically 1/4" and 5/16")
  • Work gloves and flashlight
  • Pliers
  • Vent cleaning brush kit
  • Shop vacuum
• Parts:
  • OEM-specific replacement thermal fuse for your dryer model. Do not use a generic part.

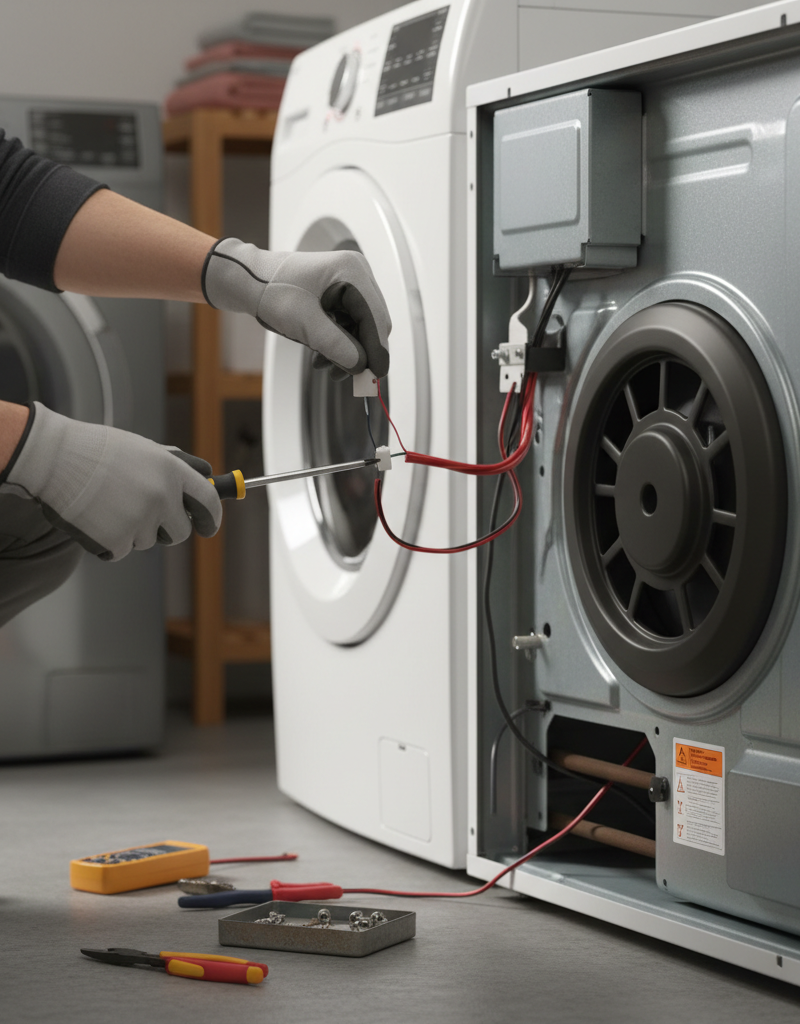

1. Confirm the Symptoms and Disconnect Power — Ensure the dryer's drum tumbles and the controls light up, but no heat is produced. This specific symptom points toward a fault in the heating circuit. Go to your home's circuit breaker panel and switch off the two-pole breaker labeled "Dryer." Pull the dryer away from the wall and unplug its large 240V cord from the outlet. This double-disconnection method ensures zero electrical potential inside the appliance.

2. Disconnect Venting and Remove Rear Panel — Use a screwdriver or nut driver to loosen the clamp holding the flexible vent hose to the dryer's exhaust port. Pull the hose off and set it aside. Use a shop vacuum to clean any loose lint from the dryer's exhaust port. Next, locate and remove the screws securing the main rear access panel (or, on some models, a smaller lower panel). Set the panel and its screws aside in a safe place.

3. Locate the Heating Circuit Components — With the rear panel removed, inspect the cylindrical metal ducting that runs from the bottom of the dryer (the blower housing) up toward the top. The thermal fuse is a small, white plastic component, typically about 1 inch long, with two wires attached. It is almost always mounted directly onto this exhaust duct or the adjacent blower housing. Nearby, you will also find the high-limit thermostat, a slightly larger, disc-shaped metal component, also with two wires.

4. Thoroughly Clean the Entire Airflow Path — Before testing any parts, address the root cause of overheating. Begin inside the dryer cabinet by vacuuming out all accumulated lint from the base of the machine, around the motor, and especially in and around the blower fan housing. Disconnect the vent hose from the wall and take it outside. Use a vent cleaning brush kit, which attaches to a power drill, to aggressively scrub the entire length of the hose. Finally, use the brush to clean the rigid ductwork inside your wall, pushing it all the way to the exterior vent cap. Ensure the exterior vent cap's flap or louvers move freely and are not clogged with lint.

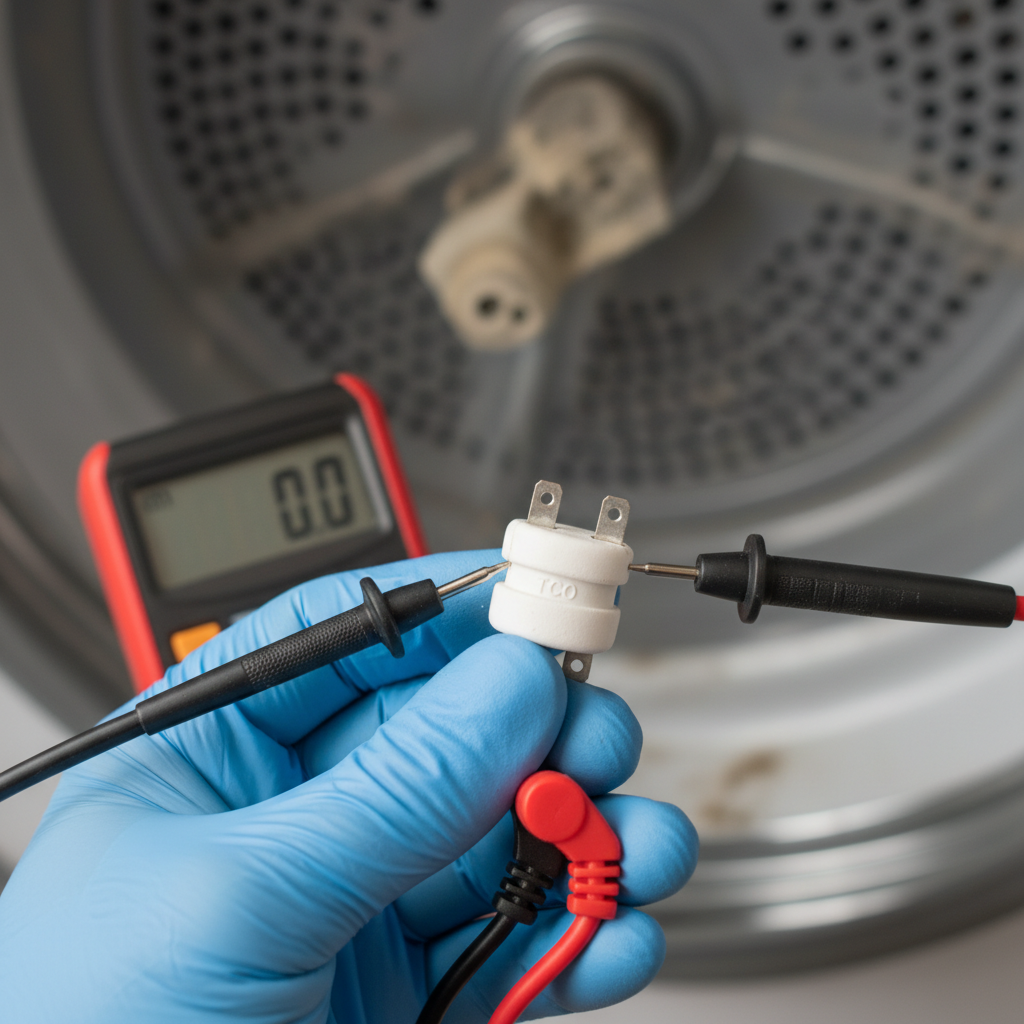

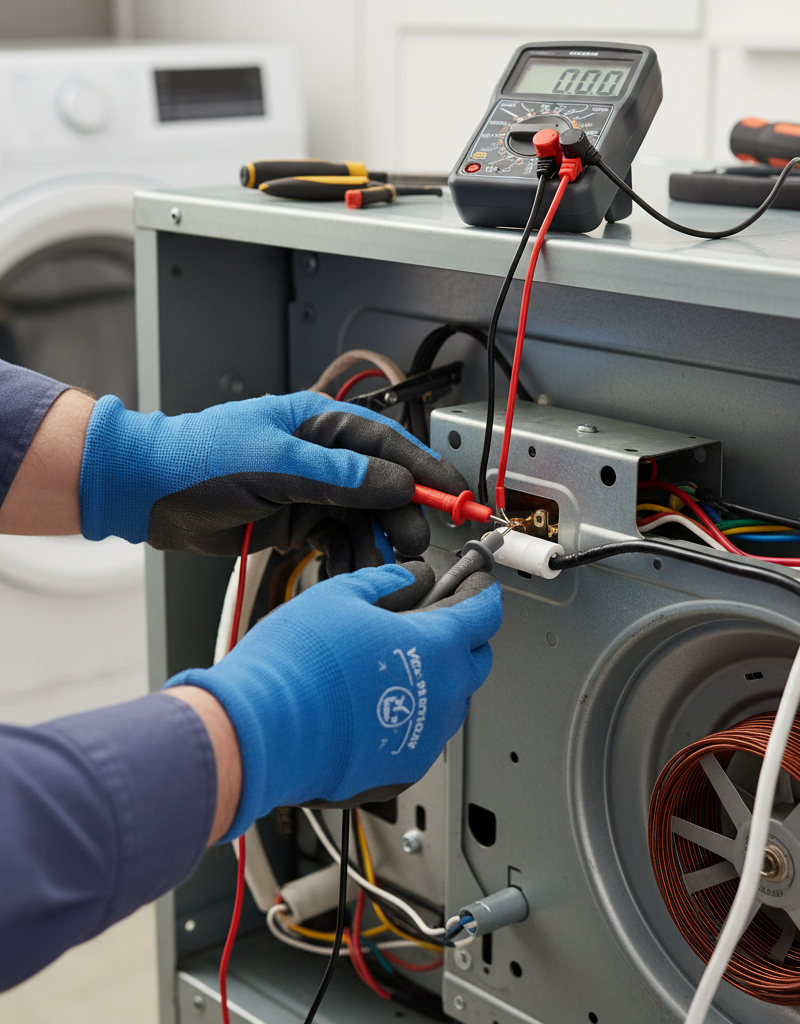

5. Test the Thermal Fuse — Set your multimeter to the continuity setting (it often shares a setting with ohms Ω and may have a sound icon). Disconnect both wires from the thermal fuse terminals. Touch one multimeter probe to each of the fuse's metal terminals.

   • Good Fuse: The meter will beep continuously, and/or display a resistance reading near zero ohms (e.g., 0.0 to 1.0 Ω).
   • Blown Fuse: The meter will remain silent and display "OL," "Open," or infinite resistance. If the fuse is blown, it confirms the diagnosis and requires replacement.

6. Test the High-Limit Thermostat — While you are there, it is wise to test the high-limit thermostat. It is a normally closed switch that should have continuity at room temperature. Disconnect its two wires and test it exactly as you did the thermal fuse. It should beep and show a reading near zero ohms. If it reads "OL" or infinite resistance, it has also failed and must be replaced. A failed high-limit thermostat can cause temperature regulation issues that may contribute to a blown thermal fuse.

7. Remove the Blown Thermal Fuse — Take a clear photo of the fuse and its wire connections for reference. Using a 1/4" nut driver or Phillips screwdriver, remove the single screw holding the fuse to the ductwork. Carefully set the screw aside. The old fuse is now free.

8. Source the Correct Replacement Part — Do not guess or install a generic fuse. Find your dryer's model number, usually located on a sticker inside the door jamb. Use this model number to order an exact OEM (Original Equipment Manufacturer) replacement fuse from an appliance parts supplier. The temperature rating and amperage are critical for safety; using an incorrect part can create a significant fire hazard.

9. Install the New Thermal Fuse — Position the new fuse in the exact same orientation as the old one. Secure it firmly to the ductwork using the original screw. Reconnect the two wires to the terminals. The polarity does not matter. Ensure the wire connectors slide on snugly; if they are loose, gently crimp them with pliers for a tighter fit before connecting. A loose connection can overheat and fail prematurely.

10. Reassemble the Dryer — Carefully replace the rear access panel, ensuring you don't pinch any wires. Reinstall all screws. Slide the dryer back toward the wall, but leave enough space to work. Reattach the freshly cleaned vent hose to the dryer's exhaust port and tighten the clamp securely. Make sure the hose has a smooth path to the wall and is not kinked or crushed, as this will immediately restrict airflow again.

11. Safely Restore Power and Test — Plug the 240V cord back into its outlet. Go to the circuit breaker panel and switch the dryer's breaker back to the ON position. Load the dryer with a few damp towels (never run a dryer empty). Select a timed dry cycle on high heat and start the machine.

12. Confirm the Repair — After 5-10 minutes, cautiously check the air coming from the exterior vent; it should be warm and humid. Listen for the normal hum of the motor and airflow. If the dryer heats properly and completes the cycle, the repair is successful. If it still doesn't heat or the fuse blows again quickly, there is a more complex underlying issue.

Common mistakes

• Replacing the Fuse Without Cleaning the Vent: This is the most frequent error. The new fuse will simply blow again, often within one or two cycles, because the root cause of overheating (poor airflow) has not been resolved. Always perform a thorough vent cleaning as part of the fuse replacement.
• Using the Wrong Replacement Fuse: Grabbing a "universal" fuse or one with a different temperature rating is extremely dangerous. Fuses are rated for a specific temperature limit. A higher-rated fuse may not blow during an overheat event, allowing temperatures to rise high enough to ignite lint and cause a fire. Always use the exact OEM part for your model.
• Relying on Duct Tape for Vent Connections: Never use duct tape to connect a vent hose. The heat and moisture from the dryer will cause the adhesive to fail quickly, leading to leaks of hot, moist, lint-filled air into your wall cavity or laundry room. Always use a proper metal worm-gear clamp.
• Ignoring Other Faulty Components: If the cycling thermostat fails in the "on" position, it will cause the heating element to run continuously, leading to overheating that blows the high-limit thermostat and eventually the thermal fuse. Always test the high-limit and cycling thermostats for continuity when replacing a blown thermal fuse.
• Crushing the Vent Hose During Reinstallation: When pushing the dryer back into place, it's easy to kink or crush the flexible vent hose. A single sharp bend can reduce airflow by over 50%, recreating the conditions that blew the fuse in the first place. Use a semi-rigid aluminum duct, which is less prone to crushing than foil versions.
• Testing for Continuity with Power On: Attempting to use a multimeter on live circuits is hazardous and can damage the meter. Always ensure the appliance is completely unplugged and the breaker is off before testing any component for continuity or resistance.

Cost & time breakdown

The cost and time for this repair are minimal for a DIYer, but increase significantly if a professional is required, especially if they need to perform extensive vent cleaning.

When to call a pro

While replacing a thermal fuse is a manageable DIY task, certain signs indicate a more complex problem that requires a qualified appliance technician. Call a professional if:

• The new fuse blows immediately or after one cycle. This confirms the overheating problem was not resolved by cleaning the vent. The cause is likely a faulty cycling thermostat, a grounded heating element, or a malfunctioning motor centrifugal switch, all of which are more complex to diagnose and replace.
• You find melted wires or scorch marks. Any sign of burning or melting around the heating element, thermostats, or wire harnesses points to a severe electrical fault. Do not attempt to repair this yourself; it is a serious fire risk that requires professional assessment.
• Multimeter tests reveal multiple failed components. If your tests show that the thermal fuse, high-limit thermostat, and/or cycling thermostat have all failed, it is best to have a technician investigate the underlying cause rather than simply replacing all the parts.
• You are not confident using a multimeter. Correctly diagnosing electrical components is key to a successful repair. If you are unsure how to test for continuity or interpret the readings, a professional can do so quickly and accurately.
• The dryer is a stacked unit or located in a tight closet. Accessing components can be extremely difficult in these installations. Professionals have the tools and experience to disassemble and reassemble these units safely without causing damage.

Prevention & maintenance

Consistent maintenance is the key to preventing thermal fuse failure and ensuring your dryer operates safely and efficiently.

• Clean the Lint Filter After Every Single Load: This is the most important maintenance task. A clogged filter is the first step toward restricted airflow. Make it a non-negotiable habit. At least twice a year, wash the screen with warm, soapy water and a soft brush to remove residue from dryer sheets, which can impede airflow even when the screen looks clean.
• Perform a Full Vent Cleaning Annually: At least once per year, disconnect the dryer and clean the entire length of the vent ducting—from the back of the appliance to the termination cap on the exterior of your house. Use a specialized vent brush kit for best results.
• Inspect the Exterior Vent Cap Quarterly: Check the outdoor vent cover every few months to ensure the flap or louvers open easily when the dryer is running. Clear away any lint, leaves, snow, or bird nests that could obstruct airflow.
• Avoid Overloading the Dryer: Stuffing the dryer drum too full prevents clothes from tumbling freely. This blocks airflow through the load, significantly increases drying time, and forces the heating element to run longer, raising the risk of overheating. Dry smaller loads for better efficiency and longevity.
• Use Proper Venting Material: Replace flimsy, white vinyl or foil accordion-style ducts. They are easily crushed, kinked, and can trap large amounts of lint. The safest and most efficient choice is rigid or semi-rigid metal ducting, which provides a smooth interior for maximum airflow.
• Listen for Changes in Operation: Pay attention to how your dryer sounds and performs. If you notice cycles are taking progressively longer to dry clothes, it's a strong indicator that airflow is becoming restricted and maintenance is needed before a component fails.
