Quick Answer

When your electric dryer tumbles but fails to produce heat, the most frequent causes are a blown thermal cutoff fuse or a malfunctioning heating element. These components are relatively inexpensive and can be replaced by a homeowner with basic tools and a bit of patience, restoring your dryer to full function and saving you the cost of a professional repair.

The Problem

You've loaded your laundry, set the dryer, and come back to a pile of cold, damp clothes. The drum is spinning, the lights are on, but there's no warmth at all. This frustrating scenario almost always points to an issue with the dryer's heating system. While it sounds complex, for electric dryers, the problem is often narrowed down to a few key, replaceable parts: the thermal cutoff fuse or the heating element itself. Ignoring the problem won't make it go away, and repeated drying cycles will only waste electricity and time.

How It Works

To understand why your dryer isn't heating, it helps to know how an electric dryer generates and regulates heat. At its core, an electric dryer uses a heating element—a coiled metal resistor—to convert electrical energy into heat. When electricity flows through this coil, it heats up, much like the burner on an electric stove. A powerful blower fan then draws ambient air into the dryer, over the hot heating element, and into the tumbling drum, where it picks up moisture from your clothes. The now-moisture-laden hot air is then vented out of the house through the exhaust duct.

Several safety mechanisms are in place to prevent overheating. The thermal cutoff fuse is a single-use safety device designed to blow and permanently break the electrical circuit to the heating element if the dryer temperature exceeds a safe limit. This usually happens due to restricted airflow caused by clogged lint screens or vent ducts. There are also one or more thermostats, which are reusable temperature-sensing switches that cycle the heating element on and off to maintain the selected drying temperature. If the thermal cutoff fuse blows, the heating element receives no power, and the dryer will run but produce no heat. If the heating element itself fails, often by a break in its coil, it can no longer generate heat, even if all safety devices are functional. Understanding these interactions is key to pinpointing the exact failure point.

Step-by-Step Fix

Before you begin any work, ALWAYS unplug the dryer from the wall outlet to eliminate any risk of electrical shock.

1. Safety First – Unplug the Dryer

   • Locate the dryer's power cord and pull it directly from the wall outlet. Do not simply turn off the breaker, as residual charge can still be present. This is the most critical step for your safety.
   • Pull the dryer away from the wall to give yourself ample working space behind and around the unit.

2. Access the Rear Panel – Remove the Back Cover

   • Most electric dryers have a large access panel on the back. Use a Phillips head screwdriver or a nut driver (typically 1/4-inch or 5/16-inch) to remove the screws holding this panel in place.
   • Carefully set the screws aside in a safe spot to avoid losing them. Gently remove the panel and place it out of your way.

3. Locate the Heating Assembly – Identify Components

   • Once the back panel is off, you'll see the dryer's internal components. The heating element is usually housed in a metal casing, often cylindrical or rectangular, directly behind the drum. It will have thick wires leading to it.
   • Near the heating element, you will typically find the thermal cutoff fuse and one or more thermostats. The thermal cutoff fuse is a small, white, cylindrical component, usually with two wire terminals.

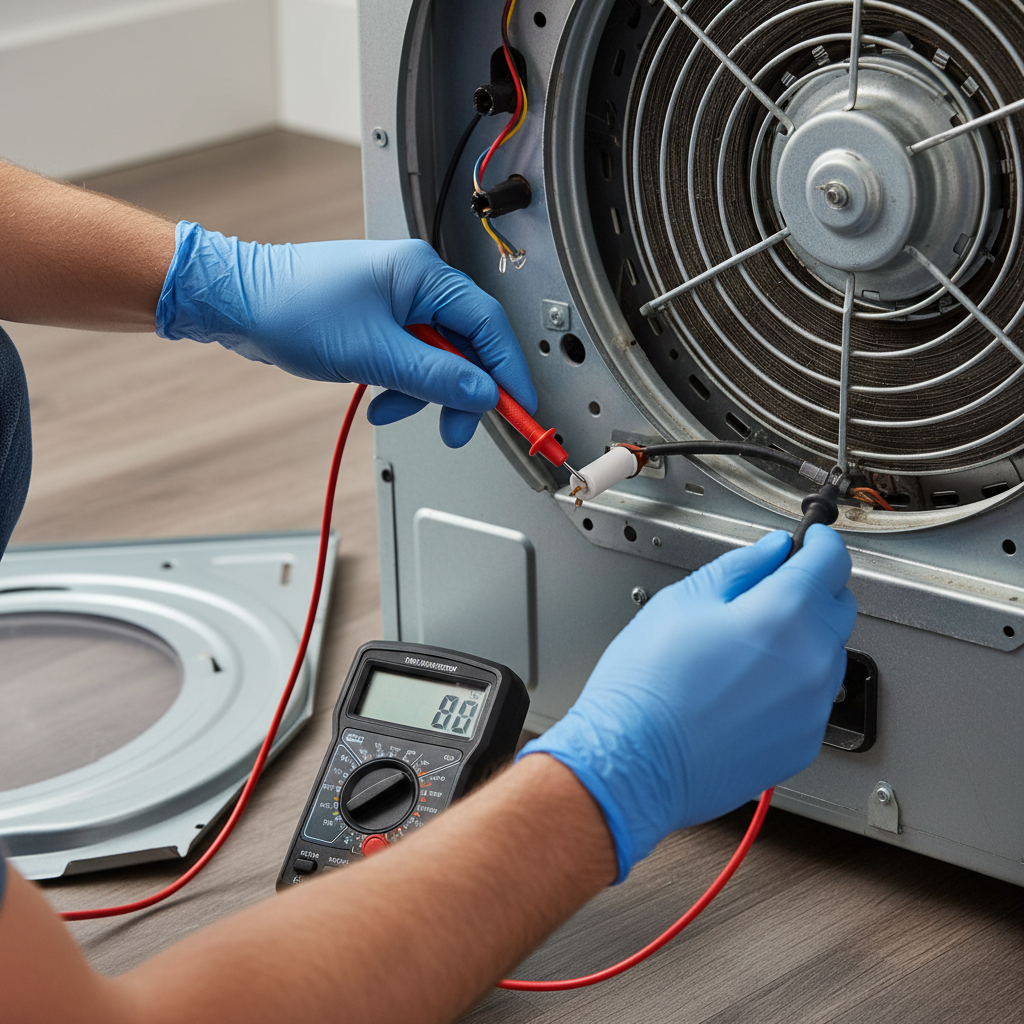

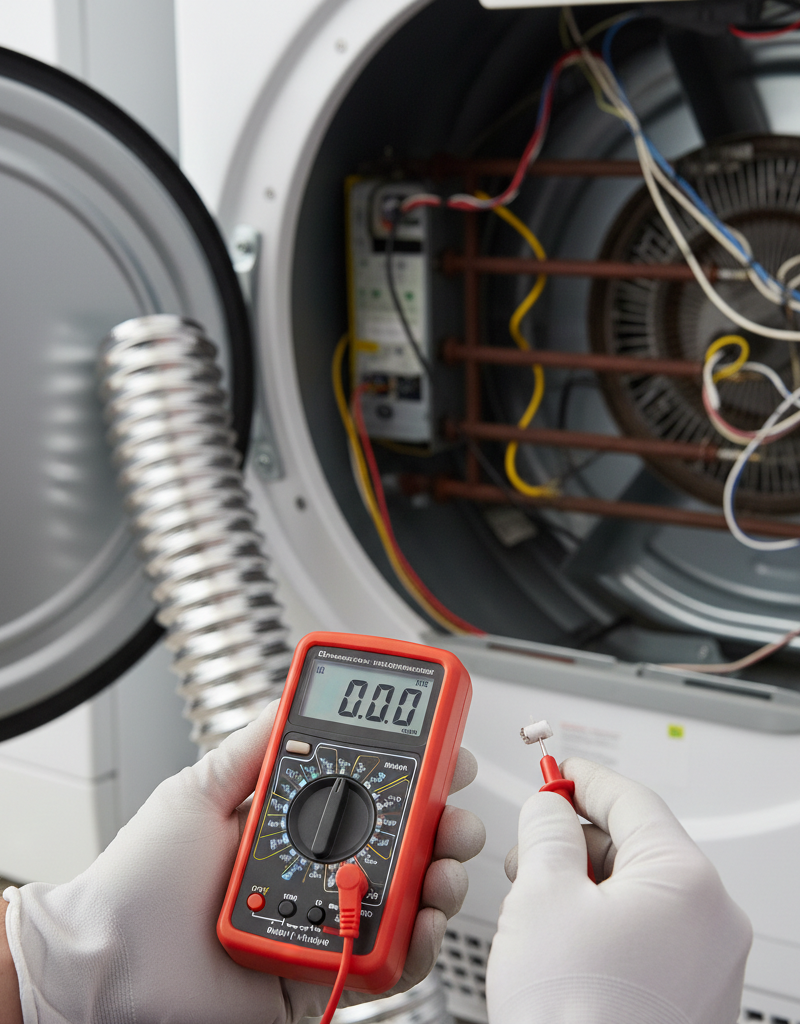

4. Test the Thermal Cutoff Fuse – Check for Continuity

   • Set your multimeter to the continuity setting (usually indicated by a symbol that looks like a sound wave or a diode symbol). If your multimeter doesn't have continuity, use the lowest ohms (Ω) setting.
   • Touch one probe of the multimeter to each terminal of the thermal cutoff fuse. If the fuse is good, the multimeter will beep (continuity) or show a reading close to zero ohms. If it's blown, the multimeter will show no continuity or an "OL" (open loop) reading.
   • If this doesn't work: If the fuse tests bad, replace it. It's a good idea to consider replacing the high-limit thermostat at the same time, as they often fail together due to the same overheating issues. Also, thoroughly clean your dryer vents, as a clogged vent is the primary reason for a thermal cutoff fuse to blow.

5. Remove the Faulty Fuse – Disconnect Wires and Remove Part

   • Using needle-nose pliers or a nut driver, carefully disconnect the wires from the terminals of the blown thermal cutoff fuse. Note their original positions.
   • Remove the mounting screw(s) that hold the fuse to the heating element housing.

6. Install the New Fuse – Reverse the Process

   • Attach the new thermal cutoff fuse to the housing using the mounting screw(s).
   • Reconnect the wires to the appropriate terminals. Ensure they are secure and tight.

7. Test the Heating Element (If Fuse Was Good) – Check for Breaks

   • If the thermal cutoff fuse tested good, the next likely suspect is the heating element itself. Leave your multimeter on the ohms (Ω) setting.
   • Disconnect the two main power wires leading to the heating element coil (ensure you know which wire goes where).
   • Touch your multimeter probes to the two terminals of the heating element. A good heating element will show a resistance reading, typically between 10 to 30 ohms. If you get an "OL" or no reading, the coil is broken and the element needs replacement.
   • If this doesn't work: Double-check your wire connections. If you still get no reading, the element is indeed faulty. Consider purchasing a heating element assembly kit, which often includes new thermostats and a thermal cutoff fuse, as these components often age together.

8. Replace the Heating Element (If Faulty) – Remove and Install

   • If the heating element is bad, you'll need to remove the entire heating element housing assembly. This usually involves removing a few more screws holding it in place.
   • Carefully pull the old heating element assembly out. Pay attention to how it seats in the dryer frame.
   • Slide the new heating element assembly into place, securing it with the screws. Reconnect the main power wires to the element, ensuring a tight connection.

9. Reassemble and Test – Power Up and Verify

   • Once the new component(s) are installed, carefully replace the dryer's back access panel and secure it with all the screws you removed earlier.
   • Push the dryer back into its original position.
   • Plug the dryer's power cord firmly back into the wall outlet.
   • Run a short cycle (e.g., 10-15 minutes on a heat setting) with a damp towel inside. After a few minutes, open the door and feel inside the drum for warmth. If it's heating, you've successfully fixed your dryer!

Common Causes

• Clogged Venting: This is by far the most common reason for a thermal cutoff fuse to blow. Accumulated lint in the dryer vent hose or outdoor vent cap restricts airflow, causing the dryer to overheat and trip the safety fuse.
• Worn Heating Element: Over many years of use, the coiled wire within the heating element can become brittle and eventually break, severing the electrical path and preventing heat generation.
• Faulty Thermostats: While less common than a blown fuse or element, a thermostat can fail, either staying open (preventing heat) or staying closed (causing overheating, which then blows the thermal cutoff fuse). Consider replacing them in conjunction with the thermal fuse.
• Overloading the Dryer: Consistently packing the dryer full of too many clothes can restrict airflow, leading to higher internal temperatures and potential fuse or element failure.

Common Mistakes

• Forgetting to Unplug the Dryer: Working on an appliance without cutting power is extremely dangerous and can lead to severe electrical shock. Always unplug first.
• Not Cleaning the Dryer Vent: Replacing a thermal cutoff fuse without addressing the underlying cause (often a clogged vent) means the new fuse will likely blow again very quickly. Thoroughly clean your entire vent system, including the dryer
