Quick Answer

When your refrigerator ice maker suddenly goes on strike, the immediate thought often jumps to a clog. However, the true culprit is frequently a frozen fill tube or a faulty water inlet valve. A frozen fill tube prevents water from reaching the ice mold, while a failing inlet valve restricts water flow entirely. Both issues mimic a 'no water' problem but require distinct diagnostic and repair steps that are well within a homeowner's capability.

The Problem

Picture this: a hot summer day, you reach for ice, and... nothing. Your ice maker, once a relentless producer of frosty cubes, has ceased its operation. You've checked the ice bucket, maybe even tried to reset the unit, but still, no ice. This isn't just an inconvenience; it can be a real hassle, especially if your household relies on a steady supply of ice for drinks, coolers, or entertaining. While a full ice bucket switch being tripped or a simple jam can happen, one of the most frequently overlooked causes is a blockage of water before it even reaches the ice mold – specifically, a frozen fill tube or a stuck water inlet valve. These problems can manifest without any obvious signs, leading to frustration and often unnecessary service calls.

How It Works

Understanding how your ice maker functions is key to diagnosing issues. When the ice maker calls for water, an electrical signal is sent to a water inlet valve, typically located on the back of the refrigerator. This valve opens, allowing pressurized household water to flow through a thin plastic fill tube. This tube directs the water into a small tray or mold within the ice maker assembly. A thermostat in the ice maker senses when the water has frozen solid. Once frozen, a small heating element briefly warms the mold, slightly releasing the ice cubes, and then a motor-driven ejector arm pushes the cubes out into the ice bucket below. Simultaneously, the ice maker's shut-off arm detects the level of ice in the bucket. If the bucket is full, the arm stops the ice-making cycle until more ice is needed. If the fill tube freezes, water can't reach the mold. If the inlet valve fails, water can't flow at all. Both scenarios result in a bone-dry ice mold and no new ice production.

Step-by-Step Fix

1. Safety First — Unplug your refrigerator before performing any diagnostic or repair work.

• Tool: Hands
• Safety: Always disconnect power to avoid electrical shock.
• Tip: If your fridge is heavy or in a tight spot, enlist help to move it safely.

2. Check the Water Supply Line — Ensure the main water supply valve to the refrigerator is fully open and not kinked.

• Diagnosis: Locate the thin plastic or copper water line connected to the back of your fridge. Follow it back to the wall valve, usually under the sink or behind the fridge. Make sure it's open. Check for visible kinks in the line.
• Expected: The valve should be turned counter-clockwise to open. The line should be free of bends.

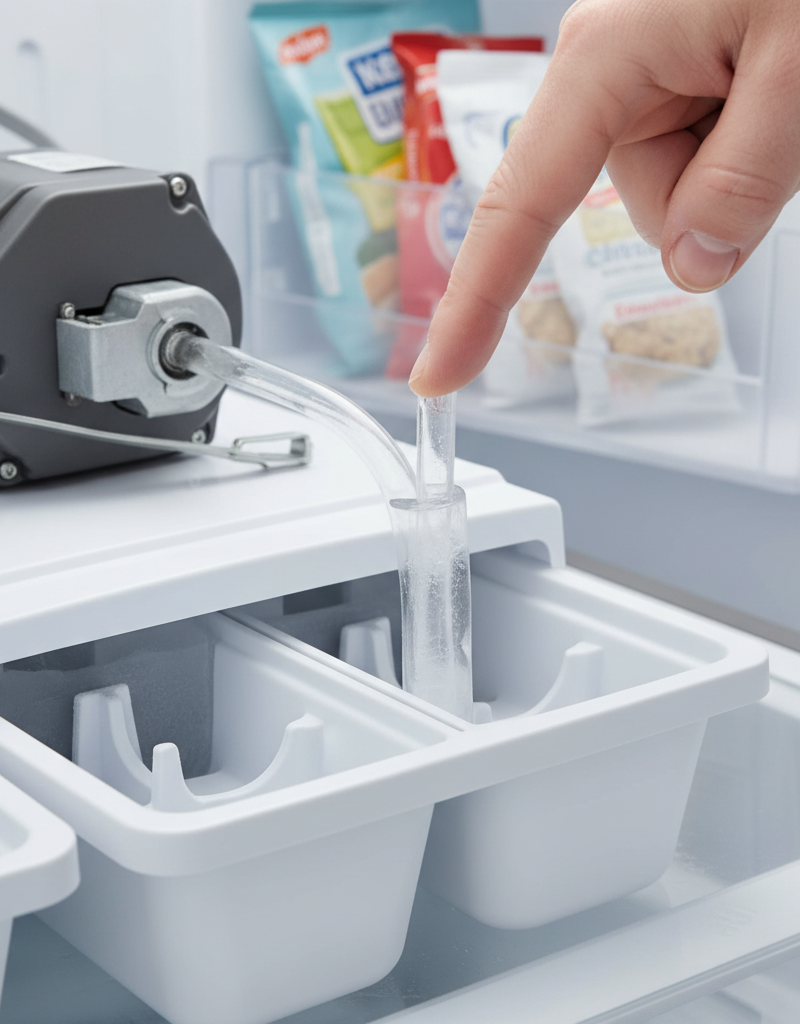

3. Inspect for a Frozen Fill Tube — Locate the fill tube and look for visible ice blockages.

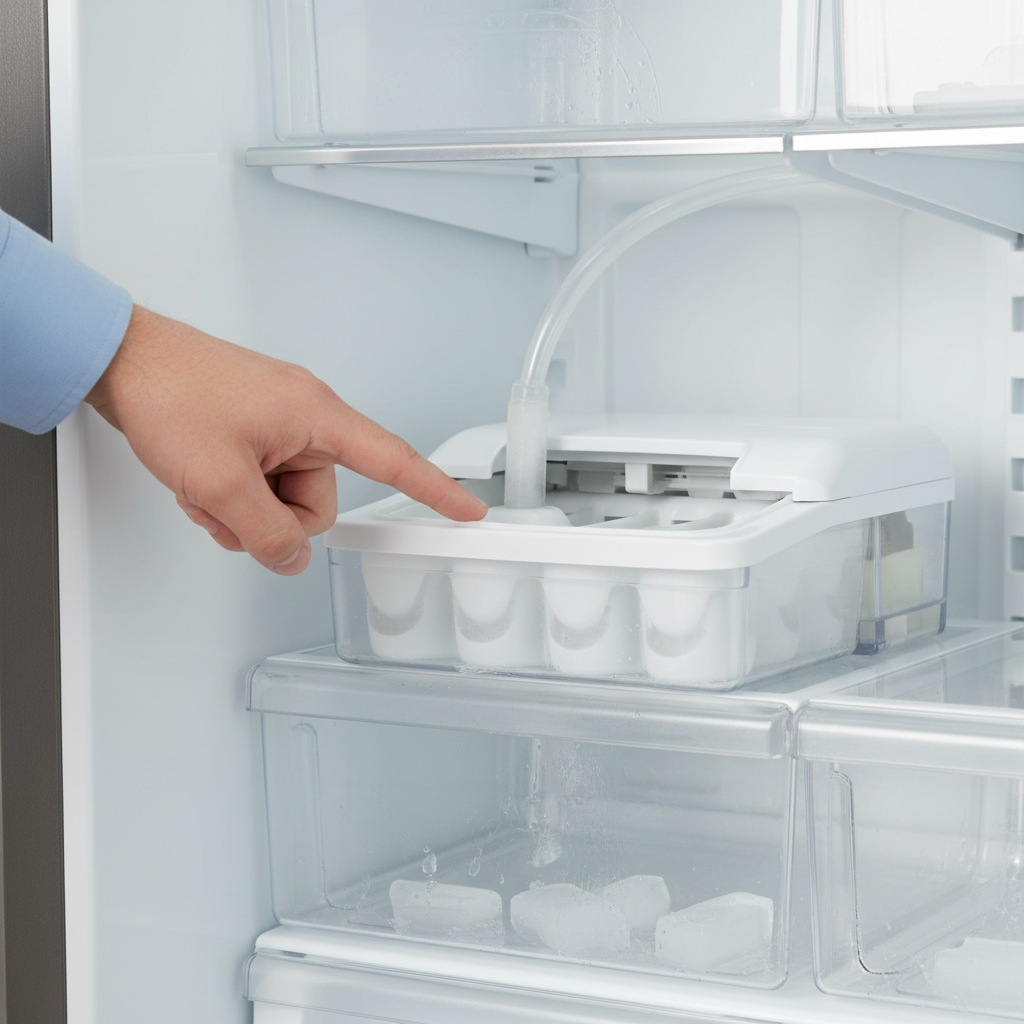

• Location: Open the freezer door. The fill tube is a small plastic tube, often white, brown, or black, about the diameter of a pencil, that directs water into the ice maker's fill cup or tray. It's usually found directly above the ice maker assembly.
• Diagnosis: Carefully examine the end of the tube and the entry point into the ice maker for a blockage of clear or cloudy ice. This is a very common issue, especially if the freezer temperature fluctuates.
• If frozen: Use a hairdryer on a low-medium setting or even a turkey baster with warm water to gently melt the ice. Do not use sharp objects to pick at the ice, as you could puncture the tube. Hold the hairdryer 6-8 inches away and move it continuously. This could take 5-10 minutes. Place a towel below to catch any drips.

4. Test the Water Inlet Valve — Verify the water inlet valve is receiving power and functional.

• Location: The water inlet valve is typically at the lower back of the refrigerator, where the main water supply line connects. It's an electromagnetic solenoid valve with two small wires leading to it.
• Tool: Multimeter (set to AC voltage)
• Safety: You will temporarily plug the fridge in for this diagnostic step. Be extremely careful and avoid touching any live wires. If uncomfortable, skip this step and assume the valve needs replacement.
• Procedure: With the refrigerator plugged in and the ice maker in a cycle (you might need to manually trip the feeler arm down and wait a few minutes), carefully test the voltage at the two terminals leading to the solenoid on the water inlet valve. You should read approximately 120V AC when the ice maker calls for water. If you get voltage but no water, the valve is likely bad. If no voltage, the issue is upstream (ice maker control board or wiring).

5. Clean the Ice Maker Mold — Clear any mineral deposits or small ice chunks from the mold itself.

• Diagnosis: Sometimes, mineral buildup from hard water or tiny ice shards can prevent new ice from forming correctly or being ejected. Manually cycle the ice maker (if your model allows) to eject any existing ice. Use a damp cloth to wipe out the mold tray.

6. Check Freezer Temperature — Ensure your freezer is cold enough for proper ice production.

• Setting: The ideal freezer temperature for ice production is between 0°F and 5°F (-18°C and -15°C). If the freezer is too warm, water won't freeze efficiently, or the ice maker won't cycle properly.
• Tool: Freezer thermometer
• Action: Adjust the freezer thermostat if necessary. Allow several hours for the temperature to stabilize.

7. Examine Ice Maker Module for Jams/Damage — Visually inspect the ice maker's mechanics.

• Diagnosis: Look for any foreign objects, broken ejector arms, or components that appear out of place. Sometimes a piece of food or a detached plastic bit can prevent the mechanism from cycling.
• Action: If you see a jam, carefully remove it with plastic tongs or tweezers. If the ice maker module itself appears damaged, it may need replacement.

8. Reset the Ice Maker — Initiate a reset cycle to clear any electronic glitches.

• Procedure: Most ice makers have a test button or a simple reset procedure. Some require you to hold down the freezer light switch for a specific duration or press a button on the ice maker module itself. Consult your refrigerator's owner's manual for the exact reset steps for your model. For many older models, simply unplugging the fridge for 5 minutes and plugging it back in can reset the ice maker's control board.

Common Causes

• Frozen Fill Tube: This is incredibly common. A slightly higher freezer temperature or a brief power outage can cause residual water in the fill tube to freeze solid, blocking subsequent water flow. Even a small drip from the valve can lead to a freeze-up over time.
• Faulty Water Inlet Valve: The solenoid in the valve can fail electrically, preventing it from opening, or the valve can become clogged with sediment, restricting water flow. Sometimes, the internal diaphragm can rupture, allowing slow leaks or preventing proper closure.
• Low Water Pressure: If your household water pressure is too low (below 20 PSI), the water inlet valve may not activate properly, or water won't flow strong enough to reach the ice maker.
• Clogged Water Filter: An old or clogged refrigerator water filter can severely restrict water flow to the ice maker, mimicking a faulty valve or low pressure. Most manufacturers recommend replacing filters every 6 months.
• Malfunctioning Ice Maker Module: The internal components of the ice maker itself (thermostat, motor, heating element) can fail, preventing it from cycling or calling for water. This is less common than fill tube or valve issues but does occur.
• Temperature Too Warm: If the freezer temperature rises above 10°F, ice production becomes sluggish or stops entirely because the water never fully freezes, or the ice maker's internal thermostat doesn't trigger the harvest cycle.

Common Mistakes

• Using Sharp Objects to Clear a Frozen Tube: Attempting to chip away ice with screwdrivers, knives, or other sharp tools can easily puncture the plastic fill tube, leading to leaks and a much more expensive repair.
• Forgetting to Check the Water Supply Valve: Many homeowners overlook the most basic check – ensuring the manual shut-off valve behind the fridge or under the sink is fully open. It's often accidentally bumped or partially closed during cleaning.
• Assuming a Complete Ice Maker Replacement Immediately: Most ice maker issues are resolvable by addressing the water supply or simple mechanical fixes. Jumping to full module replacement without proper diagnosis can be costly and unnecessary.
• Ignoring the Water Filter: An old water filter is a frequent culprit for reduced water flow to the ice maker and dispenser. Skipping its replacement not only affects ice production but also water quality.
• Setting Freezer Temperature Too High: A freezer that's too warm, even by a few degrees, can significantly impact ice production, making cubes smaller, malformed, or stopping production altogether, as the ice maker won't properly cycle.
• Not Unplugging the Refrigerator During Repairs: Working on any appliance without disconnecting power is extremely dangerous and can lead to electrical shock. Always prioritize safety.

Cost & Time Breakdown

Tips & Prevention

• Check Water Filter Regularly: Replace your refrigerator's water filter every six months, or more frequently if you have hard water, to prevent clogs and ensure proper water flow to the ice maker.
• Maintain Optimal Freezer Temperature: Keep your freezer set to 0°F (-18°C) to ensure efficient ice production and prevent the fill tube from freezing.
• Monitor Ice Accumulation: If you notice ice building up around the fill tube, it's an early warning sign of a potential blockage. Address it immediately with gentle heat.
• Avoid Overpacking the Freezer: Good airflow within the freezer helps maintain consistent temperatures and prevents localized warm spots that can lead to freezing issues in the fill tube.
• Regularly Empty and Clean Ice Bin: If you don't use ice frequently, it can clump together in the bin. Periodically emptying and cleaning the bin ensures the ice maker can freely dispense new ice.
• Inspect Water Line for Kinks: Every few months, gently pull your refrigerator out and inspect the water supply line for any kinks, bends, or obstructions that might restrict water flow.

When to Call a Professional

While many ice maker issues are DIY-friendly, certain situations warrant calling a licensed appliance repair professional. If, after following all diagnostic steps, you confirm the issue lies with the main control board of the refrigerator or the ice maker module itself has failed, professional help is advisable. These components can be expensive, and precise diagnosis requires specialized knowledge and tools. Similarly, if you suspect an internal water leak that's difficult to pinpoint or if the issue seems to stem from your home's main water pressure rather than the refrigerator's specific components, a pro can offer a more comprehensive solution. Any doubt regarding electrical testing of the water inlet valve or other components should lead you to call a qualified technician to avoid potential electrical hazards or further damage to your appliance. If you've replaced the water inlet valve and filter and confirmed water pressure, but still have no ice, it's usually time for a professional diagnosis.
