Quick Answer

Is your ice maker on strike, refusing to drop a single cube despite your best efforts? The most common culprit, often overlooked, isn't a complex electrical fault or a broken component, but a simple frozen fill tube. This narrow tube, responsible for delivering water to the ice mold, can become blocked with a small ice plug, completely halting production. The good news is, diagnosing and resolving this issue is often a DIY task that takes less than an hour and requires minimal tools.

The Problem

Your refrigerator's ice maker is designed for convenience, providing a steady supply of ice without a second thought. However, when it suddenly stops producing, it can be a real headache. You might hear the ice maker attempting to cycle, or even see the ejector arm moving, yet the ice bucket remains stubbornly empty. This situation points away from a complete mechanical failure and often towards an interruption in the water supply. A frozen fill tube is perfectly capable of causing this exact symptom. If left unaddressed, it won't resolve itself and you'll continue to be without ice.

How It Works

Understanding how your ice maker functions helps pinpoint issues. Most modern refrigerator ice makers operate on a similar principle. Water flows from your home's main supply line, through a shut-off valve, and then into a small solenoid valve located at the back of your refrigerator. When the ice maker calls for water (triggered by the temperature of the ice mold and the position of the feeler arm), the solenoid valve opens, allowing water to flow through a thin plastic tube—the fill tube—into the ice mold.

Once the water fills the mold, a thermostat within the ice maker monitors the temperature. When the water freezes solid, the heating element briefly warms the mold, subtly loosening the ice cubes. Simultaneously, the ejector arm rotates, scooping the newly formed ice cubes out of the mold and into the ice bin below. As the ejector arm completes its cycle, it resets the feeler arm. If the feeler arm is unobstructed (meaning the ice bin isn't full), the solenoid valve will open again, refilling the mold, and the cycle repeats. A frozen fill tube prevents this entire process from starting by cutting off the initial water supply. The ice maker's internal mechanisms might still cycle, but without water, no ice will form.

Step-by-Step Fix

Here’s how to troubleshoot and fix a frozen ice maker fill tube.

1. Safety First – Unplug the Refrigerator – Before touching any internal components or working with water lines, always disconnect power. This prevents electrical shock and accidental activation of components.

   • Pro Tip: Pull the refrigerator completely away from the wall to access the back for easier unplugging.

2. Locate the Ice Maker and Fill Tube – Open your freezer door. The ice maker is typically housed in the upper left or right corner. Look behind or above the ice maker assembly for a small, usually clear or white, plastic tube. This is the fill tube, often about 1/4-inch in diameter, entering the back of the ice maker's water tray.

   • If you can't see it: Some models have the fill tube slightly concealed. A flashlight can help, or you may need to gently pull out the ice maker assembly (refer to your refrigerator's manual).

3. Inspect for Ice Obstruction – Shine a flashlight into the end of the fill tube where it meets the ice maker. Look for clear or cloudy ice blocking the opening. Sometimes the blockage is visible; other times, it's just inside higher up the tube.

   • Feel for a bulge: Gently squeeze the fill tube (if accessible and flexible) to see if you can feel a hard, frozen section.

4. Thaw the Frozen Fill Tube – This is the core of the fix. There are several safe ways to melt the ice plug.

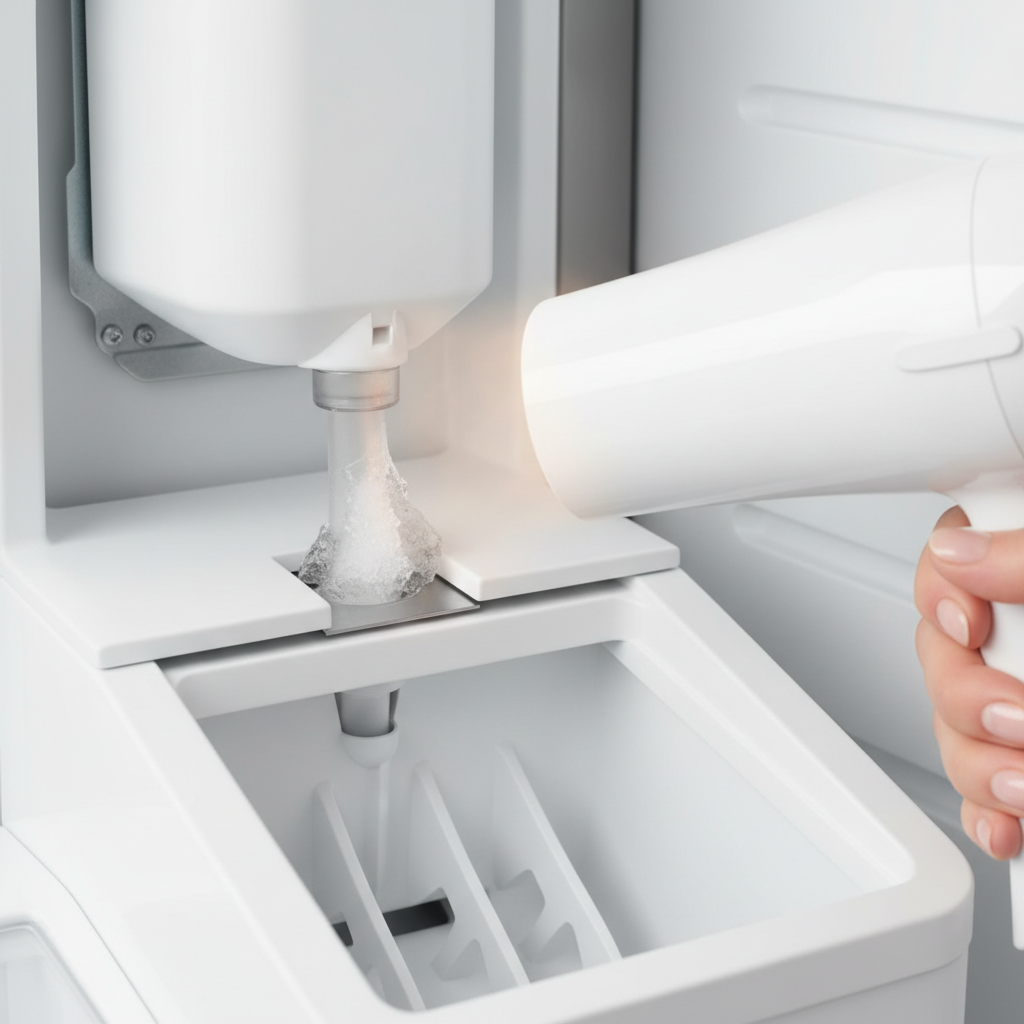

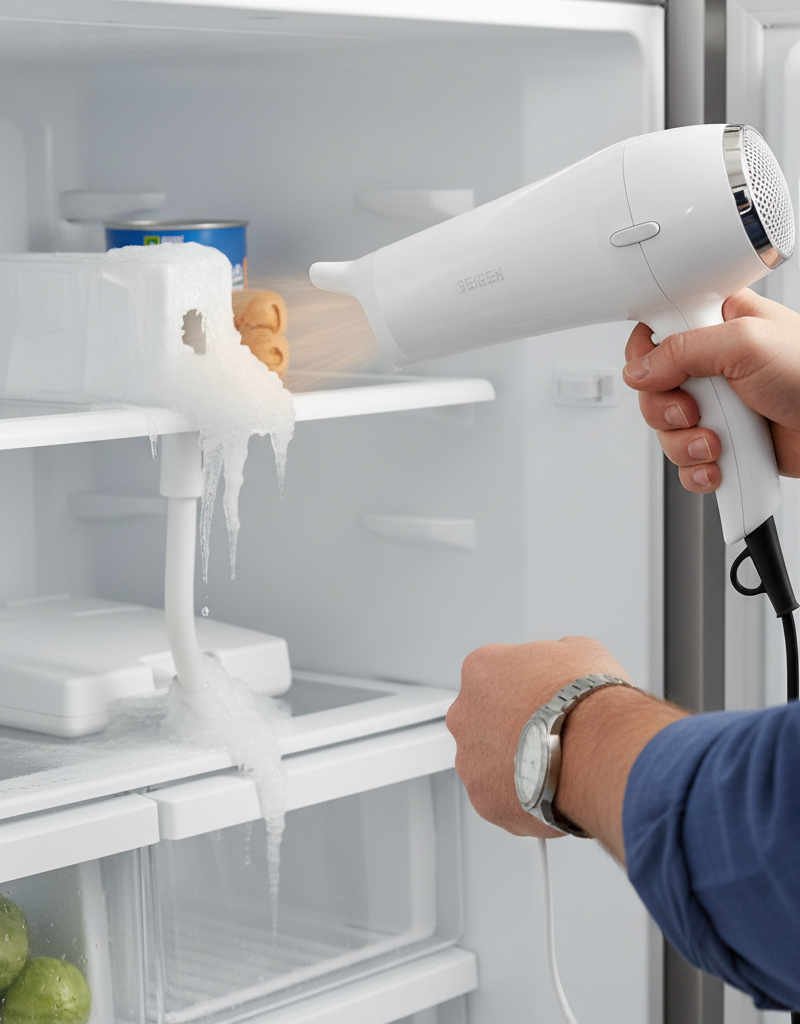

   • Hair Dryer Method (Most Common): Set a hair dryer to a low-to-medium heat setting. Aim the warm air directly at the frozen section of the fill tube for 5-10 minutes. Do not hold it too close, as excessive heat can damage plastic components. You might hear dripping or the ice plug dislodging.
   • Warm Water Syringe/Baser Method: For a more targeted approach, use a turkey baster or a large syringe (without a needle) filled with warm water. Squirt small amounts of warm water directly into the opening of the fill tube. Be prepared with towels to catch any overflow in the freezer.
   • Steaming Method (Careful!): Hold a pot of steaming hot water near the fill tube (not touching) for several minutes. The steam will gradually melt the ice. This is slower but very gentle.
   • Avoid: Never use sharp objects to clear ice, as you can puncture the tube. Do not pour boiling water directly into the tube, as it can cause plastic to crack or warp.

5. Verify the Tube is Clear – Once you believe the ice is melted, try blowing gently into the fill tube (if it's accessible and you can disconnect it from the water valve at the back). You should feel air passing through. Alternatively, if you used the water method, observe if the water drains through.

6. Check Water Pressure and Valve – A weak water supply can lead to slow filling and freezing. Ensure your home's main water shut-off valve is fully open. Then, locate the refrigerator's water shut-off valve (often behind the fridge, connected to the copper or plastic water line). Ensure it's fully open. A partially closed valve reduces pressure.

   • If you suspect low pressure: Disconnect the water line from the back of the refrigerator (with a towel ready) and run a small amount of water into a cup to check flow. It should be a steady stream, not a trickle.

7. Reconnect and Test – Plug the refrigerator back in. Go to the front control panel (if applicable) and manually activate the ice maker's test cycle, if your model has one (consult your manual for instructions). Otherwise, wait 1-2 hours for the ice maker to cycle naturally. You should hear the water solenoid open and water filling the mold. The first batch of ice might be smaller or malformed.

   • Patience is Key: It can take 24 hours for the ice maker to produce a full bin of ice, especially if the freezer temperature needs to stabilize.

Common Causes

• Low Water Pressure: If the water pressure to the refrigerator is too low, the fill tube won't get enough water quickly. The slow trickle freezes before it can fully enter the ice mold, creating an ice dam.
• Freezer Temperature Set Too Low: While counterintuitive, if your freezer is set excessively cold (e.g., below 0°F / -18°C), the water in the fill tube can freeze too quickly before it has a chance to fully dispense into the mold. A normal freezer temperature is typically 0°F to 5°F (-18°C to -15°C).
• Infrequent Use: If the ice maker isn't used regularly, water sits in the fill tube for extended periods, increasing the chance of it freezing solid, especially if the flow is already a bit slow.
• Faulty Water Inlet Valve: Although less common than a frozen tube, a failing water inlet valve can cause erratic water flow or incomplete shut-off, leading to drips that freeze in the tube. This may create a humming noise that is louder than usual.
• Kinked Water Line: The plastic water line running from your wall to the back of the refrigerator can become kinked if the refrigerator is pushed too close to the wall or moved improperly, restricting water flow and making freezing more likely.

Common Mistakes

• Jabbing with Sharp Objects: Never use screwdrivers, ice picks, or knives to clear a frozen fill tube. You risk puncturing the plastic tube, leading to leaks and potentially costly water damage inside and outside your refrigerator. Stick to heat or warm water.
• Ignoring the Water Pressure: Many DIYers jump straight to replacing parts without checking the simplest things first. Low water pressure is a frequent cause of freezing, and it's free to check. Always ensure the shut-off valves are fully open.
• Assuming a Major Mechanical Failure: While ice makers can fail, a complete lack of ice with no other symptoms (like weird noises or physical damage) often points to a water supply issue, not a broken motor or sensor. Don't rush to replace expensive parts without troubleshooting.
• Setting Freezer Temperature Too Low: Thinking
