Quick Answer
Floating shelves frequently sag in drywall because they aren't properly secured to a structural element. The quick answer to preventing or fixing a sagging shelf is to ensure your mounting hardware is either firmly anchored into wood studs behind the drywall or, if studs aren't available, to use robust, toggle-style hollow-wall anchors specifically designed for heavy loads. Skipping stud-finding or using inadequate anchors are the primary culprits in shelf failure.
The Problem
You've carefully measured, leveled, and mounted your sleek new floating shelf, only to find it starting to tilt or pull away from the wall after a few weeks (or even days) of use. The problem isn't usually with the shelf itself, but with the unseen forces at play behind your drywall. Drywall, while sturdy enough to form walls, is not designed to bear significant weight directly. Its gypsum core is brittle, and even the strongest screws or nails will eventually pull through if they aren't engaging with something more substantial. When a floating shelf sags, it's a clear sign that the mounting hardware is failing to hold securely, either because it's only embedded in the drywall or because the anchors used are insufficient for the load.
How It Works
To understand why a floating shelf sags, it's crucial to understand how walls are constructed and how different anchors interact with them. Most interior walls consist of a framework of vertical wooden (or sometimes metal) studs, typically spaced 16 or 24 inches on center. These studs provide the structural integrity for your home and are the ideal attachment points for anything load-bearing. Drywall panels, usually 1/2-inch thick, are screwed directly to these studs.
A floating shelf, by design, has no visible support brackets. Instead, it relies on a hidden bracket or metal rods that extend from the wall into the back of the shelf. This bracket needs to be exceptionally strong and securely fastened to the wall to counteract the leverage created by the shelf's depth and any weight placed upon it. When you install a floating shelf, you're essentially creating a cantilever – a rigid structural element supported at only one end. The farther the shelf extends and the more weight it holds, the greater the downward force (torque) exerted on its connection point with the wall.
If the shelf's mounting hardware is only screwed into drywall without hitting a stud, the drywall itself is taking all the load. Standard plastic wall anchors or even self-drilling anchors, while adequate for light pictures or small decor, simply deform and pull out of the fragile gypsum under the concentrated, outward-pulling force of a loaded floating shelf. Heavy-duty toggle bolts, on the other hand, spread the load across a larger area of the back of the drywall, significantly increasing holding power. The best-case scenario, however, always involves fastening directly into a wooden stud with robust screws, as wood offers far superior shear strength and pull-out resistance compared to any drywall anchor.
Step-by-Step Fix
Here's how to properly install or re-secure a floating shelf to prevent sagging, focusing on robust attachment methods.
-
Remove the Existing Shelf and Hardware — Carefully take down the sagging shelf and any existing mounting hardware. Inspect the shelf bracket for damage. You'll likely see enlarged or damaged holes in the drywall where the old anchors failed.
- Tools: Drill/driver, screwdriver, hammer.
- Safety: Wear safety glasses to protect against falling debris.
-
Patch Damaged Drywall (If Necessary) — If the old holes are significantly enlarged or ripped, you'll need to patch them before proceeding. Use a small drywall patch kit or joint compound to fill the holes. Allow it to dry completely and sand smooth.
- Materials: Drywall joint compound, spackling knife, sanding sponge, possibly small mesh patch.
- If this doesn't work: If the damage is extensive, consider cutting out a larger square and installing a new drywall patch.
-

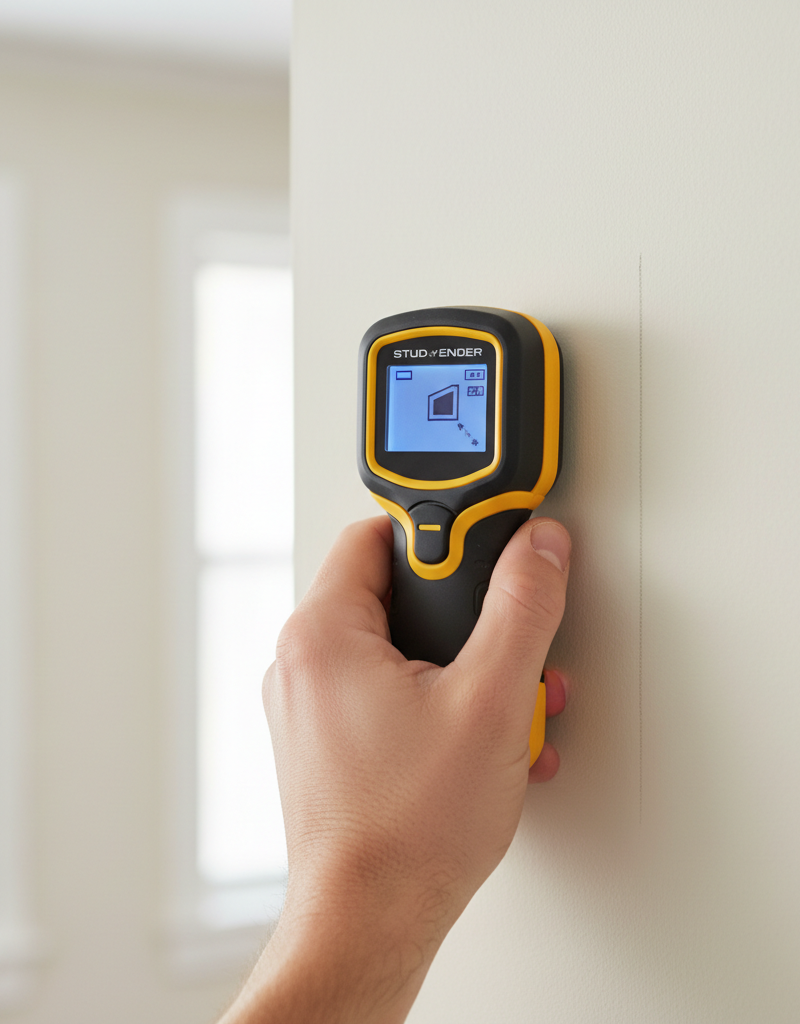

Locate Wall Studs — This is the most critical step for a secure installation. Use a reliable stud finder to locate the center of at least two adjacent studs where your shelf will be mounted. Mark these locations precisely with a pencil.
- Tool: Electronic stud finder (magnetic stud finders can also work by finding screw heads).
- Tip: Studs are typically 16 or 24 inches on center. Confirm with multiple scans or by tapping the wall. You can also drill a tiny pilot hole (easily patched) to verify a stud.
-
Mark Shelf Bracket Holes — Hold your shelf bracket against the wall, perfectly level, aligning as many mounting holes as possible with the marked stud centers. Mark all bracket mounting holes with a pencil. Prioritize hitting studs, even if it means slightly repositioning the shelf's horizontal placement.
- Tools: Level, pencil.
- Measurement: Ensure the shelf will be horizontally level. Use a long level.
-
Drill Pilot Holes for Studs — For any holes that align with a stud, drill a pilot hole slightly smaller than the diameter of your lag screws or structural wood screws. This prevents splitting the stud and ensures a strong grip.
- Tool: Drill/driver.
- Drill Bit Size: Consult your screw manufacturer's recommendations or use a bit that allows the screw threads to bite firmly into the wood.
- Pro Tip: If you're using lag screws, you may need a larger pilot hole than for standard wood screws.
-
Install Heavy-Duty Anchors for Non-Stud Locations — For any bracket holes that do not align with a stud, use heavy-duty toggle anchors (e.g., Toggle Bolts, Snaptoggles, self-drilling metal anchors designed for substantial weight). Follow the manufacturer's specific instructions for drilling the correct size hole and deploying the anchor.
- Materials: Toggle bolts or heavy-duty self-drilling metal anchors.
- Crucial: Do NOT use plastic expansion anchors for floating shelves. They are insufficient.
-

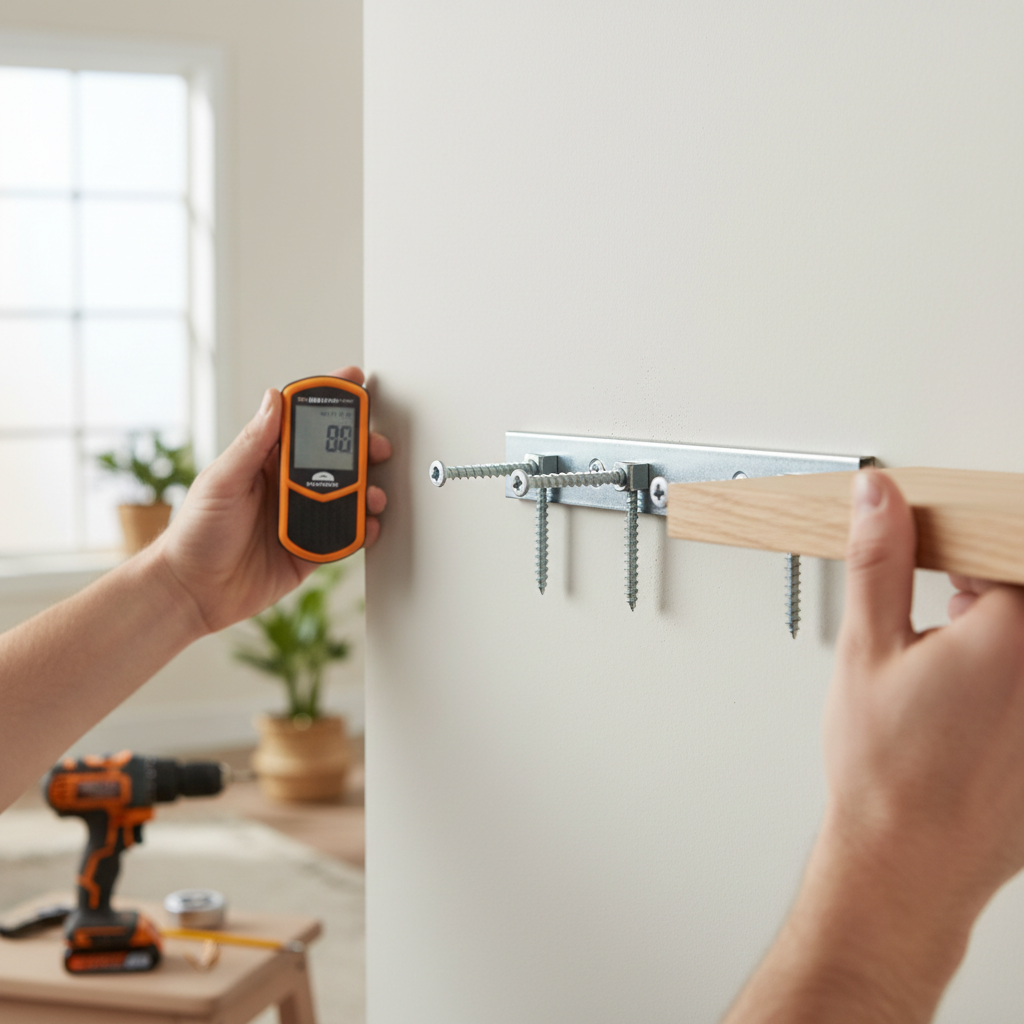

Mount the Shelf Bracket — Align the shelf bracket with all your pilot holes and anchored points. Drive lag screws or structural wood screws into the stud locations, tightening them firmly but not overtightening. Then, secure the screws for the toggle anchors, ensuring they are snug and the bracket is flush and level against the wall.
- Tools: Drill/driver with appropriate driver bit (e.g., hex bit for lag screws, Phillips head for wood screws).
- Check: Periodically check the level as you tighten to ensure the bracket remains perfectly horizontal.
-
Slide on the Floating Shelf — Carefully slide the actual shelf body onto the mounted bracket according to its design. Many floating shelves have small set screws underneath to secure them to the bracket. Tighten these if present.
- Tools: Small screwdriver (often included with the shelf).
- Final Check: Place a level on the shelf to confirm it's perfectly horizontal. Gently test its stability by applying some downward pressure.
Common Causes
- Incorrect Anchor Selection: Using standard plastic expansion anchors, self-drilling plastic anchors, or only small screws directly into drywall. These are not designed for the cantilevered weight and torque of a floating shelf.
- Failure to Hit Studs: Not using a stud finder or misidentifying stud locations, leading to the bracket being secured only into the drywall.
- Overloading the Shelf: Placing too much weight on the shelf beyond its capacity, even if properly installed. Always check the manufacturer's weight limits.
- Poor Quality Shelf Bracket: Some cheap floating shelf brackets are made of thin or weak metal, which can bend or deform over time, regardless of how well they're anchored.
- Improper Installation Technique: Rushing the installation, not drilling pilot holes correctly, or failing to tighten all fasteners adequately can compromise the shelf's stability from the start.
Common Mistakes
- **Trusting
Related Articles
Keep troubleshooting with these hand-picked guides from FixlyGuide:
- The 3 Hidden Mistakes That Make Floating Shelves Sag (and How to Fix Them) — Prevent floating shelves from sagging in drywall by avoiding common installation mistakes and using the right anchors and techniques.
- The #1 Mistake Homeowners Make Installing Floating Shelves (and How to Avoid It) — Learn the proper techniques for securely installing floating shelves into drywall, avoiding common mistakes that lead to costly damage or w…
- The #1 Mistake Homeowners Make Installing Floating Shelves (and How to Fix It) — Discover the crucial error most homeowners make when mounting floating shelves into drywall, leading to sagging or collapse, and learn the…
- The 3 Hidden Drywall Mistakes That Can Send Your Heavy Mirror Crashing Down — Discover the crucial steps to safely hang a heavy mirror on drywall, avoiding common mistakes that can lead to damage or disaster.
- The #1 Mistake Homeowners Make Installing Floating Shelves (and How to Fix It) — Discover the crucial error many DIYers make when mounting floating shelves into drywall and learn the simple steps to ensure a secure, sag-…
- The 3 Hidden Reasons Your Gas Burner Won't Light (Beyond a Clog) — Before you call a technician, discover the most common culprits behind a gas stove burner that refuses to ignite and learn how to fix them…
Get the print-ready PDF of this guide
A clean, ad-free, printable version you can keep on your phone or pin to the workshop wall. We'll also send occasional weekly tips matched to your home situation.
- Print-optimized layout
- Tools, materials & every step included
- Unsubscribe anytime
Frequently asked questions
Can I install a floating shelf without hitting a stud?+
Yes, but you must use heavy-duty hollow-wall anchors specifically designed for significant weight, such as toggle bolts or robust self-drilling metal anchors. Never rely on standard plastic anchors for floating shelves in drywall alone, as they will almost certainly fail.
What kind of anchors are best for heavy floating shelves in drywall?+
For heavy floating shelves where a stud cannot be hit, the best anchors are toggle bolts (e.g., Snaptoggle, Toggler) or heavy-duty metal self-drilling anchors rated for high pull-out strength. These anchors distribute the load over a larger area behind the drywall, offering much greater support than traditional plastic anchors.
How much weight can a floating shelf hold in drywall?+
The weight capacity of a floating shelf in drywall depends entirely on the installation method and the type of anchors used. If secured directly into at least two wooden studs with appropriate screws, a quality bracket can hold 50-100+ pounds. If using heavy-duty drywall anchors without studs, the capacity might be 25-50 pounds per anchor, but always defer to the anchor and shelf manufacturer's specifications.
How do I find studs accurately?+
Use an electronic stud finder. Scan horizontally across the wall. It will typically beep or light up when it detects the edges of a stud. Mark both edges, and the center will be between them. For added certainty, verify findings with a magnetic stud finder or by gently tapping and listening for a solid sound.
What if my shelf doesn't align with studs?+
If your floating shelf design has mounting points that don't align perfectly with studs, prioritize securing as many points as possible into studs. For the remaining points that fall on drywall, use the highest-rated heavy-duty toggle anchors available. Sometimes, slightly adjusting the shelf's desired position horizontally by an inch or two can allow more screws to hit studs, which is always the safest option.
