Quick Answer

When a circuit breaker trips, it's performing its essential safety function by cutting off power to prevent overheating or fire. Most often, this is due to an overloaded circuit—too many high-power devices drawing current through a single circuit. Other common causes include a short circuit, where hot and neutral wires touch, or a ground fault, where a hot wire touches a grounded surface. Less frequently, a faulty appliance or a worn-out breaker itself can be the culprit. The key to stopping repeated trips is systematically identifying and addressing the root cause, starting with identifying the tripped breaker and the devices on its circuit.

The Problem

You're going about your day, perhaps blow-drying your hair, running the microwave, or booting up a powerful computer, when suddenly, everything goes dark in one part of your home. You check the electrical panel, and sure enough, one of the switches is flipped to the "off" or middle position. You reset it, and for a while, all is well. But then, it happens again. A circuit breaker that repeatedly trips isn't just an annoyance; it's a warning sign from your home's electrical system. Ignoring it can lead to damaged appliances, wiring, and in severe cases, could pose a fire hazard. This article will guide you through diagnosing the most common reasons for a persistently tripping breaker and provide actionable steps to resolve them safely.

How It Works

Understanding how a circuit breaker functions is crucial to troubleshooting. Inside your electrical panel, each breaker is essentially an automatic switch designed to protect specific circuits in your home. When you use electricity, current flows from the utility pole, through your main service panel, and out to your various circuits. Each circuit is rated for a specific amperage (e.g., 15 amps, 20 amps). Wires, outlets, and switches on that circuit are designed to safely handle that current level.

A circuit breaker has two primary mechanisms for detecting faults: thermal protection and magnetic protection.

• Thermal Protection: This involves a bimetallic strip inside the breaker. When excessive current flows through the circuit for an extended period (an overload), the wire heats up. This heat causes the bimetallic strip to bend. At a certain point, the strip bends enough to trip the internal latch, opening the circuit and cutting power. This protects against gradual overheating of wires.

• Magnetic Protection: This mechanism uses an electromagnet. In the event of a sudden, high surge of current—like that caused by a short circuit or a ground fault—the electromagnet instantly pulls a plunger, which trips the latch and opens the circuit. This acts much faster than thermal protection, reacting to immediate and dangerous spikes.

When a breaker trips, it indicates that one of these fault conditions was detected, and it successfully interrupted the current flow to prevent damage or danger. Resetting it simply closes the internal switch again, allowing power to flow—but only if the fault condition has been resolved.

Step-by-Step Fix

Safety First: Before attempting any electrical work, always turn off the main power to your home at the service panel. Use a non-contact voltage tester to confirm circuits are dead before touching any wiring. If you are ever unsure, or uncomfortable working with electricity, contact a licensed electrician.

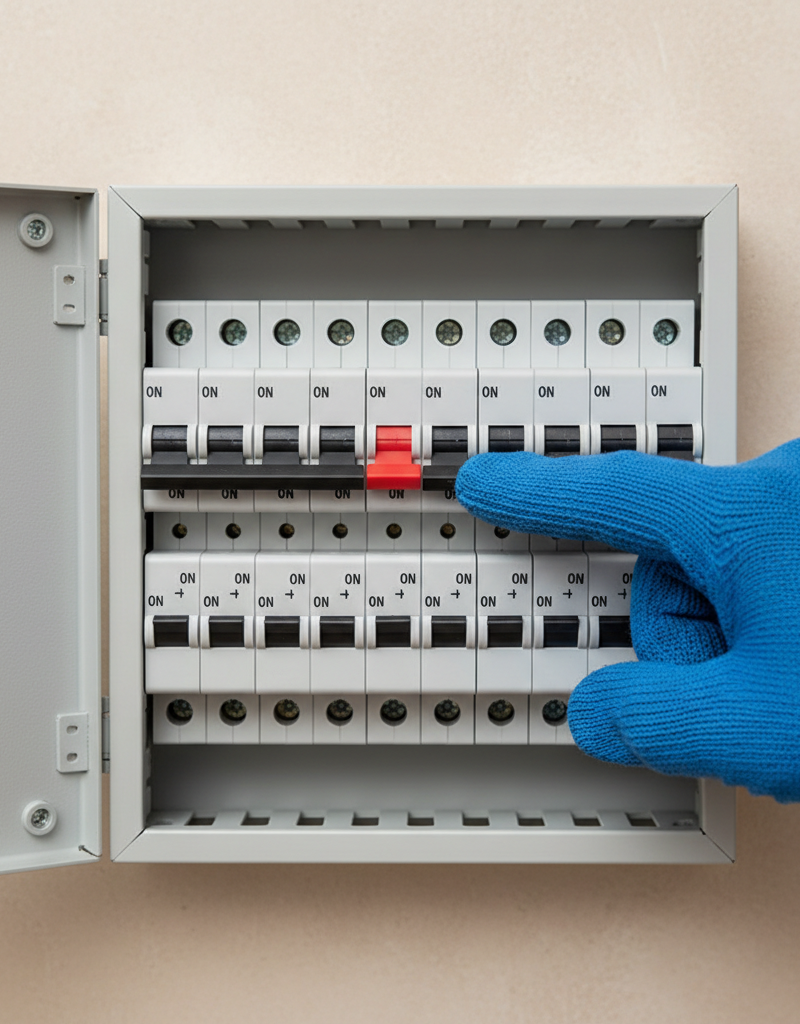

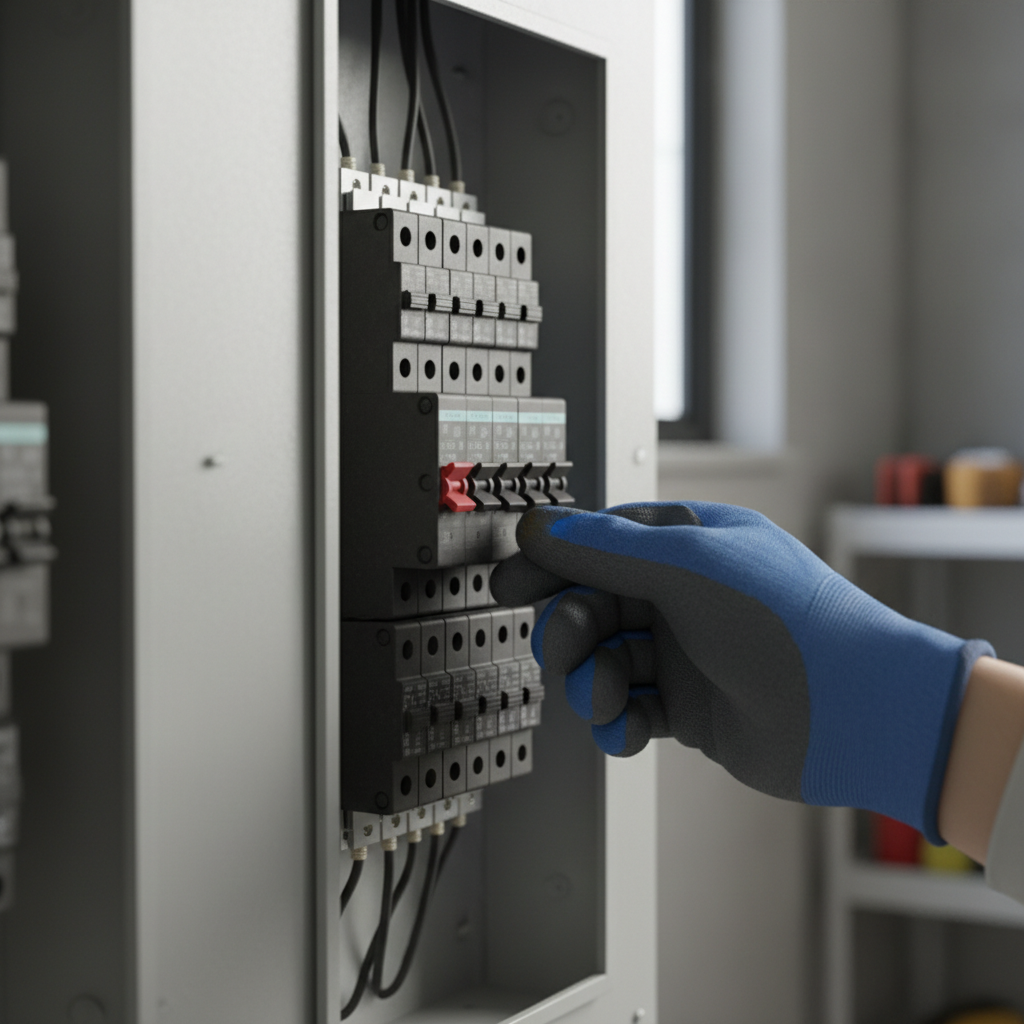

1. Identify the Tripped Breaker and Circuit — Look for a breaker that is in the "off" position or has partially flipped to the center. It won't be fully "on" but won't be fully "off" either. Once found, flip it completely to the "off" position, then firmly back to "on."

   • Diagnostic Tip: Note which areas of your home lost power. This helps you determine which devices are on that specific circuit.

2. Unplug Devices on the Affected Circuit — Go through the rooms and areas that lost power and unplug everything from the outlets, including lamps, chargers, appliances, and power strips. This is the most crucial step for diagnosing an overload or faulty appliance.

   • If your breaker immediately trips again after resetting with everything unplugged: This points to a deeper issue like a short circuit in the wiring itself or a faulty breaker. Proceed with extreme caution or call a professional.

3. Reset the Breaker and Test One Device at a Time — With all devices unplugged, reset the breaker. If it holds, plug in one device at a time, allowing a minute or two between each. Start with devices you suspect might be problematic (e.g., high-wattage appliances, older electronics).

   • If a specific device causes the trip: That device is likely faulty. Unplug it and try plugging it into a different circuit (briefly) to confirm. If it trips another breaker, discard or repair the appliance. If it doesn't trip another breaker, the original circuit may be too sensitive or consistently overloaded, even with just that one appliance.

4. Check for Obvious Overloads — If no single device causes the trip, but it trips when several devices are running, you likely have an overloaded circuit. This is particularly common in older homes or in areas like kitchens, where many high-wattage appliances (microwave, toaster oven, coffee maker) might share a single 15-amp circuit.

   • Solution: Distribute high-wattage appliances across different circuits. Use power strips only for low-power electronics, never for heaters, air conditioners, or microwaves.
   • Real-world check: If your breaker is 15 amps, it can handle roughly 1800 watts (15 amps * 120 volts). If you have a 1500-watt hair dryer and a 1000-watt curling iron on the same circuit, you're already at 2500 watts—guaranteed to trip.

5. Look for Signs of a Short Circuit or Ground Fault — If the breaker trips immediately even with nothing plugged in, or if you notice scorch marks, burning smells, or flickering lights, you might have a short circuit or ground fault in the wiring, an outlet, or a lighting fixture.

   • Inspection: Turn off the main power. Carefully examine outlets and switch plates on the affected circuit for loose wires, damaged insulation, or signs of burning. Check light fixtures for loose bulbs or frayed wiring. Do not attempt to repair damaged wiring yourself. This is a job for a professional.

6. Test GFCIs and AFCIs — If the tripped breaker is a Ground Fault Circuit Interrupter (GFCI) or Arc Fault Circuit Interrupter (AFCI), it indicates a specific type of fault. GFCIs typically protect wet areas (kitchens, bathrooms, outdoors) against ground faults. AFCIs protect against dangerous electrical arcs.

   • GFCI Troubleshooting: A GFCI will have "Test" and "Reset" buttons. If it trips, try resetting it. If it trips immediately, unplug all devices downstream from it (including any other outlets or lights on that GFCI circuit) and try resetting it again. If it still trips, there's a ground fault in the wiring or an issue with the GFCI itself.
   • AFCI Troubleshooting: AFCIs are more sensitive. They can trip from things like damaged appliance cords, miswired receptacles, or even certain motor-driven appliances (like vacuum cleaners) if they're old or malfunctioning. If an AFCI trips, unplug everything first, then reset. If it holds, plug devices back in one by one. If a specific device trips it, that device is the problem. If it trips with nothing plugged in, a professional inspection of the wiring is needed.

7. Consider a Faulty Breaker — While less common, breakers can wear out over time, especially if they trip frequently. An old, weak, or faulty breaker might trip even when there's no actual fault condition, or it might not trip when it should. This requires replacement by a qualified electrician.

Common Causes

• Circuit Overload: This is overwhelmingly the most common cause. Too many high-wattage appliances (heaters, hair dryers, microwaves, toasters, space heaters, power tools) drawing current on a single circuit simultaneously. Each circuit has a maximum amperage it can safely handle. When the demand exceeds this, the breaker trips to prevent overheating the wires. Older homes often have fewer, lower-amperage circuits, making them more prone to overloading.
• Short Circuit: Occurs when a hot wire touches a neutral wire or another hot wire. This creates a very low-resistance path, causing a sudden, massive surge of current. This can be caused by damaged appliance cords, loose wiring in outlets or switches, wires chewed by rodents, or nails/screws piercing wiring inside walls. Short circuits cause an immediate, magnetic trip of the breaker.
• Ground Fault: Similar to a short circuit, but occurs when a hot wire comes into accidental contact with a grounded surface or component (e.g., the metal casing of an appliance, a metal junction box, a plumbing pipe, or even damp concrete). This also results in a sudden, high current flow (diverted to ground) and will trip a standard breaker rapidly, or a GFCI breaker/outlet almost instantaneously. Common culprits include damaged insulation inside an appliance or wiring in wet locations.
• Faulty Appliance: An appliance with internal wiring damage, a motor problem, or a malfunctioning heating element can draw excessive current or create a short/ground fault, causing the breaker to trip. This is why testing devices one by one is so important.
• Aging or Faulty Breaker: Like any mechanical device, circuit breakers can wear out. Internal components can weaken or become less sensitive over time. A faulty breaker might trip prematurely even under normal load, or conversely, it might fail to trip when it should, creating a dangerous situation. This is a rare, but serious, possibility.
• Arch Fault: An unintended arc (spark) in the electrical wiring system. This can be caused by loose connections, damaged insulation, or frayed wires. Arc faults generate intense heat and are a leading cause of electrical fires. Arc Fault Circuit Interrupters (AFCIs) are designed to detect these specific conditions and trip the circuit.

Common Mistakes

• Repeatedly Resetting Without Diagnosing: The biggest mistake is simply flipping the breaker back on without trying to identify what caused the trip. This ignores the warning sign and puts your home at risk. If you keep resetting an overloaded or faulty circuit, you risk overheating wires and a fire.
• Overlooking High-Wattage Appliances: Many homeowners underestimate the power draw of common appliances. A space heater (1500W), microwave (1000-1500W), hair dryer (1200-1800W), or toaster oven (1200-1700W) can easily overload a standard 15-amp circuit, especially if combined with other smaller devices.
• Ignoring Ground Faults/Shorts: Assuming all trips are just "overloads." If a breaker trips immediately when reset, even with nothing plugged in, or you see scorch marks, it
