Quick Answer

Phantom doorbell rings are a common, albeit annoying, household mystery. They often stem from subtle electrical malfunctions within your low-voltage doorbell system. The most frequent culprits include short circuits in old wiring, a worn-out doorbell button that's sticking or corroding, or a transformer providing inconsistent power. Identifying the exact cause usually involves systematic troubleshooting, from inspecting the button and chime unit to testing the transformer's voltage output.

The Problem

Imagine you're home, relaxing, and suddenly your doorbell chimes – but there's no one at the door. Or perhaps it rings erratically, sometimes chiming multiple times on its own. This isn't a ghost in your wiring; it's a 'phantom ring,' a frustrating issue that plagues many homeowners. Not only is it startling, but it can also be a security concern, making you question why your doorbell is activating without a visitor. The root of the problem almost always lies in one of the three main components of a wired doorbell system: the button, the chime unit, or the transformer, or the low-voltage wiring connecting them.

How It Works

To effectively troubleshoot a phantom doorbell, it helps to understand its simple electrical dance. A standard wired doorbell system operates on a low-voltage circuit, typically 10 to 24 volts AC, much lower than your home's main electrical supply. This low voltage is supplied by a transformer, usually located near your main electrical panel, in your basement, or sometimes in the attic (often recognizable as a small metal box with two wires coming in and two going out). The transformer steps down the standard 120V household current to the required low voltage.

One wire from the transformer runs to the doorbell button (the part you press). The doorbell button itself is essentially a simple momentary switch. When you press it, it completes the circuit, allowing the low-voltage current to flow through it. From the doorbell button, another wire runs to the chime unit (the box that makes the sound). The chime unit contains an electromagnet that, when energized by the current, pulls a plunger to strike metal bars, producing the familiar 'ding-dong' sound. Finally, a return wire runs from the chime unit back to the transformer, completing the circuit. So, in essence, pressing the button temporarily closes the circuit, allowing current to flow from the transformer, through the button, to the chime, and back to the transformer, causing the chime to activate. Phantom rings occur when this circuit is inadvertently completed or partially completed without the button being pressed.

Step-by-Step Fix

Safety First! — Always turn off power at the breaker before working with electrical components. Although doorbell systems are low voltage, it's good practice to de-energize circuits, especially when dealing with wiring.

1. Inspect the Doorbell Button Visually — Check for obvious damage or debris.

• Look for cracks in the button's housing, stuck buttons, or visible corrosion on the terminals. Spiders, insect nests, or even paint can interfere with the button's operation. Often, debris can cause the button to stick in a partially depressed state, triggering phantom rings.
• Clean around the button and terminals with a small brush or compressed air. If the button looks old or corroded, it's a prime suspect.

2. Test the Doorbell Button Directly — Bypass the button to see if the chime stops phantom ringing.

• Tools needed: Small screwdriver (flathead or Phillips).
• Carefully remove the doorbell button from its mounting. You'll likely need to loosen one or two small screws.
• Once the button is free, you'll see two low-voltage wires connected to its terminals. Gently disconnect both wires from the button.
• Keeping the wires separated and ensuring they don't touch anything else, place a piece of electrical tape over the exposed ends of each wire as a precaution and to prevent accidental contact. Do not let these two wires touch each other if the power is on, as this will activate the chime.
• With the button disconnected, restore power to the doorbell circuit at the breaker. Observe your chime unit for a few hours or even a day. If the phantom ringing stops, your doorbell button is the culprit.
• If this doesn't work: Proceed to inspecting the wiring or the chime unit.

3. Examine Doorbell Wiring for Shorts — Look for exposed wires or damage.

• Tools needed: Small screwdriver, flashlight, electrical tape.
• Start at the doorbell button exterior. After turning off power again (crucial step!), carefully pull the wires out slightly from the wall opening. Inspect the insulation for any nicks, cuts, or areas where the two wires might be touching each other or anything metallic (like a screw or the door frame). Even a tiny strand of copper touching can create a short circuit and trigger the chime.
• Follow the wiring as much as possible, if visible, towards the chime unit and the transformer. While doorbell wiring is often stapled along joists or run inside walls, inspect any exposed sections.
• At the chime unit, remove its cover (usually just pulls off or has small clips). Inspect where the wires connect to the terminals. Ensure no stray wire strands are bridging the terminals or touching the chime's internal components. Tighten any loose terminal screws.
• Repair any minor nicks with electrical tape. If the wire is severely damaged, you might need to splice in a new section or, in worst-case scenarios, run new wire, which can be a more involved process. Do not attempt extensive wiring repairs if you are not comfortable; consult a professional electrician.
• If this doesn't work: The wiring might have an internal short somewhere inaccessible, or the problem lies elsewhere.

4. Test/Inspect the Chime Unit — Check for internal component issues.

• Tools needed: Small screwdriver, multimeter (optional).
• With power STILL OFF, remove the cover from the chime unit. Inside, you'll usually see two electromagnets (solenoids) and two plungers (for a 'ding-dong' sound). Inspect these components.
• Look for anything obstructing the plungers – dust, debris, insect nests, or corrosion. Clean the mechanism gently with compressed air or a soft brush. Sometimes a plunger can stick in a partially engaged position.
• Check the wiring connections at the chime unit's terminals. Ensure they are secure and free from corrosion. Loose connections can lead to intermittent ringing.
• Manually push the plungers to ensure they move freely without sticking. If a plunger feels stiff or hangs up, the chime unit itself might be faulty or at the end of its life.
• If you have a multimeter: You can test the resistance across the chime's coil (with wires disconnected and power off) to look for an open or short circuit, though this is often beyond basic DIY troubleshooting unless you're familiar with electronics.
• If this doesn't work: The transformer is the next suspect.

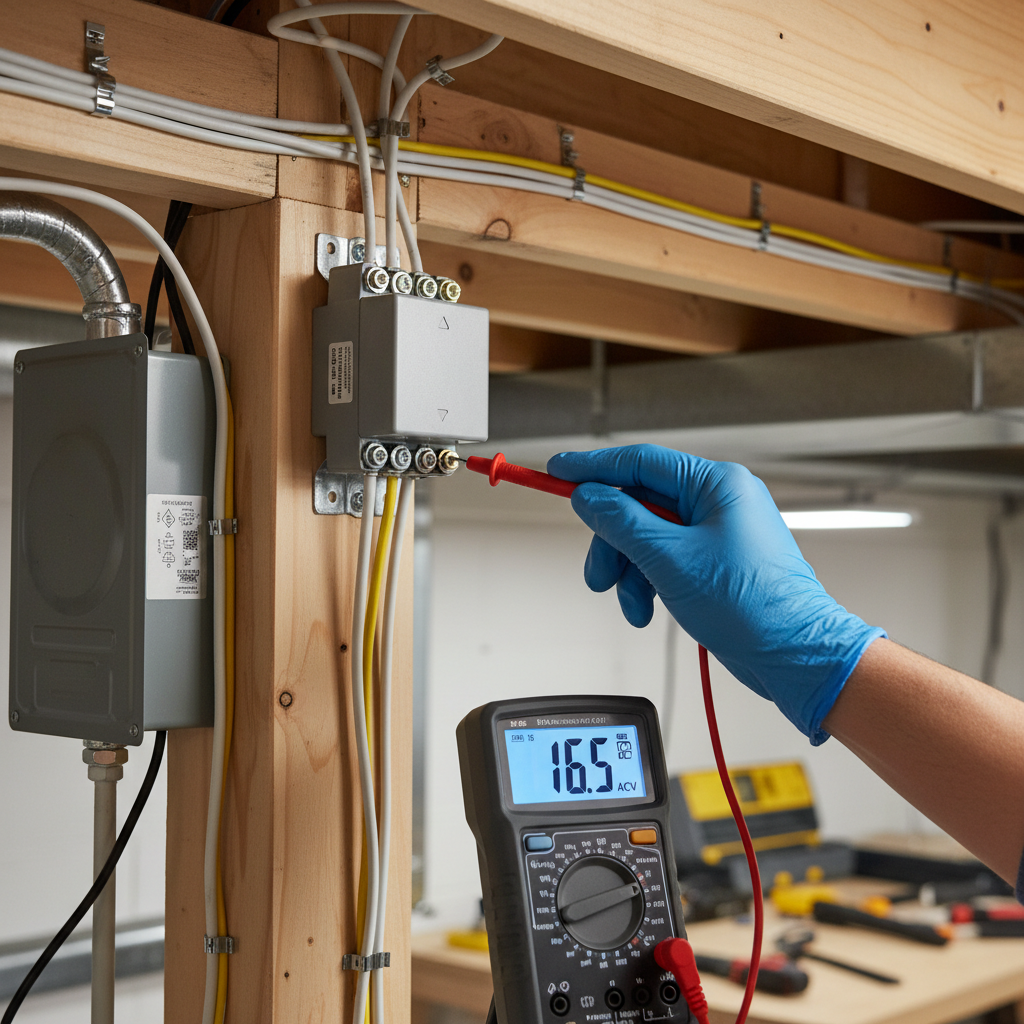

5. Test the Transformer's Voltage Output — Confirm it's providing stable power.

• Tools needed: Multimeter.
• Locate the transformer: This is often the trickiest part. Common locations include near the main electrical panel, in the basement ceiling rafters, in a utility closet, or sometimes in the attic. It's a small, typically gray or silver box with 120V wiring coming in and two low-voltage wires going out to your doorbell system.
• Safety Warning: You will be working near 120V household current when testing the transformer. Exercise extreme caution. If you are not comfortable, call a professional. Ensure your multimeter is set to read AC voltage.
• With power ON (only for this test!), touch the red probe of your multimeter to one of the low-voltage terminals on the transformer and the black probe to the other. Read the voltage. It should match the rating printed on the transformer (e.g., 16V AC, 24V AC, 10V AC).
• What to look for: If the voltage is significantly lower than specified, fluctuates wildly, or is absent, the transformer is likely failing. An unstable voltage supply can cause the chime unit to activate erratically.
• To replace a transformer: Turn OFF power to the transformer's circuit at the main breaker. Disconnect the 120V input wires and the low-voltage output wires. Install the new transformer, carefully wiring the 120V input first, then the low-voltage output. Double-check all connections before restoring power. If you are unsure about wiring 120V, call a licensed electrician.
• If this doesn't work: If all components test out, consider if there's external interference (rare but possible) or an extremely subtle wiring fault.

Common Causes

• Aging Doorbell Button: The most common culprit. Over time, the internal contacts can corrode, get stuck, or become sensitive to temperature changes, inadvertently completing the circuit.
• Wiring Shorts: Low-voltage wires can become damaged by pests, staples, or friction, causing the insulation to wear away. Even a tiny exposed portion touching another wire or a metallic surface can create a short, triggering the chime.
• Faulty Transformer: The transformer steps down the voltage. If it's old or failing, it might send erratic or fluctuating voltage to the chime unit, causing it to activate spontaneously.
• Dirty/Sticky Chime Unit Mechanism: Dust, insects, or corrosion inside the chime enclosure can impede the plunger's movement, causing it to stick or creating a partial connection that triggers the bell.
• Improper Installation/Loose Connections: Originally installed loose wires at the button, chime, or transformer terminals can vibrate or shift over time, leading to intermittent contact and phantom rings.
• Environmental Factors (Rare): Extreme temperature fluctuations can sometimes affect very old or poorly protected wiring and buttons, leading to expansion/contraction that causes intermittent contact.

Common Mistakes

• Ignoring the Transformer: Many DIYers focus solely on the button and chime, overlooking the transformer. An unstable voltage supply from a failing transformer is a very common cause of phantom ringing.
• Failing to Turn Off Power: Even though a doorbell is low-voltage, the transformer is connected to 120V household current. Not turning off power at the breaker before working on wiring or replacing the transformer is a safety hazard.
• Assuming the Button Works: Visually, an old button might look fine, but its internal contacts can be corroded or worn. Always test the button by disconnecting it to rule it out definitively.
• Overlooking Subtle Wire Damage: Tiny nicks or fraying in low-voltage wires can be hard to spot but are enough to cause shorts. Carefully inspect every visible inch of wire.
• Tightening Screws Too Much: When securing wires to terminals, overtightening can strip the screws or cut through the thin doorbell wire, causing more problems.
• Not Cleaning the Chime Unit: Dust and debris inside the chime mechanism can cause plungers to stick. A quick clean can sometimes solve the problem.

Cost & Time Breakdown

Tips & Prevention

• Regular Visual Inspections: Periodically check your doorbell button for cracks, sticking, or obvious damage, especially after harsh weather. Do the same for exposed areas of wiring.
• Clean Chime Unit: Every few years, remove the chime cover and gently clean out any dust, cobwebs, or debris using compressed air or a soft brush to ensure plungers move freely.
• Proper Wire Management: When installing new wiring or making repairs, ensure wires are properly staples and protected from damage, and avoid running them in areas where they might be easily snagged or crushed.
• Upgrade Old Components: If your doorbell system is very old (20+ years), consider proactively replacing the button and transformer, as these components degrade over time.
• Moisture Protection: Ensure your outdoor doorbell button has a good seal and is protected from direct rain and prolonged moisture exposure, as water ingress can cause shorts and corrosion.
• Use Correct Voltage Transformer: If replacing a transformer, always ensure the new one has the correct voltage output (e.g., 16V AC) matching your chime unit's requirements. Using an incorrect voltage can damage the chime or lead to erratic operation.

When to Call a Professional

If you've systematically worked through the troubleshooting steps and the phantom ringing persists, or if you're uncomfortable at any point, especially when dealing with the transformer's 120V wiring, it's time to call a licensed electrician. Professionals have diagnostic tools to identify subtle shorts within walls or diagnose internal chime unit failures. Furthermore, if replacing the transformer involves modifying your home's main electrical wiring (beyond simply disconnecting and reconnecting low-voltage terminals), or if you discover any issues with the 120V input to the transformer, a licensed electrician is essential to ensure safety and code compliance. Additionally, if the issue turns out to be complex internal wiring damage or a faulty chime unit that requires advanced electrical knowledge to diagnose and repair, a pro can save you time and prevent further damage.
