Quick Answer

When your freezer is cold but the refrigerator section is warm, the most common issue is a malfunctioning evaporator fan motor. This fan is responsible for circulating cold air from the freezer into the fresh food compartment. A broken motor, iced-up components, or wiring issues can stop this crucial airflow, leading to a warm fridge despite a working freezer.

The Problem

You open your refrigerator, expecting a refreshing blast of cold air, only to find wilted greens and lukewarm beverages. Yet, peeking into the freezer confirms it's Arctic cold, well below 0°F. This frustrating scenario almost always points to an issue with how cold air is distributed from the freezer to the fresh food compartment, rather than a problem with the refrigeration cycle itself. The compressor, condenser, and evaporator coils are likely doing their job of creating cold air within the freezer, but that cold air isn't making its way to where it's needed most in the fridge.

Ignoring this issue won't just spoil food; it can also lead to your refrigerator's compressor working overtime, shortening its lifespan and increasing your energy bills. A quick diagnosis and repair can save you hundreds in lost food and potential appliance replacement costs.

How It Works

Understanding how your refrigerator cools both compartments is key to diagnosing the problem. Your refrigerator operates on a vapor compression cycle. A refrigerant circulates through a closed system, changing states from liquid to gas and back again. The compressor pressurizes the refrigerant, sending it to the condenser coils (usually on the back or bottom of the fridge) where it dissipates heat and cools into a liquid.

This liquid refrigerant then moves through an expansion valve and into the evaporator coils, located inside the freezer compartment. Here, the pressure drops dramatically, causing the refrigerant to absorb heat from the freezer air and turn back into a gas, making the coils — and the freezer — extremely cold. A primary fan, the evaporator fan, is located near these coils in the freezer. Its crucial job is to draw air over the frigid evaporator coils and then push that super-cooled air through a damper system and into the fresh food compartment.

Without a functional evaporator fan, or if the air pathways are blocked by ice or debris, that cold air remains trapped in the freezer. The refrigerator compartment, lacking this continuous influx of chilled air, will slowly warm up to ambient room temperature, even though the freezer continues to operate perfectly.

Step-by-Step Fix

Safety First! Before attempting any repairs, always unplug your refrigerator from the wall outlet. This prevents electrical shock and injury from moving parts.

1. Empty and Clear the Freezer — Prepare for inspection

   • Remove all food items from the freezer. Place frozen items in a cooler with ice to prevent thawing. This gives you clear access to the back panel.
   • Remove any ice makers or shelves that obstruct your view of the back panel.

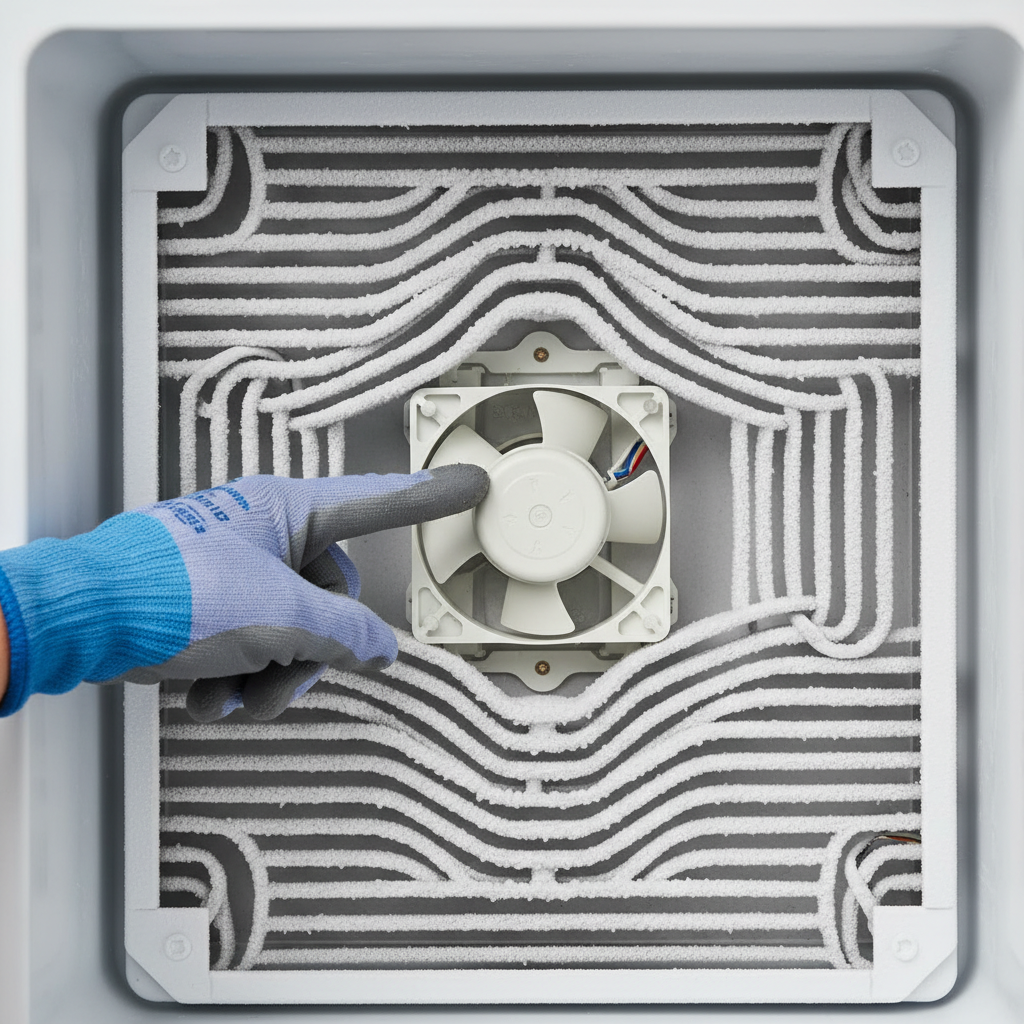

2. Locate the Evaporator Fan — Identify the problem area

   • Using a screwdriver, remove the screws holding the back panel of the freezer compartment. This panel typically covers the evaporator coils and the evaporator fan.
   • Carefully pull the panel away. You'll see the silver evaporator coils and, usually to one side or above them, a small fan with plastic blades.

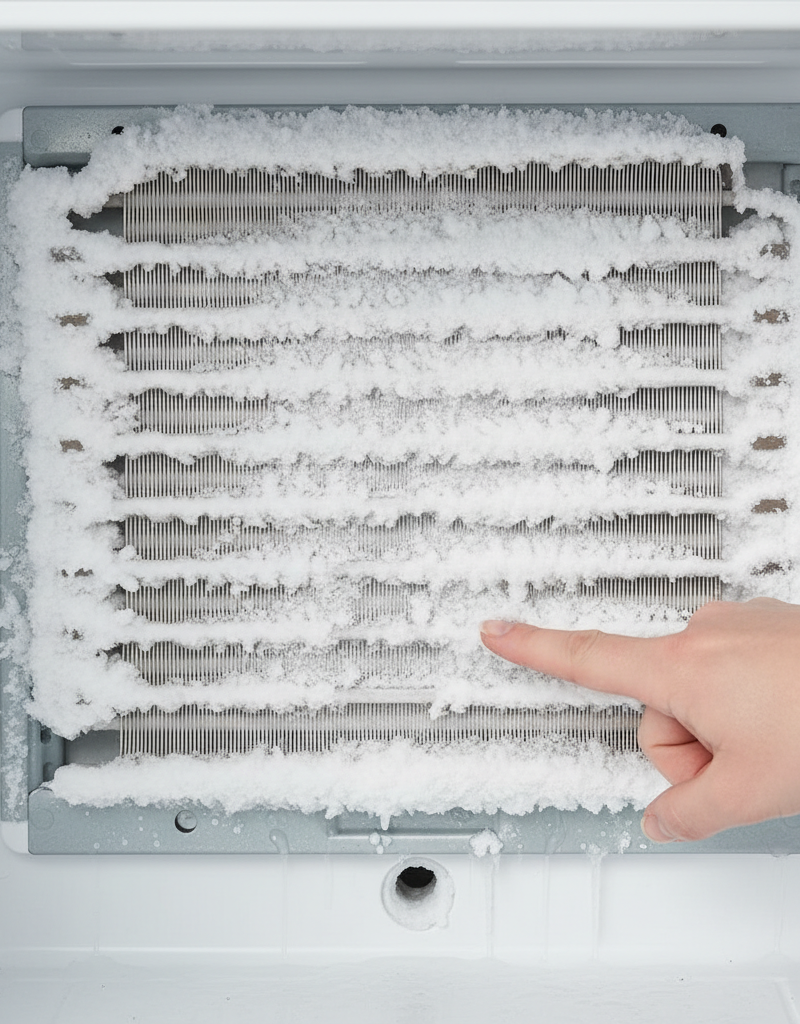

3. Inspect for Ice Buildup — A common culprit

   • Check the coils: Look for a thick layer of frost or ice completely encasing the evaporator coils. This indicates a faulty defrost system, which can prevent cold air from circulating and also block the fan blades.
   • Check the fan blades: Spin the fan blades gently with your hand. If they are stiff, frozen, or can't turn freely, ice is likely the issue.
   • If ice is present: You'll need to manually defrost the freezer. Unplug the fridge for at least 24-48 hours with the freezer door open, placing towels on the floor to catch meltwater. A hairdryer on a low, cool setting (held at a safe distance) can speed this up, but never use sharp objects to chip away ice, as you could puncture the coils.
   • Check the defrost drain: Ensure the defrost drain hole (usually at the bottom of the evaporator coils) isn't clogged.

4. Test the Evaporator Fan Motor — Is it moving?

   • After defrosting (if needed) and with the unit still UNPLUGGED: Spin the fan blades by hand again. They should spin freely with little resistance.
   • Visual Inspection: Look for any visible damage to the fan blades or motor housing.

5. Reconnect Power and Listen — Does it hum?

   • Plug the refrigerator back in. Open the freezer door and press the door switch (a small button usually located near the door hinge) to simulate the door being closed. This should trigger the fan to run.
   • Listen carefully: Do you hear the fan motor humming and the blades spinning? If you hear a hum but no spin, the motor is likely seized or bad.
   • No sound at all: If there's no hum or spin, the motor is definitely faulty, or there's a wiring issue.
   • If the fan runs intermittently or weakly: This also points to a failing motor.

6. Check for Voltage to the Motor (Optional, Advanced) — Confirming electrical failure

   • Only if you are comfortable with electrical testing and have a multimeter. UNPLUG THE FRIDGE BEFORE STARTING.
   • Carefully disconnect the wire harness from the evaporator fan motor.
   • With the harness disconnected, plug the refrigerator back in temporarily.
   • Set your multimeter to measure AC voltage. Safely touch the probes to the terminals of the wire harness that connect to the fan motor. (Consult your refrigerator's wiring diagram if unsure which terminals to test).
   • You should read approximately 120V AC (for most common refrigerators) or a lower DC voltage if it's a DC fan (check your fridge's manual). If you get no voltage, the problem lies upstream, possibly with the control board or wiring. If you get voltage but the fan doesn't run when connected, the motor is bad.
   • IMPORTANT: UNPLUG THE FRIDGE IMMEDIATELY AFTER THIS TEST.

7. Replace the Evaporator Fan Motor — The likely fix

   • If the fan motor is confirmed faulty (no free spin, no sound, or no voltage but should have), you'll need to replace it.
   • Order the correct part: Find your refrigerator's model number (usually on a sticker inside the fridge or on the back) and order a replacement evaporator fan motor specific to your model. Ensure you get the correct voltage and connector type.
   • Disconnect wiring: Unplug the old motor from its wire harness.
   • Remove old motor: Unscrew or unclip the old motor from its mounting bracket.
   • Install new motor: Mount the new motor, ensuring it's oriented correctly. Reconnect the wire harness.
   • Test: Plug the fridge back in and test the new fan's operation by pressing the door switch.

8. Reassemble the Freezer — Buttoning it up

   • Once the new fan is working, reattach the back panel of the freezer, ensuring all screws are secure.
   • Replace shelves and the ice maker.
   • Return food to the freezer.

9. Monitor Refrigerator Temperature — Verify the fix

   • Give the refrigerator several hours (4-8 hours) to cool down completely after the repair. Use a thermometer to confirm the fresh food compartment reaches and maintains a temperature of 35-38°F (1.7-3.3°C).

Common Causes

• Failed Evaporator Fan Motor: This is overwhelmingly the leading cause. The motor simply burns out or wears down over time, preventing the fan blades from turning and circulating air.
• Ice Buildup on Evaporator Coils/Fan: A malfunctioning defrost system (defrost heater, defrost thermostat, or defrost timer/control board) can cause excessive ice to form on the evaporator coils and around the fan blades, physically stopping them from rotating.
• Blocked Air Damper: The damper is a small, sometimes adjustable, vent that controls how much cold air flows from the freezer to the refrigerator section. If it's stuck closed (mechanically or due to ice), cold air can't enter the fridge.
• Faulty Door Seal: A leaky refrigerator door seal allows warm, humid air into the fresh food compartment, potentially leading to excess frost and making the fridge work harder without achieving proper cooling.
• Control Board Malfunction: Less common, but a faulty main control board can fail to send power to the evaporator fan motor or the defrost system.

Common Mistakes

• Ignoring the defrost cycle: Many homeowners jump straight to replacing the fan without checking for ice. If the defrost system is bad, a new fan will just get iced up again.
• Puncturing evaporator coils: Using screwdrivers or knives to chip ice can easily damage the delicate aluminum coils, leading to an expensive refrigerant leak that requires professional repair.
• Forgetting to unplug: Always, always unplug the appliance before working on it. Electrocution is a serious risk.
• Not ordering the correct part: Refrigerator parts are model-specific. A
