Quick Answer

An air conditioner freezing up outside is most commonly caused by a lack of proper airflow over the evaporator coil, often due to a dirty air filter, blocked return vents, or a malfunctioning blower motor. Low refrigerant levels can also contribute, but poor airflow is a more frequent and easily addressable issue, causing the coil to get too cold and accumulate ice. Addressing airflow issues promptly can prevent further damage and restore efficient cooling to your home.

The Problem

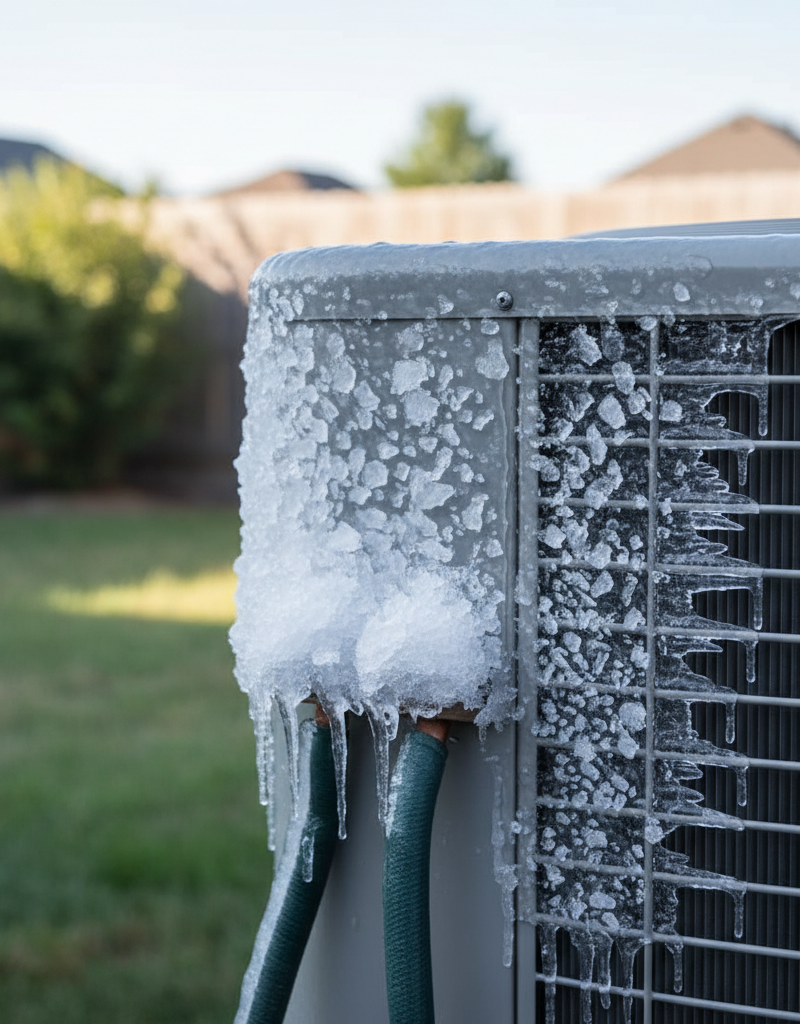

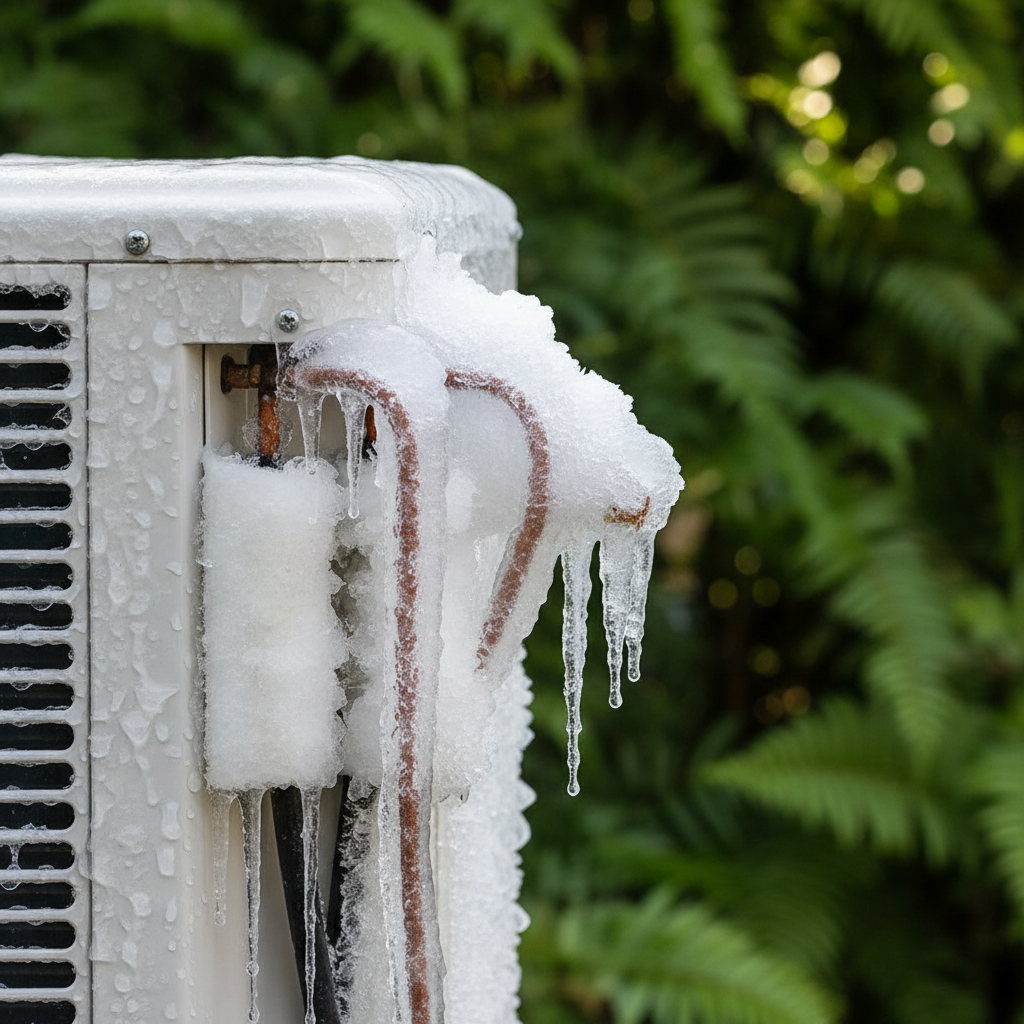

There's nothing quite as frustrating as stepping inside on a sweltering day, only to find your AC blowing warm air or, worse, not blowing at all – and then discovering a solid block of ice encasing the outdoor unit's refrigerant lines or even the coil itself. This isn't just a cosmetic issue; an iced-up AC unit is a clear sign of a deeper problem within your system. Ignoring it can lead to inefficient cooling, higher energy bills, and potentially costly compressor damage. Many homeowners jump to the conclusion that low refrigerant is the sole cause, but the truth is often far simpler and more related to how air moves (or doesn't move) through your system.

When your AC unit freezes, it's typically because the evaporator coil, located in your indoor unit, gets too cold. Refrigerant inside the coil absorbs heat from your home's air. If not enough warm air passes over the coil, the refrigerant temperature drops below freezing (32°F or 0°C), causing condensation on the coil to turn into ice. This ice then builds up, restricting airflow even further, creating a vicious cycle. Eventually, the ice can spread to the outdoor unit's components, including the suction line (the larger, insulated copper line) and sometimes even the condensing coil.

How It Works

To understand why your AC freezes, it helps to grasp the basic refrigeration cycle. Your air conditioning system works by transferring heat from inside your home to the outside air. This process involves two main coils: the evaporator coil indoors and the condenser coil outdoors.

Inside your home, warm, humid air is drawn into your return ducts and flows over the cold evaporator coil. The liquid refrigerant inside this coil absorbs heat from the air, causing the refrigerant to evaporate and turn into a low-pressure gas. As the air loses its heat, it becomes cooler and less humid, then gets pushed back into your living spaces by the blower fan. The now-gaseous refrigerant travels through a copper line to the outdoor unit.

In the outdoor unit, the gaseous refrigerant is compressed by the compressor, which increases its pressure and temperature. It then flows into the condenser coil, where a fan blows outdoor air across the hot coil. The refrigerant releases its absorbed heat to the cooler outside air, condensing back into a high-pressure liquid. This liquid then travels through an expansion valve (or metering device) back to the indoor evaporator coil, where the cycle begins anew. Think of it as a continuous loop of heat transfer.

Freezing occurs when the evaporator coil, for whatever reason, cannot absorb enough heat from the air to properly warm the refrigerant. If the refrigerant stays too cold, the moisture (condensation) that naturally forms on the coil will freeze. This can happen if the warm indoor air isn't circulating properly over the coil (poor airflow) or if there isn't enough refrigerant to absorb the heat efficiently (low refrigerant).

Step-by-Step Fix

Before attempting any troubleshooting, always turn off your AC unit at the thermostat and the circuit breaker to prevent electrical shock or damage to the system. Allow the ice to melt completely, which can take several hours (or you can speed it up by setting your blower fan to ‘ON’ with the AC still off). Do not try to chip away the ice with tools, as this can damage the delicate fins and coils.

Step 1: Inspect and Replace Your Air Filter — The most common culprit

Your air filter is the first line of defense against dirt and debris entering your HVAC system. A clogged filter severely restricts airflow over the evaporator coil, causing it to get too cold and freeze.

• How to do it: Locate your air filter slot, usually in the return air vent or at the air handler unit itself. Slide out the old filter and hold it up to a light source. If you can't see light through it, it's definitely time for a change.
• Tools: New air filter of the correct size (e.g., 20x25x1 inch MERV 8).
• If this doesn't work: Even a brand new filter can't fix overall system airflow problems if other components are blocked.

Step 2: Check for Blocked Return and Supply Vents — Ensure proper air circulation

Blocked vents, especially return air vents, can significantly impede airflow. Return vents draw air into the system, while supply vents deliver conditioned air out. Both need to be clear.

• How to do it: Walk through every room in your house and ensure all return and supply vents are open and unobstructed by furniture, curtains, or rugs. Pay special attention to large, central return air grilles.
• Safety: No specific safety concerns here, but good ambient lighting helps.
• If this doesn't work: Check inside your ductwork for larger obstructions if accessible, though this often requires professional inspection.

Step 3: Clean the Outdoor Condenser Unit — Prevent heat transfer issues

A dirty outdoor unit can reduce its ability to dissipate heat, making the system work harder and potentially contributing to imbalances that lead to freezing.

• How to do it: With the power off at the breaker, use a garden hose to gently spray down the condenser fins from the inside out to remove dirt, leaves, and debris. You can also use a soft brush or special fin comb for more stubborn grime. Ensure the area around the unit (at least 2 feet radius) is clear of plants and obstructions.
• Tools: Garden hose, soft brush, fin comb (optional).
• Safety: Ensure power is OFF. Be gentle with the fins; they bend easily.

Step 4: Inspect the Blower Motor and Fan — Crucial for indoor airflow

The indoor blower motor is responsible for moving air across the evaporator coil. A weak or malfunctioning motor means insufficient airflow.

• How to do it: Access your air handler unit (often in the attic, basement, or utility closet). With the power OFF, check the blower fan blades for excessive dirt buildup. Use a soft brush and a vacuum to clean them carefully. Ensure the fan spins freely by hand. If it hums but doesn't spin, or seems sluggish, it may be failing.
• Tools: Screwdriver (for access panel), soft brush, shop vacuum.
• Pro callout: If the motor itself is faulty, replacement is usually a job for an HVAC technician.

Step 5: Check for Kinked Refrigerant Lines — Rare but possible restriction

Physical damage to the copper refrigerant lines can restrict flow, leading to pressure drops and potential freezing.

• How to do it: Visually inspect the larger, insulated refrigerant line running from your outdoor unit to your indoor unit. Look for any sharp bends or crimps. This is less common, but can happen during installation or if something heavy falls on the line.
• If this doesn't work: If you find a severe kink, do not attempt to straighten it. This will almost certainly result in a refrigerant leak and require professional repair.

Step 6: Confirm Adequate Refrigerant Levels (Visual Check Only) — When other fixes fail

While you cannot safely measure refrigerant levels yourself, very low refrigerant can manifest as ice buildup on the larger (suction) line of your outdoor unit, especially near where it enters the house. If all airflow issues are addressed and the problem persists, this is a strong indicator of low refrigerant.

• How to do it: After all ice has melted, turn the AC back on. Feel the two copper lines coming out of your outdoor unit. The larger, insulated line (suction line) should be cool to the touch, like a cold drink. The smaller, uninsulated line (liquid line) should be warm. If the larger line is extremely cold or starts to show signs of freezing again after addressing airflow, it's highly likely you have low refrigerant. The symptom of only the larger line freezing is a common sign of a low charge.
• Pro callout: Adding refrigerant (recharging the system) requires specialized tools and EPA certification. It's not a DIY task and should always be done by a licensed HVAC technician. If low refrigerant is confirmed, the technician will also need to find and repair the leak, as simply adding refrigerant without fixing the leak is a temporary and wasteful solution.

Common Causes

• Dirty Air Filter: The most frequent culprit. A clogged filter chokes off airflow to the evaporator coil.
• Blocked Return Air Vents: Furniture, carpets, or closed vents can restrict the amount of warm air reaching the evaporator coil.
• Dirty Evaporator Coil: Over time, the indoor coil can accumulate a layer of dirt and grime, similar to a dirty filter, impeding heat transfer and airflow. This requires professional cleaning.
• Low Refrigerant (Refrigerant Leak): Insufficient refrigerant means less heat can be absorbed indoors, causing the remaining refrigerant to get too cold and freeze the coil. This always indicates a leak that needs professional repair.
• Blower Motor Issues: A weak or failing blower motor (indoor unit) won't move enough air across the evaporator coil, leading to freezing.
• Closed Register or Damper: Individual supply vents that are closed in specific rooms can throw off the pressure balance in your ductwork, indirectly affecting airflow over the coil.
• Malfunctioning Thermostat: A faulty thermostat could be calling for cooling continuously, or misreading the temperature, leading to overcooling and potential freezing.

Common Mistakes

• Ignoring a Dirty Air Filter: Many homeowners overlook this simple maintenance task, which is the leading cause of freezing units. Change your filter monthly during heavy use.
• Opening a Frozen AC Unit: Trying to run an AC when it's frozen will only cause more damage, potentially burning out the compressor. Always let it thaw completely first.
• Chipping Away Ice: Using sharp objects to remove ice can puncture the refrigerant lines or damage the delicate coil fins, leading to expensive leaks and repairs.
• Adding Refrigerant Yourself: Refrigerant is not a
