Quick Answer

If your AC condenser fan isn't spinning, preventing your outdoor unit from cooling, the most frequent cause is a faulty run capacitor. This inexpensive component provides the initial electrical "kick" needed to start the fan motor. Visually check the capacitor for any bulging, leaks, or burn marks. If it appears damaged, carefully discharge and replace it to likely resolve the issue.

The Problem

Imagine a scorching summer day. Your thermostat is set to a crisp 72°F, but the air coming from your vents feels lukewarm, or worse, non-existent. You step outside to check on your AC unit, and while you hear a hum, the large fan on top of the condenser isn't spinning. This isn't just an inconvenience; it's a critical issue that can quickly lead to severe—and expensive—damage to your air conditioning system. The condenser fan is responsible for drawing air over the condenser coils, dissipating the heat absorbed from inside your home. Without this airflow, the refrigerant can't shed its heat, the system pressure builds, and the compressor—the heart of your AC—will overheat and eventually shut down, or worse, fail completely. Understanding why this fan stops and how to safely get it spinning again is crucial for maintaining your home's comfort and the longevity of your AC.

How It Works

At the heart of your outdoor AC unit, the condenser fan motor, much like any electric motor, requires a burst of energy to overcome inertia and begin rotating. This initial jolt is provided by a component called the run capacitor. Think of the capacitor as a small, temporary battery that stores an electrical charge and then rapidly releases it to one of the motor's windings. This creates a rotating magnetic field that "pushes" the motor into motion. Once the motor is running, it continues to operate efficiently with the continuous alternating current (AC) supplied by your home's electrical system, using the capacitor primarily to maintain phase shift for optimal efficiency. Most residential AC condenser units use a dual-run capacitor, which serves both the compressor motor and the fan motor. It will have three terminals: "HERM" (for the compressor's hermetic motor), "FAN" (for the fan motor), and "COMMON." The capacitor is rated in microfarads (µF) and voltage (VAC). The µF rating must match your existing capacitor closely, typically within +/- 5%, while the VAC rating should be equal to or higher than the original. Over time, heat, electrical surges, and normal wear and tear cause the dielectric material inside the capacitor to break down, impairing its ability to store and release charge. When this happens, the fan motor receives no initial kick, and it simply sits there, humming but not spinning, or struggling to start and then stopping. Modern AC units also have safety controls, such as high-pressure switches or thermal overload protectors, which will shut down the entire unit if the fan fails and the system overheats, protecting the compressor from damage.

Step-by-Step Fix

1. Safety First — Shut off power to your AC unit at the breaker box.

Absolutely crucial before touching anything electrical. Locate your home's main electrical panel and find the circuit breaker labeled for your "AC Unit," "Furnace," or "Outdoor Condenser." Flip it to the "OFF" position. Don't rely solely on the disconnect switch near the outdoor unit, as some circuits might still be live. Use a non-contact voltage tester on the wires inside the outdoor unit to confirm that there is no power.

2. Inspect the Fan Blade — Check for obstructions or resistance.

With power off, carefully try to spin the fan blade by hand. It should spin freely with little resistance. If it feels stiff, grinds, or is completely seized, there might be a physical obstruction (like a branch or debris) or the fan motor bearings could be failing.

• If obstructed: Remove any debris. Test if the fan spins freely afterwards.
• If stiff/seized: The fan motor itself might be bad and need replacement. This is a more involved repair best left to a professional, especially if the bearings are internal and non-serviceable.

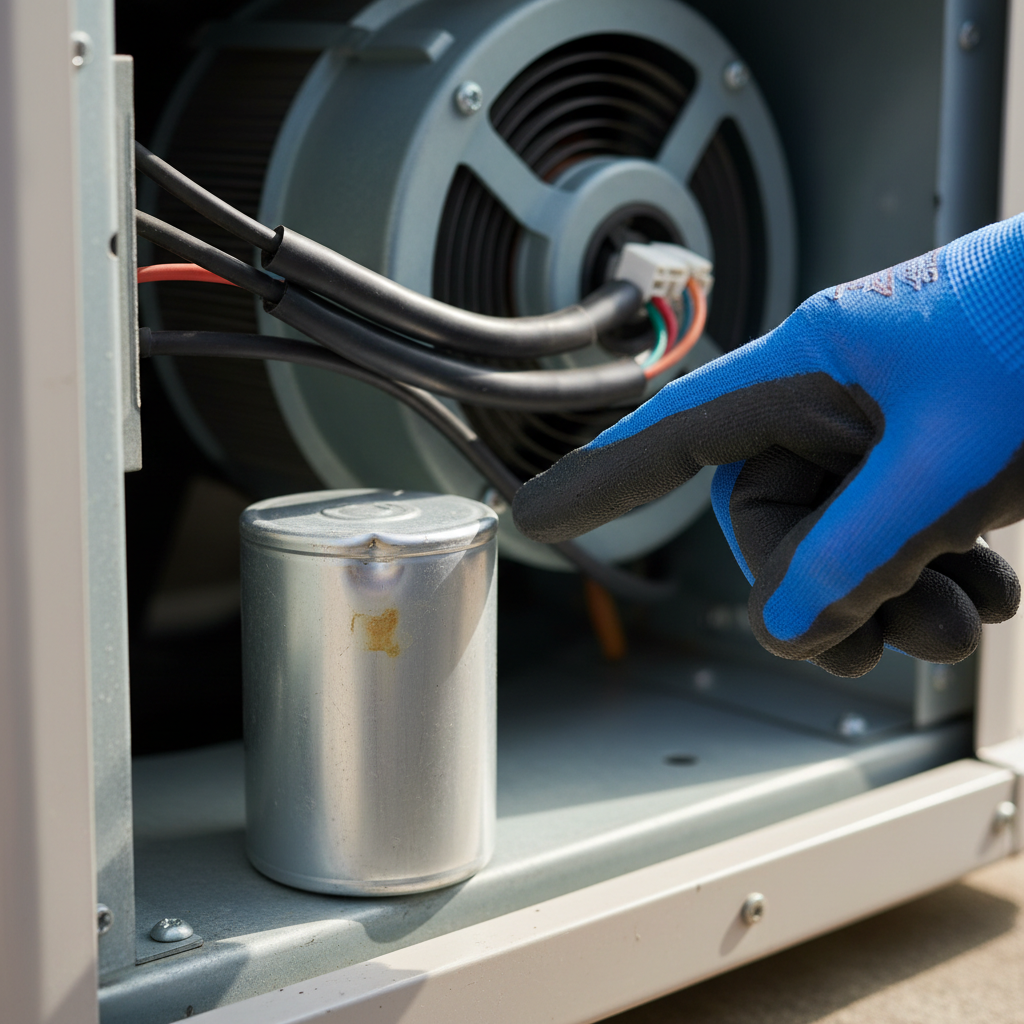

3. Examine the Run Capacitor — Look for signs of failure.

Carefully remove the access panel on your outdoor AC unit (usually a metal panel held by a few screws). You'll see a cylindrical component, often aluminum, with 2-4 terminals on top. This is the run capacitor. Examine it closely for visual signs of failure:

• Bulging top: The top of the capacitor may be domed or swollen instead of flat.
• Leaks: Oily residue or a brown discharge can indicate a leak.
• Burn marks: Any discoloration or charring around the terminals or casing.

4. Discharge the Capacitor — Safely release stored electricity.

WARNING: Capacitors store a high voltage electrical charge even after power is off. Failure to discharge it properly can result in a severe electric shock. Using a screwdriver with an insulated handle, short the "Herm" terminal to the "Common" terminal. Then, short the "Fan" terminal to the "Common" terminal. You may see a small spark—this is normal. A safer method is to use a capacitor discharge tool, which can be purchased at an electrical supply store.

5. Disconnect the Wires — Note wire placement carefully.

Take a clear photo of the capacitor and its connected wires before removing them. Capacitors typically have 2-4 terminals for the fan, compressor, and common. Carefully use needle-nose pliers to pull each wire straight off its terminal. Avoid tugging on the wires themselves, as this can damage the insulation or terminal connection.

6. Remove the Old Capacitor — Unmount the faulty component.

Capacitors are usually held in place by a clamp or a single screw at the base. Loosen the screw or unclip the clamp and gently lift the old capacitor out of the unit. Note its µF (microfarad) rating and voltage (VAC). For dual capacitors, there will be two µF ratings (e.g., 40/5 µF). Make sure your replacement matches these specifications exactly.

7. Install the New Capacitor — Connect the replacement carefully.

Insert the new capacitor into the mounting bracket or screw it into place. Refer to your photo to ensure you connect the wires to the correct terminals (HERM, FAN, COMMON). Ensure all connections are snug and secure. Double-check that no wires are loose or touching unintended terminals.

8. Restore Power and Test — Listen for the fan and feel for cold air.

Replace the access panel on your outdoor unit. Return to your breaker box and flip the AC circuit breaker back to the "ON" position. Go to your thermostat and set it to a low temperature to engage the AC. Listen for the outdoor fan to start spinning. After a few minutes, check if cold air is coming from your indoor vents.

9. If Fan Still Doesn't Spin (Troubleshooting) — Check for further issues.

If, after replacing the capacitor, the fan still doesn't spin, the issue might be one of the following:

• Bad Fan Motor: If the fan blade was stiff or seized, the motor itself is likely faulty. This requires replacement of the entire fan motor.
• Contactor Issues: The contactor is an electromagnetically operated switch that sends power to the compressor and fan. If it's stuck open or connections are corroded, power won't reach the motor or capacitor. With power off, gently push the plunger to see if it moves freely. If it's visibly burned or pitted, it may need replacement.
• Wiring Problems: Check for any loose, disconnected, or chewed wires within the condenser unit. Pests (rodents) can sometimes chew through low-voltage or power wires.
• High-Pressure Switch: If the system build-up excessive pressure due to another issue (e.g., extremely dirty coils, refrigerant overcharge), the high-pressure switch might trip, preventing the unit from running. This typically requires a professional diagnosis.

Common Causes

• Failed Run Capacitor: This is overwhelmingly the most common cause. Capacitors degrade over time due to heat, electrical stress, and chemical changes in the dielectric material, losing their ability to hold a charge. They are considered wear-and-tear components with a lifespan of 10-15 years, though they can fail sooner.
• Bad Fan Motor: The motor itself can wear out. Bearings can seize, windings can burn out, or the shaft can become stiff. This is less common than capacitor failure but happens, especially with very old units or units exposed to moisture or extreme conditions.
• Overheated Motor: A lack of lubrication, constant use in high temperatures, or continuous attempts to start against a seized bearing can cause the motor to overheat and trip its internal thermal overload protector. If the motor cools down, it might start again, indicating an underlying problem.
• Contactor Malfunction: The contactor is a relay that sends high voltage to the fan and compressor. If its contacts are corroded, pitted, or the coil is failing, it won't supply power to the fan motor.
• Wiring Issues: Loose connections, corroded terminals, or damaged wires (sometimes from rodents) can interrupt the electrical flow to the fan motor or capacitor.
• Obstructed Fan Blade: Debris (leaves, twigs), ice buildup, or even small tools left inside the unit during maintenance can physically prevent the fan from spinning, causing the motor to hum as it tries to start against the obstruction.

Common Mistakes

• Forgetting to Kill Power: The most dangerous mistake. Always, always cut power at the breaker and verify with a voltage tester before opening the unit or touching any components.
• Not Discharging the Capacitor: Capacitors can store lethal charges. Skipping the discharge step is a serious safety hazard.
• Ignoring Visual Cues: Not thoroughly inspecting the capacitor for bulging, leaks, or burn marks can lead you down the wrong diagnostic path.
• Matching the Wrong Capacitor: Replacing a capacitor with one that has incorrect µF or voltage ratings can damage both the new capacitor and the fan motor. Always match the exact µF (within 5%) and ensure the VAC is equal to or higher than the original.
• Forcing a Seized Fan: If the fan blade doesn't spin freely by hand, forcing it or repeatedly trying to start the unit can burn out the fan motor prematurely. Investigate the obstruction or potential motor failure first.
• Assuming the Motor is Bad Immediately: Many homeowners jump to replacing the fan motor when a simple, inexpensive capacitor is the true culprit. Always test the capacitor first.

Cost & Time Breakdown

Tips & Prevention

• Regular Visual Inspections: During seasonal cleaning (spring and fall), visually inspect your capacitor for signs of bulging or leaks. This can indicate an impending failure.
• Keep Unit Clear: Ensure the outdoor unit is clear of debris (leaves, grass clippings, branches) at all times. Give it at least 2 feet of clear space on all sides and above for optimal airflow.
• Annual Professional Tune-up: Schedule a professional AC tune-up annually. Technicians will clean coils, lubricate motors (if applicable), and test electrical components, including the capacitor, which can often catch a failing component before it completely breaks down.
• Monitor for Warning Signs: Listen for a humming sound without the fan spinning, or if the fan struggles to start and then stops. These are classic signs of a failing capacitor.
• Correct Sizing: When replacing a capacitor, ensure the new one has the correct µF rating (within 5% of the original) and an equal or higher VAC rating to ensure proper operation and longevity.

When to Call a Professional

While replacing a capacitor is a common DIY fix, some situations warrant calling a licensed HVAC professional. If, after replacing the capacitor, your fan still doesn't spin, or if you suspect the fan motor itself is bad, it's best to call a pro. Repairing or replacing an AC fan motor can be complex, often involves safely handling refrigerant lines, and requires specific electrical diagnostic tools. Additionally, if you find any chewed wires (indicating rodent damage), or if you're uncomfortable working with high voltage electricity even after taking precautions, don't hesitate to contact a professional. An HVAC technician can accurately diagnose underlying issues like a faulty contactor, refrigerant problems causing high pressure, or control board failures, ensuring your system operates safely and efficiently.
