Quick Answer

Your outdoor air conditioning unit freezing up is a common problem, usually indicating a deeper issue with airflow or refrigerant levels. While it might look like just ice, it's a symptom that your system isn't able to effectively absorb heat from your home. The most frequent causes are a clogged air filter, dirty evaporator coils, or a low refrigerant charge. Addressing these issues promptly can prevent more extensive damage and costly repairs.

The Problem

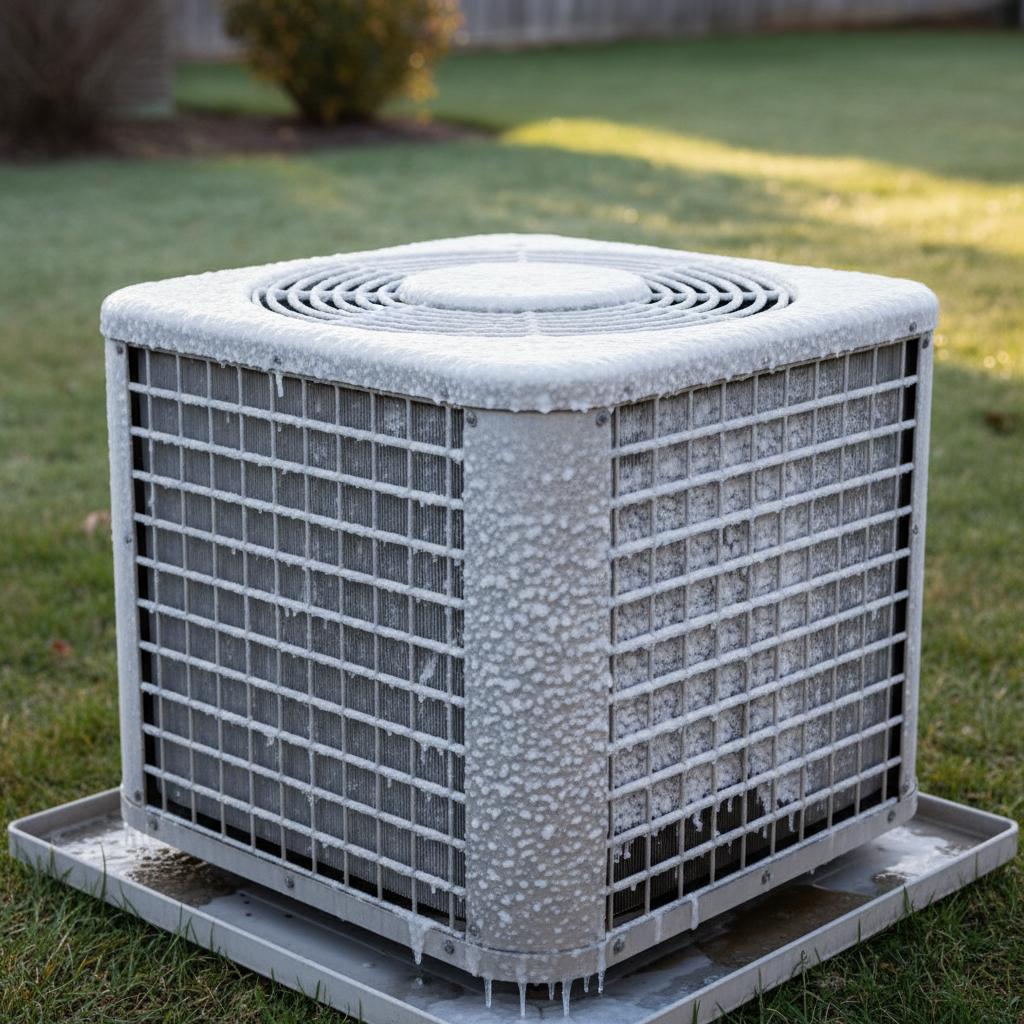

Imagine stepping outside and seeing your air conditioner's outdoor unit (the condenser) covered in a layer of ice. It's beautiful, perhaps, but it's a clear signal that something is seriously wrong with your AC system. When your AC freezes, it's not just the outdoor unit that's affected; the evaporator coil inside your home is usually the first to freeze, and that ice then propagates to the refrigerant lines and eventually the outdoor unit. This ice buildup prevents heat exchange, meaning your AC can no longer cool your home efficiently, if at all. It also puts immense strain on the compressor, which is one of the most expensive components to replace.

Beyond the immediate lack of cooling, a frozen AC system can lead to several problems.

First, the ice acts as an insulator, stopping the refrigerant from absorbing heat effectively. This means your AC runs longer, trying to reach a temperature it can't, wasting energy and inflating your utility bills.

Second, as the ice melts, it can cause water damage. If the condensate pan overflows or the drain line is blocked, water can leak into your home, damaging ceilings, walls, or flooring.

Third, and most critically, sustained freezing can damage the compressor. When the refrigerant doesn't properly evaporate, it can return to the compressor as a liquid, leading to what's known as 'liquid slugging.' This can severely damage the compressor's internal components, leading to a complete system failure.

How It Works

To understand why your AC freezes, it helps to understand how an air conditioner cools your home. An AC system doesn't create cold air; it removes heat. It does this by circulating a chemical called refrigerant through a closed-loop system.

The process begins in your indoor unit, where a fan blows warm indoor air over a cold component called the evaporator coil. The refrigerant inside this coil is under low pressure and temperature, causing it to absorb heat from the indoor air and turn from a liquid into a gas. This cooled air is then blown back into your home.

The now gaseous refrigerant, carrying the absorbed heat, then travels through a insulated copper line (the 'suction line') to the outdoor unit (the condenser). In the outdoor unit, the refrigerant is compressed, which significantly increases its pressure and temperature. It then flows through the condenser coil, where a fan blows outdoor air over the hot coil. This process allows the refrigerant to release its heat to the outside air, causing it to condense back into a high-pressure liquid.

Finally, this high-pressure liquid refrigerant passes through an expansion valve (or capillary tube), which lowers its pressure and temperature, preparing it to re-enter the evaporator coil and repeat the cycle. If any part of this heat exchange process is hindered—for example, if the evaporator coil can't absorb enough heat or the condenser coil can't release enough heat—the refrigerant inside the evaporator coil can get too cold. Since the refrigerant in the evaporator coil typically operates just above freezing temperatures, any significant reduction in heat absorption will cause the moisture in the air to freeze on the coil's surface. This ice buildup then restricts airflow further, creating a vicious cycle that can cause the entire system, including the outdoor unit and refrigerant lines, to become a block of ice.

Step-by-Step Fix

Before attempting any repairs, ensure your AC unit is turned off at the thermostat and the circuit breaker to prevent accidental startup and ensure your safety. Let the unit fully defrost for several hours, or even overnight, before proceeding.

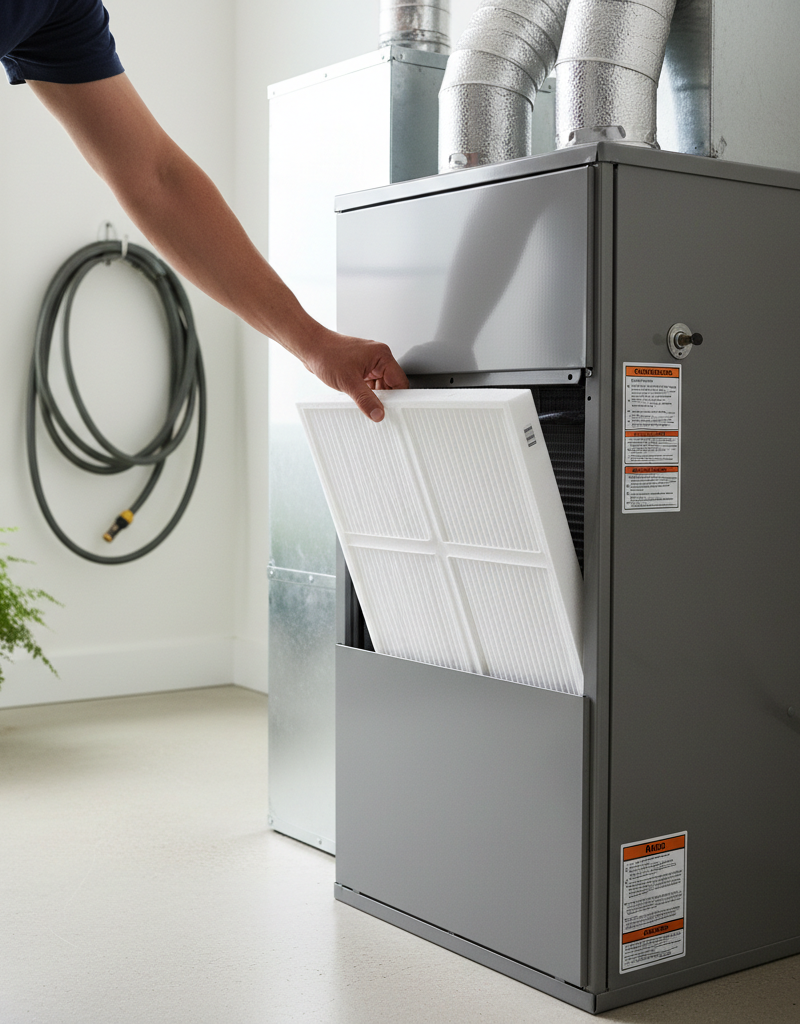

1. Check and Change Your Air Filter – The most common culprit

Your AC's air filter is designed to trap dust, dirt, and allergens, protecting your system. A clogged filter severely restricts airflow to the evaporator coil, causing it to get too cold and freeze.

• How to: Locate the air filter, usually in the return air duct or within the indoor air handler. Pull it out and inspect it. If it's dirty, replace it with a new, clean filter of the correct size. Aim to check your filter monthly and replace it every 1–3 months, more often if you have pets or allergies.
• Safety: Ensure the AC is off before removing the filter to prevent debris from entering the system.

2. Inspect and Clean the Evaporator Coil – Hidden dirt can cause big problems

The evaporator coil is inside your indoor unit. If it's covered in grime, it can't absorb heat efficiently, leading to freezing.

• How to: Turn off the power to your indoor unit at the breaker. Locate the access panel for your indoor air handler. Carefully remove it. Shine a flashlight onto the evaporator coil. If it's coated in dirt or mold, use a soft brush and a coil cleaner (available at hardware stores) to gently clean the fins. Follow the cleaner manufacturer's instructions, which typically involve spraying the cleaner on, letting it sit, and then allowing the AC's normal condensation process to rinse it. This might be a two-person job with one person holding a wet/dry vacuum underneath to catch debris and wastewater.
• Tools: Screwdriver, coil cleaner, soft brush, wet/dry vacuum.
• If this doesn't work: If the coil is heavily impacted or you're uncomfortable doing it, a professional HVAC technician can perform a deep cleaning.

3. Clear the Condensate Drain Line – Prevent water from backing up

A blocked condensate drain line can cause water to back up, leading to high humidity around the evaporator coil, which can contribute to freezing.

• How to: Locate the condensate drain line, usually a PVC pipe exiting your indoor unit and leading to a drain or outdoors. Check for blockages. Often, algae can grow in the line. You can try to clear a minor blockage by carefully pouring a cup of distilled vinegar mixed with a cup of warm water down the drain line access (usually a T-shaped vent connected to the line) or by gently using a wet/dry vacuum to suck out the clog from the outdoor end of the pipe.
• Safety: Do not use harsh chemicals like bleach, as they can damage your system or piping.

4. Verify Proper Blower Fan Operation – No air, no cool

The indoor blower fan circulates air over the evaporator coil. If it's weak or not running, insufficient airflow will cause freezing.

• How to: With the AC turned off, open the access panel to your indoor unit. Turn the power back on and set the thermostat to 'Fan On' (not 'Cool'). The blower should spin strongly and quietly. If it's not spinning, spinning slowly, or making grinding noises, the motor might be failing, or the fan blades could be dirty.
• Troubleshooting: Turn off the power. Carefully inspect the fan blades for dirt buildup. Clean them if necessary. Check if any wiring to the fan motor is loose. If the motor is faulty, this is a job for a professional.

5. Check for Blocked Outdoor Unit (Condenser) & Fins – Heat needs to escape

While this usually doesn't directly cause the evaporator to freeze, a severely blocked outdoor unit makes the entire system work harder, reducing overall efficiency and potentially exacerbating other freezing factors.

• How to: Turn off power to the outdoor unit at the breaker. Carefully remove any leaves, grass clippings, or debris from around the unit. Use a garden hose to gently spray the condenser fins from the inside out to remove dirt. Be careful not to bend the delicate fins. If they are bent, you can gently straighten them with a fin comb (available at hardware stores).
• Safety: Ensure the power is OFF. Wear gloves to protect your hands from sharp fins.

6. Look for Kinks in Refrigerant Lines – Restricted flow leads to problems

Visual inspection of the copper refrigerant lines (one thick, one thin, usually insulated) that run between your indoor and outdoor units. A kink can restrict refrigerant flow.

• How to: Inspect the lines for any visible dents, kinks, or damage. While less common, physical damage can impede flow. If you find a kink, do NOT attempt to straighten it yourself, as this can breach the line and release refrigerant. This requires a professional.
• Pro Tip: Look for oily residue around connections, which can indicate a leak.

Common Causes

• Low Refrigerant (Low Charge): This is one of the most common and serious causes. When refrigerant levels are low (due to a leak), the pressure in the evaporator coil drops too low, causing the temperature to drop below freezing. This is not a DIY fix; recharging without fixing the leak is a waste of money.
• Dirty Air Filter: As detailed above, a clogged filter dramatically reduces airflow over the evaporator coil, causing it to overcool and freeze.
• Dirty Evaporator Coil: A layer of dirt and grime on the evaporator coil prevents proper heat absorption, leading to freezing.
• Blocked Condensate Drain: While not a direct cause of freezing, a blocked drain can lead to excess humidity around the coil and potential water damage, compounding other issues.
• Faulty Blower Fan: If the indoor fan isn't moving enough air across the evaporator coil, the coil will get too cold and freeze.
• Closed Registers/Ductwork Issues: Restricting airflow into your home by closing too many registers can hinder the system's ability to circulate air, mimicking the effect of a dirty filter and potentially leading to freezing. Damaged or leaky ductwork can also reduce overall system airflow.
• Operating AC in Cold Weather: If outdoor temperatures drop too low (generally below 60°F or 15°C) and your thermostat is still set to cool, the pressure inside the system can drop excessively, causing the evaporator coil to freeze even if there are no other issues. Modern AC units usually have low-ambient temperature cutoffs to prevent this, but older units may not.

Common Mistakes

• Ignoring the Frozen Unit: Many homeowners turn the AC off, let it defrost, and then turn it back on without addressing the root cause. The cycle will just repeat, potentially causing more damage.
• **Trying to
