Quick Answer

When your air conditioner refuses to kick on, it's often a frustrating experience, especially on a hot day. The good news is that many common causes are simple to diagnose and fix yourself. Before you panic and call a professional, systematically check your thermostat settings, the circuit breaker at your electrical panel, and the condensate drain line. These three areas account for a significant percentage of 'AC won't turn on' service calls and can often be resolved in a matter of minutes with no special tools.

The Problem

You arrive home, it's sweltering, and you crank down the thermostat, but nothing happens. No reassuring hum, no cool air blowing. Your AC unit, both the indoor air handler and the outdoor condenser, remains stubbornly silent. This isn't just an inconvenience; it can quickly become a comfort crisis and lead to concerns about expensive repairs. The challenge for many homeowners is knowing where to start troubleshooting without accidentally making the problem worse or incurring unnecessary costs.

How It Works

Understanding the basic operation of your AC system can demystify the troubleshooting process. Your air conditioning system consists of two main units: the indoor evaporator coil and air handler (often part of your furnace) and the outdoor condenser unit. When you set your thermostat to 'Cool' and a temperature below the current room temperature, it sends a low-voltage signal to a control board in your air handler. This control board then initiates two primary actions:

First, it signals the indoor blower fan to start circulating air over the cold evaporator coil. Second, it sends another signal to the outdoor condenser unit. The condenser unit contains a compressor, which pumps refrigerant, and a large fan that dissipates heat. Both the compressor and the fan motor in the condenser unit require higher voltage (typically 240V for the compressor and 120V for the fan) to operate.

The refrigerant cycles between the indoor and outdoor units, absorbing heat from your home's air indoors and releasing it outdoors. As air passes over the cold evaporator coil, moisture condenses out of the air, which collects in a drain pan and exits through a condensate drain line. If this drain line becomes clogged, a safety float switch, typically located in the drain pan, will trip, shutting down the entire system to prevent water damage. This safety mechanism is a common, yet often overlooked, reason for an AC not turning on.

Electrical power for the indoor unit and furnace typically comes from a dedicated 120V circuit, while the larger outdoor condenser unit usually has its own dedicated 240V double-pole circuit breaker at your main electrical panel. There is also a low-voltage (24V) control circuit that originates from a transformer in your indoor air handler/furnace, supplying power to your thermostat and control board. A disruption at any point in this chain – thermostat signal, electrical power, or condensate safety – will prevent the AC from turning on.

Step-by-Step Fix

Remember to always prioritize safety when working with electrical appliances. Disconnect power as instructed.

1. Check Your Thermostat Settings – The first diagnostic, and often the simplest fix.

   • Ensure your thermostat is set to 'Cool' mode, not 'Heat' or 'Fan Only'.
   • Verify the temperature setting is at least 5-10 degrees Fahrenheit below the current ambient room temperature. If it's too close or above, the AC won't activate.
   • Check if the fan is set to 'Auto' or 'On'. If 'On', the fan should run continuously, even if the compressor isn't engaged. If 'Auto', the fan only runs when cooling is needed.
   • If this doesn't work: Replace the batteries in your thermostat if it uses them, even if the display appears functional. Low batteries can cause erratic behavior.

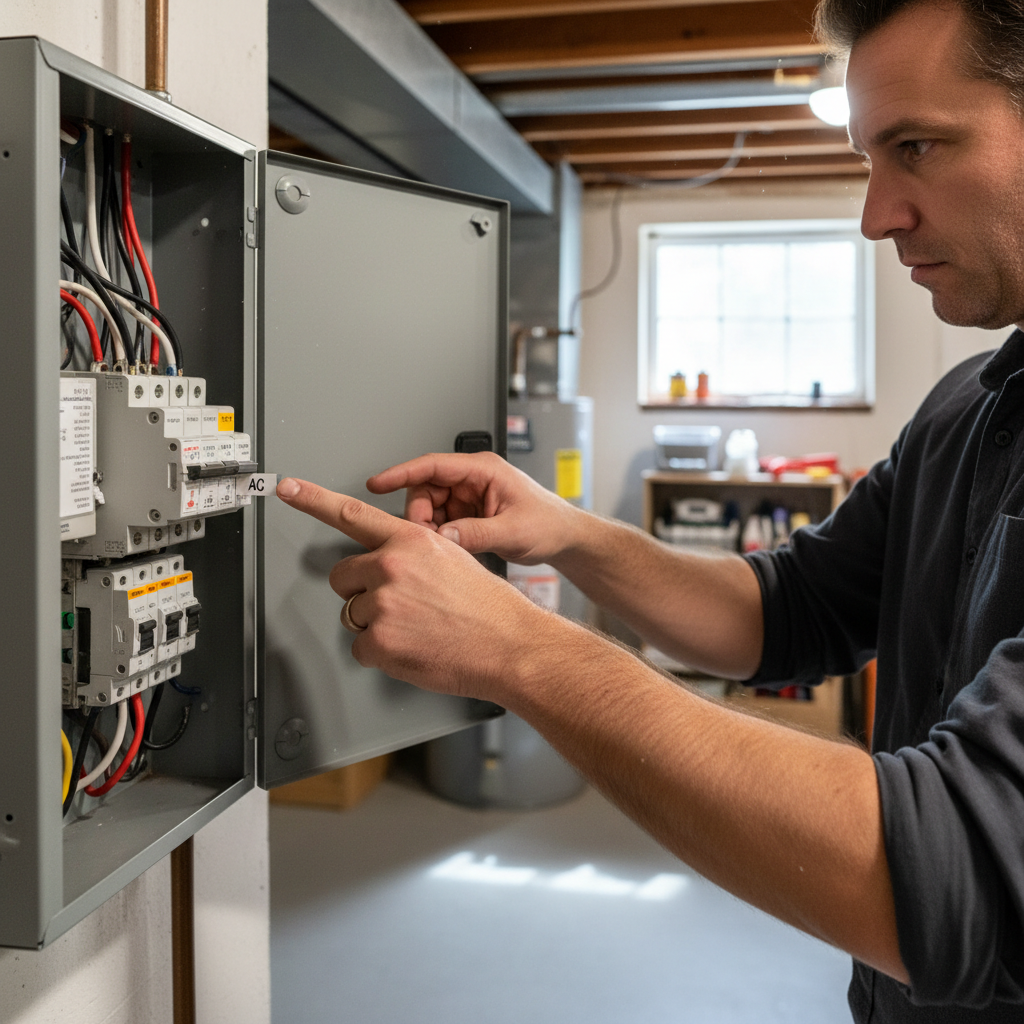

2. Inspect the Electrical Panel – A tripped breaker is a very common culprit.

   • Locate your main electrical service panel (breaker box). This is typically in your garage, basement, or utility closet.
   • Identify the circuit breakers labeled for your 'AC', 'Furnace', 'Air Handler', or 'Condenser'. The outdoor unit usually has a larger, double-pole 240V breaker (two switches tied together), while the indoor unit might have a 120V single-pole breaker.
   • Look for any breakers that are in the 'Tripped' position (often halfway between 'On' and 'Off' or fully 'Off' with a visible red indicator). A tripped breaker looks different from one that is simply 'Off'.
   • To reset: Firmly push the tripped breaker completely to the 'Off' position, then push it back to the 'On' position.
   • Safety Note: Never force a breaker that won't reset or trips immediately again. This indicates a serious electrical fault. Call a licensed electrician. Be aware of arc flash risks when opening electrical panels. Do not attempt to reset a breaker with wet hands.
   • If this doesn't work: Check the disconnect switch near your outdoor AC unit. This looks like a small box mounted on the wall containing a pull-out block or a circuit breaker. Ensure it's in the 'On' position. Warning: Never attempt to open or service the outdoor unit's electrical disconnect without shutting off power at the main breaker panel first.

3. Clear a Clogged Condensate Drain Line – A primary safety shutdown often overlooked.

   • Locate your indoor air handler or furnace. You'll see a small PVC pipe (typically 3/4-inch diameter) extending from the drain pan, which is usually under the evaporator coil.
   • Check the drain pan for standing water. If it's full, your drain line is clogged and has triggered the safety float switch.
   • You may also find an access port or T-fitting on the PVC drain line with a cap. Remove the cap.
   • To clear: Use a wet/dry shop vacuum to suck out the clog from the open end of the drain line (the part that drains outdoors or into a utility sink). You can also gently pour a cup of distilled white vinegar diluted with water into the access port to dissolve mildew and algae.
   • If this doesn't work: If the clog is stubborn, or if you can't locate the drain access, avoid using chemical drain cleaners, which can damage plastic pipes and coils. A plumber or HVAC technician can use specialized tools.

4. Confirm the Indoor Unit's Power – Ensuring the air handler can even receive signals.

   • With the thermostat calling for cooling, listen for a hum or fan noise from your indoor air handler/furnace. If there's no noise at all, ensure the furnace switch (usually a light switch mounted on the side of the furnace or on a nearby wall) is in the 'On' position.
   • Check that the access panel to your furnace/air handler is securely closed. Many units have a safety interlock switch that prevents operation if the panel is open.

5. Examine the Outdoor Unit – A quick visual check can reveal simple issues.

   • With the main AC breaker on and thermostat set to cool, go outside to your condenser unit. Listen for any noise.
   • Check for obvious obstructions: leaves, dirt, or debris on or around the unit. Clear away anything blocking airflow. Ensure the fan blades can spin freely.
   • Visually inspect the refrigerant lines (the two copper pipes entering the unit). Look for excessive ice formation on either pipe, especially the larger, insulated one. Ice indicates a different problem (low refrigerant, dirty filter, poor airflow) that will prevent the unit from cooling effectively and may trigger a safety shutdown.
   • If this doesn't work: If you see ice, turn off your AC unit at the thermostat and the breaker, and let it thaw completely (can take several hours). Then clean or replace your air filter, ensure all supply and return vents are open, and retry. If icing returns, call an HVAC professional.

Common Causes

• Tripped Circuit Breaker: The most frequent cause, often due to a power surge, an overloaded circuit, or a minor electrical fault.
• Thermostat Issues: Incorrect settings, dead batteries, or a faulty thermostat can prevent the AC from receiving the
