Quick Answer

If your AC condenser fan isn't spinning but you hear the outdoor unit humming, don't panic. The most frequent reason is a seized fan motor that just needs a little help to get going, or a failing run capacitor that's not providing the necessary jolt to start the motor. Often, you can manually 'jump-start' the fan, and if it spins freely afterward, replacing the capacitor is a straightforward DIY fix that can save you a service call.

The Problem

You're sweating indoors, your thermostat is set to 'arctic blast,' but the air coming from your vents is stubbornly warm. You head outside to check your AC unit, and while you hear a faint hum or even the compressor running, the large fan on top of the condenser isn't spinning. This means the critical heat exchange process isn't happening, causing your system to overheat, potentially trip breakers, and definitely not cool your home. A non-spinning condenser fan can quickly lead to more serious (and expensive) damage if not addressed.

How It Works

Your air conditioning system works by transferring heat. Inside your home, refrigerant absorbs heat from the air, turning into a gas. This hot refrigerant gas travels to the outdoor condenser unit. The condenser unit has two primary components: the compressor and the condenser coil, along with the fan. The compressor's job is to put the refrigerant under high pressure, which further increases its temperature. This superheated, high-pressure refrigerant then flows through the condenser coil, a series of metal fins and tubes. As the hot refrigerant moves through these coils, the condenser fan plays its crucial role. It draws cooler ambient air over the hot coils, allowing the heat from the refrigerant to dissipate into the outside air. As the refrigerant cools, it condenses back into a liquid state, ready to travel back indoors to absorb more heat. If the condenser fan isn't spinning, the heat transfer can't occur efficiently. The refrigerant remains hot, the pressure in the system skyrockets, and the entire unit struggles to cool your home, leading to potential shutdowns, reduced efficiency, and accelerated wear on the compressor, which is the most expensive component to replace. The capacitor, a small cylindrical component, stores an electrical charge and releases it in a powerful burst to give the fan motor (and often the compressor too) the initial jolt needed to start spinning. Without this jolt, the motor may just hum or seize up.

Step-by-Step Fix

1. Safety First — *Absolutely crucial initial step.

Before touching any electrical component of your AC unit, you must cut the power. Go to your outdoor AC unit and locate the disconnect box, usually a small gray box mounted on the wall nearby. Pull the handle or flip the breaker switch inside the box to the 'OFF' position. For an added layer of safety, also turn off the corresponding circuit breaker for your AC unit at your main electrical panel indoors. Use a non-contact voltage tester to confirm no power is present at the unit.

2. Inspect for Obstructions — *Clear any visible blockages around the fan.

With the power off, visually inspect the fan blades and the area immediately surrounding them. Leaves, twigs, dirt, grass clippings, or even small toys can fall into the unit and obstruct the fan's movement. Carefully reach in (only with power OFF!) and remove any debris. Check if the fan blades are bent or damaged. If they are, you may need a professional to replace the fan assembly.

3. Test Fan Blade Freedom — *Manually check for resistance.

Once clear of debris, carefully try to spin the fan blades by hand. They should spin relatively freely with only minor resistance. If the blades feel stiff, gritty, or won't budge at all, the fan motor bearings might be seized. In this case, the motor itself likely needs replacement. If it spins freely but just won't start on its own, proceed to the next step.

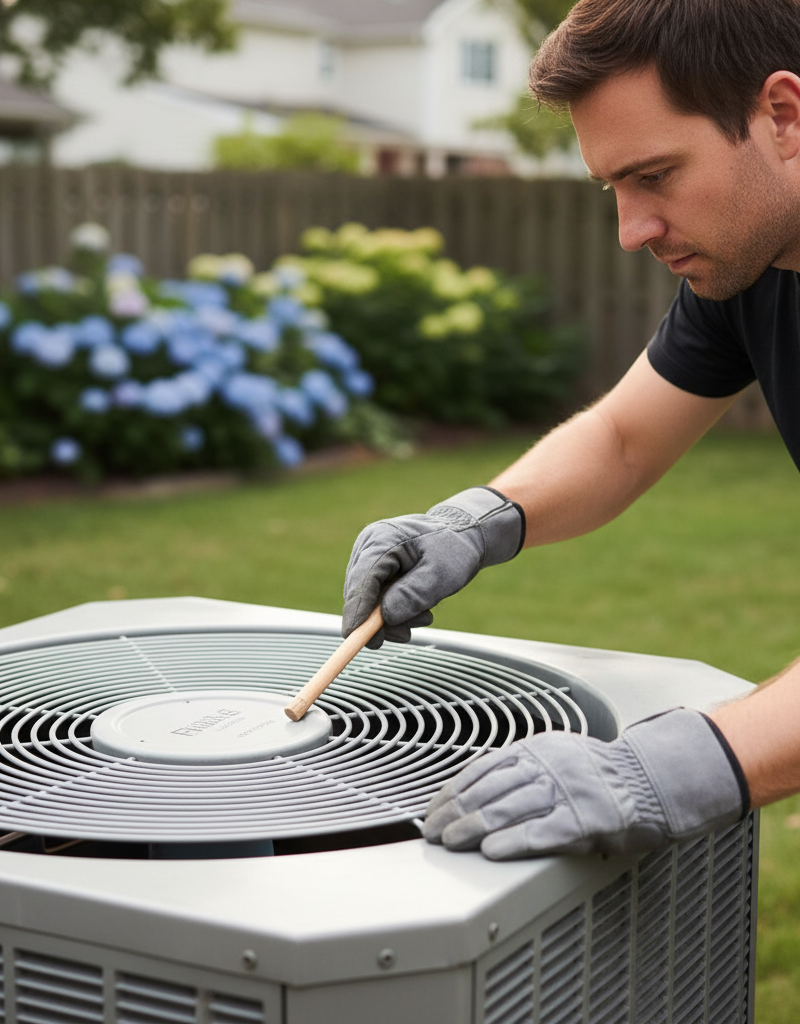

4. The Manual 'Jump-Start' (With Caution!) — *A temporary diagnostic test.

• Tools: A long, non-conductive stick or screwdriver with an insulated handle.
• Safety: Ensure you have confirmed the power is OFF at the disconnect. This step temporarily restores power to see if the fan will spin with a nudge. EXTREME CAUTION IS REQUIRED. Keep all body parts away from the fan blades once power is restored. Be ready to immediately cut power if anything seems amiss.
• Process: After ensuring no obstructions and the fan spins freely by hand, restore power to the unit (flip the disconnect switch back ON). Stand clear of the unit. Using your long stick or insulated screwdriver, give one of the fan blades a firm, quick push in the direction it normally spins (usually counter-clockwise when viewed from above). If the fan starts spinning, let it run for a minute or two, then turn the power off again. This 'jump-start' indicates that the motor itself is functional, but lacks the initial torque to start on its own. The culprit is almost certainly a weak or failed run capacitor.

5. Replace the Capacitor — *A common and often DIY-friendly fix.

• Safety: ABSOLUTELY ensure power is OFF at the disconnect and main breaker. Even with power off, a capacitor can hold a dangerous electrical charge. You must discharge it properly before handling. Once the power is off, wait at least 5 minutes for the capacitor to self-discharge. To manually discharge, use a well-insulated screwdriver with a rubber handle. Touch the metal shaft of the screwdriver simultaneously across the two terminals of the capacitor. You might see a small spark, which is normal. Repeat this for all terminal pairs until no more sparks occur.

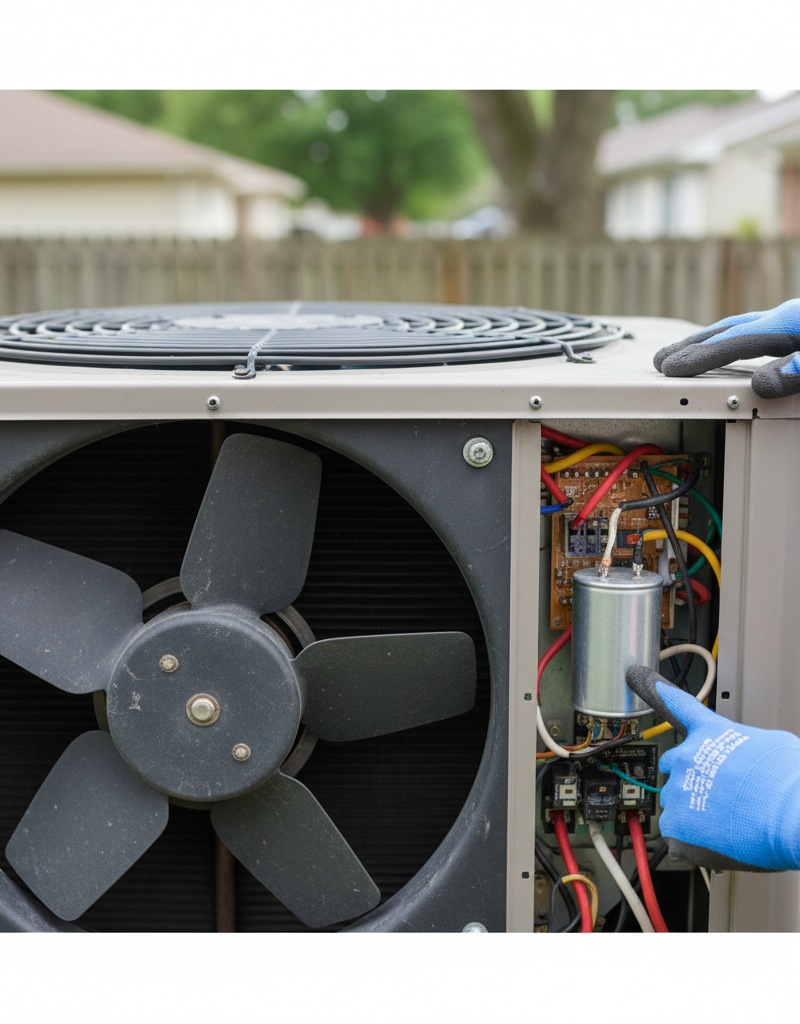

• Locating and Matching: The capacitor is typically a cylindrical component, often silver, found within the control panel compartment of your outdoor unit. Note its size and, most importantly, its Microfarad (µF or MFD) rating, which will be printed on the side (e.g., 40/5 MFD, 45+5 µF, or just 40 µF if it's a single capacitor). If it's a dual capacitor (common for units with a fan and compressor), it will have two µF ratings (e.g., 40/5), usually with three terminals labeled 'C' (Common), 'HERM' (Hermetic/Compressor), and 'FAN'. Take a clear picture of the wiring before disconnecting anything. Purchase an exact replacement capacitor with the same µF rating and voltage rating (e.g., 370V or 440V). The voltage can be higher than the original but never lower.
• Replacement: Carefully remove the wires from the old capacitor, making sure to note which wire goes to which terminal (refer to your picture). Some wires might have 'quick-disconnect' terminals. You may need needle-nose pliers to gently wiggle them off. Unclamp or unbolt the old capacitor and install the new one in its place. Reconnect the wires exactly as they were, ensuring they are snug. Double-check all connections.

6. Restore Power and Test — *The moment of truth.

Close the control panel cover. Restore power at the outdoor disconnect and then at your main electrical panel indoors. Set your thermostat to 'COOL' and lower the temperature significantly to trigger the AC. Go outside and observe the condenser unit. The fan should now start spinning on its own within a minute or two of the compressor kicking on. If it does, congratulations – you've fixed your AC and saved a service call! If the fan still doesn't spin, or only hums, the issue may be more complex, such as a faulty fan motor, a bad contactor, or wiring issues, and it's time to call a professional.

Common Causes

• Failed Run Capacitor: This is by far the most common reason for a condenser fan motor to hum but not spin. The capacitor provides the initial burst of electricity needed to start the motor. Over time, heat and electrical stress degrade capacitors.
• Obstructions: Leaves, twigs, dirt buildup, or even pests can physically block the fan blades from rotating. This is an easy fix if caught early.
• Seized Fan Motor Bearings: Over years of operation, the bearings within the fan motor can wear out, become dry, or gummed up with dirt, causing the motor to seize and prevent the blades from turning freely. A motor that won't spin even with a manual nudge usually indicates this.
• Overheating: The AC unit's internal safety switch (thermal overload protector) might trip if the motor overheats, which can happen if it's struggling to start or if other components are failing. Once cooled, it may reset, but the underlying issue remains.
• Bad Contactor: The contactor is an electrical switch that provides power to the compressor and fan. If its contacts are pitted, burnt, or stuck open, power may not be reaching the fan motor.
• Wiring Issues: Loose or corroded wiring connections, or even rodent damage to wires, can interrupt the electrical flow to the fan motor or capacitor.

Common Mistakes

• Forgetting to Kill the Power: This is incredibly dangerous. Always, always, always cut power at the outdoor disconnect and indoor breaker before touching any part of the AC unit. Capacitors can also hold a charge, so discharging them is crucial.
• Not Discharging the Capacitor: A charged capacitor can deliver a painful (and potentially lethal) shock, even after the power is off. Never skip the discharge step.
• Guessing Capacitor Ratings: Replacing a capacitor with one that has incorrect µF or voltage ratings can damage both the new capacitor and your AC motor. Always match the µF rating exactly (or use a compatible dual capacitor) and ensure the voltage rating is equal to or higher than the original.
• Ignoring a Humming Sound: If the unit hums but the fan doesn't spin, do not let it continue to run. This puts immense strain on the compressor, potentially leading to its premature failure, which is a very expensive repair.
• Bending Fan Blades: When removing obstructions or attempting to spin the fan, be careful not to bend the delicate aluminum fan blades. Even a slight bend can cause imbalance, leading to vibrations, noise, and accelerated wear on the motor.
• Not Checking for Free Movement: If the fan blades don't spin freely by hand after clearing obstructions, forcing them or just replacing the capacitor won't fix the underlying seized motor issue.

Cost & Time Breakdown

Tips & Prevention

• Regular Cleaning: Keep the area around your AC condenser unit clear of leaves, grass clippings, and other debris. Periodically rinse the coils with a garden hose (with power off!) to remove dirt buildup.
• Annual Professional Tune-up: Schedule a yearly check-up with an HVAC professional. They can spot failing components like capacitors before they completely fail, clean coils, and ensure optimal operation.
• Monitor for Strange Noises: Pay attention to any unusual humming, grinding, or squealing noises coming from the outdoor unit. These can be early warning signs of failing bearings or other motor issues.
• Check Capacitors During Maintenance: If you're comfortable with electrical work, you can visually inspect your capacitor during annual maintenance (after safely discharging it) for bulging tops or signs of leakage, which indicate impending failure.
• Appropriate Landscaping: Maintain at least 2 feet of clear space around all sides of your outdoor unit to ensure proper airflow and prevent debris accumulation.

When to Call a Professional

While replacing a capacitor or clearing obstructions is a manageable DIY task for many homeowners, there are clear indicators when it's time to call a licensed HVAC professional. If, after safely performing the jump-start test and confirming the fan blades spin freely, the fan still fails to start with a new capacitor, the problem is beyond a simple fix. This could indicate a seized fan motor, a faulty contactor, intricate wiring problems, or even issues within your compressor or control board. Attempting to diagnose and repair these complex electrical or mechanical failures without proper training and tools can be dangerous and lead to further, more expensive damage to your unit. Additionally, if you're uncomfortable working with electricity, discharging capacitors, or handling the internal components of your AC unit, always err on the side of caution and contact a professional. An HVAC technician has the specialized tools, diagnostic equipment, and expertise to safely and accurately identify the root cause of the problem and perform the necessary repairs, ensuring your system operates efficiently and reliably.
