Quick Answer

If your AC condenser fan isn't spinning, the most common culprits are a tripped circuit breaker, a faulty run capacitor, or an obstructed fan. Always start by checking your electrical panel for a tripped breaker. If that's not it, a quick visual inspection can reveal obstructions, and a simple test with a screwdriver can safely discharge and then diagnose a capacitor issue. Most often, the fix involves resetting a breaker, removing a blockage, or replacing a failed capacitor, a task many homeowners can complete in under an hour with basic tools.

The Problem

Imagine a scorching summer day. You walk into your house, expecting that immediate blast of cool, refreshing air, but instead, you're met with stale, warm air. You check the thermostat – it's set correctly. You go outside to your AC unit, and while you might hear a hum, the large fan on top of the condenser unit isn't spinning. This is a common and frustrating problem for homeowners. When the condenser fan fails to spin, your entire air conditioning system can't properly dissipate the heat it pulls from inside your home. This leads to inefficient cooling, a unit that runs constantly without cooling your house, and eventually, the system can overheat and trip a safety switch, shutting down completely. Ignoring a non-spinning condenser fan can not only leave you in a hot house but also lead to more expensive damage to your AC compressor, the heart of your cooling system. This guide will walk you through the most common reasons why your AC condenser fan has stopped and how you can diagnose and fix it yourself.

How It Works

To understand why your AC condenser fan might stop, it's helpful to know its role in the overall cooling process. Your air conditioning system works by moving heat from inside your home to the outside. This involves two main units: the evaporator coil (inside) and the condenser unit (outside). Refrigerant circulates between these two units, changing states from liquid to gas and back again to absorb and release heat.

Here's a simplified breakdown:

1. Evaporation (Indoors): Warm air from your home passes over the cold evaporator coil. The liquid refrigerant inside the coil absorbs heat from the air, turning into a low-pressure gas.
2. Compression (Outdoors): The gaseous refrigerant travels to the compressor in the outdoor condenser unit. The compressor increases the pressure and temperature of the refrigerant.
3. Condensation (Outdoors): The hot, high-pressure gaseous refrigerant then flows through the condenser coil, which is a series of fins and tubes in the outdoor unit. This is where the condenser fan comes in. The fan pulls air from the surroundings over these hot coils. As the air passes over the coils, it absorbs heat from the refrigerant, causing the refrigerant to cool down and condense back into a high-pressure liquid.
4. Expansion (Indoors): The now liquid refrigerant flows back indoors through an expansion valve, which drastically reduces its pressure and temperature, preparing it to absorb more heat in the evaporator coil, and the cycle repeats.

The condenser fan's job is critical. Without it, the heat absorbed by the refrigerant inside the condenser coil cannot be effectively dissipated into the outside air. The refrigerant remains hot, the pressure builds up, and the entire system becomes inefficient or, worse, overheats, leading to potential damage to the compressor. The fan motor, powered by electricity, works in conjunction with a capacitor, which provides the necessary electrical 'kick' to start and continuously run the fan motor. Many outdoor units also feature a contactor, an electrical relay that switches high-voltage power to the compressor and fan motor when the thermostat calls for cooling.

Step-by-Step Fix

1. Safety First — Always turn off power.

Before you do anything at your outdoor AC unit, locate the disconnect switch (a small box usually mounted on the wall near the unit) and pull the plug, or flip the breaker inside your home's main electrical panel that controls the outdoor unit. Verify the power is off by trying to turn on the AC from the thermostat without the unit cycling, or by using a non-contact voltage tester.

• Safety Note: Working with electricity can be dangerous. Always ensure the power is completely off before touching any components. If you are unsure, do not proceed.
• If this doesn't work: If you can't locate the disconnect or the correct breaker, call a professional electrician or HVAC technician.

2. Check the Circuit Breaker — Reset if tripped.

Go to your home's main electrical panel. Look for a tripped breaker (it will typically be halfway between ON and OFF, or fully OFF). Air conditioning units are on dedicated 240V double-pole breakers. Flip the breaker completely OFF, then firmly back to the ON position. Wait about 10-15 minutes, then try turning on your AC from the thermostat.

• Tools: None
• If this doesn't work: The breaker might be fine, or continually tripping, indicating a deeper electrical issue.

3. Inspect for Obstructions — Clear any blockages.

With the power still disconnected, visually inspect the area around and inside the condenser unit. Look for debris like leaves, twigs, dirt, plastic bags, or anything that could be physically blocking the fan blades. Carefully remove any obstructions by hand. Also, check for anything that might have fallen into the fan grate.

• Tools: Gloves (optional), screwdriver (if grate needs removal)
• Safety Tip: Fan blades can be sharp. Wear gloves if you're concerned about cuts. Never stick your hand in the unit with power on.
• If this doesn't work: If no obstructions are present, the issue is likely electrical or mechanical within the fan motor or capacitor.

4. Manual Fan Spin Test — Check for resistance.

With the power definitively off, carefully reach through the fan grille (or remove the grille if necessary) and try to spin the fan blades by hand. They should spin freely with little to no resistance. If the fan blades feel stiff, wobbly, or don't move at all, the fan motor bearings might be seized, or something is binding the shaft. Do not force it.

• Tools: Screwdriver (if grille removal is needed)
• If this doesn't work: A seized or stiff fan motor usually means the motor needs replacement. Proceed to Capacitor Test only if the fan spins freely.

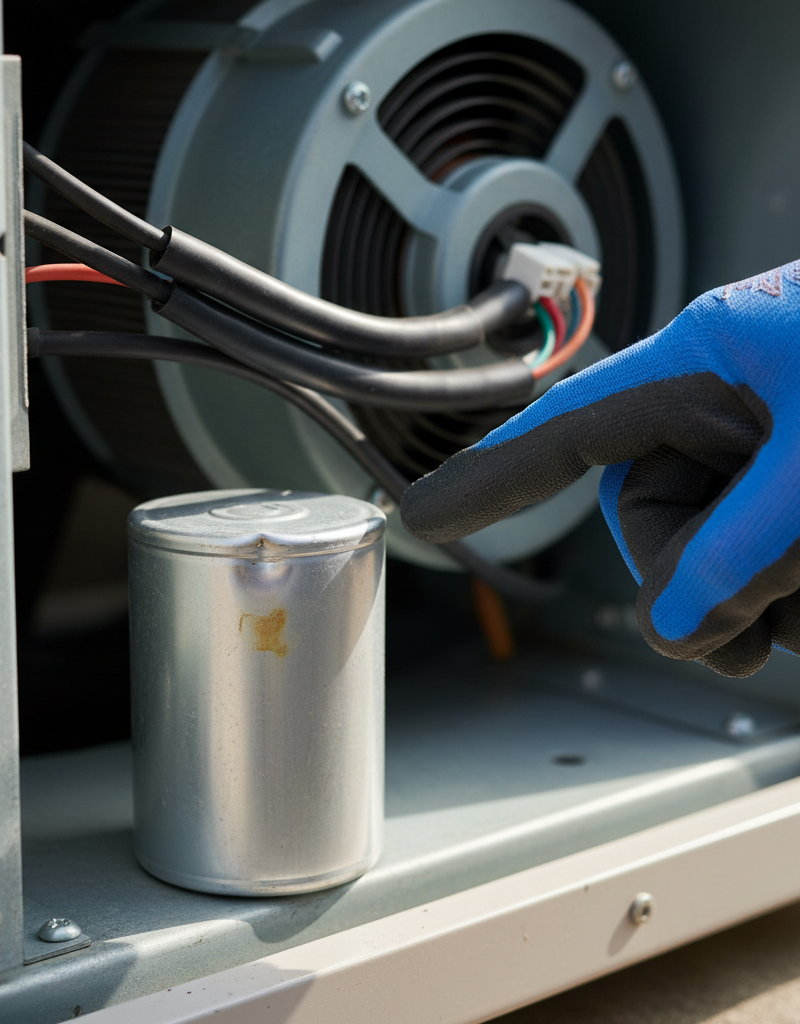

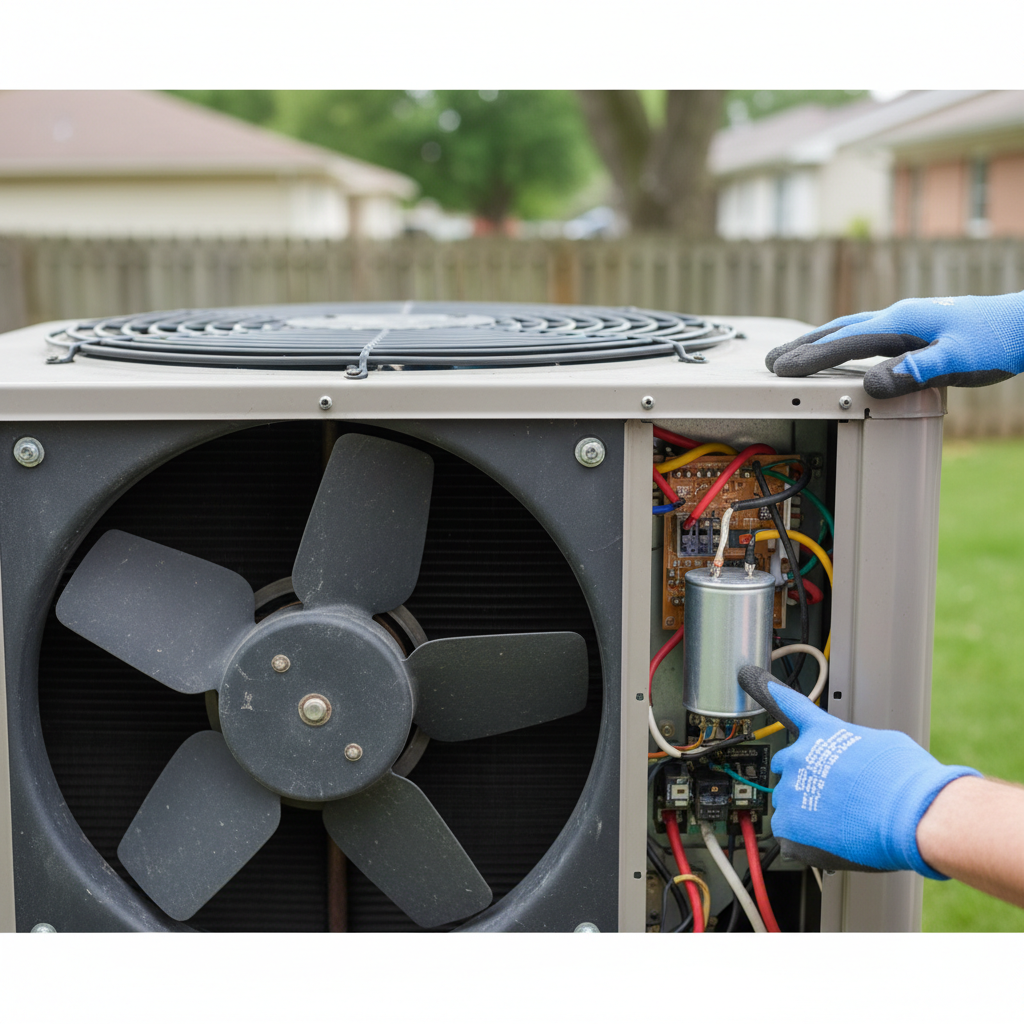

5. Inspect the Run Capacitor — Look for signs of failure.

The run capacitor is a cylindrical component (sometimes oval) often located inside the electrical compartment of your outdoor unit. Always ensure power is off before handling.

• Visual Cues: Look for obvious signs of failure: bulging at the top, leaks (oil residue), or discoloration/burn marks. A healthy capacitor will look perfectly cylindrical and clean.
• Safety Warning: Capacitors store a dangerous electrical charge even when power is off. It must be safely discharged before handling.
• If this doesn't work: If the capacitor looks fine, it could still be faulty. A multimeter is needed for a definitive test.

6. Discharge the Capacitor — Safely release stored energy.

• Safety Note: This step is crucial and must be done correctly. Failure to discharge a capacitor can result in a severe electrical shock.
• With the power off, use an insulated screwdriver with a metal shaft to discharge the capacitor. Hold the screwdriver by its insulated handle and touch the metal shaft across both terminals of the capacitor simultaneously. You might see a small spark—this is normal. Repeat this a few times to ensure full discharge.
• Tools: Insulated screwdriver
• If this doesn't work: If you're uncomfortable or unsure, stop and call a professional.

7. Test the Capacitor with a Multimeter — Measure its capacitance.

After safely discharging, disconnect the wires from the capacitor terminals (take a photo first for reassembly). Set your multimeter to the capacitance (Farad) setting. Touch the red probe to one terminal and the black probe to the other. Compare the reading to the MFD (microfarad) rating printed on the capacitor's label. A good capacitor should be within +/- 5% of its rated value. Many AC units use a dual-run capacitor (three terminals: C, HERM, FAN) which powers both the compressor and the fan. Test the 'FAN' terminal to 'C' (common).

• Tools: Multimeter with capacitance setting
• If this doesn't work: If the reading is significantly off or zero, the capacitor is bad and needs replacement.

8. Replace the Capacitor — Install a new one.

If your capacitor tests bad, purchase a new one with the exact same MFD rating, voltage rating, and physical dimensions. Wiring must match the old one exactly. Connect the wires, ensuring they are snug. Double-check all connections before securing the electrical panel cover. Replace and reconnect the power.

• Tools: New capacitor, insulated screwdriver, possibly pliers
• Materials: Exact replacement HVAC run capacitor
• Safety Tip: Ensure the voltage rating of the new capacitor is equal to or higher than the original. MFD must be exact.
• If this doesn't work: If a new capacitor doesn't solve the problem, the issue is likely the fan motor or a control board.

9. Inspect the Contactor — Check for pitting or damage.

With the power off again, locate the contactor (a small rectangular component with two large wires going in and two large wires going out, and usually a couple of smaller wires). The contactor is an electrical switch. Visually inspect the contact points. If they appear severely pitted, burnt, or stuck open, the contactor might be faulty and preventing power from reaching the fan motor (and compressor).

• Tools: Screwdriver
• If this doesn't work: A faulty contactor can be replaced by a capable DIYer, but it's often best left to a pro as it involves high voltage wiring.

10. Check Fan Motor Wiring — Look for loose or chewed wires.

With the power still off, trace the wires from the fan motor back to the capacitor and the unit's electrical panel. Look for any chewed wires (from rodents), frayed insulation, or loose connections. Secure any loose connections. If wires are damaged, they'll need to be repaired with appropriate wire connectors and electrical tape, or replaced.

• Tools: Screwdriver, wire strippers, electrical tape, wire nuts
• If this doesn't work: If wiring seems fine, and the capacitor is good, the fan motor itself is the likely culprit.

Common Causes

• Faulty Run Capacitor: This is by far the most common cause. The capacitor stores an electrical charge to give the fan motor the necessary 'kick' to start and helps it run efficiently. Over time, heat and electrical stress degrade capacitors, causing them to lose their capacity or fail entirely.
• Overheated Fan Motor: If the fan struggles to turn due to obstructions or a weak capacitor, it can overheat. Many motors have thermal overload protection that will temporarily shut them down. If the motor repeatedly overheats, it can fail permanently.
• Physical Obstructions: Leaves, twigs, dirt buildup, or even small toys can fall into the condenser unit and jam the fan blades, preventing them from spinning.
• Pitted Contactor: The contactor is an electromagnetic switch that supplies power to the compressor and outdoor fan. Over time, the high current can cause the contact points to pit or burn, leading to intermittent or complete power loss to the fan.
• Bad Fan Motor: Less common than a faulty capacitor, but fan motors can eventually wear out. Bearings can seize, windings can short, or the motor can simply fail due to age or electrical issues.
• Electrical Issues: A tripped circuit breaker (due to an overload or short), loose wiring, or a power surge can prevent power from reaching the fan.

Common Mistakes

• Forgetting to Disconnect Power: This is a critical safety mistake. Always, always turn off the power at the disconnect and the breaker before touching any internal components of the AC unit. Electrical shock can be fatal.
• Not Discharging the Capacitor: Capacitors can hold a lethal charge for a long time, even after power is disconnected. Failing to discharge it properly before handling is extremely dangerous.
• Replacing with the Wrong Capacitor: Capacitors have specific MFD (microfarad) and voltage ratings. Using a capacitor with incorrect specifications can damage the new capacitor or, worse, the fan motor and compressor.
• Ignoring a Tripped Breaker: Repeatedly resetting a tripped breaker without investigating the cause can indicate a serious electrical problem or an overloaded circuit, which could lead to fire or equipment damage.
• Forcing a Seized Fan: If the fan blades don't spin freely, trying to force them can damage the motor's windings or shaft, turning a potentially minor issue into a major motor replacement.
• Missing Obvious Obstructions: Sometimes the simplest solution is overlooked. Always conduct a thorough visual inspection for debris before diving into electrical components.
• Assuming the Fan Motor is Bad First: While fan motors do fail, the run capacitor is a far more common and cheaper culprit. Always test the capacitor first before ordering an expensive new motor.

Cost & Time Breakdown

Tips & Prevention

• Regular Cleaning: At the start of each cooling season (and occasionally throughout), clear away leaves, grass clippings, and debris from around the outdoor unit. Use a hose to gently rinse the condenser coils from the inside out to remove dirt buildup. Never use a high-pressure washer.
• Annual Professional Tune-up: Schedule an annual check-up with an HVAC professional. They can spot potential issues like a weakening capacitor or worn fan bearings before they lead to a complete breakdown.
• Keep Vegetation Clear: Maintain at least 2 feet of clearance around all sides and above your outdoor unit to ensure proper airflow.
• Monitor Fan Noise: Pay attention to any unusual noises coming from your outdoor unit. A struggling fan motor might hum loudly, grind, or squeal before it completely fails. Early detection can save the motor.
• Check Electrical Connections: During annual cleaning (with power off!), a quick visual check of accessible wiring for signs of rodent damage or corrosion can prevent future issues.
• Install a Surge Protector: Power surges can damage AC components, including capacitors and control boards. A whole-house surge protector can offer added protection.

When to Call a Professional

While many homeowners can tackle a non-spinning AC condenser fan, there are clear signs that it's time to call a licensed HVAC professional. If you've tried the diagnostic steps and replacement of a bad capacitor without success, or if the fan motor itself is seized and needs replacement, a pro has the specialized tools and expertise. Never attempt to troubleshoot or repair if a circuit breaker repeatedly trips after resetting, as this indicates a potentially serious electrical short or overload that could be a fire hazard. If you detect any burning smells, hear grinding noises from the motor itself, or if you're uncomfortable at any point working with high-voltage electricity, stop immediately. HVAC technicians can safely diagnose complex electrical issues, replace components like fan motors or contactors efficiently, and ensure the entire system is operating safely and optimally after the repair. They also have access to specific diagnostic tools that can pinpoint less obvious problems without guesswork, saving you time and preventing further damage.
