Quick Answer

When your air conditioner refuses to kick on, your first instinct might be to call a technician. However, many common reasons for a non-starting AC are simple, DIY-friendly fixes. Often, the culprit is a tripped circuit breaker, a thermostat with dead batteries, or a safety switch activated by a clogged condensate drain line. By methodically checking these areas, you can often restore your cooling system in minutes and avoid an expensive service call.

The Problem

It's a hot day, you turn on your air conditioner, and nothing happens. No fan, no compressor hum, just silence. This frustrating scenario can stem from a variety of issues, ranging from minor electrical glitches to critical system failures. The key is to approach the problem systematically, eliminating the most common and easiest-to-fix issues first. Ignoring the problem can lead to discomfort, potential damage to the HVAC system, or unnecessary repair costs.

How It Works

Understanding how your AC system operates is crucial for effective troubleshooting. When you set your thermostat to 'Cool' and lower the temperature, it sends a low-voltage signal to the indoor air handler. This signal tells the air handler to prepare for operation, typically by turning on the blower fan. Simultaneously, another signal is sent to the outdoor condenser unit. The condenser contains the compressor, condenser coil, and condenser fan. The compressor's job is to pressurize the refrigerant, which then flows through the condenser coil, releasing heat to the outside air. The refrigerant then travels to the indoor evaporator coil, where it absorbs heat from your home's air, cooling it before it's blown back into your living spaces.

Several safety mechanisms are built into this process. For instance, a float switch in the condensate drain pan will shut down the entire system if the pan overflows due to a clog, preventing water damage. Electrical breakers protect the high-voltage components from power surges and overloads. The thermostat itself acts as the brain, regulating the entire cooling cycle. If any part of this intricate chain fails – whether it's a power interruption, a sensor malfunction, or a clogged drain – the system will likely fail to start. The low-voltage control circuit, usually 24 volts, handles the communication between the thermostat and the main components, while the high-voltage circuits (120V or 240V) power the fan motors and compressor. A specific sequence of events must occur, and if power is interrupted to any key component or a safety switch is triggered, the AC will simply not turn on.

Step-by-Step Fix

1. Check Your Thermostat – Ensure it's powered and set correctly.

• Set your thermostat to 'Cool' mode and lower the temperature setting to at least 5-10 degrees below the current room temperature.
• Inspect Batteries: If your thermostat has a digital display and it's blank or dim, the batteries might be dead. Replace them with fresh AA or AAA alkaline batteries. Even hardwired thermostats can have backup batteries.
• Check Power Switches: Some thermostats have a small 'On/Off' switch, often on the side or bottom. Ensure it's in the 'On' position.
• Blower Test: Try setting the fan to 'On' (not 'Auto'). If the indoor fan runs, you know the thermostat has some control and the indoor unit is receiving power. If not, the issue might be broader.

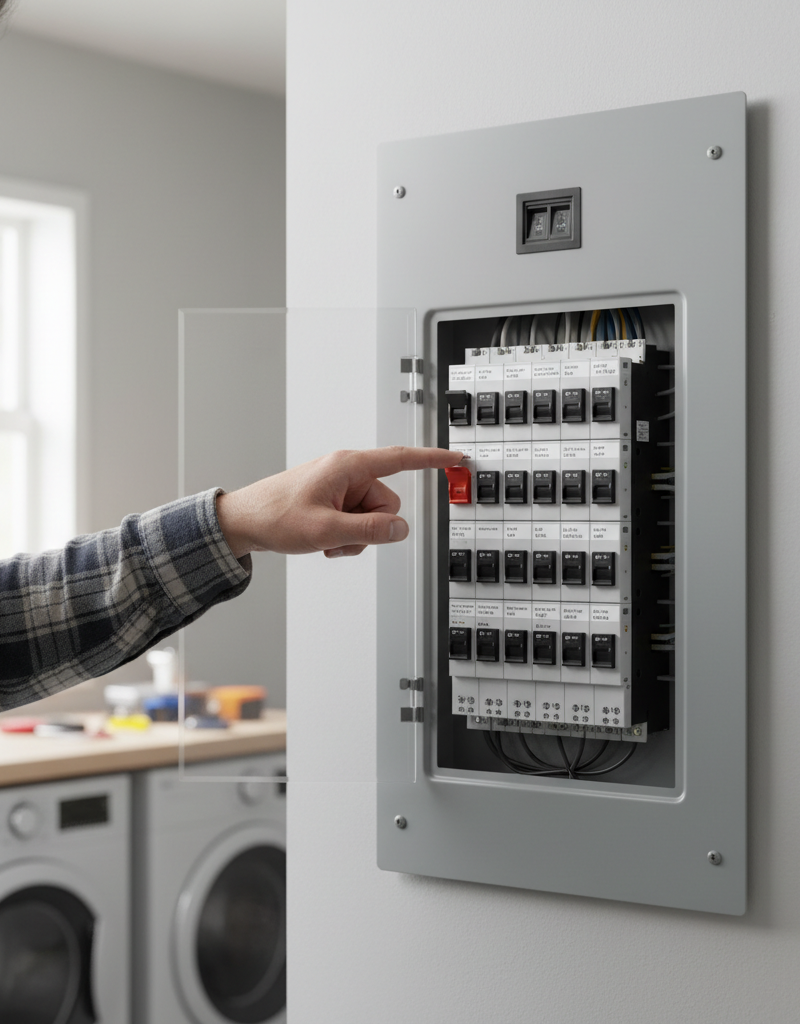

2. Reset the Circuit Breaker – Restore power to your AC units.

• Locate Panel: Find your home's main electrical service panel. It's usually a gray metal box in your basement, garage, or utility closet.
• Identify Breakers: Look for two breakers labeled 'AC', 'Furnace', 'Air Handler', or similar. The outdoor unit typically has a dedicated double-pole 240V breaker (meaning two switches tied together), while the indoor unit might have its own 120V or 240V breaker.
• Reset Procedure: If any breaker is in the 'tripped' position (usually halfway between 'On' and 'Off' or showing a colored indicator), firmly flip it completely to the 'Off' position, then immediately back to 'On'. Do not force it if it feels stuck. If it immediately trips again, do not reset it – this indicates a short circuit or overload, and you need professional help.
• Safety Note: Always use caution when working near electrical panels. Do not touch exposed wires. If you are unsure, consult a licensed electrician.

3. Inspect the Outdoor Disconnect Switch – Verify power to the condenser.

• Locate Box: Near your outdoor AC unit, you'll find a small gray electrical box mounted to your house. This is the disconnect switch.
• Open and Inspect: Carefully open the cover. Inside, you'll usually find either a pull-out block or a lever switch. Ensure the pull-out block is fully inserted or the lever is in the 'On' position.
• Reset Breaker (if applicable): Some disconnect boxes have their own small circuit breaker or fuses. Check these for trips or blown fuses. If there are fuses, do not attempt to replace them if you're unsure of the correct amperage or how to do so safely. This is often a job for a professional.

4. Check the Condensate Drain Line and Pan – Address safety switch activation.

• Locate Drain Pan: Inside your indoor air handler (furnace/blower unit), locate the shallow metal or plastic pan beneath the evaporator coil. This is the condensate drain pan.
• Inspect for Water: If the pan is full of water, the condensate drain line is likely clogged. Most AC systems have a float switch in or near this pan that shuts off the system to prevent overflowing and water damage.
• Clear the Clog: Find the PVC drain line extending from the unit, often leading to a floor drain or outside. Use a wet/dry vac to suction out the clog from the open end of the pipe (usually outside or near the drain). Alternatively, you can carefully pour a cup of distilled vinegar down the access port of the drain line (if present) and let it sit for 30 minutes before flushing with water.
• Safety Note: Be careful not to spill water onto electrical components when clearing the drain. Wear gloves and eye protection.
• If This Doesn't Work: If the pan quickly refills or you can't clear the clog, the problem may be deeper in the drain system, requiring a professional. Never pour harsh chemicals like bleach down the drain, as they can damage components.

5. Examine the Indoor Unit's Service Switch – Ensure it's in the 'On' position.

• Locate Switch: Near your indoor air handler (furnace), there should be a standard light-switch-style toggle switch mounted on the wall or directly on the unit. This is a safety/service switch, often mistaken for a light switch.
• Flick to 'On': Ensure this switch is in the 'On' position. It's common for these to be accidentally turned off, especially if the air handler is in a utility closet or attic.

6. Check for Frozen Coils – A precursor to compressor shutdown.

• Inspect Evaporator Coil: Open the access panel to your indoor air handler and visually inspect the evaporator coil (looks like a car radiator). If it's covered in ice, your system will not operate correctly.
• Defrost: Turn off the entire AC system at the thermostat and the circuit breaker. Allow the coil to thaw completely (this can take 2-24 hours depending on the severity). Place towels around the unit to catch melting ice.
• Underlying Cause: Frozen coils are usually a symptom of another problem, such as low refrigerant, dirty air filters restricting airflow, or a malfunctioning blower fan. While thawing will get it running again temporarily, you'll need to address the root cause to prevent recurrence. Replace dirty air filters immediately.

Common Causes

• Tripped Circuit Breaker: The most frequent culprit. An overload or short circuit can cause the breaker to trip, cutting power to either the indoor or outdoor unit.
• Thermostat Issues: Dead batteries, incorrect settings, or a faulty thermostat can prevent the command to start the AC from being sent.
• Clogged Condensate Drain Line: When the drain clogs, the condensate pan fills, activating a safety float switch that shuts down the entire system to prevent water damage.
• Outdoor Disconnect Switch Off: This crucial safety switch near the outdoor unit can be accidentally turned off or develop an internal electrical issue.
• Indoor Unit Service Switch Off: Often mistaken for a light switch, this can easily be flipped off, cutting power to the air handler.
• Blown Fuses (in disconnect box): Some older disconnect boxes or units have fuses that can blow, interrupting power.
• Overheated Compressor: The compressor (in the outdoor unit) has internal thermal overload protection. If it gets too hot, it will shut down to prevent damage. This usually resets after a cool-down period but indicates a larger problem.

Common Mistakes

• Ignoring the Breaker: Many homeowners jump to conclusions without checking the circuit breaker first. Always start here!
• Forcing a Tripped Breaker: If a breaker immediately trips again after being reset, there's a serious electrical issue. Continuously resetting it can damage your electrical system or create a fire hazard.
• Overlooking Thermostat Batteries: A completely blank digital display almost always means dead batteries, yet it's frequently missed.
• Neglecting the Condensate Drain: A clogged drain can lead to water damage and expensive repairs, all preventable by routine cleaning.
• Pouring Harsh Chemicals Down the Drain: Bleach and other strong cleaners can corrode the PVC pipes and damage the evaporator coil over time. Stick to vinegar or plain water for flushing.
• Calling a Pro Too Soon: Many issues are simple fixes. A little diagnostic work can save you hundreds in service call fees.

Cost & Time Breakdown

Tips & Prevention

• Regular Filter Changes: Replace your air filter every 1-3 months. A dirty filter restricts airflow, leading to reduced efficiency and potential freezing of the evaporator coil.
• Seasonal Drain Line Flush: Annually, before the cooling season, flush your condensate drain line with distilled vinegar to prevent algae and sludge buildup.
• Thermostat Maintenance: Check and replace thermostat batteries annually, even if they seem fine. Consider a smart thermostat for better control and diagnostics.
• Keep Outdoor Unit Clear: Ensure the outdoor condenser unit is free of debris (leaves, grass clippings, shrubs) for at least 2 feet in all directions. Blocked airflow reduces efficiency and can cause overheating.
• Listen for Warning Signs: Pay attention to unusual noises, reduced airflow, or unusual smells. Addressing small issues early can prevent major breakdowns.
• Schedule Annual Tune-Ups: Professional HVAC tune-ups can catch developing problems before they become critical failures, ensuring your system runs efficiently and reliably.

When to Call a Professional

While many AC issues are DIY-friendly, some situations warrant immediate professional attention. If your circuit breaker repeatedly trips after being reset, it indicates a serious electrical fault that could be dangerous; a licensed electrician or HVAC technician should diagnose this. If you suspect a refrigerant leak (manifested by a hissing sound, reduced cooling, or ice on the refrigerant lines), a certified HVAC technician is required, as refrigerant handling is regulated and hazardous. Persistent issues with the compressor (e.g., it hums but doesn't start, or the unit repeatedly cycles on and off rapidly) often point to internal component failure that requires specialized tools and expertise. Additionally, if after performing all the basic troubleshooting steps, your AC still refuses to turn on, or you detect any burning smells or unusual grinding noises, it's time to call a professional. HVAC systems are complex, and attempting repairs beyond your comfort level can lead to further damage or safety risks. A qualified technician can diagnose complex electrical problems, refrigerant issues, or component failures safely and effectively.
