Quick Answer

Your outdoor AC unit freezes up when the evaporator coil (located inside your home) gets too cold, causing ice to form on it and eventually spread to the outdoor unit's refrigerant lines. This commonly happens due to restricted airflow or low refrigerant. The simplest and most frequent culprit is a dirty air filter, which chokes the system's ability to pull in warm air, leading to a dangerous temperature drop. Addressing this quickly can save you from costly repairs and improve your AC's efficiency.

The Problem

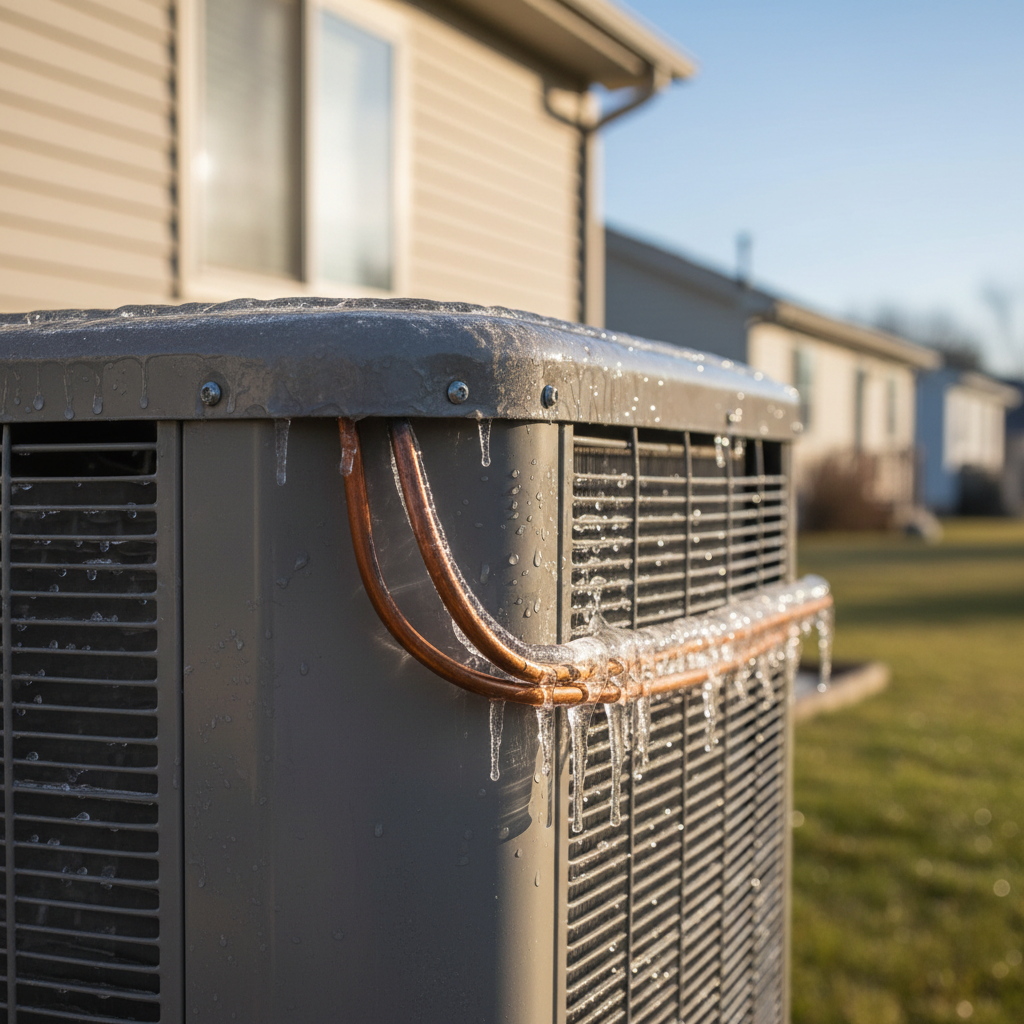

You walk outside on a hot summer day, expecting to feel cool air pumping into your home, only to find your AC's outdoor unit (the condenser) encased in a stubborn layer of ice. This isn't just an aesthetic issue; it's a serious symptom of an underlying problem that can severely damage your air conditioning system. When your AC freezes, it can no longer effectively cool your home. The ice acts as an insulator, preventing the system from absorbing heat from your indoor air and transferring it outside. Continuing to run a frozen AC unit can lead to compressor failure, a very expensive repair that often necessitates an entire system replacement. Understanding why it freezes is the first step to a lasting solution.

How It Works

To understand why your AC freezes, it helps to understand its basic operation. Your air conditioner doesn't actually create cold air; it removes heat from your home and transfers it outdoors. This process relies on a refrigerant circulated in a closed loop between two main coils: the evaporator coil (inside, in your furnace/air handler) and the condenser coil (outside unit).

Here’s a simplified breakdown:

1. Evaporation (Indoors): Warm, humid air from your home is drawn across the evaporator coil. The liquid refrigerant inside this coil has a very low boiling point and absorbs heat from the air, causing it to turn into a low-pressure gas. This process cools the air, which is then blown back into your living space.
2. Compression: The now-gaseous refrigerant travels to the compressor in the outdoor unit, where it's pressurized and its temperature is significantly raised.
3. Condensation (Outdoors): The hot, high-pressure gaseous refrigerant flows into the condenser coil (the large finned coil in your outdoor unit). Air is blown over this coil, releasing the heat absorbed indoors into the outside environment. As it cools, the refrigerant turns back into a high-pressure liquid.
4. Expansion: The liquid refrigerant then passes through an expansion valve or metering device, which reduces its pressure and temperature, preparing it to re-enter the evaporator coil and repeat the cycle.

The Freezing Process

Ice forms when the temperature of the evaporator coil drops below 32°F (0°C). This shouldn't happen under normal operating conditions because the coil is constantly absorbing heat from your indoor air. However, if less warm air flows over the coil than it can handle (due to restricted airflow) or if there isn't enough refrigerant to absorb the heat efficiently (low refrigerant charge), the coil's surface temperature plummets, and any moisture in the air will condense and freeze onto it. This ice then builds up, coating the coil, impeding airflow even further, and eventually spreading to the refrigerant lines connected to your outdoor condenser unit, making it appear as if the outdoor unit itself is frozen.

Step-by-Step Fix

Before attempting any repairs, turn off your AC unit at the thermostat and then at the circuit breaker in your electrical panel. This is crucial for your safety and to prevent further damage to the system. Allow the unit to completely thaw, which can take several hours depending on the ice buildup. You can speed this up by leaving your system's fan on (but not the AC cooling mode) to help circulate air over the evaporator coil. Do NOT try to chip away the ice; you could damage delicate coils and fins.

1. Inspect and Replace Your Air Filter — The most common culprit

• Tools: New air filter (matching size and MERV rating)
• Action: Locate your air filter(s), typically in a slot at your furnace/air handler or in a return air vent. Pull out the old filter and examine it. If it's grey, dusty, or clogged, it's severely restricting airflow. Replace it with a clean one. Most filters should be replaced every 1-3 months, especially if you have pets or allergies.
• If this doesn't work: Even a new filter won't help if your coils are dirty or your ducts are blocked.

2. Check for Blocked Return Air Vents and Supply Registers — Another airflow restriction

• Tools: Flashlight
• Action: Walk through your entire home. Ensure all return air vents (the larger grilles where air is sucked back into the system) and supply registers (where cooled air comes out) are unobstructed by furniture, rugs, or drapes. Also, check inside the return vents for debris or toys that might have fallen in. Ensure all registers are fully open.
• If this doesn't work: A blockage deeper in your ductwork might be the issue, or your ductwork could be undersized.

3. Clean Your Outdoor Condenser Unit — Improves heat exchange

• Tools: Garden hose with spray nozzle, soft brush, fin comb (optional)
• Safety: Ensure power to the unit is OFF at the breaker.
• Action: Carefully clear away any leaves, grass clippings, dirt, or other debris accumulated around the outside fins of the condenser unit. Use a garden hose with a gentle spray to rinse the fins from the inside out if possible, pushing dirt outwards. Avoid high-pressure sprays that can bend the delicate fins. If fins are bent, gently straighten them with a fin comb.
• If this doesn't work: The problem might be indoors with the evaporator coil or with refrigerant levels.

4. Prune Shrubbery and Clear Obstructions — Essential for outdoor airflow

• Tools: Pruning shears
• Action: Maintain at least a 2-foot (60 cm) clearance around all sides of your outdoor condenser unit. Trim back any bushes, trees, or other vegetation that might be obstructing airflow.
• If this doesn't work: If the unit has good clearance and is clean, the issue is likely internal.

5. Inspect Your Evaporator Coil (if accessible) — The internal culprit

• Tools: Flashlight, soft brush, coil cleaner (HVAC specific)
• Safety: Power MUST be off. Wear gloves and eye protection if using coil cleaner.
• Action: The evaporator coil is usually located in a cabinet above your furnace or within your air handler. If you can safely access it (often involves removing an access panel), inspect it for dirt and debris. A dirty evaporator coil is a major factor in airflow restriction and freezing. Gently brush away any loose dirt. If it's heavily soiled, consider using an HVAC-specific no-rinse coil cleaner following product instructions. NEVER use harsh household cleaners.
• If this doesn't work: If the coil is clean but still freezing, low refrigerant is highly probable.

6. Check for Frozen Drain Line (Condensate Line) — Causes humidity buildup

• Tools: Wet/dry vac, white vinegar
• Action: The condensate line drains away the water vapor removed from your home's air by the evaporator coil. If this line is clogged (often by algae), water can back up, increase humidity around the coil, and contribute to freezing. Locate the PVC pipe running from your indoor unit, usually leading outdoors or to a utility sink. Check for blockages. You can often clear minor clogs by sucking them out with a wet/dry vac or pouring a mixture of white vinegar and water down the drain opening after removing the access cap.
• If this doesn't work: If the drain is clear and the freezing persists, the main issue is elsewhere.

7. Consider Low Refrigerant (Low Charge) — A pro-level fix

• Action: If all airflow-related issues (dirty filter, blocked vents, dirty coils) have been addressed and your AC still freezes, low refrigerant is a very strong possibility. This indicates a leak in the sealed refrigeration system. This is NOT a DIY fix. Refrigerant is a controlled substance, and adding more without finding and repairing the leak is illegal and wasteful. You'll need a licensed HVAC technician to diagnose and repair any leaks and properly recharge the system.

Common Causes

• Dirty Air Filter: This is by far the most common cause. A clogged filter severely restricts the airflow over the evaporator coil, causing its temperature to plummet.
• Blocked Return Air Vents/Supply Registers: Obstructed vents prevent your system from drawing in enough warm air, leading to the same airflow issues as a dirty filter.
• Dirty Evaporator Coil: Over time, the indoor coil can accumulate dirt and grime, creating an insulating layer that hinders heat absorption and restricts airflow.
• Dirty Condenser Coil: While not directly causing the evaporator coil to freeze, a very dirty outdoor unit makes the system work much harder, reducing overall efficiency and potentially exacerbating other issues.
• Low Refrigerant (Low Charge): A leak in the sealed refrigerant system means there isn't enough refrigerant to properly absorb heat. This causes the pressure and temperature inside the evaporator coil to drop excessively, leading to freezing.
• Malfunctioning Blower Fan: If the indoor blower fan isn't moving enough air, even with clean filters and clear vents, the evaporator coil won't get sufficient airflow and will freeze.
• Undersized Ductwork: In some cases, especially after renovations, ductwork might be too small for the HVAC system, restricting airflow.
• Thermostat Issues: A faulty thermostat sending incorrect signals could cause the AC to run improperly, but this is less common for freezing specifically.

Common Mistakes

• Ignoring a Frozen Unit: Running a frozen AC unit for an extended period can lead to severe compressor damage, which is a major, expensive repair. Turn it off immediately upon discovering ice.
• Chipping Away Ice: Using tools to chip or scrape ice off the coils or lines can easily puncture the delicate refrigerant lines or bend the fins, creating leaks or further restricting airflow.
• Adding Refrigerant Yourself: Refrigerant is a regulated chemical, and adding it yourself without proper training, tools, and a leak repair is illegal, harmful to the environment, and won't solve the underlying leak problem.
• Forgetting to Check Indoor Airflow: Many homeowners focus only on the outdoor unit when troubleshooting freezing, overlooking the crucial role of the indoor evaporator coil, air filter, and return vents.
• Neglecting Regular Maintenance: Skipping annual professional tune-ups means minor issues like low refrigerant or developing clogs go unnoticed until they become major, visible problems like a frozen unit.
• Blocking Condenser Unit Clearance: Allowing shrubs or debris to crowd the outdoor unit restricts airflow, forcing the system to work harder and reducing efficiency, though it's not a direct cause of indoor coil freezing.

Cost & Time Breakdown

Tips & Prevention

• Change Air Filters Regularly: Make it a habit to check your air filter monthly and replace it every 1-3 months, or more often if you have pets, allergies, or perform dusty renovations. This is the single most effective preventive measure.
• Schedule Annual Professional Maintenance: Have a licensed HVAC technician inspect and tune up your system every spring before the cooling season. They can catch low refrigerant levels, clean coils (both indoor and outdoor), check electrical components, and ensure proper operation.
• Keep Vents Clear: Regularly check that all return air vents and supply registers throughout your home are unobstructed by furniture, rugs, or drapes.
• Maintain Outdoor Unit Clearance: Trim back any bushes or vegetation around your outdoor condenser unit, ensuring at least a 2-foot clearance on all sides for optimal airflow.
• Inspect Condensate Drain: Periodically check your condensate drain line for clogs and flush it with a vinegar-water solution a couple of times a year to prevent algae buildup.
• Listen to Your AC: Pay attention to unusual noises, reduced cooling performance, or longer run times. These can be early warning signs of a developing problem before it leads to freezing.

When to Call a Professional

While many freezing issues are resolved with simple DIY steps like changing a filter or cleaning a coil, there are clear indicators that it's time to call a licensed HVAC professional. If your AC continues to freeze after you've thoroughly checked and addressed all airflow-related issues (filter, vents, coils, unit clearance), it's highly probable that your system has a refrigerant leak. Refrigerant is a hazardous, regulated substance, and only certified technicians are legally allowed to handle it. A professional will use specialized equipment to detect the leak, repair it, and then properly evacuate and recharge your system to the manufacturer's specifications. Repeated freezing, especially when accompanied by poor cooling or bubbling/hissing noises from the outdoor unit, also points to a more complex issue requiring expert diagnosis. Neglecting these signs and attempting DIY fixes on refrigerant issues can lead to severe system damage and even safety risks.
