Quick Answer

An outdoor AC unit typically freezes up because of restricted airflow and/or low refrigerant. The most common DIY fix involves checking and replacing a dirty air filter, which chokes the system and lowers the evaporator coil’s temperature, causing ice to form. Other causes include a dirty outdoor coil, a malfunctioning fan, or problems with the refrigerant charge, often requiring professional attention.

The Problem

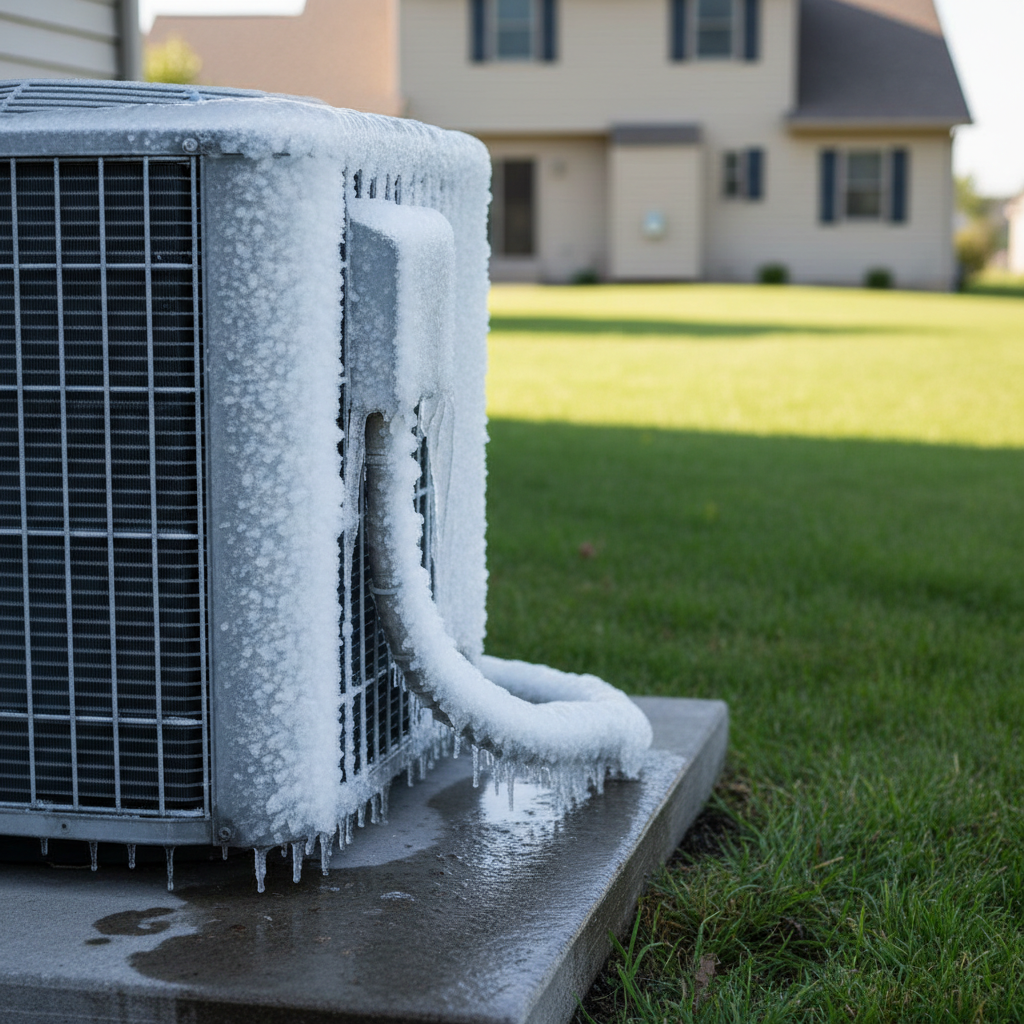

It’s a hot summer day, and you walk outside to find your air conditioner’s outdoor unit (the condenser) encased in a layer of ice, or perhaps just the refrigerant lines leading into your home are frosty. This isn’t just an aesthetic issue; it’s a sign of a serious problem that can lead to inefficient cooling, higher energy bills, and eventually, expensive compressor damage. While many homeowners immediately suspect a refrigerant leak, the most frequent, and often overlooked, cause is simply poor airflow, particularly from a dirty indoor air filter. When the system can’t move enough air across the evaporator coil indoors, the coil gets too cold, dropping below freezing. This cold then travels to the outdoor unit via the refrigerant lines, causing ice to form there.

How It Works

To understand why your AC freezes, it helps to grasp the basic refrigeration cycle. Your AC unit doesn't create cold air; it removes heat from your home and transfers it outside. This magical process relies on a refrigerant that changes state from liquid to gas and back again. Inside your home, the warm, humid air from your living space is drawn into the return vents and flows over the evaporator coil. The liquid refrigerant inside this coil absorbs the heat, turning into a low-pressure gas. This cooled air is then blown back into your home. The now gaseous refrigerant travels to the outdoor unit (condenser). Here, the compressor increases its pressure and temperature. The hot, high-pressure gas then flows through the condenser coil, where a fan blows outdoor air over it, dissipating the heat. As it cools, it condenses back into a high-pressure liquid. This liquid then passes through an expansion valve (or metering device), which lowers its pressure and temperature significantly, preparing it to re-enter the evaporator coil indoors and start the cycle again.

When airflow over the indoor evaporator coil is restricted – typically by a dirty air filter, blocked return vents, or a failing blower motor – the coil can't absorb enough heat from the indoor air. This causes the refrigerant inside the coil to get much colder than it should, often dropping below 32°F (0°C). When moisture from the air comes into contact with this super-chilled coil, it freezes, forming a layer of ice. This ice then acts as an even more effective insulator, further restricting airflow and exacerbating the problem, creating a vicious cycle. Eventually, this cold travels through the refrigerant lines to the outdoor unit, causing ice to accumulate there as well, particularly on the larger suction line (the insulated line). Low refrigerant can also cause freezing by reducing pressure within the system, making the evaporator coil much colder.

Step-by-Step Fix

Before you do anything, ensure you turn off the power to your AC unit at both the thermostat and the electrical disconnect box near the outdoor unit. This is critical for safety.

1. Power Down Your AC — Completely shut off your air conditioning system to prevent damage and for safety.

Locate your thermostat and switch your system from "Cool" to "Off." Then, go to your outdoor AC unit and find the electrical disconnect box, usually a small gray box mounted on your house near the unit. Open it and pull out the fuse block, or flip the circuit breaker if it has one. This ensures no power reaches the unit during your inspection.

2. Allow the Ice to Melt — Give your AC unit ample time to fully defrost before restarting it.

Once the power is off, the ice will begin to melt naturally. Depending on the amount of ice and the outdoor temperature, this can take anywhere from 2 to 24 hours. You can speed up the process by gently running a garden hose with cool water over the coils (ensure the power is still off!). Never use hot water, sharp objects, or de-icing chemicals, as these can damage the delicate fins and coils. You might want to place a towel or tarp to catch the meltwater if it’s pooling in an undesirable spot. Ensure the unit is completely ice-free before proceeding.

3. Inspect and Replace the Air Filter — A dirty air filter is the most common culprit for restricted airflow. Check and replace it with a clean one.

Go indoors to your furnace or air handler. The air filter is typically located in a slot on the return air duct right before the blower fan, or sometimes directly at the return air vent itself. Pull out the old filter. Hold it up to a light source; if you can’t see light through it, it’s severely clogged and needs replacement. Note the size printed on the filter (e.g., 20x25x1). Install a new, clean filter, ensuring the airflow arrow on the filter points in the direction of the furnace/air handler. Replace pleated filters every 1-3 months, flat filters every month, and pet owners or allergy sufferers may need more frequent changes.

4. Clear Return Vents and Supply Registers — Ensure all pathways for air are unobstructed throughout your home.

Walk through your home and check that all return air vents (the larger grilles where air is sucked into the system) are free from obstructions like furniture, curtains, or rugs. Similarly, ensure all supply registers (the smaller vents where conditioned air comes out) are open and not blocked. Even partially closed registers can disrupt the system’s delicate pressure balance. Consider having a professional duct cleaning if you suspect widespread blockages or excessive dust.

5. Clean the Outdoor Condenser Coils — Remove dirt, debris, and grime from the outdoor unit’s fins to ensure proper heat exchange.

Once the unit is fully defrosted and powered off, use a soft brush or a shop vac with a brush attachment to gently remove any leaves, grass clippings, or larger debris from the exterior of the condenser coils. For a deeper clean, you can carefully spray the coils with a garden hose (with moderate pressure, not a power washer), spraying from the inside out if possible. Be careful not to bend the delicate aluminum fins; if they are bent, use a fin comb to straighten them gently. Bent fins restrict airflow and reduce efficiency.

6. Check the Condenser Fan (Outdoor Unit) — Verify the fan is spinning freely and not obstructed.

With the power still off, look into the top of your outdoor unit. The large fan should be visible. Gently try to spin the fan blades by hand. They should spin freely without resistance. Check for any obstructions like sticks or wires that might be preventing it from turning. If it
