Quick Answer

Phantom doorbell rings, where your doorbell activates without anyone present, are typically caused by unintended electrical signals. These can originate from a sticking button, a failing transformer providing inconsistent power, or even moisture in the wiring creating a temporary short circuit. Addressing these issues usually involves inspecting and testing components, or in some cases, replacing them.

The Problem

Imagine settling in for a quiet evening, only to be startled by the chime of your doorbell – yet, when you peer through the peephole or open the door, there's no one there. This isn't a ghostly prank; it's a common and often perplexing issue known as a "phantom ring." While initially an annoyance, a doorbell that rings by itself significantly diminishes its utility, making you question every legitimate ring. It can also be a symptom of a deeper electrical issue that, if left unaddressed, could lead to a completely non-functional doorbell or even potential damage to the system's components. Understanding the underlying causes is the first step toward restoring peace and reliability to your home's entry system.

How It Works

Most traditional wired doorbells operate on a simple low-voltage electrical circuit. When someone presses the doorbell button, it completes a circuit, allowing a small amount of electricity to flow from a transformer, through the button, to the chime unit, and back. The transformer is a crucial component, typically located in a junction box near your electrical panel, in a basement, or sometimes in an attic. It steps down your home's standard 120-volt AC electricity to a much lower voltage, usually 10-24 volts AC, which is safe for the doorbell system. When the button is pressed, this low-voltage current energizes an electromagnet inside the chime unit. This electromagnet pulls a plunger, which then strikes a metal tone bar, producing the familiar "ding-dong" sound. When the button is released, the circuit is broken, the electromagnet de-energizes, and a spring returns the plunger to its resting position. A phantom ring indicates that this circuit is being completed – or a signal is being sent – without the physical press of the button. This could be due to a continuous, albeit weak, current flow, a brief short circuit, or a mechanical issue within the button itself.

Step-by-Step Fix

1. Check the Doorbell Button — The most common culprit for phantom rings.

• Inspect for physical issues: Look for a button that's stuck in the depressed position, even slightly. Debris, paint, or corrosion can cause this. Gently try to wiggle the button. If it's sticky, try cleaning around its edges with a cotton swab and rubbing alcohol.
• Test for continuity (if you have a multimeter): With the power off to the doorbell transformer (at the breaker), disconnect the two wires from the back of the doorbell button. Set your multimeter to continuity mode. Touch one probe to each wire terminal on the button. If it beeps or shows a closed circuit without the button being pressed, the button is faulty and needs replacement.
• If this doesn't work: Proceed to checking the wiring.

2. Inspect the Wiring — Faulty or exposed wires can create unintended circuits.

• Safety First: Before touching any wires, always turn off the power to your doorbell transformer at your home's main electrical panel. This is usually a dedicated low-amp breaker (e.g., 15A or 20A) labeled "doorbell" or a general lighting circuit.
• Examine the exterior wiring: Look for any frayed insulation, exposed copper, or wires touching each other at the button, along the wall leading to the chime, and especially near the chime unit itself. Squirrels or rodents can chew through insulation outdoors. Repair any damaged sections with electrical tape or replace short compromised segments if possible.
• Check connections at the chime unit: Carefully remove the cover of your indoor chime unit. Inspect the wiring terminals. Ensure all wires are securely fastened and not touching any other terminals or metal parts within the chime housing. Loose strands of wire can sometimes cause intermittent connections.
• Check connections at the transformer: Locate your doorbell transformer. Again, ensure the power is off. Examine the low-voltage wiring coming out of the transformer. Tighten any loose screws and ensure wires are not touching.

3. Test the Doorbell Transformer — An aging transformer can supply inconsistent voltage.

• Safety First: Ensure the power is on to the doorbell circuit only for this test. Use extreme caution when working near live electrical components.

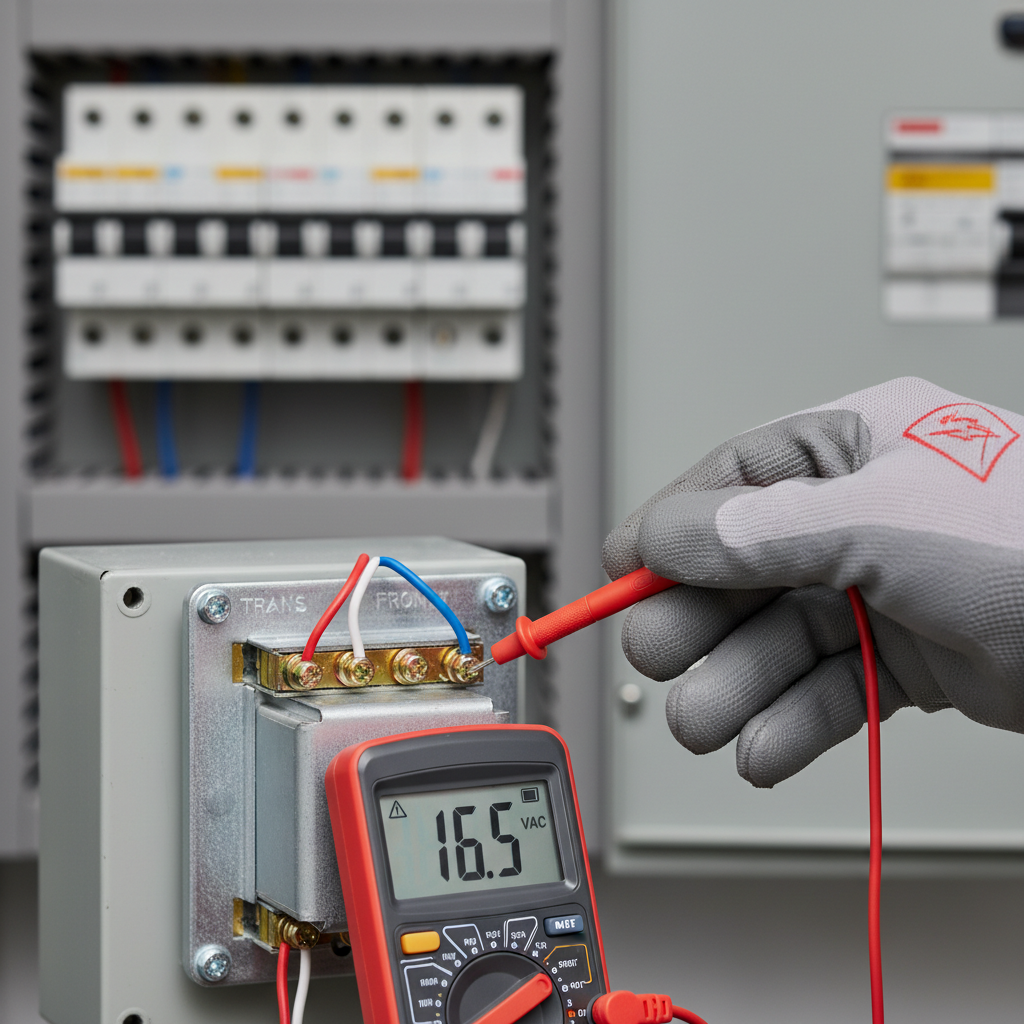

• Measure output voltage: Using a multimeter set to AC voltage (V~), carefully touch the probes to the low-voltage terminals on the transformer (the smaller gauge wires). The reading should be within the range specified on your transformer (e.g., 10V, 16V, 24V). Fluctuating or significantly lower voltage could indicate a failing transformer. A reading of 0V means no power, suggesting a tripped breaker or a completely dead transformer.
• Warning: Do NOT attempt to test the high-voltage (120V) input side of the transformer unless you are a qualified electrician. This presents a serious shock hazard.
• If voltage is inconsistent: Replace the transformer. This usually involves turning off the power, disconnecting the old unit, and wiring in the new one. Ensure the new transformer matches the voltage requirements of your chime unit.

4. Examine the Chime Unit — Less common, but internal issues can cause phantom rings.

• Inspect the mechanism: With the chime cover off and power off, carefully examine the plungers and tone bars. Look for any debris, corrosion, or misaligned parts that might be causing a plunger to stick or activate on its own. Gently clean with compressed air if dust is present.
• Manual test: Gently push the plungers manually to ensure they move freely and return to their resting position without sticking. If a plunger is visibly bent or sticking, the chime unit might need replacement.
• Loose internal wiring: Check if any internal wires within the chime unit are loose or touching. Tighten terminal screws if necessary.

5. Address Environmental Factors — Moisture is a silent saboteur.

• Outdoor button exposure: If your doorbell button is exposed to rain, snow, or high humidity, moisture ingress can cause a brief short circuit, triggering a phantom ring. Consider adding a weather cover or replacing the button with a more weather-resistant model.
• Condensation: In humid climates, condensation inside the button housing or even the chime unit can be an issue. Ensure good ventilation where possible. If you suspect moisture, turn off power and allow components to dry thoroughly before restarting.

Common Causes

• Sticking Doorbell Button: The most frequent offender. Dirt, debris, corrosion, or a worn-out spring mechanism can cause the button to remain partially depressed, completing the circuit intermittently or continuously.
• Faulty Wiring: Exposed wires, loose connections, or damaged insulation can lead to intermittent short circuits, especially if wires are touching metal or wet surfaces. This often occurs at the button, chime, or transformer connections.
• Failing Transformer: An aging or overloaded doorbell transformer can supply inconsistent voltage or brief power surges, which the chime unit might interpret as a button press.
• Moisture Ingress: Water or high humidity getting into the doorbell button or chime unit can create a temporary conductive path, acting like a button press.
• Internal Chime Unit Malfunction: Less common, but a defective electromagnet, a bent plunger, or debris within the chime mechanism could cause it to activate without a signal.

Common Mistakes

• Ignoring the Transformer: Many DIYers focus solely on the button and chime, overlooking the transformer. An unhealthy transformer can cause a cascade of odd electrical behaviors.
• Forgetting to Turn Off Power: Always turn off the power at the breaker before working on any part of the doorbell system, even the low-voltage side. While low voltage is less dangerous, it's good practice and prevents accidental shorts.
• Over-tightening Wires: Crimping wires too tightly in terminals can damage the wire strands and lead to poor connections or even breaks over time.
• Using the Wrong Voltage Transformer: Replacing a transformer with one that has higher or lower voltage than specified for your chime unit can damage the chime or prevent it from working correctly.
• Assuming Wireless Interference: While some wireless systems can experience interference, traditional wired doorbells don't suffer from this. Don't waste time looking for Wi-Fi or radio interference.
• Not Checking for Weather Damage: Outdoor buttons are exposed to the elements. Failing to consider moisture, temperature changes, or physical damage can lead to recurring issues.

Cost & Time Breakdown

Tips & Prevention

• Regular Cleaning: Periodically clean around your doorbell button, especially if it's outdoors. Use a soft brush or cotton swab to remove dirt, dust, and spiderwebs that could cause sticking.
• Weather Protection: If your outdoor button is exposed to the elements, consider installing a small hood or replacing it with a weather-resistant model to prevent moisture ingress.
• Inspect Wiring Annually: During other home maintenance, take a moment to visually inspect the visible doorbell wiring, especially outdoors, for signs of wear, chewing by pests, or loose connections.
• Proper Transformer Sizing: If replacing a transformer, always ensure the new one matches the voltage requirements of your existing chime unit. Check the chime unit or old transformer for specific voltage (e.g., 16V AC).
• Check for Pest Activity: Rodents love to chew on low-voltage wires. If you have recurring issues or visible wire damage, check attics, basements, and exterior walls for signs of pests.

When to Call a Professional

While identifying and fixing a phantom doorbell ring is often a DIY task, there are specific situations where calling an electrician or a qualified handyman is the safest and most efficient choice. If, after following these troubleshooting steps, the problem persists, or if you're uncomfortable working with electrical components, even low-voltage ones, it’s time to call a pro. Specifically, if you cannot locate your transformer, or if your multimeter readings at the transformer are inconsistent, a professional can safely diagnose and replace it. Any issues involving the high-voltage side of the transformer (the 120V input) should always be handled by a licensed electrician due to the significant shock hazard. If you suspect extensive wiring damage within walls or ceilings, or if multiple electrical issues are occurring in your home alongside the doorbell problem, a professional can properly assess the entire system and ensure everything is up to code and safe.
