Quick Answer

An extension cord repeatedly tripping a circuit breaker is usually caused by an electrical overload from powering too many devices, a short circuit from a faulty appliance connected to the cord, or damage within the extension cord itself. Circuit breakers are safety devices designed to protect your home's wiring by cutting power when they detect an unsafe current level. By systematically diagnosing the connected appliances and the cord's condition, you can pinpoint and resolve the issue, preventing potential fire hazards.

The Problem

Imagine plugging in your trusty extension cord, connecting a few essential tools or appliances, and then – click! – darkness. The circuit breaker has tripped again. This frustrating scenario isn't just an inconvenience; it's a clear signal from your home's electrical system that something is wrong. A tripping breaker indicates an unsafe electrical condition, most commonly an overcurrent, which can stem from several sources related to your extension cord setup. Ignoring these repeated trips isn't an option; it risks damaging your appliances, the home's wiring, and, most critically, poses a fire hazard.

Before you dive in, understand that an extension cord acts as a temporary electrical bridge. It's not designed to be a permanent wiring solution or to handle the same current loads as your home's built-in circuits. When it keeps tripping the breaker, the culprit often lies in exceeding the cord's or the circuit's capacity, or a fault within the system itself. This article will guide you through diagnosing and fixing the most common reasons your extension cord is causing trip after trip.

How It Works

To understand why your extension cord triggers a breaker trip, it's essential to grasp how electricity flows and how circuit breakers protect your home. Household electrical circuits operate at a specific voltage (typically 120 volts in North America) and are designed to safely carry a maximum amount of current, measured in amperes (amps). Each circuit in your home is protected by a circuit breaker, usually rated for 15 or 20 amps. This rating signifies the maximum current the breaker will allow to pass before it "trips" and cuts off power.

When you plug an appliance into an outlet, it draws current. Plugging multiple appliances into an extension cord, and then into an outlet, means all those appliances are drawing current through that single extension cord and, subsequently, through that single wall outlet and circuit. If the combined current draw of all connected devices exceeds the circuit breaker's rating (an "overload"), or if there's a sudden, excessive surge in current due to a direct path between the hot and neutral wires (a "short circuit"), the breaker instantly trips. This protective mechanism prevents the wires from overheating, melting their insulation, and potentially starting an electrical fire. Extension cords themselves also have an ampacity rating, which homeowners often overlook. If the total current drawn through the extension cord exceeds its rating, the cord itself can overheat, even if the circuit breaker hasn't yet tripped due to the house wiring's higher capacity. This knowledge forms the foundation for effective troubleshooting.

Step-by-Step Fix

Safety First: Always unplug the extension cord from the wall outlet before inspecting it or any connected devices. If the breaker tripped due to an overload, remember to switch off all connected appliances before resetting the breaker to avoid an immediate re-trip.

1. Reset the Circuit Breaker — Restore Power Safely

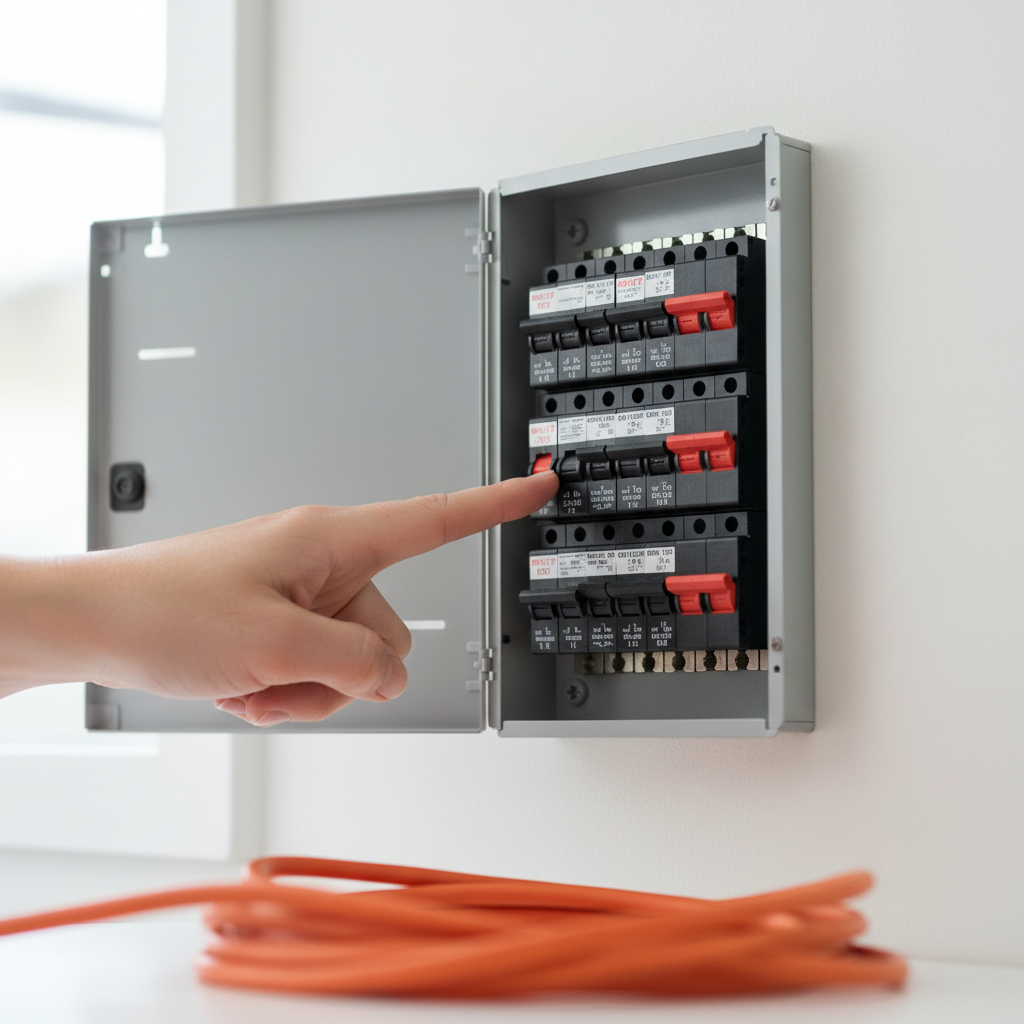

   • Go to your electrical panel. Locate the tripped breaker, which will be in the "off" or middle position. Firmly push it to the full "off" position, then back to the "on" position. Do not force it if it resists.
   • If this doesn't work: If the breaker immediately trips again after resetting with nothing plugged in, or if it feels loose, there might be a more serious wiring issue in your home or a faulty breaker. Call a licensed electrician.

2. Unplug Everything — Isolate the Source

   • With the breaker reset, completely unplug the extension cord from the wall outlet. Then, unplug all appliances and devices from the extension cord.
   • This step ensures you're starting with a clean slate, removing all potential load and fault sources.

3. Inspect the Extension Cord — Check for Visible Damage

   • Carefully examine the entire length of the extension cord. Look for any cuts, nicks, frayed insulation, exposed wires, melted spots, or discoloration, particularly near the plugs and receptacles.
   • Check the prongs on the male plug end and the receptacles on the female end for bent prongs, corrosion, or signs of burning.
   • If you find damage: A damaged extension cord is a significant fire hazard. Immediately discard and replace it with a new, appropriately rated cord. Do not attempt to repair damaged cords.

4. Test the Cord Alone — Determine Cord Integrity

   • If the cord appears undamaged, plug only the extension cord (with nothing connected to its female end) into the wall outlet. Reset the breaker if it's tripped.
   • If the breaker trips immediately: The extension cord itself likely has an internal short circuit. Discard and replace it.
   • If the breaker holds: The extension cord is likely not the direct cause; proceed to test the appliances.

5. Test Appliances One by One — Pinpoint the Faulty Device

   • With the extension cord still plugged into the wall (and the breaker on), plug in one appliance at a time into the extension cord.
   • Turn on each appliance for a brief period. Monitor the breaker. If the breaker trips when a specific appliance is plugged in or turned on, that appliance is the culprit. It likely has an internal short or a significant electrical fault.
   • Troubleshooting faulty appliance: Unplug the faulty appliance immediately. Do not use it with an extension cord or directly in an outlet until repaired by a qualified technician or replaced. Sometimes, older motor-driven tools or appliances can draw a massive amount of current at startup (inrush current) which can also trip a sensitive breaker, even if the running current is acceptable.

6. Assess Total Load (Overload Check) — Calculate Amperage

   • If no single appliance causes the trip, the issue is likely an overload. Add up the wattage of all devices you intend to plug into the extension cord simultaneously.
   • Divide the total wattage by the voltage (120V) to get the total amperage (e.g., 1500W / 120V = 12.5 Amps).
   • Compare this total amperage to the amp rating of your extension cord and the circuit breaker (usually 15A or 20A). If your total amperage exceeds either, you are overloading the system.
   • Solution: Reduce the number of devices plugged into that extension cord or move some devices to a different circuit. Consider using a heavy-duty extension cord (e.g., 12-gauge or 10-gauge AWG) if you truly need to power high-wattage devices temporarily, but always ensure the circuit can handle the load. Never daisy-chain extension cords.

7. Check Wire Gauge and Length — Ensure Proper Cord Selection

   • Thinner gauge wires (higher AWG number, e.g., 16-gauge or 18-gauge) are suitable for lighter loads like lamps or phone chargers. Thicker gauge wires (lower AWG number, e.g., 12-gauge or 14-gauge) are needed for high-wattage appliances like power tools or heaters.
   • Important: Longer extension cords cause a greater voltage drop, which can lead to appliances drawing more current to compensate, increasing the risk of tripping. Use the shortest cord necessary for the job.
   • Ensure your extension cord is rated for outdoor use if using it outdoors, even temporarily. Outdoor cords have more robust insulation to withstand environmental factors.

8. Consider the Outlet — Is the Wall Outlet Faulty?

   • If the breaker still trips with the extension cord and all appliances verified as good, try plugging the extension cord into a different wall outlet on a different circuit (if available). If it works fine there, the original wall outlet or its associated wiring on that particular circuit might have an issue.
   • Call a pro: If you suspect a faulty wall outlet or house wiring, it's best to call a licensed electrician for diagnosis and repair.

Common Causes

• Overloading the Circuit: The most frequent offender. Too many high-wattage devices plugged into a single extension cord or circuit drawing more current than the breaker is rated for.
• Damaged Extension Cord: Frayed insulation, cuts, or internal wire damage can cause a short circuit, leading to an immediate trip.
• Faulty Appliance: One of the devices plugged into the extension cord has an internal electrical fault or short, drawing excessive current and tripping the breaker.
• Inadequate Cord Gauge: Using a thin, lightweight extension cord (high AWG number) for heavy-duty appliances. This causes the cord to overheat and can lead to a premature breaker trip or fire risk.
• Too Long an Extension Cord: Excessive length increases electrical resistance, leading to voltage drop and increased current draw by some appliances.
• Daisy-Chaining Cords: Connecting multiple extension cords together, significantly increasing resistance and the risk of overload or overheating.

Common Mistakes

• Ignoring Cord Ratings: Many homeowners grab the nearest extension cord without checking its gauge (AWG) or wattage/amperage rating. Using a cord insufficient for the load is a primary mistake.
• Overlooking Appliance Wattage: Not adding up the wattage of all devices plugged into a single cord/circuit. A quick estimate can prevent an overload.
• Using Indoor Cords Outdoors: Indoor cords are not designed to withstand moisture, UV exposure, or temperature extremes, leading to premature degradation and potential hazards when used outside.
