The 4 Hidden Reasons Your Furnace Short Cycles (And How to Fix It FAST)

Quick Answer

Furnace short cycling is when your heating system repeatedly turns on and off in rapid succession without adequately heating your home. This isn't just annoying; it's a symptom of a deeper issue that can lead to increased energy bills, premature system wear, and a colder house. Often, the culprits are easily identifiable and fixable by a homeowner, ranging from a clogged air filter or a miscalibrated thermostat to more nuanced airflow problems. Understanding the underlying mechanisms of your furnace's operation is key to diagnosing and resolving short cycling, ensuring your home stays warm and your heating system runs efficiently for years to come.

The Problem

You hear your furnace kick on, the blower starts, warm air begins to flow, and then, just a few minutes later, it shuts down. A short pause, and then the cycle repeats. This is short cycling, and it's one of the most common complaints homeowners have about their heating systems. Instead of running a full cycle to bring your home to the desired temperature and then resting, your furnace is caught in a start-stop loop. This puts immense stress on mechanical and electrical components, like the igniter, blower motor, and control board, drastically shortening their lifespan. Beyond the wear and tear, short cycling is highly inefficient. Each start-up is the most energy-intensive phase for a furnace, meaning frequent cycling drives up your utility bills without delivering consistent comfort. It deprives your home of a stable temperature, leading to cold spots and an overall chilly environment, despite the furnace constantly "working."

How It Works

To understand short cycling, it's essential to grasp how a furnace normally operates. When you set your thermostat to a desired temperature, a signal is sent to the furnace's control board. The control board initiates the ignition sequence: the inducer motor starts pulling combustion air, the igniter (either a hot surface igniter or pilot light) heats up, and then the gas valve opens, allowing gas to flow and ignite. Once combustion is established, the burners heat the heat exchanger. As the heat exchanger warms up, the blower motor is activated (often after a slight delay, usually 30-60 seconds, to prevent blowing cold air initially) to push air across the hot heat exchanger and then through your home's ductwork. This warm air circulates until the thermostat senses that the desired temperature has been reached. At that point, the thermostat signals the furnace to shut off, the gas valve closes, and the fan typically runs for another minute or two to extract any residual heat from the heat exchanger before also turning off. This entire process, from ignition to complete shutdown, should take at least 10-15 minutes, ideally closer to 20-30 minutes, depending on the size of your home and the outdoor temperature. Short cycling occurs when this normal sequence is interrupted prematurely, often due to safety limits tripping, an incorrect thermostat setting, or inadequate airflow preventing the system from efficiently transferring heat.

Step-by-Step Fix

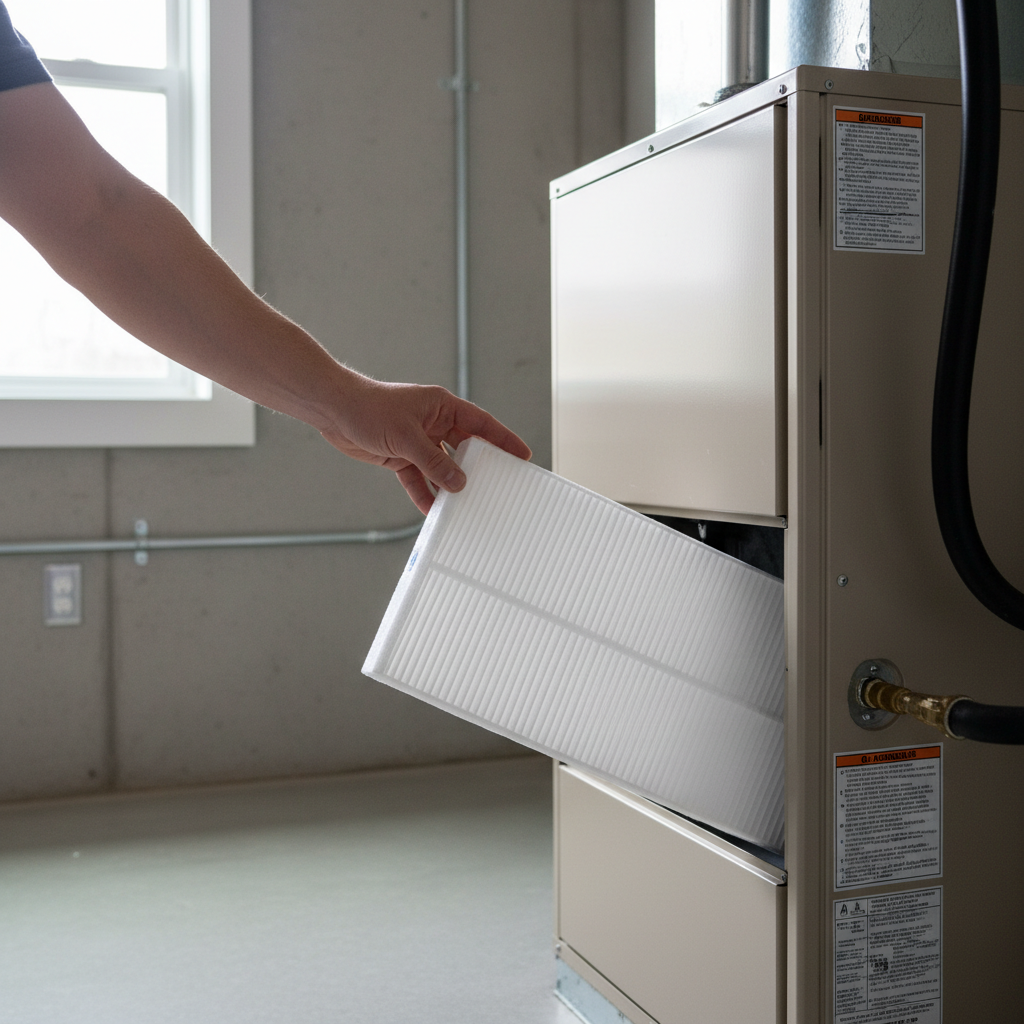

1. Check Your Air Filter – The simplest fix often overlooked

— A clogged air filter is the number one cause of reduced airflow, forcing your furnace to work harder and often leading to overheating and short cycling. Inspect your filter monthly and replace it every 1-3 months, or more frequently if you have pets or allergies. * Tools/Materials: New air filter (check size on old filter: e.g., 20x25x1). * Safety First: Turn off the furnace at the thermostat and the dedicated breaker before touching any internal components. * If this doesn't work: Proceed to checking your thermostat settings and vents.

2. Reset Your Thermostat Settings – Your furnace's brain might be confused

— Incorrect thermostat settings, a dead battery, or even a faulty sensor can trick your furnace into short cycling. Ensure your thermostat is set to "Heat" and "Auto" (not "On" for the fan). Try raising the set temperature significantly (e.g., 5-10 degrees above room temp) to force a long heating cycle, then lower it back. Replace batteries if applicable. * Tools/Materials: Small screwdriver (for some thermostat covers), fresh AA or AAA batteries if battery-powered. * Pro Tip: Consider if your thermostat is in a drafty area or near a heat source, which can give inaccurate readings.

3. Inspect All Vents and Returns – Blocked airways suffocate your system

— Registers and return grilles blocked by furniture, rugs, or dirt severely restrict airflow, causing the heat exchanger to overheat rapidly and trigger the high-limit switch, leading to short cycling. Walk through every room and ensure all supply vents are open and unobstructed, and that return air grilles are clear. * Tools/Materials: Vacuum cleaner with hose attachment. * Check all rooms: Don't forget rooms you rarely use; blockages there still impact the whole system.

4. Clean the Flame Sensor – A tiny part with a big job

— The flame sensor is a thin metal rod located in the path of the flame, ensuring gas shuts off if no flame is detected. Over time, carbon buildup on this sensor can prevent it from "seeing" the flame reliably, causing the furnace to ignite, run for a short period, and then shut down as a safety measure. * Tools/Materials: Nut driver (usually 1/4-inch or 5/16-inch), fine-grit emery cloth or steel wool. * Safety First: ALWAYS turn off power to the furnace at the circuit breaker before opening the access panel or touching anything inside. Gas furnaces contain high voltage and can be dangerous. * How-To: Locate the flame sensor (it's a single rod, not a pair of electrodes). Carefully remove the holding screw and gently pull the sensor out. Use emery cloth or steel wool to meticulously clean off any carbon buildup until the metal is shiny again. Reinstall carefully. * If this doesn't work: The flame sensor might be faulty and require replacement, or the issue could be with the igniter or gas valve, which are jobs for a pro.

5. Check for a Restricted Exhaust Vent – Carbon monoxide risk!

— Furnaces need to expel combustion gases safely. A partially blocked, improperly sloped, or undersized exhaust vent can cause a pressure switch to trip, cycling the furnace off prematurely. Look for visible obstructions at the exterior termination, or sags/loose connections in the internal venting. * Safety Note: Never attempt to modify furnace venting. If you suspect an internal blockage, or if your furnace has a high-efficiency PVC vent and you see standing water, call an HVAC professional immediately. Blocked vents can lead to carbon monoxide poisoning. * DIY Check: Visually inspect accessible sections of the vent pipe for damage or obstructions. Ensure proper slope back to the furnace if it
