Quick Answer

When your GFCI outlet refuses to reset, it's performing its primary job: detecting an imbalance in the electrical current, known as a ground fault. This imbalance suggests current is leaking from the circuit, often through a person or water, posing a serious shock hazard. Often, the issue isn't the GFCI outlet itself but a problem with an appliance plugged into it, another outlet downstream on the same circuit, or even moisture ingress into an electrical box.

The Problem

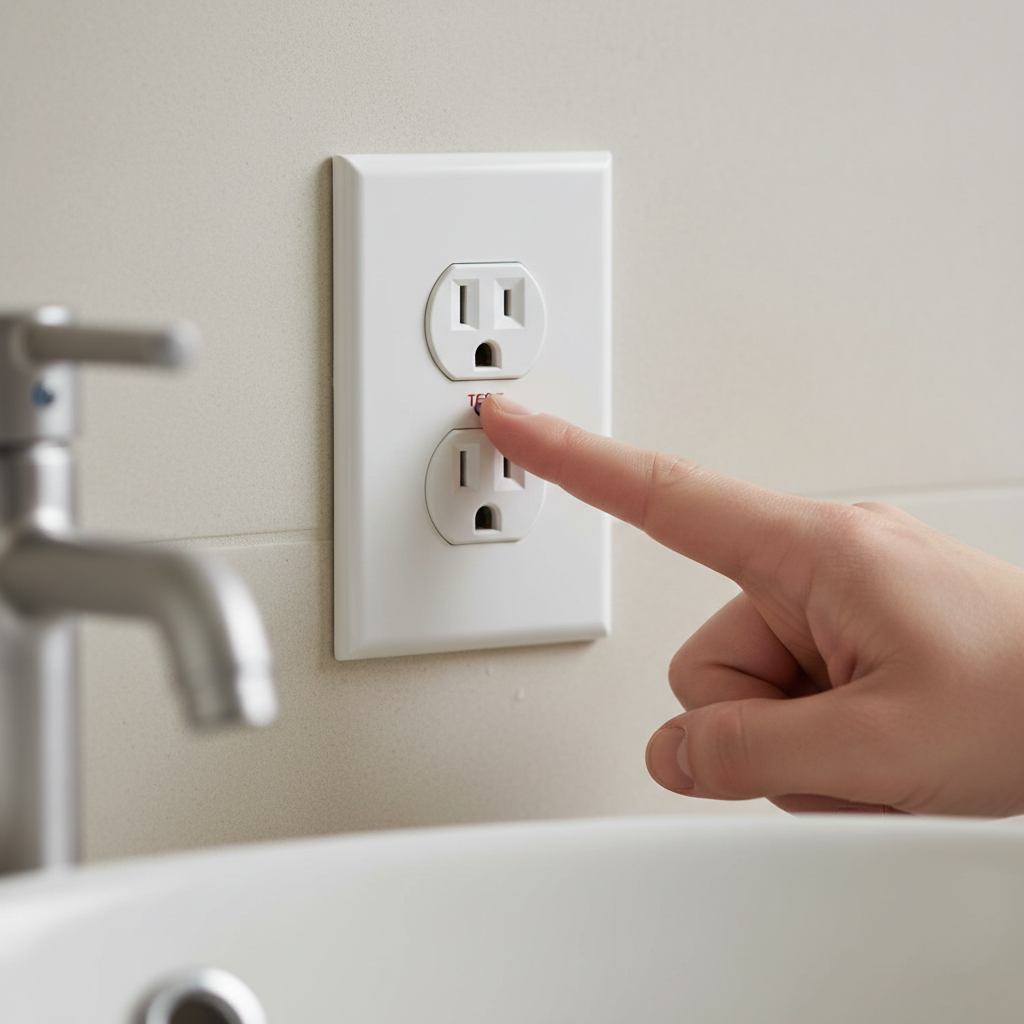

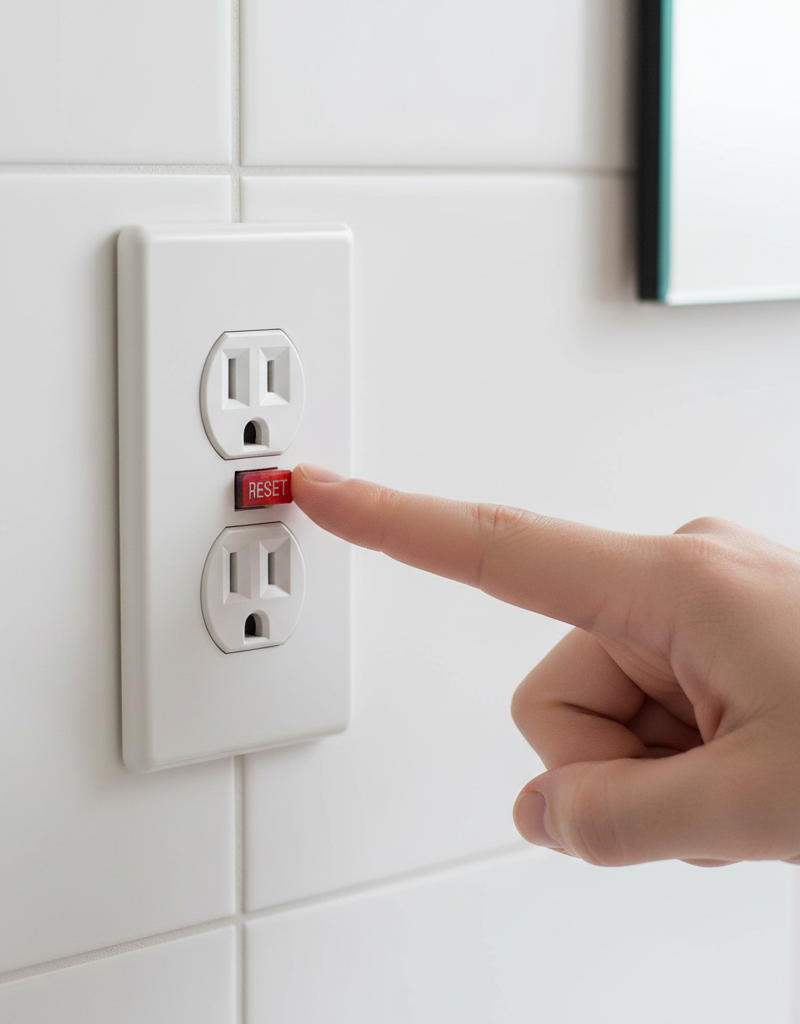

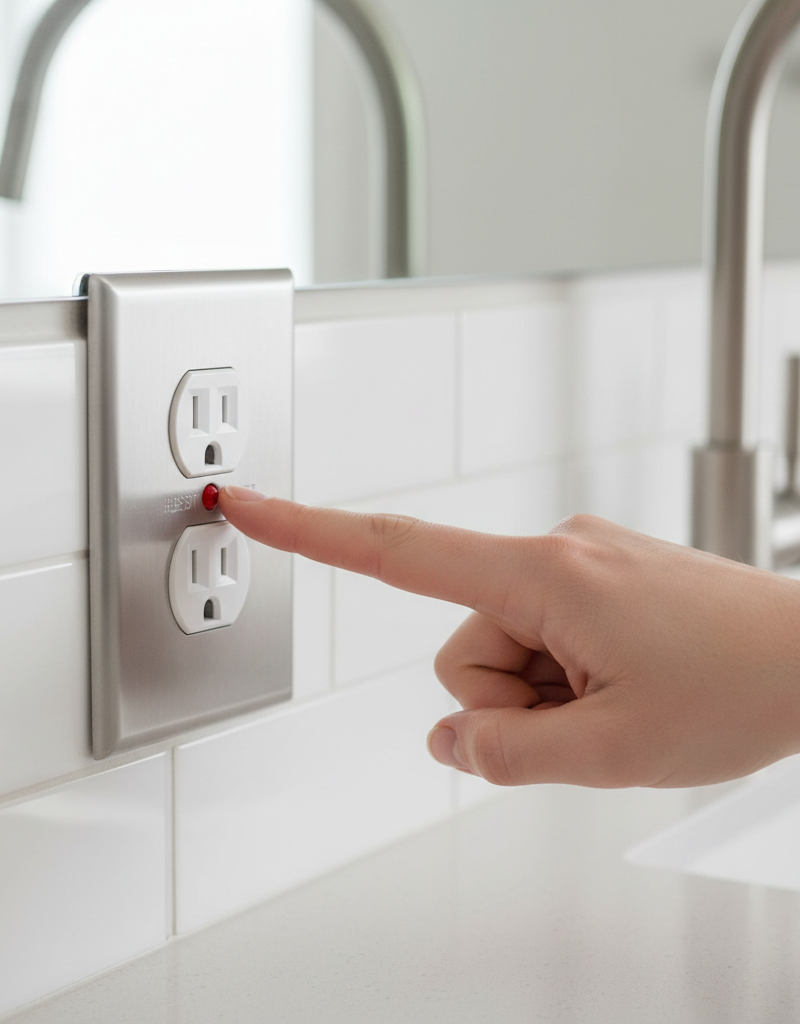

You've pressed the 'reset' button on your GFCI outlet, but nothing happens. The outlet remains dead, or the button immediately trips again. This can be frustrating, especially when it affects essential areas like bathrooms, kitchens, or outdoor spaces. While a non-resetting GFCI is a sign that the safety mechanism is working, it also means there's a problem that needs attention. Ignoring it could leave a part of your home without power or, more importantly, expose you to dangerous electrical hazards.

How It Works

A Ground Fault Circuit Interrupter (GFCI) outlet is a crucial safety device designed to protect you from electrical shock. Unlike a standard circuit breaker which protects wiring from overcurrent, a GFCI monitors the balance of current flowing through its hot and neutral wires. In a healthy circuit, the current leaving on the 'hot' wire should exactly equal the current returning on the 'neutral' wire.

If the GFCI detects even a tiny imbalance – as little as 5 milliamps – it assumes current is leaking out of the circuit through an unintended path (like a person's body or water) and quickly trips, cutting off power in as little as 1/40th of a second. This rapid response is what saves lives.

GFCI outlets have 'load' and 'line' terminals. The 'line' terminals connect to the incoming power from your electrical panel, while the 'load' terminals protect any standard outlets or lights wired downstream from the GFCI on the same circuit. This means one GFCI can provide ground fault protection for several conventional outlets. When a GFCI won't reset, it's because it's still detecting a fault, either directly at the outlet or somewhere along the entire protected downstream circuit.

Step-by-Step Fix

Safety First: Before touching any electrical components, always turn off the power at your home's main electrical panel. Locate the breaker that controls the affected circuit and switch it to the 'OFF' position. Use a non-contact voltage tester to confirm the power is off at the GFCI outlet before proceeding. Never work with live electricity.

1. Unplug All Devices – Clear the circuit

   • Go around your home and unplug every single appliance, lamp, and device that is currently plugged into the non-resetting GFCI outlet, and any other outlets that are now dead since the GFCI tripped. This includes outdoor outlets, bathroom outlets, kitchen outlets, and garage outlets.
   • If this doesn't work: If the GFCI still won't reset after everything is unplugged, the fault is likely within the wiring or the GFCI outlet itself, not a connected appliance. Proceed to the next step.

2. Inspect for Moisture – Water is a common culprit

   • Carefully check outdoor GFCI outlets, as well as bathroom and kitchen outlets, for any signs of water intrusion or dampness. Moisture can create a temporary ground fault. Use a hairdryer on a low setting to dry out any suspected areas if safe to do so. Ensure the power is OFF before drying.
   • If this doesn't work: If everything appears dry or if the location isn't prone to moisture, move on.

3. Check for Damaged Cords/Appliances – Visual inspection is key

   • Examine the power cords of all previously unplugged appliances for cuts, fraying, or exposed wires. Look for burn marks or unusual smells from appliances themselves. A toaster with a crumb lodged near the heating element or an old hairdryer can cause a fault.
   • If this doesn't work: If all cords and appliances look fine, the issue is deeper.

4. Isolate Downstream Outlets (Advanced) – Find the exact fault location

   • With the power OFF at the breaker, carefully remove the faceplate of the non-resetting GFCI. Gently pull the outlet from the electrical box.
   • You'll see two sets of wires: 'line' (incoming power) and 'load' (outgoing power to other outlets). Disconnect the wires from the 'load' terminals only (these are usually labeled and sometimes covered by a yellow sticker from the factory). The 'line' wires should remain connected to the GFCI.
   • Cap off the 'load' wires with wire nuts, ensuring no bare wire is exposed. Carefully push them back into the box, away from the GFCI terminals.
   • Turn the breaker back ON. Attempt to reset the GFCI.
   • If the GFCI now resets: The ground fault is in one of the downstream outlets or the wiring leading to them. You'll need to systematically reconnect each downstream outlet, one by one, testing the GFCI after each reconnection, until it trips again. The last one connected is the culprit.
   • If the GFCI still won't reset: The fault is either in the GFCI outlet itself or the wiring leading to the GFCI's 'line' side. Proceed to the next step.

5. Test the GFCI Outlet Itself – Is the outlet faulty?

   • With the power OFF, disconnect ALL wires from the GFCI outlet – both 'line' and 'load'. Be sure to label them so you know which are which. Wire nut off the 'line' wires safely.
   • Connect only the 'line' wires to a new, known-good GFCI outlet, following the manufacturer's instructions. Do NOT connect the 'load' wires yet.
   • Turn the breaker back ON. Press 'reset' on the new GFCI. If it resets, the old GFCI was faulty. You can now install the new GFCI, carefully connecting both 'line' and 'load' wires as appropriate.
   • If the new GFCI still won't reset: The fault is in the electrical wiring leading to the GFCI from the breaker panel. This is a job for a licensed electrician.

6. Tighten Connections – Loose connections can mimic faults

   • With the power OFF and the old GFCI carefully pulled out (but wires still connected), gently tug on each wire connected to the GFCI terminals. If any feel loose, tighten the terminal screw. Sometimes, a loose neutral wire can cause a GFCI to trip or fail to reset.

7. Check for Overloaded Circuit – GFCI nuisance tripping

   • While GFCI's are for ground faults, sometimes an overloaded circuit can indirectly cause issues. If you have many power-hungry devices on one circuit, consider redistributing them to other circuits. While not a direct GFCI fault, it's good practice.

Common Causes

• Faulty Appliance: The most frequent cause. An appliance with a defective heating element, motor windings, or damaged internal wiring can allow current to leak to ground, immediately tripping the GFCI. Think a malfunctioning hairdryer, toaster, or an old refrigerator operating in an unprotected area.
• Damaged Cord: A frayed, cracked, or pinched power cord on an appliance can expose internal wires, creating a path for current to leak to ground.
• Moisture or Water Intrusion: Water is an excellent conductor. If water enters an outdoor GFCI receptacle, an electrical box in a damp basement, or splashes onto a bathroom outlet, it creates a direct path for current to ground, causing an immediate trip.
• Faulty GFCI Outlet: While GFCIs are designed for safety, they can fail over time. Internal components can wear out, leading to them tripping too easily or simply refusing to reset (a common failure mode after around 10-15 years).
• Wiring Issue Downstream: Damage to the electrical wiring between the GFCI and another outlet or fixture on the same circuit can create a ground fault. This could be due to a nail piercing a wire, rodent damage, or deteriorated insulation.
• Improper Wiring/Installation: If the GFCI was incorrectly wired, particularly if the 'line' and 'load' terminals were reversed or if a neutral wire was improperly connected, it might not function correctly or refuse to reset.
• Dust or Debris in Outlet: Less common, but sometimes conductive dust or foreign objects lodged inside the outlet's receptacles can create a momentary fault path.

Common Mistakes

• Not Unplugging Everything: Many homeowners try to reset the GFCI without unplugging all devices. If the fault is in one of the connected appliances, the GFCI will immediately detect it and trip again, making it seem like the GFCI itself is faulty.
• Ignoring Downstream Outlets: Forgetting that one GFCI can protect several standard outlets 'downstream' on the same circuit. The fault might not be where you're pressing the button, but in another room entirely.
• Assuming the GFCI is Bad Immediately: While GFCIs do fail, often the problem lies elsewhere. Rushing to replace the GFCI without proper troubleshooting can be a waste of time and money if the underlying fault persists.
• Not Turning Off Power at the Breaker: A critical safety mistake. Always de-energize the circuit at the electrical panel before touching any wiring or removing outlet covers.
• Confusing Line and Load: When replacing a GFCI, incorrectly wiring the 'line' (incoming power) and 'load' (outgoing protected power) terminals will prevent the GFCI from working or even cause damage. Always follow the labels or instructions carefully.
• Overlooking Environmental Factors: Dismissing moisture or external damage too quickly, especially in outdoor or semi-exposed locations. A little water in a junction box can cause a big problem.

Cost & Time Breakdown

Tips & Prevention

• Regular Testing: Test your GFCI outlets monthly by pressing the 'TEST' button (which should trip the outlet) and then the 'RESET' button (which should restore power). If it doesn't trip or reset, replace it.
• Protect Outdoor Outlets: Ensure outdoor GFCI outlets have weather-resistant covers, especially 'in-use' covers that protect even when something is plugged in. Check for cracks or missing gaskets periodically.
• Inspect Cords & Appliances: Regularly check electrical cords for damage, especially for frequently used or older appliances. Replace damaged items or cords immediately.
• Avoid Overloading: Be mindful of how many high-wattage appliances are plugged into a single circuit to prevent nuisance tripping, even if GFCI issues are ground-fault related.
• Proper Installation: If replacing a GFCI, ensure correct 'line' and 'load' wiring. When in doubt, call a professional. Never just jam wires into terminals.
• Keep it Dry: Maintain dry conditions in areas with GFCIs. Promptly address any leaks or sources of moisture near electrical outlets.

When to Call a Professional

You should call a licensed electrician immediately if, after following all troubleshooting steps, your GFCI still won't reset, or if you suspect the fault lies within the in-wall wiring. If disconnecting all 'load' wires from the GFCI and even trying a new GFCI doesn't resolve the issue (meaning the fault is on the 'line' side), do not attempt further DIY repairs. This indicates a problem within the main electrical system, which requires specialized tools and expertise to safely diagnose and repair. Additionally, if you notice burning smells, smoke, or hear buzzing/sizzling sounds from your electrical panel or outlets, turn off the main breaker to your home and call an emergency electrician right away. Dealing with live electrical faults in main wiring is extremely dangerous and can lead to severe injury, electrocution, or fire.
