Quick Answer

If your outdoor AC unit (condenser) is humming but the large fan on top isn't spinning, the most frequent culprit is a failing or failed run capacitor. This cylindrical component stores an electrical charge and releases it to give the fan motor the necessary jolt to start. Without this initial boost, the motor can't overcome its inertia, and it will simply hum. A less common but still possible cause is a seized motor bearing or an electrical issue with the motor itself.

The Problem

You're experiencing a sweltering day, and your air conditioner just isn't cooling. You go outside to check the outdoor unit, known as the condenser, and you hear a distinct humming sound, but the large fan blades on top aren't moving. The compressor might even be running, making the unit vibrate, but without that fan, the heat cannot be properly dissipated from the refrigerant coils. This means your AC effectively stops cooling your home, and if left unaddressed, it can lead to more serious, and expensive, damage to your compressor. The fan's job is to pull air across the condenser coils, removing the heat that the refrigerant has absorbed from inside your home. No fan means no heat transfer, which quickly leads to a warm house and a struggling, overheating compressor.

How It Works

The outdoor condenser unit contains several key components that work in concert to release heat from your home's refrigerant. The compressor, the large, often black dome at the heart of the unit, pressurizes the refrigerant, increasing its temperature and moving it through the condenser coils. As the hot, high-pressure refrigerant cycles through these coils, the condenser fan plays a crucial role. This fan is typically a large, propeller-like blade assembly driven by an electric motor, usually mounted at the top of the unit.

When your thermostat calls for cooling, a low-voltage signal is sent to the outdoor unit. This signal energizes a contactor, an electrical switch that allows 240-volt power to flow to both the compressor and the condenser fan motor. However, most AC fan motors, especially single-phase alternating current (AC) motors, require an extra push to get started. They don't just spin up on their own from the main power supply. This is where the run capacitor comes in.

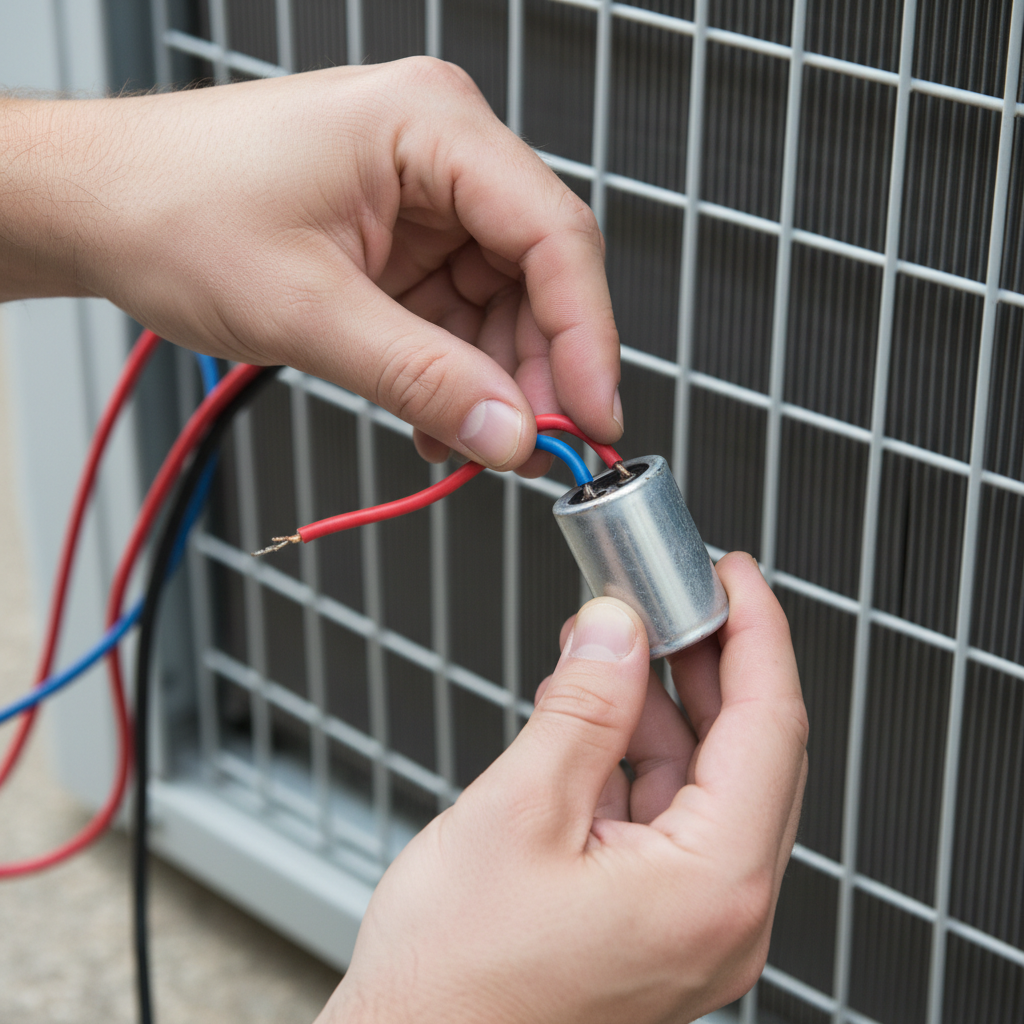

The run capacitor is a cylindrical component, often looking like a small metal can, that temporarily stores an electrical charge. When the motor is first energized, the capacitor releases this stored charge, creating a phase shift in the electrical current. This phase shift generates a rotating magnetic field within the motor, providing the initial torque needed to overcome the motor's inertia and get the fan blades spinning. Once the motor is running, the capacitor continues to assist, improving the motor's efficiency and power factor.

If this capacitor weakens or fails, it can no longer deliver the necessary jolt. The motor will receive power, hence the humming sound, but it won't have enough starting torque to spin. It will simply sit there, drawing current and overheating. Other potential issues, though less common, include the motor itself failing (due to bad bearings, worn windings, or internal short circuits), physical obstructions preventing the blades from turning, or a faulty contactor not sending power to the fan motor. Understanding this interplay between the contactor, capacitor, and motor is key to troubleshooting a non-spinning AC fan.

Step-by-Step Fix

Safety First—Before attempting any work on your AC unit, always cut power at the main outdoor disconnect switch. This is typically a pull-out block or a circuit breaker located in a small box on the wall near your outdoor unit. Failure to do so can result in serious injury or electrocution.

1. Kill the Power—Safety is paramount.

• Locate the electrical disconnect box near your outdoor condenser unit.
• Pull out the disconnect block or flip the circuit breaker off inside the box. Verify the power is off by trying to start your AC from the thermostat. The outdoor unit should be completely silent.

2. Remove the Condenser Fan Grille—Access the fan.

• Depending on your unit, this usually involves unscrewing several hexagonal or Phillips-head screws around the perimeter of the top grille. Keep track of these fasteners.
• Carefully lift the grille, often with the fan still attached, and set it aside. You may need to gently maneuver it to avoid bending the fan blades or damaging wires. Some units allow you to lift the grill and lean it carefully to the side without fully disconnecting the fan motor wires. If the fan motor wires are short, you might need a helper to hold the grille while you work, or you may need to disconnect the fan wiring harness (take a photo first!).

3. Inspect for Obstructions—A simple fix.

• Before assuming a component failure, check for obvious physical obstructions that could be jamming the fan blades.
• Look for sticks, leaves, pinecones, or even small toys that might have fallen into the unit. Remove any debris.
• Gently try to spin the fan blades by hand (with the power OFF!). They should rotate freely with minimal resistance. If they are tight or don't spin freely, the motor bearings might be seized, or something is still obstructing them.

**4. Test for a Weak Capacitor (The
