Quick Answer

AWhen your GFCI outlet repeatedly trips or refuses to reset, it's signaling a detected ground fault, a wiring issue, or a fault within the GFCI unit itself. The most frequent culprits are often not a direct short in the appliance plugged into the GFCI, but rather a fault in another device downstream on the same protected circuit, or even loose wiring within the outlet box. A systematic approach, starting with unplugging all devices and checking other outlets on the circuit, is crucial for safe and effective troubleshooting.

The Problem

Imagine plugging in your trusty old hairdryer, hearing a click, and suddenly your bathroom outlet is lifeless. You press the 'RESET' button on the GFCI, but nothing happens. Or worse, it clicks back immediately. This frustrating scenario is a common household electrical issue. A GFCI (Ground Fault Circuit Interrupter) outlet is a vital safety device designed to protect you from electrical shock by quickly cutting power when it detects a ground fault – an unintended path for electricity to flow to the ground. When it won't reset, it's not just an inconvenience; it's a sign that the safety mechanism is actively preventing a potentially dangerous situation, or that the GFCI itself is faulty. Simply ignoring it or repeatedly trying to reset it can exacerbate the problem or, more importantly, leave you vulnerable to electrical hazards. Understanding why your GFCI is behaving this way is the first step to restoring power and, more importantly, safety.

How It Works

To truly troubleshoot a stubborn GFCI, it’s essential to understand its basic operation. A GFCI outlet contains a sophisticated circuit that constantly monitors the flow of current in the 'hot' (black) wire and the 'neutral' (white) wire. In a properly functioning circuit, the current flowing out through the hot wire should exactly equal the current returning through the neutral wire. This delicate balance is critical. If, for any reason, even a minuscule amount of current (as little as 5 milliamps) escapes this path – perhaps by flowing through a person who accidentally touches a live wire or through a faulty appliance casing to ground – the GFCI detects this imbalance. This is known as a 'ground fault.'

When a ground fault is detected, the GFCI’s internal solenoid mechanism reacts almost instantaneously, typically in less than one-fortieth of a second (25 milliseconds), by tripping a small internal breaker and cutting off the power. This lightning-fast response is what prevents serious electrical shock. The 'TEST' button on the GFCI creates a simulated ground fault to ensure the internal mechanism is working correctly, while the 'RESET' button re-engages the internal breaker when the fault has been cleared. When a GFCI refuses to reset, it means one of two things: either it is still detecting a ground fault somewhere in its protected circuit, or the GFCI unit itself is damaged and can no longer function properly. It’s also important to remember that a single GFCI outlet can protect other standard outlets downstream from it on the same circuit. So, a fault in an appliance plugged into a different outlet can cause the GFCI to trip, even if nothing is attached to the GFCI itself. This is a critical diagnostic point that many homeowners overlook.

Step-by-Step Fix

Step 1: Unplug Everything – Isolate the potential fault source

Always start with the simplest solution. Unplug every single appliance, lamp, and electronic device from the GFCI outlet that won't reset, and from any other outlets that are or might be on the same circuit (often found in bathrooms, kitchens, garages, and outdoors). Ground faults are frequently caused by a faulty appliance, not the outlet itself.

• Safety First: Ensure your hands are dry. Never yank cords by the wire; always grasp the plug.
• If this doesn't work: If the GFCI still won't reset after everything is unplugged, the fault might be in the wiring itself or within the GFCI unit.

Step 2: Check Other Outlets on the Circuit – Identify downstream protection

Many GFCI outlets are designed to protect other standard outlets further down the circuit. A fault in an appliance plugged into one of these 'downstream' outlets will cause the GFCI to trip. Find all other outlets in the room or adjacent areas that might be on the same circuit (especially in wet areas).

• Tools Tip: A non-contact voltage tester can help confirm if other outlets are dead, indicating they are on the tripped circuit.
• Diagnostic Move: Try resetting the GFCI again after ensuring nothing is plugged into any outlet on the circuit.

Step 3: Reset the Breaker – Clear latent circuit issues

Sometimes, a tripped GFCI can be accompanied by a tripped circuit breaker in your electrical panel, or the breaker might need a hard reset to clear any lingering electrical anomalies. Locate your electrical service panel (usually in a basement, garage, or utility closet).

• Action: Flip the corresponding circuit breaker completely OFF, wait 30 seconds, and then flip it firmly back to ON.
• Safety Note: Always use caution around your electrical panel. If you're unsure which breaker it is, turn off the main breaker if necessary, but this will kill power to your entire home. Label your breakers for future troubleshooting.

Step 4: Attempt to Reset the GFCI – Test for a clear circuit

Once all potential fault-causing appliances are unplugged and the breaker is reset (if applicable), try to reset the GFCI outlet.

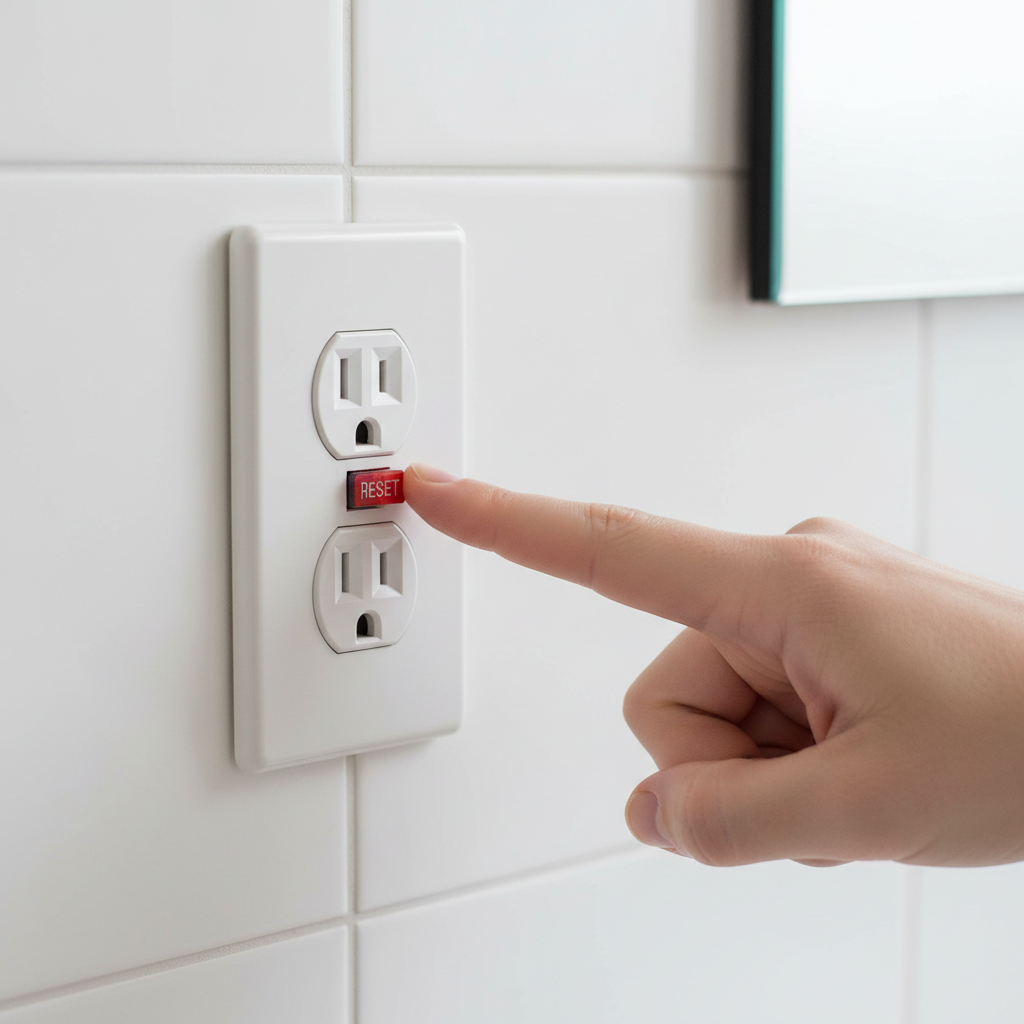

• Procedure: Press the 'RESET' button firmly. You should hear a distinct click and the outlet light (if present) should illuminate.
• If it resets: If the GFCI resets successfully, plug in one appliance at a time, starting with the one you suspect caused the initial trip, to pinpoint the faulty device. If the GFCI trips again, you've found your culprit. Discard or repair the appliance.

Step 5: Check Outlet Wiring (Power Off!) – Look for loose connections

If the GFCI still won't reset, the issue could be loose or damaged wiring inside the outlet box. This step requires turning off power at the breaker panel.

• Safety Warning: ALWAYS turn off the corresponding circuit breaker before opening any electrical outlet. Use a non-contact voltage tester to confirm the power is OFF.
• Tools: Flathead screwdriver, Phillips head screwdriver, wire strippers (optional).
• Inspection: carefully remove the outlet cover plate and unscrew the GFCI from the box. Gently pull it out. Look for any loose wires, especially at the screw terminals or push-in connectors. Ensure the black, white, and bare/green ground wires are securely connected. Also, check for any frayed insulation or wires that appear pinched or damaged.
• Crucial Detail: GFCI outlets have 'LINE' and 'LOAD' terminals. 'LINE' is incoming power from the breaker. 'LOAD' terminals protect downstream outlets. If the LINE and LOAD wires are accidentally reversed, the GFCI will not function correctly and may not reset. Ensure the LINE wires (from the breaker) are connected to the LINE terminals and the LOAD wires (going to other outlets if applicable) are connected to the LOAD terminals. These are usually clearly labeled on the back of the GFCI. If in doubt, consult the diagram that came with your GFCI or take a picture before disconnecting.
• Action: Tighten any loose screws. If a wire looks damaged, carefully re-strip it (if enough length is available) and re-secure it. Push the GFCI back into the box, being careful not to pinch any wires.

Step 6: Test the GFCI Unit Itself – Is the GFCI faulty?

If all previous steps fail, the GFCI outlet itself may be faulty. GFCIs don't last forever; their internal components can wear out or become damaged. The average lifespan is about 10-15 years.

• Test Procedure: With the power ON, use the 'TEST' button. The GFCI should trip immediately, and the 'RESET' button should pop out. If it doesn't trip, or if it trips but then won't reset (and you've ruled out all downstream faults and wiring issues), the unit is likely bad.
• Important Check: If the 'TEST' button works and trips the GFCI, but it still won't reset after the 'RESET' button is pressed, it still indicates a fault somewhere on the line or load side, or internal damage after aging. If the ‘TEST’ button doesn’t trip it at all, it’s definitely time for a replacement.

Step 7: Replace the GFCI Outlet – Last resort for a persistent issue

If you've systematically ruled out all other possibilities, replacing the GFCI outlet is the next logical step. Ensure you purchase a new GFCI outlet with the correct amperage rating (usually 15-amp or 20-amp) for your circuit.

• Safety Pro-Tip: ALWAYS VERIFY power is OFF at the breaker with a non-contact voltage tester before attempting replacement.
• Installation: Disconnect the wires from the old GFCI, paying close attention to which wires were connected to LINE and LOAD terminals. Connect the corresponding wires to the new GFCI's LINE and LOAD terminals. Ensure all wire connections are secure. Once installed, restore power and test the new GFCI.

Common Causes

• Faulty Appliance: This is by far the most common cause. An internal wire fray or short in an appliance (hair dryer, toaster, power tool, extension cord) can create a ground fault. Even subtle issues, like a worn motor or heating element, can cause a small current leakage.
• Moisture or Water Intrusion: GFCIs are common in wet areas because water is an excellent conductor. Any moisture getting into an outlet, a light fixture, or even within an appliance can cause a ground fault and trip the GFCI.
• Overloaded Circuit: While GFCIs primarily protect against ground faults, a severely overloaded circuit can sometimes cause nuisance tripping, especially with older or sensitive units. However, this is less common than a direct ground fault.
• Loose or Damaged Wiring: Within the outlet box, connections can loosen over time due to vibration, improper installation, or oxidation. A stray strand of wire touching the metal box or the ground wire can create a fault. Damaged insulation can also expose wires.
• Faulty GFCI Unit: Like any electronic component, GFCIs have a lifespan. They can degrade over time and become overly sensitive, failing to reset, or stop detecting faults altogether. Environmental factors like heat and humidity can accelerate this wear.
• Improper Wiring (LINE/LOAD Reversal): If the installer accidentally swapped the 'LINE' (incoming power) and 'LOAD' (outgoing power to other outlets) terminals during installation, the GFCI might not function correctly and may refuse to reset, or may trip erratically.

Common Mistakes

• Ignoring Downstream Outlets: A classic mistake. Homeowners often only check the appliance plugged into the GFCI outlet itself, forgetting that the GFCI protects all standard outlets wired on the 'LOAD' side. Always unplug everything from all outlets on the circuit.
• Assuming a Faulty GFCI Immediately: While GFCIs can fail, they are often doing their job. Replacing the GFCI without first troubleshooting potential appliance or wiring faults can lead to the new GFCI tripping for the same reason.
• Not Testing the GFCI Properly: Just pressing 'RESET' isn't enough. The 'TEST' button is there for a reason. Regularly pressing 'TEST' ensures the internal trip mechanism is functional. If 'TEST' doesn't trip the GFCI, the unit is faulty and needs replacement.
• Failing to Turn Off the Power: A dangerous mistake. Never attempt to inspect or work on an outlet without first turning off the corresponding circuit breaker and verifying power is off with a non-contact voltage tester. Electrocution is a serious risk.
• Improperly Wiring the New GFCI: Swapping the LINE and LOAD wires on a replacement GFCI is a common error that will prevent it from functioning correctly or resetting. Always pay close attention to the labels or take a picture before disconnecting wires.
• Overlooking Moisture: In bathrooms, kitchens, and outdoor locations, even small amounts of moisture inside an electrical box or fixture can cause a GFCI to trip. Don't rule out condensation or a minor leak as the culprit.

Cost & Time Breakdown

Tips & Prevention

• Regular Testing: Make it a habit to test all your GFCI outlets monthly using the 'TEST' button. This ensures they are ready to protect you when needed.
• Appliance Inspection: Periodically check the power cords of your appliances, especially those used in wet areas, for any frayed insulation or exposed wires. Discard or repair damaged appliances.
• Keep Outlets Dry: Ensure all GFCI outlets in wet or outdoor locations have appropriate weather-resistant covers to prevent moisture intrusion. Never use appliances with wet hands.
• Avoid Overloading: While not its primary function, avoid plugging too many high-draw appliances into a single outlet or circuit, as this can stress the electrical system and potentially contribute to nuisance trips.
• Proper Installation: If you're installing a new GFCI, always follow the manufacturer's instructions diligently, especially regarding LINE and LOAD wiring to ensure proper function and protection.
• Consider AFCI/GFCI Combinations: For enhanced protection, especially in bedrooms and living areas, consider arc-fault circuit interrupters (AFCIs), or combination AFCI/GFCI outlets to protect against both ground faults and dangerous arc faults.

When to Call a Professional

While troubleshooting a GFCI that won't reset is a common DIY task, there are clear instances when calling a licensed electrician is essential for your safety and to prevent further electrical damage. If you've systematically followed all the troubleshooting steps, including unplugging all devices, resetting breakers, and visually inspecting the wiring, and the GFCI still refuses to reset, a deeper electrical issue is likely present. You should immediately call a professional if you detect any burning smells, see smoke or sparks, notice scorching around the outlet, or if the circuit breaker repeatedly trips even after clearing the fault. Furthermore, if you are uncomfortable working with electricity, are unsure about identifying specific wires, or if the issue affects multiple circuits or your entire home's power, a qualified electrician has the tools and expertise to safely diagnose and repair complex wiring problems, hidden ground faults within walls, or issues within your main electrical panel that are beyond the scope of safe DIY troubleshooting. Never take chances with your home's electrical system.
