Quick Answer

When only half of an electrical outlet provides power, it's typically an indication of one of three common issues: a tripped downstream GFCI (Ground Fault Circuit Interrupter) outlet, a loose or faulty wire connection within the outlet box, or a defective outlet receptacle. Most often, the top and bottom halves of a duplex outlet are wired to share a single circuit, but sometimes they are split, with each half controlled independently or fed from different sources. This article will guide you through diagnosing and safely fixing these common problems yourself.

The Problem

You plug a lamp into the top receptacle of an outlet, and it works perfectly. You then try to plug a phone charger into the bottom receptacle, and nothing happens. Or perhaps it's the other way around. This frustrating scenario, where an electrical outlet only partially functions, is a common grievance for homeowners. It’s more than just an inconvenience; it can be a sign of underlying electrical issues that, while often simple to fix, should be addressed promptly to maintain the safety and functionality of your home's electrical system.

The duplex receptacle, as it's technically known, is designed to provide two power sources from a single wall box. When one half fails, it usually points to a specific point of failure rather than a widespread circuit problem, though it's important to rule out broader causes. Understanding the common causes and how to systematically troubleshoot them is key to restoring full power to your outlet.

How It Works

To understand why only half an outlet works, it helps to understand how a standard duplex receptacle is wired. Inside a wall box, a duplex outlet receives power via three main wires: hot, neutral, and ground. The 'hot' wire (usually black) brings 120 volts of alternating current from the circuit breaker. The 'neutral' wire (usually white) completes the circuit, returning current to the electrical panel. The 'ground' wire (bare copper or green) provides a safety path for electricity in case of a fault.

In a standard setup, both the top and bottom receptacles of a duplex outlet share these same hot and neutral connections. The black hot wire connects to one of the brass-colored terminal screws (usually on the right side when facing the outlet), and the white neutral wire connects to one of the silver-colored terminal screws (usually on the left side). The bare copper ground wire connects to the green screw terminal. Both receptacles often draw power from these same terminals. However, a small metal tab, known as a 'break-off tab' or 'split tab,' connects the two hot (brass) terminals and the two neutral (silver) terminals. If this tab is intact, both receptacles operate as one. If the tab on the hot side is broken off, it allows the top and bottom receptacles to be powered independently – useful for applications like a switched outlet controlling one half. If the tab on the neutral side is broken, it's typically an error and can lead to issues.

When only one half works, it usually means there's an interruption in the electrical path to that specific half. This could be a loose wire connection directly on the terminal screw for that half, a break in the internal wiring of the outlet itself, or, less commonly, an issue with the split tab if the outlet was intended to be split but one half lost its power source. Often, one of the most overlooked culprits is a tripped GFCI outlet further down the line, which can cut power to all subsequent outlets, including yours, but sometimes only to one half if wired unusually, or if your specific problematic outlet is faulty internally after a surge.

Step-by-Step Fix

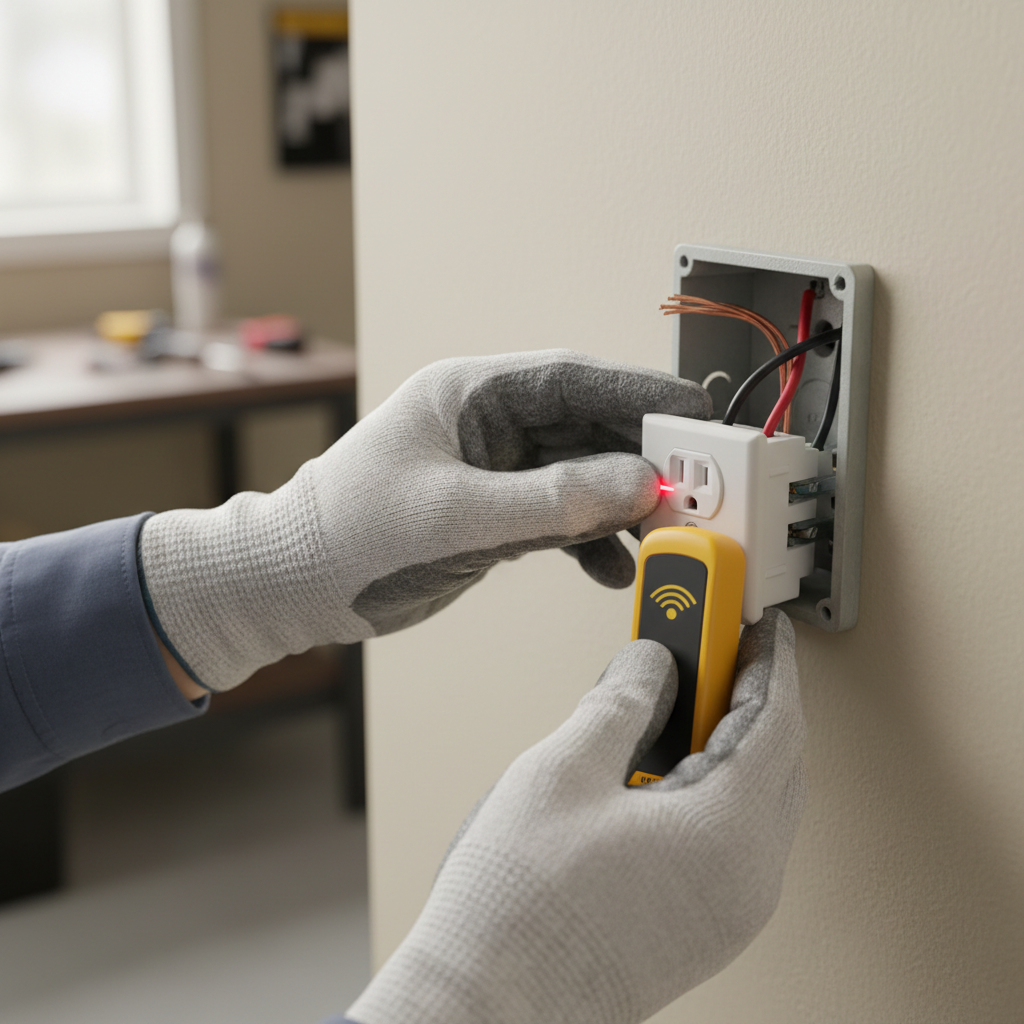

Safety First — Before performing any electrical work, always turn off the power to the circuit at your main electrical panel. Use a non-contact voltage tester to confirm the power is off at the outlet you will be working on.

1. Check for Tripped GFCI Outlets — The most common and easiest fix.

• Action: Locate all GFCI outlets in your home, especially those in kitchens, bathrooms, garages, basements, and outdoors. These outlets have “TEST” and “RESET” buttons. Press the “RESET” button firmly on any GFCI outlet you find.
• Explanation: A single GFCI outlet can protect all standard outlets connected downstream from it. If the GFCI trips due to a ground fault, it will cut power to all protected outlets, sometimes leading to only half an outlet working if there's an internal fault in your conventional outlet being protected. If pressing RESET restores power to both halves of your problematic outlet, you've found the issue.
• If this doesn't work: Proceed to the next step.

2. Test Other Outlets on the Same Circuit — Is it just one outlet or part of a group?

• Action: Using a known working device (like a small lamp or phone charger), test other outlets in the room or nearby areas. Note which outlets are functional and which are not.
• Explanation: This helps determine if the problem is isolated to the single problematic outlet or if it's a broader circuit issue. If other outlets on the same circuit are also dead or partially dead, it might point to a tripped circuit breaker (though usually, both halves would be dead then) or a loose connection further upstream in the circuit.
• If this doesn't work: Continue to inspect the outlet itself.

3. Inspect the Outlet Receptacle for Damage — Look for obvious signs of trouble.

• Action: With the power off at the breaker, carefully remove the faceplate from the problematic outlet. Visually inspect the outlet for any signs of burn marks, discoloration, melted plastic, or loose wires.
• Explanation: Burn marks indicate overheating, which could be caused by a loose connection or an overloaded circuit. Visible damage to one half of the outlet could explain its failure while the other half still functions.
• If signs of damage are present: It’s highly likely the outlet itself is faulty and needs replacement.

4. Check Wire Connections — Loose wires are a frequent culprit.

• Action: Gently pull the outlet away from the wall box, without disconnecting any wires. With the power still off, carefully inspect all wire connections: the black (hot) wires, white (neutral) wires, and bare copper (ground) wire. Pay close attention to the brass terminals (hot) and silver terminals (neutral) that correspond to the non-working half of the outlet. Tug gently on each wire to ensure it's securely fastened under its screw terminal or inserted properly into its back-stab connection (though screw terminals are preferred and more reliable).
• Explanation: Loose wire connections are a very common cause of intermittent power or power loss to parts of an electrical device. A loose hot or neutral wire to one side of the outlet can prevent that side from receiving power. Back-stab connections, where wires are pushed into small holes, are particularly prone to loosening over time.

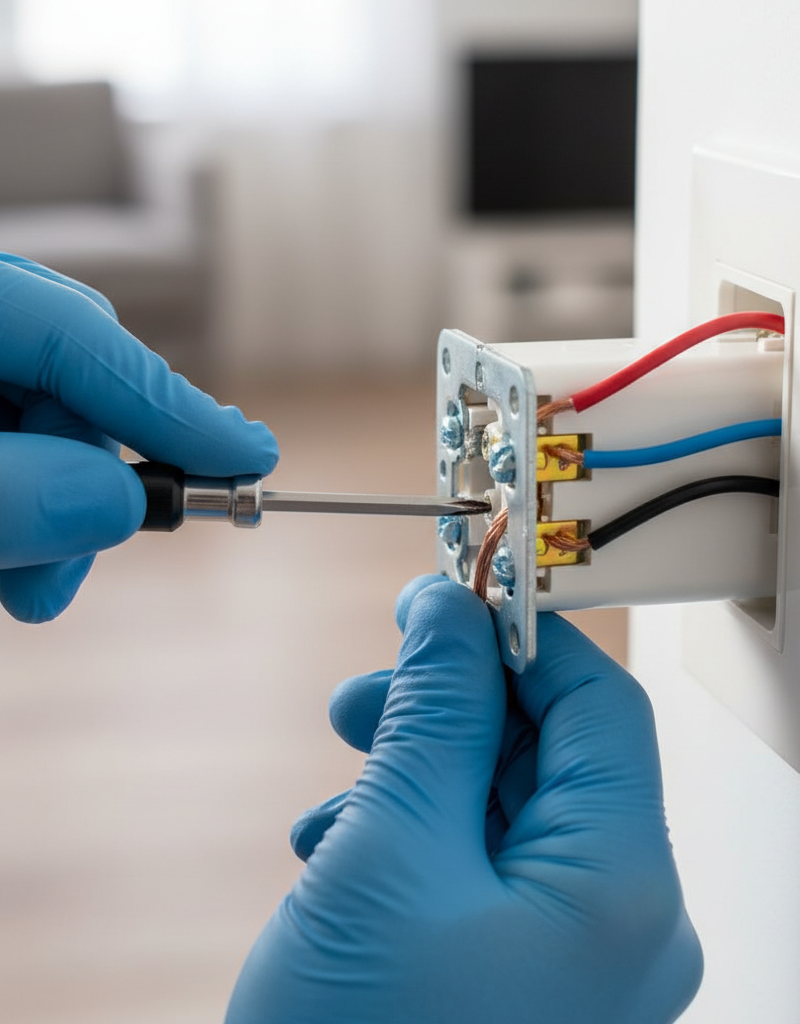

• If wires are loose: Tighten all screw terminals securely. If back-stab connections are used, it's best practice to move the wires to the more secure screw terminals by forming a 'shepherd's hook' loop and tightening them clockwise around the screws.

5. Test the Outlet's Internal Split Tab (If Applicable) — For outlets intended to be split.

• Action: While the outlet is still pulled out and the power off, examine the metal tabs connecting the two brass (hot) screws and the two silver (neutral) screws. If the outlet is designed to be split (e.g., for a half-switched outlet), the hot-side tab would be purposefully broken off. Ensure that if this tab is intact, it hasn't somehow become compromised or if it was broken, that the wiring to each side is correct.
• Explanation: If the hot-side tab is broken on an outlet that's not intended to be split, it could effectively disconnect power to one of the receptacles if that side isn't receiving its own hot feed. This is less common for a randomly failing half, but worth a check if no other issues are found.
• If the tab is intact but you suspect splitting: Do not attempt to break the tab unless you are certain of the wiring configuration you need. Call a pro for complex split wiring.

6. Replace the Outlet Receptacle — If all else fails, the outlet itself is likely faulty.

• Action: With the power off, disconnect all wires from the old outlet. Note carefully which wire goes to which terminal (taking a photo can help). Connect the corresponding wires to the new outlet, ensuring the black (hot) wires connect to the brass screws, white (neutral) wires to the silver screws, and the bare copper (ground) wire to the green screw. Push the new outlet carefully back into the box, attach the faceplate, and restore power at the breaker.
• Safety Note: Always purchase a new outlet that matches the amperage rating of your circuit (usually 15-amp or 20-amp). If replacing a GFCI or AFCI outlet, ensure the new one matches the type.
• Explanation: Electrical outlets endure significant wear and tear from constant use, plugging/unplugging, and occasional power surges. Over time, the internal contacts can weaken or corrode, leading to intermittent power or complete failure of one or both receptacles. Replacing the outlet is often the most straightforward solution once other causes are ruled out.

Common Causes

• Tripped GFCI Outlet: A ground fault anywhere on the circuit protected by a GFCI can cause it to trip, cutting power to downstream outlets. Sometimes, an internal issue with the standard outlet can cause a GFCI upstream to react, leading to partial failure.
• Loose Wire Connections: The most frequent DIY electrical issue. Over time, vibration, expansion, and contraction can cause electrical wires to loosen from their terminal screws or push-in (back-stab) connectors, interrupting the flow of electricity to one half of the outlet.
• Faulty Receptacle: The internal mechanisms of an electrical outlet can wear out, corrode, or get damaged by overloads or surges, leading to one of the receptacles failing while the other still works.
• Broken Split Tab (Hot Side): While often intentional for half-switched outlets, an accidental break of the hot-side tab on an un-split circuit can effectively disconnect power to one receptacle if it's not receiving an independent hot feed.
• Improper Wiring: Less common, but incorrect initial wiring or modifications can lead to one half of an outlet not receiving proper hot or neutral connections.

Common Mistakes

• Forgetting to Check GFCI Outlets: Many homeowners jump straight to opening the outlet when a simple GFCI reset would have fixed the issue. Always start by checking all GFCIs.
• Not Shutting Off Power: Working on live electrical circuits is extremely dangerous and can lead to severe injury or electrocution. Always, always turn off the breaker first and confirm with a voltage tester.
• Ignoring Loose Back-Stab Connections: While convenient for installation, back-stab connectors are less secure than screw terminals and are prone to loosening. Many DIYers will just tighten them rather than moving the wire to a screw terminal.
• Assuming a Broader Electrical Problem: Don't immediately assume a major wiring fault without first troubleshooting the outlet itself and its immediate circuit elements. Often, the problem is localized.
• Over-tightening or Under-tightening Screws: Both are problematic. Over-tightening can strip the screw or damage the wire; under-tightening leaves a loose connection that can cause arcing and fire hazards. Wires should be snug and secure.

Cost & Time Breakdown

Tips & Prevention

• Regular GFCI Testing: Test your GFCI outlets monthly by pressing the
