Quick Answer

When your air conditioner refuses to power on, the immediate panic can often be resolved with a few simple checks. The most frequent issues are surprisingly basic: a tripped circuit breaker, a safety float switch activated by a clogged condensate drain line, or a blown fuse within the outdoor unit's disconnect box. Start by resetting any tripped breakers related to your HVAC system. If that doesn't work, investigate your indoor unit's condensate pan for standing water, which indicates a clog that needs clearing.

The Problem

Imagine a scorching summer day. You walk inside, reach for the thermostat, and… nothing. The thermostat display might be blank, or it might show 'cool' but the outdoor compressor remains silent, and no air blows from the vents. This common problem, an AC unit completely failing to turn on, is incredibly frustrating. It usually points to an electrical interruption or a safety mechanism that's intentionally shutting down the system to prevent damage. While it can signal a major component failure, more often than not, the solution is much simpler and can be resolved without an expensive service call.

How It Works

To understand why your AC isn't turning on, it helps to know the basic operational sequence. When you set your thermostat to 'cool' and lower the temperature, it sends a low-voltage signal to the indoor air handler and the outdoor compressor/condenser unit.

The indoor air handler typically contains a blower fan and the evaporator coil. When the thermostat calls for cooling, the blower motor should start, drawing warm indoor air over the cold evaporator coil. As air passes over the coil, heat and humidity are absorbed by the refrigerant inside the coil.

The refrigerant, now warm, travels to the outdoor compressor. The compressor, the 'heart' of your AC, pressurizes this refrigerant, increasing its temperature and pressure. It then sends the hot, high-pressure refrigerant to the condenser coil, where a large fan blows outdoor air across the coils, dissipating the heat. The refrigerant cools and condenses back into a liquid, ready to return indoors to repeat the cycle.

Two main electrical circuits power your AC: a 24-volt (24V) low-voltage circuit for the thermostat and control signals, and a 120V or 240V high-voltage circuit for the compressor, outdoor fan, and indoor blower motor. If either of these circuits is interrupted—by a tripped breaker, a blown fuse, or a safety switch—the entire system can fail to energize. Crucially, many AC systems have a condensate safety switch. This switch is located in the condensate pan or drain line and is designed to detect overflowing water. If the drain line clogs and the pan fills, this switch activates, cutting power to the outdoor unit (and sometimes the indoor unit too) to prevent water damage. This is a common and often overlooked reason for an AC not turning on.

Step-by-Step Fix

Before beginning any electrical troubleshooting, always prioritize safety. Turn off power at the thermostat and, if possible, at the main electrical panel before opening any access panels on your AC units.

Step 1: Inspect the Thermostat and Settings — The simplest check first.

• Check Batteries: Replace batteries in battery-powered thermostats, even if the display appears on. A low battery can prevent signals from reaching the AC unit.
• Verify Settings: Ensure the thermostat is set to 'Cool' mode and the fan is set to 'Auto' (or 'On' for continuous airflow, but 'Auto' is typical for cooling). Lower the target temperature at least 5-10 degrees below the current room temperature.
• Wait a Few Minutes: Some thermostats have a built-in delay (often 3-5 minutes) to protect the compressor from rapid cycling. Give it time after adjusting settings.

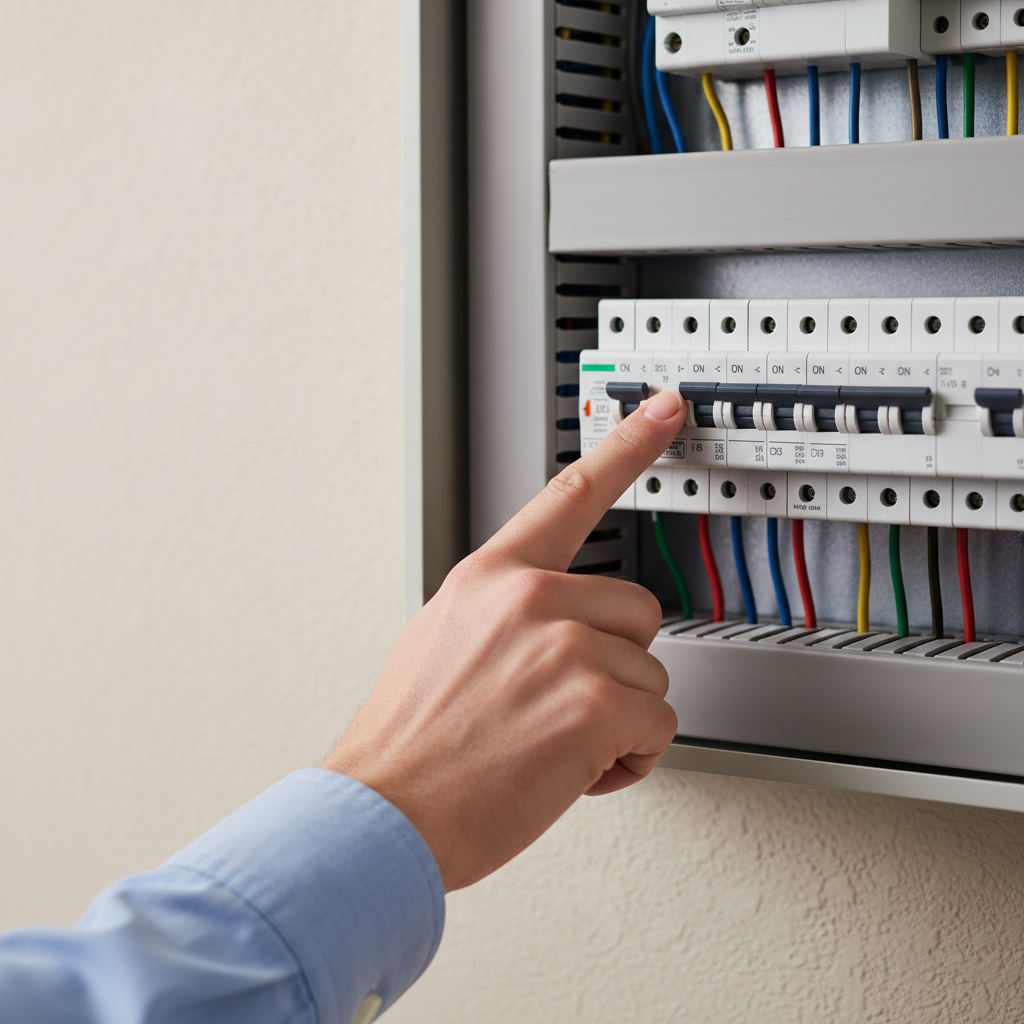

Step 2: Check the Circuit Breaker — The most common electrical culprit.

• Locate Your Electrical Panel: This is usually in a basement, garage, or utility closet.
• Identify AC Breakers: Look for breakers labeled 'AC', 'Furnace', 'HVAC', or 'Air Handler'. There may be two breakers for the outdoor unit (a double-pole, 240V breaker) and one for the indoor air handler (a single-pole, 120V breaker).
• Reset Tripped Breakers: A tripped breaker will be in an 'off' or middle position. Firmly push it all the way to 'Off' and then back to 'On'. Do this even if it just looks slightly out of alignment.
• If it Trips Again: If the breaker immediately trips again, do not keep resetting it. This indicates a short circuit or an overloaded component and requires professional diagnosis. Call an electrician or HVAC technician.

Step 3: Inspect the Outdoor Disconnect Box Fuses — Another crucial electrical point.

• Locate the Disconnect Box: This gray metal box is typically mounted on the wall near your outdoor AC compressor unit.
• Turn Off Power (CRITICAL): Open the disconnect box. You'll see a pull-out handle or a lever. Pull it out or switch it to the 'Off' position to shut off power to the outdoor unit. Do NOT proceed without cutting power first.
• Check Fuses (If Present): Many disconnect boxes contain two cartridge-style fuses. Carefully inspect them for a broken filament or discoloration, which indicates a blown fuse. Some disconnects use a circuit breaker instead of fuses; if so, ensure it's in the 'On' position.
• Replace Fuses: If a fuse is blown, replace both fuses with new ones of the exact same amperage and voltage rating. Take the old ones to a hardware store to ensure you get the correct replacements.
  • Safety Note: Fuses protect against electrical overloads. If new fuses blow immediately, it indicates a serious electrical problem with the outdoor unit, such as a failing compressor or condenser fan motor. This is a job for a licensed HVAC technician.

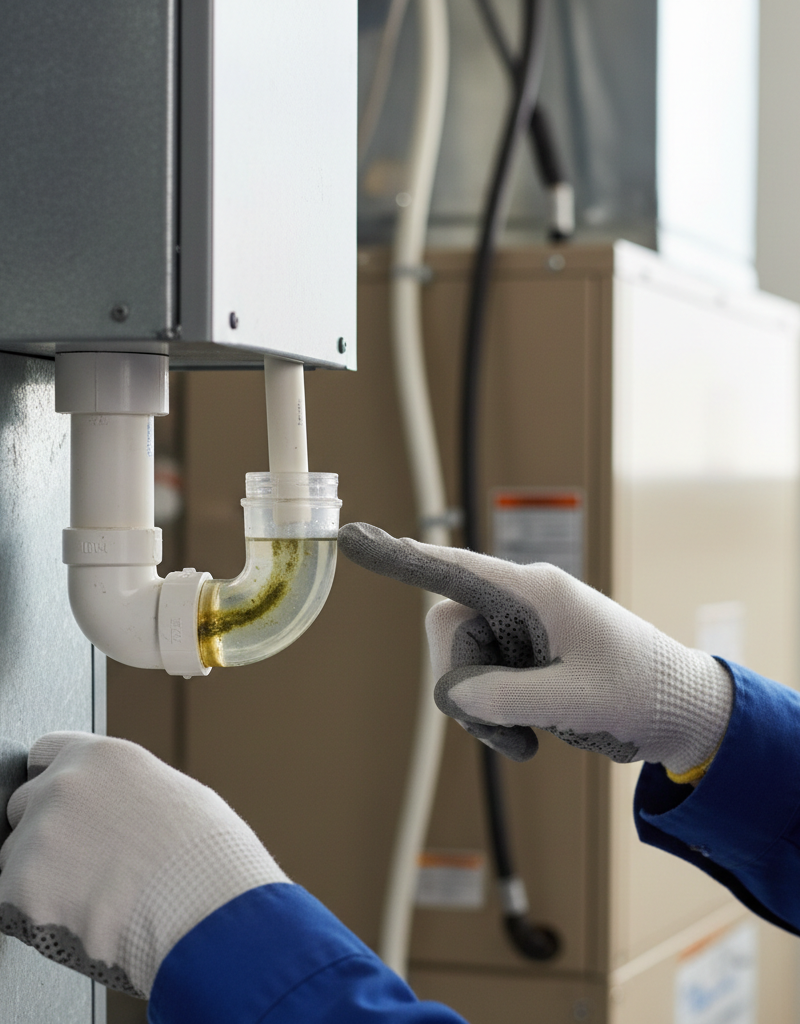

Step 4: Clear the Condensate Drain Line — A common, often overlooked safety shutdown.

• Locate the Indoor Unit: This is usually your furnace or air handler, typically in a closet, attic, or basement.
• Find the Condensate Pan: Below the evaporator coil, you'll see a shallow pan designed to collect condensation. Inspect it for standing water. If it's full, your drain line is likely clogged.
• Identify the Float Switch: Many units have a small plastic or clear box attached to the condensate pan or drain line with wires running from it. This is the float switch, designed to cut power if water levels get too high.
• Clear the Clog:
  • Turn off Power: Ensure power to the indoor unit is off at the breaker.
  • Remove Standing Water: Gently scoop out water from the pan or use a wet/dry vacuum.
  • Clear the Drain Line: Locate the PVC drain line that exits the pan. You can try to pour a cup of distilled vinegar down the line to dissolve algae. For tougher clogs, use a wet/dry shop vacuum at the outdoor end of the drain line to suction out the blockage. Alternatively, carefully disconnect the PVC pipe section near the air handler and use a pipe brush to remove sludge. Be prepared for water to drain out.
• Reset the Float Switch: Once the pan is empty and the drain cleared, the float switch should reset automatically. You may need to manually push down and release the float if it's stuck.

Step 5: Check the Furnace/Air Handler Switch — An accidental power cut.

• Locate the Switch: Near your indoor furnace or air handler, there's often a standard light switch (usually red or with a red cover plate) mounted on a wall or directly on the unit. This is a service disconnect switch.
• Ensure it's ON: Accidentally bumping or turning this switch off will cut power to your indoor unit and, consequently, prevent the entire AC system from starting. Flip it to the 'On' position.

Step 6: Reset the Unit — A last-ditch effort for minor glitches.

• Turn Off Power: Flip the main circuit breaker for your indoor and outdoor units to 'Off'.
• Wait 30 Minutes: Leave the power off for at least 30 minutes. This allows any internal controls or processors to fully discharge and reset.
• Restore Power: Turn the breakers back 'On' and set your thermostat to call for cooling. Listen for the unit to start.

Common Causes

• Tripped Circuit Breaker: The most frequent offender. Overcurrents from a struggling motor or a power surge can trip the breaker, protecting your system.
• Clogged Condensate Drain Line: Algae, mold, and sludge can block the PVC drain pipe, causing water to back up, activating a safety float switch.
• Blown Fuses (Outdoor Disconnect): The fuses in the outdoor disconnect box protect the compressor and outdoor fan from power surges or electrical faults within the unit.
• Thermostat Issues: Dead batteries, incorrect settings, or a faulty thermostat can prevent the 'call for cool' signal from reaching the AC unit.
• Service Disconnect Switch Off: An easily overlooked switch near the air handler that can be accidentally turned off, cutting power to the indoor unit.
• Component Failure (Pro Territory): While less common for a full no-start, a burnt-out capacitor, seized compressor, or faulty relay can prevent the unit from receiving power or operating, often tripping breakers in the process.

Common Mistakes

• Ignoring the Circuit Breaker: Many homeowners jump to more complex diagnostics when a simple breaker reset is all that's needed. Always start here.
• Not Checking the Condensate Pan: Overlooking a full condensate pan and the activated safety switch means you'll miss a very common reason for a system shutdown.
• Replacing Fuses Without Diagnosis: If fuses blow immediately after replacement, there's a serious underlying electrical issue. Continuously replacing them can damage your system or create a fire hazard.
• Improper Thermostat Settings: Forgetting to set the thermostat to 'Cool' or ensuring the fan is on 'Auto' (or 'On') prevents the system from responding.
• Failing to Wait for Compressor Delay: Many systems have a built-in delay. Impatience can lead you to believe the fix didn't work when the system just needs a few minutes to engage.
• Working on Electrical Components Without Cutting Power: This is incredibly dangerous. Always kill power at the breaker or disconnect box before touching any wiring or internal components.
• Mixing Fuse Amperage: Using fuses with a different amperage rating than specified can compromise safety and potentially damage your AC system.

Cost & Time Breakdown

Tips & Prevention

• Regular Filter Changes: A clean air filter improves airflow, reduces strain on the blower motor, and can prevent icing, which indirectly can lead to system shutdowns.
• Clear Condensate Drain Annually: Pour a cup of distilled vinegar down the condensate drain line once a year to prevent algae and mold buildup.
• Keep Outdoor Unit Clear: Ensure the outdoor condenser coil is clear of debris (leaves, grass clippings, shrubs) to maintain proper airflow and prevent overheating, which can trip breakers.
• Thermostat Maintenance: Replace thermostat batteries annually (if applicable) and recalibrate if you suspect inaccuracies.
• Schedule Annual Tune-Ups: Professional tune-ups can catch minor issues like weak capacitors, low refrigerant, or struggling motors before they lead to a complete system failure.

When to Call a Professional

While many 'AC won't turn on' issues are simple fixes, know when to call in a licensed HVAC professional. If you've checked the breakers, replaced fuses (and they blow again), cleared the condensate line, and verified thermostat settings, and your AC still won't turn on, it's time for an expert. This indicates a more serious underlying electrical or mechanical failure within the compressor, fan motors, capacitors, or control board. Specifically, if you hear humming but no fan movement, smell burning, see actual smoke, or if the circuit breaker for the outdoor unit repeatedly trips immediately after being reset, shut off power to the unit and call a professional immediately. These symptoms suggest a potential short circuit, a seized motor, or a compressor failure, all of which require specialized knowledge and tools to diagnose and repair safely.
