Quick Answer

The most critical step in winterizing a sprinkler system is ensuring all water is expelled from the lines, typically using an air compressor. Failure to properly remove water can lead to pipes bursting when temperatures drop below freezing, causing extensive and costly damage to the entire irrigation system. This guide focuses on the 'blow-out' method, which, when done correctly, guarantees your system is safe from winter's wrath.

The Problem

As temperatures plummet below freezing, any water left standing in your sprinkler system's pipes, valves, and sprinkler heads will expand and turn into ice. This expansion creates immense pressure within the confined spaces of your irrigation system, inevitably leading to cracked pipes, shattered sprinkler heads, and damaged valves. The result is often a costly repair bill come springtime, potentially running into hundreds or even thousands of dollars, depending on the extent of the damage. Many homeowners underestimate the destructive power of freezing water or attempt to drain systems improperly, leaving residual water behind, which makes their systems vulnerable. The unseen damage can be extensive, requiring excavation, pipe replacement, and reprogramming, all of which are a hassle and an expense that can be entirely avoided with proper winterization.

How It Works

An irrigation system is a network of pipes, valves, and sprinkler heads designed to deliver water to your lawn and garden. Water enters the system from your main water supply, passes through a backflow preventer (to protect your drinking water from contamination), and then is distributed through a series of underground PVC or polyethylene pipes to the various zones of your landscape. Each zone is controlled by an electric solenoid valve, which opens and closes based on signals from your irrigation controller. When a valve opens, water flows into the lateral lines and out through the sprinkler heads.

The challenge with winterization lies in the complex network of horizontal and vertical pipes, elbows, and low points where water can easily become trapped. Simply turning off the water and letting the system drain isn't enough, as gravity often won't clear all the water, especially in systems with slopes or dips. This is where the 'blow-out' method becomes essential. It involves introducing compressed air into the system to force all the remaining water out. The air, under controlled pressure, pushes the water through the lines and out of each sprinkler head, effectively drying the system. Different zones are blown out individually to ensure adequate pressure and air volume can clear each section thoroughly. Understanding this basic operational flow highlights why a comprehensive blow-out is the only reliable way to prevent freeze damage.

Step-by-Step Fix

Safety First! Protect your eyes with safety goggles and wear sturdy gloves. Compressed air can be dangerous if not handled properly. Never stand over a sprinkler head during a blow-out.

1. Shut Off the Main Water Supply – The First Defense Against Flooding

— Locate the main shut-off valve for your irrigation system, typically near your water meter or where the sprinkler system connects to your home's main water line. Turn it completely off. If your system has an indoor shut-off and an outdoor shut-off (post-backflow), ensure both are closed. This prevents any new water from entering the system during the blow-out process.

2. Drain the Backflow Preventer – Protecting a Critical Component

— Your backflow preventer is a crucial component that prevents irrigation water from contaminating your potable water supply. Most backflow preventers have two test cocks and two shut-off valves. Close the two main shut-off valves on the backflow preventer. Then, using a flathead screwdriver, open the two small test cocks to drain any water trapped inside. If there are additional drain plugs, open them as well. Some backflow preventers also have an additional port for connecting an air compressor; this will be for systems specifically designed for this. Leave the test cocks open after draining.

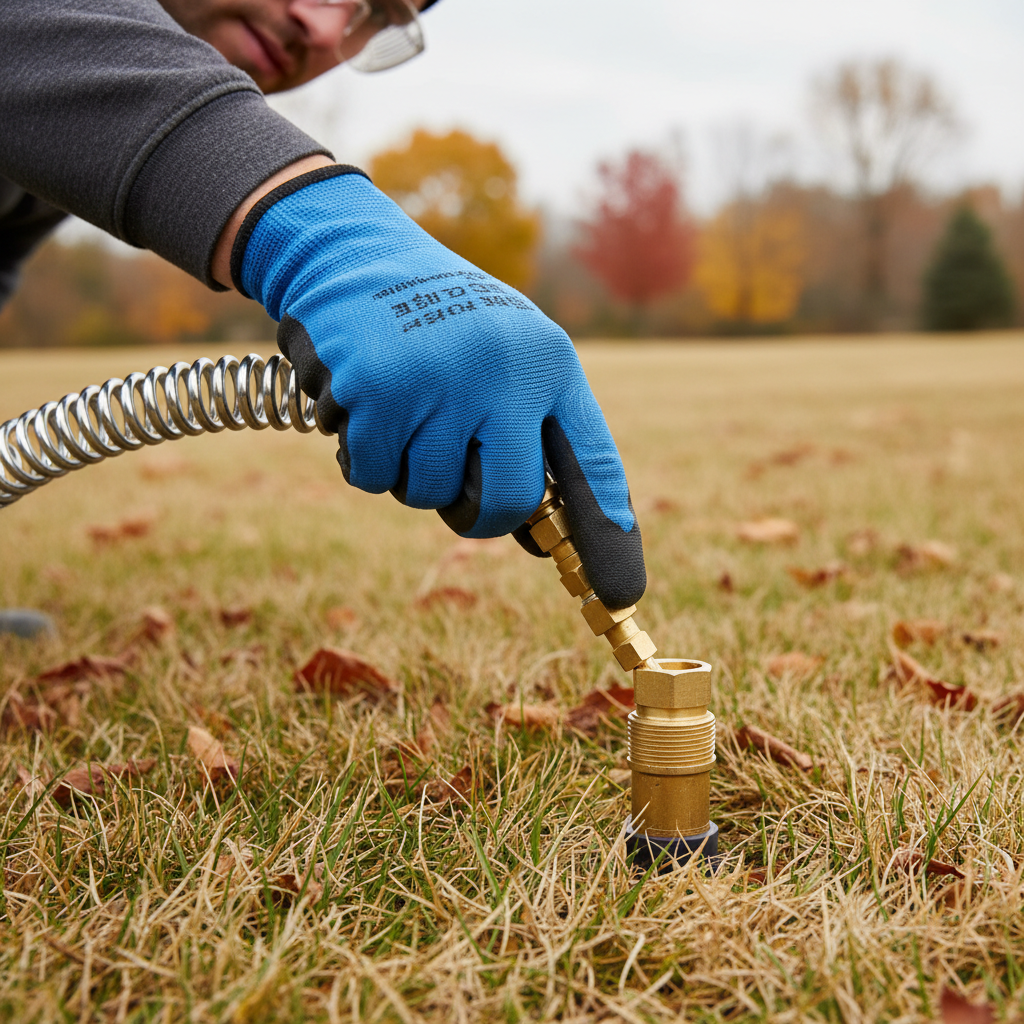

3. Connect the Air Compressor – The Power Behind the Purge

— Locate the compressor connection point on your irrigation system. This is often a dedicated fitting with a ball valve, usually located after the main shut-off valve but before the backflow preventer, or sometimes a special port on the backflow preventer itself. Attach your air compressor hose securely. Ensure all connections are tight to prevent air leaks. Set your compressor to a pressure between 40-50 PSI for PVC systems and 50-80 PSI for polyethylene (black flexible pipe) systems. Never exceed 80 PSI, as this can damage your system. Start with a lower PSI and gradually increase if needed. * Tool Tip: Use a compressor with a capacity of at least 10-15 CFM (cubic feet per minute) for residential systems. Smaller compressors will struggle to clear the lines effectively.

4. Open the Farthest Zone Valve – Starting the Blow-Out Process

— On your irrigation controller, manually activate the zone valve that is geographically farthest from your compressor connection point. This allows the air to push water through the longest run of pipe first, minimizing resistance. Ensure only one zone is open at a time.

5. Begin Blowing Out the Zone – Watching the Water Eject

— Slowly open the ball valve at your compressor connection point, allowing compressed air to enter the system. You will see water and mist begin to eject from the sprinkler heads in the activated zone. Let the air run until only a fine mist or clear air comes out of the sprinkler heads. This typically takes 1-3 minutes per zone. Close the ball valve on the compressor connection before moving to the next zone. * Safety Note: Keep clear of the sprinkler heads and wear eye protection. Debris can also be ejected along with the water.

6. Cycle Through All Zones – Ensuring Complete Drainage

— Repeat steps 4 and 5 for each remaining zone in your irrigation system, working your way back towards the compressor connection point. Always open only one zone at a time and ensure each zone is completely dry before moving to the next. Some zones may have low-head drainage points that need extra attention.

7. Bleed Off Pressure and Disconnect – Finalizing the Blow-Out

— Once all zones have been blown out and are dry, turn off your air compressor. Slowly and carefully release any remaining air pressure from your compressor tank and the irrigation system by opening the ball valve on the compressor connection briefly. Disconnect the air compressor. Ensure the compressor connection ball valve is closed or capped if it's a permanent fixture.

8. Address Main Drain Valves (If Applicable) – Removing Any Remaining Pockets

— Some irrigation systems have manual drain valves at low points in the main line. If your system includes these, open them briefly after the blow-out to ensure any last pockets of water are removed. Close them securely afterward.

9. Winterize the Controller – Protecting the Brains of the Operation

— While not directly related to water in the pipes, protecting your irrigation controller is good practice. Unplug it from its power source. If it's an older model or exposed to extreme weather fluctuations, consider removing it and storing it indoors. Modern outdoor-rated controllers are generally fine, but unplugging reduces the risk of electrical surges.

10. Store Backflow Preventer (If Removable) – Preventing Theft and Damage

— In some regions, or for certain types of backflow preventers, they are designed to be easily removed and stored indoors for the winter. If yours is designed this way, disconnect it and bring it inside. This protects it from freeze damage and theft.

Common Causes

• Incomplete Drainage: The most prevalent cause of freeze damage is simply not removing all water from the system. Gravity drainage alone is rarely sufficient, especially in complex systems with varying pipe elevations.
• Insufficient Air Pressure/Volume: Using an air compressor that lacks adequate PSI (pounds per square inch) or CFM (cubic feet per minute) can leave water in the lines, particularly in longer runs or larger pipes. Homeowners often try to use small, portable compressors not designed for this task.
• Skipping Zones: Forgetting to blow out a specific zone, or not running a zone long enough, will leave water at risk.
• Incorrect Order of Operations: Not shutting off the main water supply first or neglecting to properly drain the backflow preventer can lead to issues.
• Early Freeze: Unexpected early freezes before winterization occurs can catch homeowners off guard.

Common Mistakes

• Over-Pressurizing the System: Applying too much air pressure (e.g., above 80 PSI) can cause damage to pipes, fittings, and sprinkler heads, even if there's no water. Always adhere to recommended pressure limits for your pipe type.
• Not Wearing Safety Gear: Ignoring eye protection can lead to serious injury from ejected water, dirt, or even small rocks. Always wear safety goggles.
• Blowing Out Multiple Zones Simultaneously: Opening more than one zone at a time significantly reduces the air pressure and volume available to each zone, leading to incomplete water removal and potential damage.
• Rushing the Process: Not allowing enough time for each zone to completely clear of water can leave behind hidden pockets of moisture that will freeze.
• Forgetting the Backflow Preventer: While the main lines are crucial, the backflow preventer is often vulnerable and expensive to replace. Many DIYers forget to drain or remove it.
• Using a Tire Compressor: While tempting, a typical tire inflator compressor does not have the CFM required to effectively clear an entire irrigation system, leading to frustration and incomplete winterization.

Cost & Time Breakdown

Tips & Prevention

• Mark Your Valves: Use brightly colored flagging or spray paint to mark the locations of your main shut-off valve, backflow preventer, and compressor connection point. This makes finding them easier each year.
• Annual Check-up: In the spring, before activating your system, thoroughly inspect all visible components for cracks or leaks that might have occurred over winter. Run each zone to check for proper operation and any hidden issues.
• Set a Calendar Reminder: Don't wait until the last minute! Schedule your winterization before the first hard freeze is predicted in your area, ideally when overnight lows consistently drop into the low 30s°F (0-2°C).
• Consider a Professional Service: If you're uncomfortable with the blow-out method or lack the necessary equipment, investing in a professional winterization service is a relatively small cost compared to potentially thousands in freeze damage. They have specialized equipment and expertise.
• Insulate Exposed Components: While not a substitute for blowing out the system, insulating exposed pipes and the backflow preventer with foam pipe insulation can offer an extra layer of protection during mild dips in temperature or if you have a slight delay in winterizing.

When to Call a Professional

While this guide details the blow-out method, there are specific situations where calling a licensed irrigation professional is not just recommended, but essential. If your system has a P.V.B. (Pressure Vacuum Breaker) or an R.P.Z. (Reduced Pressure Zone) backflow preventer, tampering with them without proper knowledge can lead to severe issues, including fines for violating local water codes if they are not re-certified by a licensed professional in the spring. If you are unsure about the type of backflow preventer you have, or if it has complex shut-off and drain mechanisms, it's best to err on the side of caution. Furthermore, if you do not own or cannot rent an adequately sized air compressor (minimum 10-15 CFM for most residential systems), a DIY blow-out will be ineffective and leave your system vulnerable. Professionals have industrial-grade compressors capable of rapidly and safely clearing even large, complex systems. Finally, if you're uncomfortable working with pressurized air, feel unsure about any step, or if your system has suffered freeze damage in the past, a professional can provide peace of mind and ensure the job is done correctly, preventing costly repairs down the line.
