Quick Answer

AWhen a sprinkler head refuses to pop up, it’s typically signaling one of three core problems: insufficient water pressure reaching that specific head, a physical obstruction preventing its riser from extending, or internal damage. Most homeowners can diagnose and resolve these issues in less than 30 minutes using basic tools. Begin by carefully pulling the sprinkler head riser up manually to inspect for immediate blockages around the stem or nozzle. If clear, you’ll then need to check the water pressure and look for clogs deeper within the head assembly.

The Problem

There's nothing more frustrating than a patchy, brown lawn segment despite your irrigation system running. Often, the culprit is a single sprinkler head—or several—that stubbornly stays put, refusing to rise and distribute water. This isn't just an aesthetic issue; it leads to uneven watering, stressed turf, and can even signal an underlying problem that could impact your entire system's efficiency and longevity. Whether it's a rotor head, a spray head, or a pop-up impact sprinkler, the mechanism is designed to lift under water pressure and retract when the water is off. When this essential function fails, your landscape suffers, and water is wasted.

The three most common reasons for a sprinkler head not popping up are:

1. Low Water Pressure: The system simply isn't providing enough force to overcome the spring-loaded mechanism that keeps the head retracted.
2. Clogged Nozzle or Filter: Dirt, sand, or mineral deposits can block the tiny orifices of the nozzle or the filter screen, preventing water from exiting and thus, preventing the head from lifting.
3. Debris in the Sprinkler Body: Small stones, grit, or even grass clippings can get inside the sprinkler body and jam the riser stem, making it impossible for it to move freely.

Less common but still possible causes include a broken internal spring, a compromised seal, or an issue with the main irrigation line itself. Addressing these issues promptly not only restores proper watering but can prevent further damage to your system.

How It Works

Understanding how a pop-up sprinkler head functions is crucial for effective troubleshooting. At its core, a pop-up sprinkler head is a relatively simple hydro-mechanical device designed to remain hidden when not in use and emerge only when water is flowing. When your irrigation system activates, water is pumped into the lateral lines, creating pressure. This pressure acts against the top of a sealed chamber within the sprinkler body, pushing a central riser column upwards.

The riser has an o-ring or seal that creates a watertight fit, preventing water from escaping around the sides as it rises. At the top of the riser is the sprinkler nozzle, which is designed to atomize and distribute the water in a specific pattern (e.g., full circle, partial circle, square). A strong spring, located at the base of the riser or coiled around it, provides the opposing force. When the water pressure drops (i.e., the system turns off), this spring retracts the riser back into the sprinkler body, pulling the head flush with the ground and protecting it from lawnmowers, foot traffic, and debris.

For the head to operate correctly, a delicate balance must be met: the water pressure must be sufficient to overcome the spring's tension and lift the riser to its full height, and the riser itself must be free to move without obstruction. Any material that impedes this upward movement—such as dirt, sand, root intrusion, or damage to the internal components—will result in a head that either fails to pop up at all, or only partially extends, leading to poor coverage and wasted water. The filter screen, often located directly beneath the nozzle, plays a vital role in preventing larger debris from reaching and jamming the more sensitive internal mechanisms and nozzle pathways.

Step-by-Step Fix

Always begin troubleshooting with your irrigation system off to prevent accidental activation and potential injury.

1. Gentle Manual Inspection — Carefully pull up the sprinkler head and check for obvious culprits.

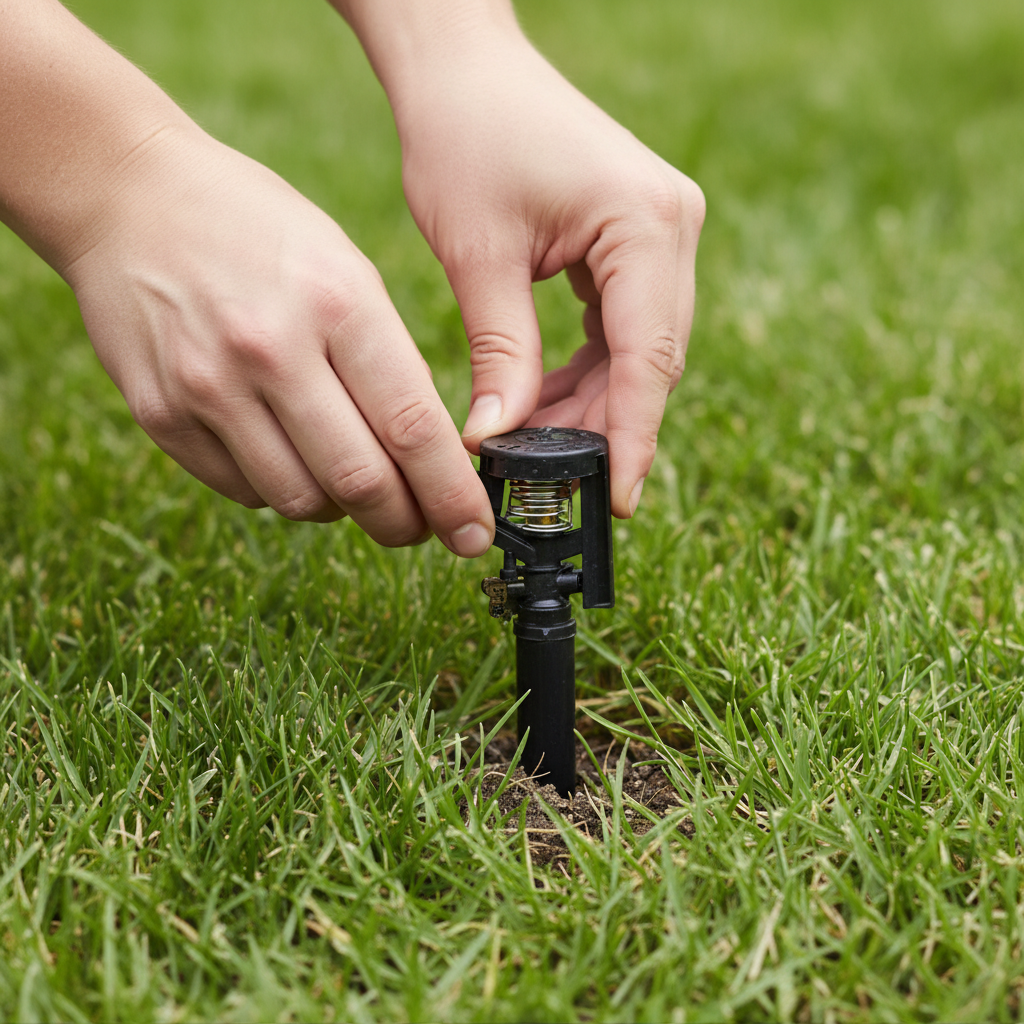

• With the system off, find the non-functional sprinkler head. Grasp the top edge of the cap and gently pull upwards. Most pop-up heads can be manually extended to their full height even without water pressure. If you can't pull it up, gently wiggle it while pulling. If it moves an inch or two but stops, there might be a significant obstruction or a damaged riser.
• Look for: Grass clippings, mulch, dirt, or small stones wedged around the retractable stem or under the cap. Also, check for encroaching grass or roots that have grown over and around the head, restricting movement. Clear any visible debris with your fingers or a small brush.
• If it's stuck firm: Try carefully digging a small circle around the head (about 4-6 inches wide) to expose the top of the sprinkler body. This helps visualize any obstructions deeper around the seal.

2. Check for Low Water Pressure — Ensure adequate flow to the specific head.

• Turn your irrigation system on for the zone containing the problematic head. Observe if other heads in that zone are popping up normally and reaching their full spray radius. If multiple heads in a zone are struggling, low water pressure is a likely culprit.
• Possible causes for low pressure: Too many heads on one zone, a partially closed main water valve, a kinked lateral line (less common for a single head), or a problem with your main irrigation pump/backflow preventer.
• Test: While the system is on, briefly unscrew the nozzle from the problematic head (if accessible and it partially rises) or another nearby, working head. If water gushes out with strong force, the pressure might be okay, and the problem is with the head itself. If it's a weak trickle, low pressure is confirmed.

3. Clean the Sprinkler Head Filter and Nozzle — The most common fix for clogs.

• Safety First: Turn off the irrigation system for the affected zone.
• Remove the top: Use a flathead screwdriver or the key provided by the manufacturer (if applicable) to carefully unscrew the nozzle from the top of the riser. Be gentle, as plastic can break.
• Access the filter: Beneath the nozzle, you'll typically find a small mesh filter screen. Carefully pull this filter out. It might be cone-shaped or cylindrical.
• Clean thoroughly: Rinse both the nozzle and the filter under strong running water. Use a small brush (like an old toothbrush) or a paperclip to dislodge any stubborn dirt, sand, or mineral deposits from the nozzle's tiny orifices and the filter mesh. Ensure all holes in the nozzle are clear.
• Reassemble: Insert the clean filter back into the riser, then screw the nozzle back on firmly but don't overtighten. Ensure it's straight and properly seated.

4. Flush the Sprinkler Body — Remove internal debris.

• If cleaning the nozzle didn't work: With the system off, remove the entire nozzle and filter assembly as in step 3. The riser should now be open at the top.
• Turn on the zone (briefly!): With the nozzle and filter removed, briefly turn on the affected irrigation zone for about 5-10 seconds. Observe the water jetting out from the open riser. This
