Quick Answer

If your entire sprinkler system or a single zone refuses to activate, even when the controller seems to be functioning, the most frequent cause is a problem with the solenoid valve or its wiring, rather than the controller itself. Solenoids are essential electromagnetic devices that open and close the water flow to individual zones. Diagnosing this often involves checking for loose electrical connections, corrosion, or performing a basic continuity test on the solenoid coil. Many times, a simple solenoid replacement can restore full functionality to your irrigation system.

The Problem

You've set your sprinkler schedule, or you're trying to manually activate a zone, but nothing happens. The controller hums away, the display looks normal, but the sprinklers remain stubbornly silent and dry. This can be incredibly frustrating, leading many homeowners to immediately suspect the controller itself. While controller issues do occur, it's far more common for the problem to lie with the components out in the yard, specifically the zone valves and their solenoids. A single faulty solenoid can prevent an entire zone from watering, or if the master valve solenoid is compromised, the entire system can fail to activate.

How It Works

Understanding how your sprinkler system operates is key to diagnosing problems. At the heart of every automatic irrigation system is the controller, which acts as the 'brain.' This unit sends a low-voltage electrical signal (typically 24-28 VAC) through buried wires to individual zone valves in your yard. Each zone valve controls the water flow to a specific group of sprinkler heads. Attached to each zone valve is a small, cylindrical component called a solenoid.

The solenoid is an electromagnetic device. Inside, it contains a coil of wire and a spring-loaded plunger. When the controller sends electricity to a particular zone's solenoid, it creates a magnetic field. This magnetic field pulls the plunger upwards, opening a small diaphragm inside the valve. This opening releases the pressure differential across the diaphragm, allowing the main water pressure to push the diaphragm completely open, thus permitting water to flow through the valve and out to the sprinkler heads for that zone. When the controller cuts power to the solenoid, the magnetic field disappears, the spring pushes the plunger back down, the diaphragm reseals, and water flow stops. The master valve, if present, operates on the same principle but controls the water flow for the entire system before it reaches the individual zone valves.

Step-by-Step Fix

1. Safety First — Always disconnect power to the sprinkler controller before working on any wiring. This prevents electrical shock and potential damage to the controller.

• Tools: None
• Safety: Ensure the controller is unplugged from the wall outlet or the circuit breaker is switched off.

2. Check the Controller and Power Supply — Confirm the controller has power and isn't displaying any error codes.

• Look for a blank screen, flashing lights, or specific error messages on your controller's display. Consult your owner's manual for error code meanings.
• Ensure the power cord is securely plugged into a working outlet. Test the outlet with another device.
• If the controller powers on but seems unresponsive, try a factory reset (check your manual for instructions). Note that this will erase all programming.
• If this doesn't work: If the controller has no power, check the circuit breaker. If the breaker is tripped or the outlet is dead, you may have a larger electrical issue and should consult a licensed electrician.

3. Inspect the Master Valve — If no zones are working, the master valve is a common culprit.

• Locate your master valve, usually near the main water shut-off for your irrigation system.
• Manually try to open the master valve. Most have a small lever or a solenoid that can be twisted a quarter turn counter-clockwise to manually open it. If water flows to the main line, the issue is likely electrical to the master valve solenoid.
• If this doesn't work: If manually opening the master valve doesn't restore water, the issue could be with the main water supply to the irrigation system, a clogged master valve, or a stuck check valve.

4. Isolate the Problem to a Single Zone or All Zones? — This helps narrow down the diagnostic path.

• Run each zone individually from the controller. If only one zone fails, the problem is likely with that specific zone valve or its solenoid/wiring.
• If all zones fail, or multiple zones fail, the issue could be with the master valve, the common wire, the main power supply to the controller, or the controller's transformer.

5. Inspect Zone Valve Solenoids and Wiring (Visual Check) — Look for obvious damage or corrosion.

• Locate the non-working zone valve(s) in your yard. They are usually buried in a valve box.
• Carefully remove the lid of the valve box. Clear away any dirt or debris.
• Examine the wiring connections to the solenoid. Look for cut wires, frayed insulation, or heavily corroded connections.
• Gently tug on the wires to ensure they are securely fastened to the solenoid terminals and to the main common wire.
• If this doesn't work: If wires appear fine, proceed to test the solenoid electrically.

6. Manually Activate the Zone Valve — Bypass the electrical signal to check water flow.

• On the non-working zone valve, locate the bleed screw or lever. It's usually a small knob or a quarter-turn handle on the valve body.
• Slowly twist the bleed screw counter-clockwise or flip the lever to the 'on' position. You should hear water begin to flow and the sprinklers for that zone should activate.
• If water flows when manually activated, the valve mechanism itself is likely fine, and the problem is electrical (solenoid or wiring).
• If this doesn't work: If the zone still doesn't get water when manually opened, the valve itself might be clogged or damaged, or there's a blockage in the main line to that zone.

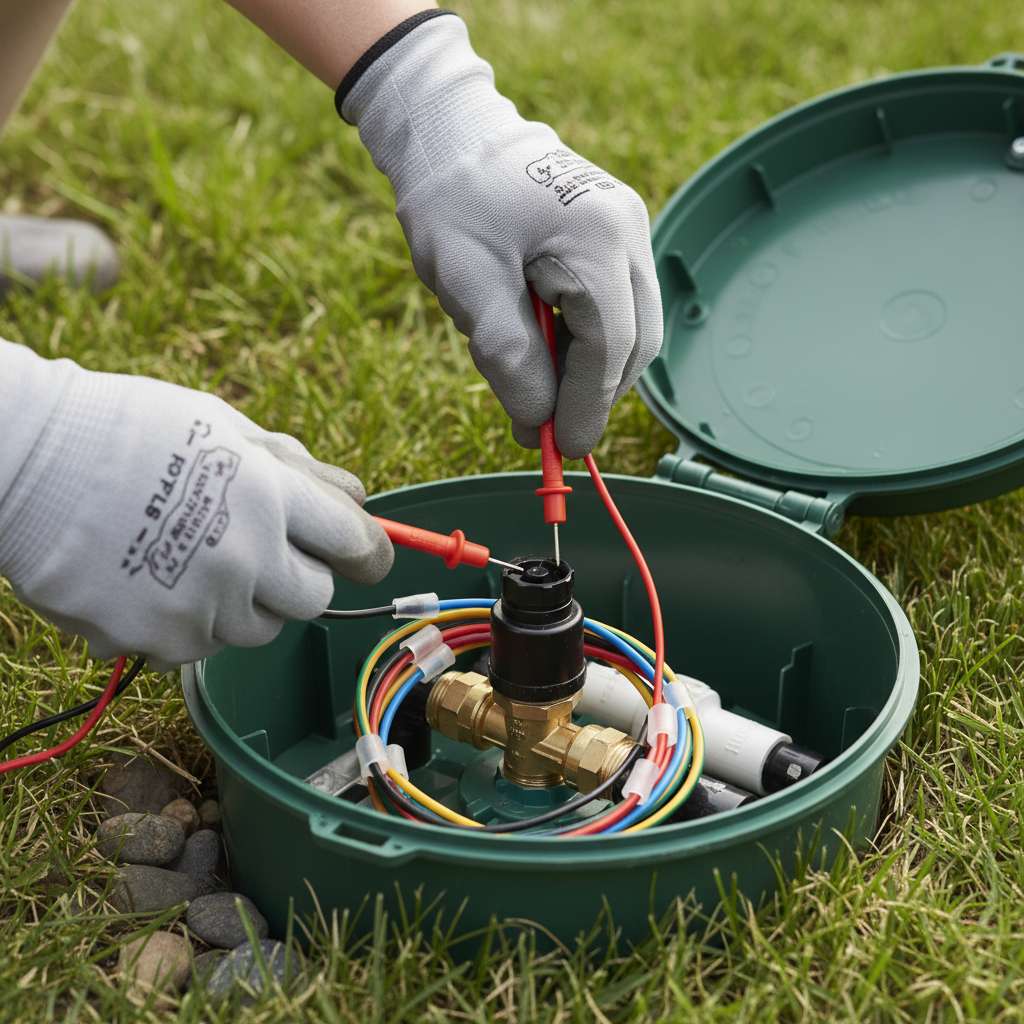

7. Test Solenoid Coil Continuity — Use a multimeter to check the solenoid's health.

• Tools: Multimeter
• Safety: Ensure the controller's power is off before disconnecting any wires.
• Disconnect the two wires leading to the solenoid (usually one colored wire from the controller and one common wire). It's a good idea to mark them to remember which is which.
• Set your multimeter to measure resistance (Ohms, Ω). A healthy solenoid coil typically reads between 20 and 60 Ohms. Consult your solenoid's specifications if possible.
• Touch one probe of the multimeter to each of the solenoid's terminals. A reading within the acceptable range indicates the coil is likely good. A reading of 'OL' (open loop) or infinity indicates a broken coil, and the solenoid needs replacement. A reading of 0 Ohms or very low resistance might indicate a short circuit.
• If this doesn't work: If your solenoid tests good, the problem is likely further up the line in the wiring or the controller's output for that zone.

8. Test for Voltage at the Solenoid Wires — Confirm the controller is sending power.

• Tools: Multimeter
• Safety: This step requires the controller to be powered on. Exercise extreme caution when working with live electrical components.
• With the solenoid wires disconnected and the controller powered on, set the multimeter to measure AC voltage (VAC).
• On the controller, manually activate the non-working zone. This should send power to the wire for that zone.
• Carefully touch one multimeter probe to the zone's signal wire (the colored wire) and the other probe to the common wire (usually white or black, connecting all valves).
• You should get a reading of approximately 24-28 VAC. If there's no voltage, or significantly less, the issue is with the wire itself (cut, corroded) or the controller's output.
• If this doesn't work: If you're not getting voltage, check the common wire for breaks or bad connections. If the common wire is good, the controller's zone output terminal may be faulty, or the controller's transformer might be failing. Consider testing another zone's voltage to compare.

9. Replace a Faulty Solenoid — A relatively simple and inexpensive repair.

• Tools: Adjustable wrench or pliers, screwdriver, new solenoid.
• Safety: Power off the controller before beginning.
• Unscrew the old solenoid from the valve body (usually by hand or with an adjustable wrench). It's typically threaded in.
• Ensure you have the correct replacement solenoid for your specific valve brand and model. While many look similar, tolerances vary.
• Clean any debris or old sealant from the valve's threaded opening.
• Gently screw in the new solenoid by hand until snug, then give it a final quarter-turn with a wrench to ensure a watertight seal without overtightening.
• Reconnect the wires, ensuring connections are tight and waterproof. Use waterproof wire connectors (grease caps) to prevent future corrosion.
• Turn power back on and test the zone.

Common Causes

• Faulty Solenoid: This is the most common issue. The internal coil can break down over time due to electrical surges, age, or manufacturing defects, preventing the plunger from moving.
• Cut or Damaged Wires: Rodents, gardening tools, frost heave, or digging can sever the low-voltage wires connecting the controller to the valves, preventing the signal from reaching the solenoid.
• Corroded Wire Connections: Exposure to moisture in valve boxes can lead to corrosion on wire splices, creating high resistance and preventing enough current from reaching the solenoid.
• Controller Malfunction: Less common, but a faulty circuit board, blown fuse, or failing transformer within the controller can prevent it from sending power to one or all zones.
• Master Valve Issue: If your system has a master valve, and its solenoid or mechanism fails, no water will reach any of the zone valves.
• Water Pressure Issues: While not directly preventing
