Quick Answer

If your sprinkler system isn't turning on at all, the most common reason is a loss of power to the controller. This often traces back to a tripped Ground Fault Interrupter (GFI) outlet in your garage or outdoor utility area, or a blown fuse/faulty transformer inside the controller unit itself. Start by checking and resetting any GFIs. If that doesn't resolve it, inspect the transformer and its fuses.

The Problem

You head out to water your lawn, but the sprinkler system remains stubbornly silent. The controller screen is blank, or perhaps it's displaying an error code that signifies no power. You've tried setting it to manual run, but nothing happens. This isn't just an inconvenience; an unwatered lawn can quickly turn brown, especially during hot, dry spells. The good news is that for many homeowners, a complete system shutdown points to a fixable electrical issue rather than a complex plumbing or valve problem.

How It Works

Your sprinkler system relies on a low-voltage electrical current to operate its valves. The main power (typically 120V AC from a standard outlet) goes to a transformer, which is usually located inside or very near the sprinkler controller. This transformer steps down the voltage to a much safer 24V AC, which is then sent through wires to activate the solenoid on each zone valve. When the controller sends the 24V signal to a specific zone's solenoid, an electromagnetic field is created, pulling open a small pilot valve which, in turn, allows water pressure to open the main diaphragm in the valve, releasing water to the sprinkler heads. If the controller isn't receiving the initial 120V input, or if the transformer isn't successfully stepping it down to 24V, the entire system is effectively dead. GFIs (Ground Fault Interrupters) are safety devices designed to protect against electric shock by tripping and cutting power if they detect an imbalance in the electrical current, often due to moisture or a short. Since sprinkler systems are often near water and outdoors, they are frequently plugged into GFI-protected circuits.

Step-by-Step Fix

1. Check the Power Outlet – Ensure the controller is receiving 120V power.

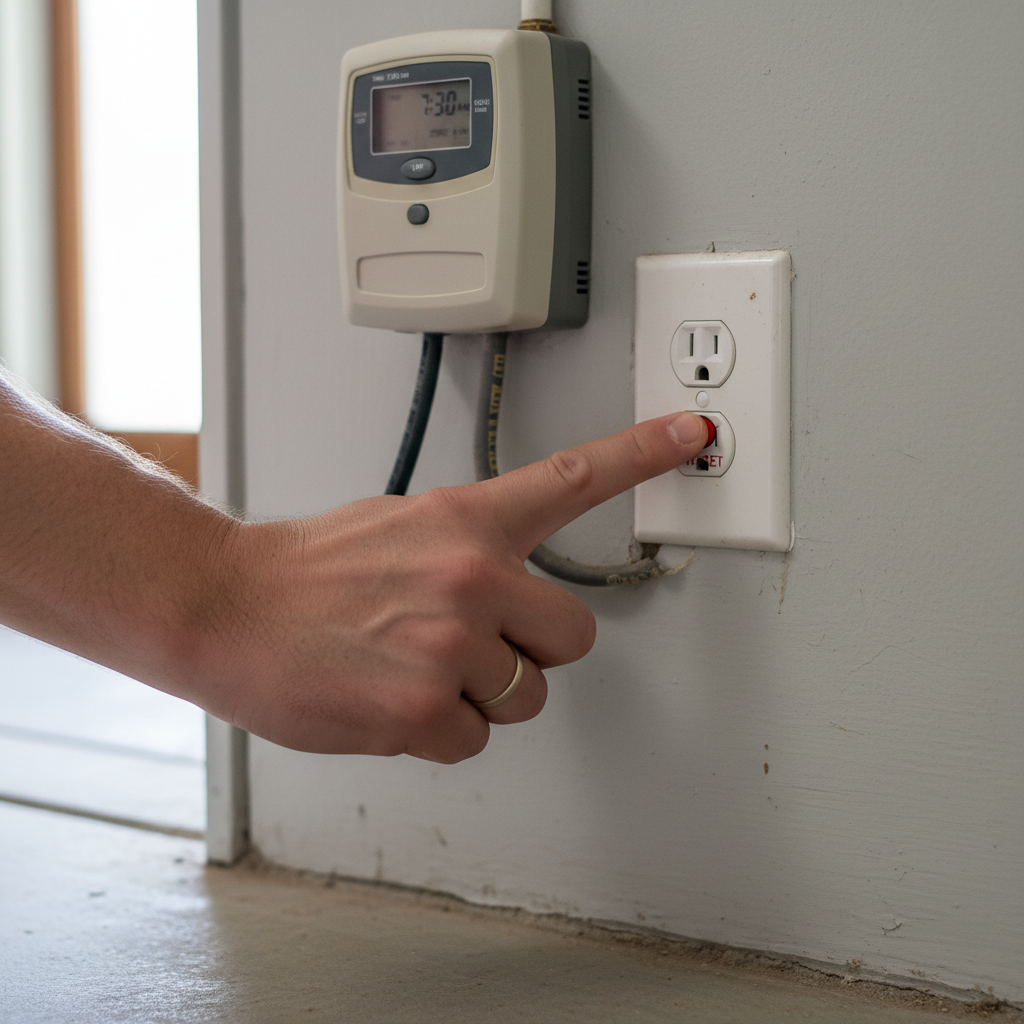

• Action: Locate the outlet where your sprinkler controller is plugged in. This is often in a garage, utility room, or sometimes an outdoor weatherproof outlet. Push the "reset" button on the GFI outlet. If it clicks and stays in, test the outlet with another appliance (like a phone charger or a lamp) to confirm it has power. If the GFI trips again immediately or won't reset, there might be a short in the controller or its wiring, or a much larger electrical issue that requires a pro.
• If this doesn't work: Move to checking the controller's internal power.

2. Inspect the Controller's Transformer – Verify the transformer is functioning.

• Action: Safety Note: Always unplug the controller before working with internal components. Open the sprinkler controller's front panel. Locate the transformer – it's typically a small, cube-shaped component with primary (120V) and secondary (24V) wiring. Visually inspect it for any signs of burning, melting, or unusual odors. Many controllers have a built-in fuse, often a small, glass-encased cylinder or a blade fuse. If you see a blown fuse (broken filament inside the glass), carefully remove it.
• Tools: Small screwdriver (for screws on controller panel), multimeter (optional, but recommended for testing).
• If this doesn't work: If the transformer shows no visible damage, but you suspect it's the issue, you'll need to test it.

3. Test the Transformer for Voltage – Determine if the transformer is outputting 24V AC.

• Action: Safety Note: This step involves working with live electricity. If you are uncomfortable, call a licensed electrician. Plug the sprinkler controller back into the outlet. Set your multimeter to AC voltage (V~ or VAC) and the range to 200V or appropriate auto-range. Carefully touch the multimeter probes to the two low-voltage output terminals on the transformer (these usually go to the controller's common and master valve terminals). You should read approximately 24-28V AC. If you read 0V or a significantly lower voltage, the transformer is faulty.
• Tools: Multimeter.
• If this doesn't work: The transformer is definitely faulty and needs replacement.

4. Replace a Blown Fuse – Restore power by replacing a faulty fuse.

• Action: If you found a blown fuse in Step 2, replace it with an identical fuse (same amperage and voltage rating). These are inexpensive and can be found at home improvement stores or electronic supply shops. Never use a fuse with a higher amperage rating, as this can damage the transformer or controller circuitry. With the new fuse in place, plug the controller back in and observe if it powers on.
• Materials: Replacement fuse (matching original amperage).
• If this doesn't work: If the new fuse blows immediately, there's a short circuit somewhere in your system, likely in the wiring to the valves or the valves themselves. This requires more advanced troubleshooting.

5. Replace a Faulty Transformer – Install a new transformer if yours is dead.

• Action: Unplug the controller. Disconnect the old transformer's primary (120V) and secondary (24V) wires. Note the wiring carefully, or take a picture. Install the new transformer, ensuring all connections are secure and match the original configuration. Plug the controller back in and test.
• Tools: Screwdriver, wire strippers (if connections aren't plug-and-play).
• Materials: New sprinkler transformer (compatible with your controller model).

6. Check Wiring Connections – Ensure all wires are securely connected.

• Action: Even if the transformer is good, loose or corroded wiring can disrupt power. Unplug the controller. Carefully inspect all low-voltage wires connected to the controller's terminals, especially the COMMON (usually white) and MASTER valve terminals, and the AC power input terminals. Ensure they are stripped properly (about 1/2 inch of exposed copper) and tightly seated in their terminals. Tug gently on each wire to confirm it's secure.
• Tools: Small screwdriver.

7. Test for Shorts (Advanced) – Isolate potential short circuits in the field wiring.

• Action: Safety Note: If you suspect a short, and especially if fuses keep blowing, it's best to call a pro. For advanced DIYers: unplug the controller. Disconnect all zone wires (not the common wire) from the controller. Plug the controller back in. If it now powers on, the short is in one of your zone wires or valves. Systematically reconnect one zone wire at a time until the controller fails or the fuse blows again. The last wire reconnected is the problem zone. You'll then need to trace that wire or inspect the corresponding valve.
• Tools: Multimeter, wire cutters/strippers.

Common Causes

• Tripped GFI Outlet: Most common reason for a complete power loss due to moisture, a minor ground fault, or even a power surge.
• Blown Fuse in Controller/Transformer: Often caused by a power surge, a short circuit in the low-voltage wiring, or a faulty solenoid on a valve.
• Faulty Transformer: The transformer can simply fail due to age, heat stress, or an internal short.
• Loose Wiring: Connections can vibrate loose over time, especially in outdoor environments subjected to temperature changes.
• Controller Malfunction: Less common for a complete power outage, but the controller's internal power supply can fail.

Common Mistakes

• Ignoring the GFI: Many homeowners overlook the GFI, assuming the problem is more complex. Always check this first!
• Using the Wrong Fuse: Replacing a blown fuse with one of an incorrect amperage rating can lead to further damage to the controller or even a fire hazard. Always match the original rating exactly.
• Not Testing for Voltage: Guessing whether the transformer is working without testing it with a multimeter can lead to replacing parts unnecessarily. A multimeter is a worthwhile investment.
• Tightening Wires Too Much: While secure connections are good, overtightening terminal screws can sever delicate low-voltage wires.
• Overlooking Environmental Factors: Outdoor controllers or wiring exposed to rodents, lawnmowers, or extreme weather can suffer damage that leads to power issues. Routinely check visible wiring.

Cost & Time Breakdown

Tips & Prevention

• Regular GFI Checks: Periodically press the "test" and "reset" buttons on your GFI outlets to ensure they are functioning correctly.
• Weatherproof Enclosures: Ensure outdoor controllers are housed in proper weatherproof enclosures to protect against moisture and pests.
• Surge Protectors: Consider plugging your sprinkler controller into a surge protector, especially if you experience frequent power fluctuations or lightning in your area.
• Rodent Control: Keep an eye out for signs of rodents, as they can chew through low-voltage wiring, causing shorts.
• Seasonal Inspection: Before the irrigation season begins, do a quick visual inspection of all visible wiring, the controller, and the outlet connection.
• Know Your System: Keep your controller's manual handy. It will have specific diagrams and troubleshooting tips for your model, including fuse locations and transformer specifications.

When to Call a Professional

While many power issues can be resolved with basic DIY, there are clear indicators when it's time to call a licensed professional. If the GFI repeatedly trips immediately after resetting, or if a new fuse blows instantly, it strongly suggests a short circuit somewhere in your field wiring or a faulty solenoid, which can be challenging and time-consuming for non-experts to locate. Furthermore, if you're uncomfortable working with electrical components, even low-voltage, or if you don't own and know how to use a multimeter, it's always safer to bring in an expert. Professionals have specialized tools like wire trackers and TDRs (Time Domain Reflectometers) that can pinpoint open circuits or shorts in buried wires quickly and accurately, saving you hours of frustrating guesswork and potential damage. They can also diagnose deeper controller issues or complex wiring faults that are beyond the scope of typical homeowner repairs. Always error on the side of safety and expertise when electrical troubleshooting gets past basic checks.
