Quick Answer

A sprinter head that won't pop up is often a sign of low water pressure in your irrigation system, a clogged nozzle, or debris lodged in the sprinkler's internal mechanism. Addressing these common culprits usually involves a straightforward diagnostic process and simple fixes like cleaning the sprinkler head, clearing the nozzle, or adjusting the pressure at your main water supply. Occasionally, a worn-out or damaged head will require replacement, but many issues can be resolved with basic tools and a few minutes of your time.

The Problem

You walk outside on a warm morning, ready to admire your perfectly watered lawn, only to find one or more sprinkler heads stubbornly refusing to emerge from the ground. Instead of a refreshing spray, you might see a dribble, a sluggish effort to rise, or nothing at all. This isn't just an aesthetic problem; an un-popped sprinkler head means uneven watering, leading to dry patches in your lawn, wasted water as other heads overcompensate, and potentially higher water bills. Identifying and rectifying the issue promptly is crucial for maintaining a healthy landscape and an efficient irrigation system.

How It Works

To understand why a sprinkler head doesn't pop up, it's helpful to know how it should work. Most residential pop-up sprinkler heads operate on a simple hydraulic principle. When your irrigation system activates, water under pressure flows through the pipes to the sprinkler head. This water enters the base of the sprinkler and exerts upward force on a sealed internal piston assembly, known as the riser. As the pressure builds, it overcomes the resistance of an internal spring, pushing the riser — and attached nozzle — upward and out of the ground. Once fully extended, water exits through the nozzle, creating the spray pattern. When the system deactivates, the water pressure drops, and the internal spring retracts the riser back into its housing, flush with the ground, protecting it from lawnmowers and foot traffic.

The critical components here are the incoming water pressure, the cleanliness of the water path (both in the nozzle and around the riser), and the integrity of the internal spring and seals. If any of these factors are compromised – if there's not enough pressure to overcome the spring, if debris obstructs the riser's path, or if the spring itself is damaged – the sprinkler head simply won't pop up as intended. Modern sprinkler heads also incorporate a wiper seal around the riser, which cleans debris as the head retracts, but even these can be overwhelmed by excessive dirt or grit.

Step-by-Step Fix

Safety Note: Always turn off your irrigation system's main water supply at the backflow preventer or controller before working on any sprinkler components. This prevents unexpected water blasts and allows you to work safely.

1. Inspect for Obvious Obstructions — Check for external blockages preventing movement.

Before digging, carefully inspect around the problematic sprinkler head. Common culprits include overgrown grass, compacted soil, mulch, or even small stones and debris from recent lawn work. Sometimes, a root can grow over the head. Gently clear away any material that might be physically preventing the riser from extending. Use a trowel or your hands to remove loose soil or grass. If a root is the issue, you might need loppers, but be careful not to damage the sprinkler body.

2. Manually Test the Riser — Determine if the riser assembly moves freely.

With the system off, gently pull the sprinkler head's riser stem upward. It should extend smoothly with some resistance from the spring. If it feels stiff, grimy, or won't pull up at all, it indicates internal debris or a damaged mechanism. If it pulls up easily but falls back down, it suggests a spring issue or very low pressure. Repeat this a few times to see if any grit dislodges. If the riser feels gritty, proceed to cleaning.

3. Clean Around the Head and Filters — Remove debris affecting the pop-up mechanism.

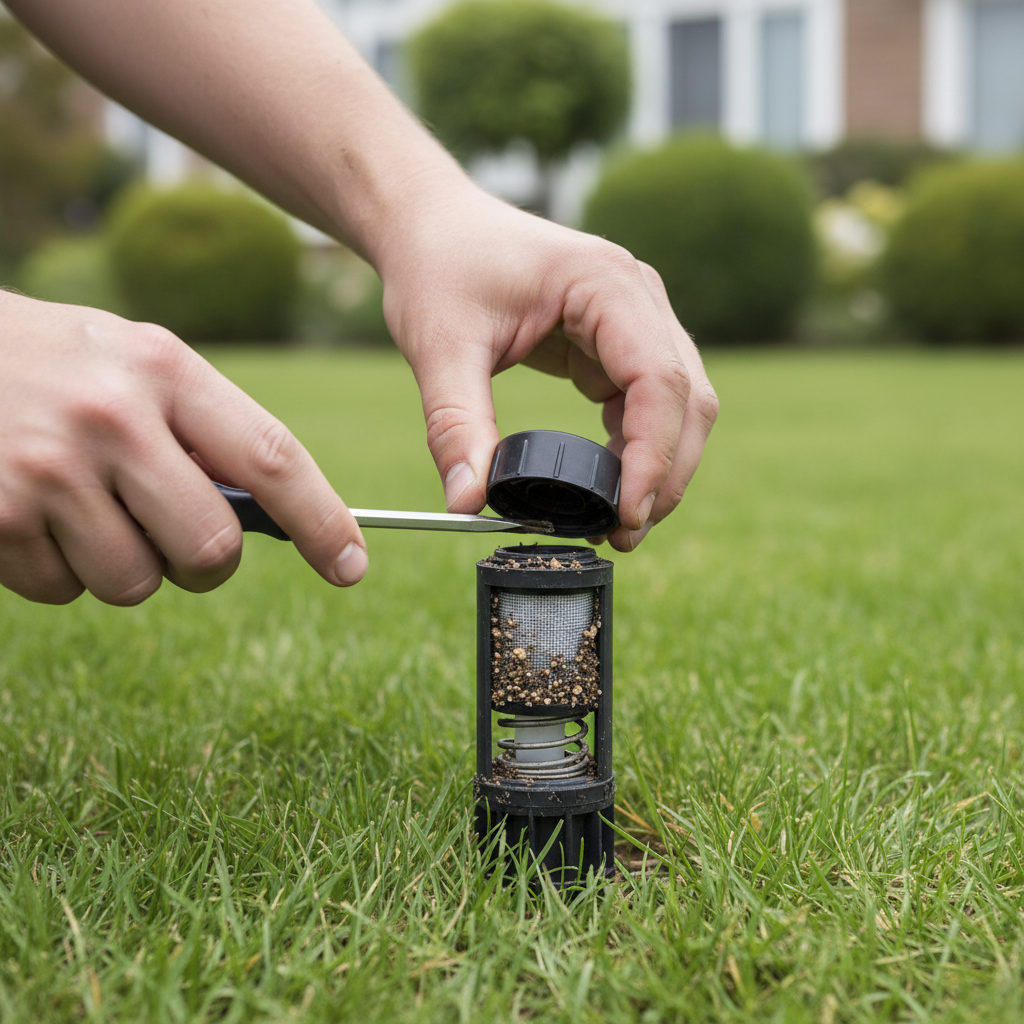

If the riser felt stiff: Dig around the sprinkler head to expose the body. Unscrew the top cap (counter-clockwise) to expose the internal filter screen and riser assembly. Pull out the riser assembly. You'll likely find dirt, sand, or other sediment around the riser shaft and on the filter. Rinse the filter screen thoroughly under running water. Use a small brush (like an old toothbrush) to clean the inside of the sprinkler body and the riser itself. Ensure all grit is removed, then reassemble. Make sure the nozzle is clear of debris before screwing the cap back on.

4. Check Nozzle for Clogs — Ensure water can flow freely out of the nozzle.

Even if the riser pops up, a clogged nozzle can restrict water flow, making it appear the head isn't working correctly or causing it to retract prematurely due to back pressure. With the system off, unscrew the nozzle from the top of the riser. Use a small, unfolded paper clip or a nozzle cleaning tool to carefully poke out any debris from the nozzle opening. Avoid using anything sharp or metal that could scratch or enlarge the opening, as this will distort the spray pattern. Rinse the nozzle and reattach it, ensuring it's tightened securely but not over-tightened.

5. Assess Water Pressure — Diagnose if low pressure is preventing pop-up.

Low water pressure is a very common reason for sprinkler heads not popping up, especially if several heads in a zone are affected. Turn your irrigation system on to the problematic zone. Watch closely: does the head attempt to rise but then retract, or does it only partially extend? This is a classic sign of low pressure. If you have a pressure gauge, you can attach it to an outdoor spigot to check mainline pressure. A healthy system typically needs 20-50 PSI for pop-up heads. If multiple heads are failing to pop, check for open hose bibs, running toilets, or other high-water-use activities that might be drawing pressure away from the irrigation system. Also, inspect your main water shut-off valve and your backflow preventer to ensure they are fully open. Sometimes, even a partially closed valve can significantly reduce system pressure.

6. Adjust Zone Flow or System Pressure (If Applicable) — Increase water flow to struggling heads.

Some irrigation system controllers allow you to adjust the flow rate to individual zones. Consult your controller's manual. If all zones are affected, the issue might be at your main water supply. In some cases, adjusting the pressure reducing valve (PRV) on your main water line can help, but this is a more advanced task and should only be done if you're comfortable and know your system well. Small adjustments can have big impacts. For persistent low-pressure issues across the entire system, calling a professional is recommended.

7. Replace a Damaged Sprinkler Head — Last resort for irreparable heads.

If the riser is broken, the spring is clearly snapped, or the head is physically cracked, replacement is the only option. Dig around the head to expose the flexible swing joint or riser nipple connecting it to the lateral line. Unscrew the entire head assembly counter-clockwise. Take the old head to a home improvement store to ensure you buy an identical replacement (same brand, model, and spray pattern). Screw on the new head, being careful not to over-tighten, and ensure it's level with the ground. Backfill the soil.

Common Causes

• Low Water Pressure: The most frequent culprit. The system simply doesn't have enough force to push the riser up against the internal spring. This can be due to a partially closed main valve, an overloaded zone (too many heads on one line), a main line leak, or concurrent water use elsewhere in the property.
• Clogged Nozzle: Dirt, sand, mineral deposits, or even tiny insects can block the small opening of the nozzle, preventing water from escaping and causing internal back-pressure that prevents the head from fully extending, or inhibiting water flow entirely.
• Debris in Riser Assembly: Sediment, dirt, or small stones can get past the wiper seal and accumulate around the riser shaft inside the sprinkler body, making it stiff or impossible for the riser to slide up and down smoothly.
• Obstructed Path: Overgrown grass, compacted soil, mulch, or landscaping debris can physically block the sprinkler head from emerging from the ground.
• Damaged Internal Components: Over time, the internal spring can weaken or break, the riser seal can wear out, or the riser itself can become cracked or bent due to impact (e.g., from a lawnmower or foot traffic). This usually necessitates replacement.
• Air in the System: While less common for a single head, air pockets can sometimes cause inconsistent pressure and erratic sprinkler behavior, including heads not popping up fully.

Common Mistakes

• Applying too much force to the nozzle: Using pliers or excessive force when unscrewing or tightening the nozzle can strip the threads or damage the delicate plastic, leading to leaks or improper spray patterns.
• Using the wrong replacement head: Not matching the brand, model, or GPM (gallons per minute) of a replacement head can lead to uneven coverage or pressure imbalances across the zone.
• Over-tightening the sprinkler body: When reinstalling the cap or a new head, over-tightening can crack the plastic body or cross-thread the connections, causing leaks.
• Ignoring a partially closed valve: Many homeowners overlook checking the main irrigation shut-off valve or a backflow preventer valve, which, if even partially closed, can drastically reduce water pressure to the entire system.
• Not checking for leaks elsewhere: A significant leak in the underground piping (a
