Quick Answer

Adjusting your sprinkler's spray pattern primarily involves manipulating the nozzle or dedicated adjustment screws on the sprinkler head. For rotor heads, you'll typically set the arc and potentially the throw distance. Spray heads usually require twisting the nozzle or replacing it to alter the pattern. Once you understand your specific sprinkler type, a few simple steps can dramatically improve water distribution, prevent runoff, and ensure your lawn gets the hydration it needs without waste.

The Problem

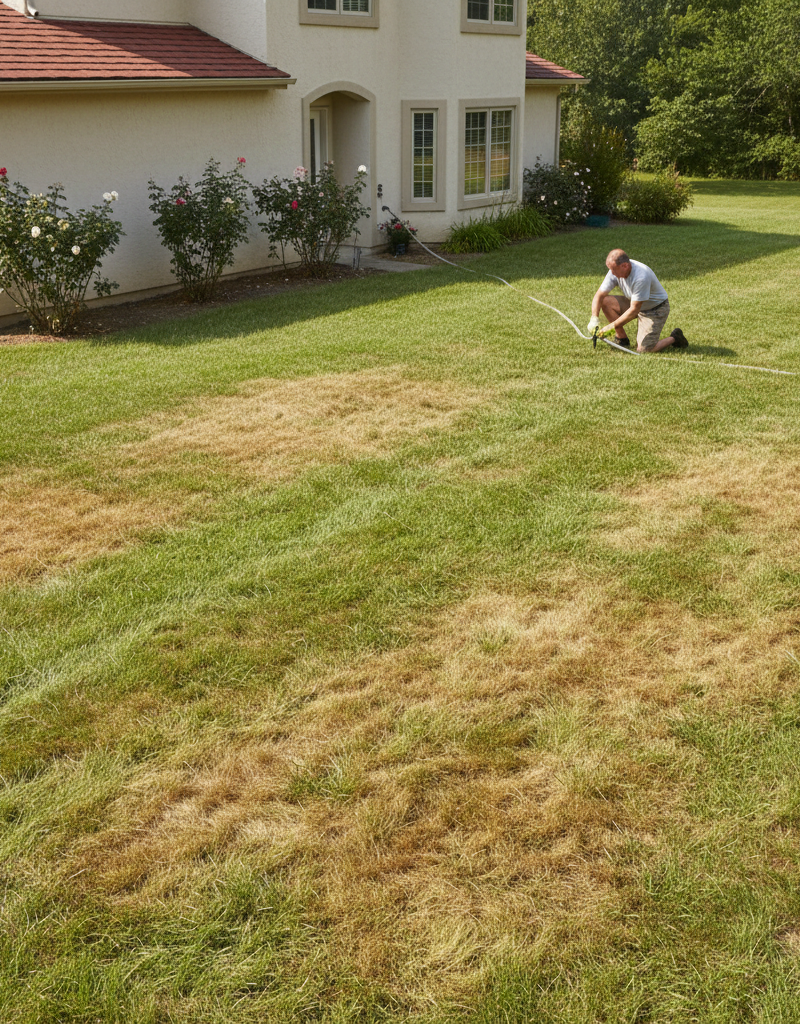

Uneven sprinkler spray is a silent killer of beautiful lawns and a notorious budget buster. You see it all the time: lush green patches next to brown, struggling spots. Or worse, water gushing onto the sidewalk, pooling on your driveway, or drenching your prize-winning petunias while the lawn goes thirsty. This isn't just an aesthetic issue; it's a serious waste of water, leading to higher utility bills and an unhealthy landscape. The primary problem often lies in improperly adjusted sprinkler heads – either the arc is too wide or too narrow, the throw distance is off, or the nozzle itself is clogged or damaged. Many homeowners simply "set and forget" their irrigation system, unaware that seasonal changes, lawn growth, or even minor bumps from lawnmowers can throw a sprinkler's carefully calibrated pattern completely out of whack. The result is inefficiency, plant stress, and money literally going down the drain.

How It Works

To effectively adjust a sprinkler, it's crucial to understand the basic mechanics of how different types work. There are two main categories of pop-up sprinklers commonly found in residential settings: spray heads and rotor heads.

Spray Heads are the simplest. They emit a constant, fan-shaped spray of water in a fixed pattern. Think of them like a showerhead for your lawn. Water enters the head, travels up a riser, and is forced through a small opening in the nozzle. The shape of this opening and any internal baffles within the nozzle determine the fixed spray pattern (e.g., quarter-circle, half-circle, full circle, or even rectangular). Some spray nozzles (often referred to as "adjustable arc nozzles") allow you to twist an outer collar to change the arc from, say, 0 to 360 degrees, but the distance of the spray is generally fixed by the nozzle's design and water pressure. They typically have a shorter throw distance, usually between 5 and 15 feet.

Rotor Heads, on the other hand, rotate to distribute water over a larger area. Water enters the head and drives a small turbine or gear mechanism, which causes the nozzle assembly to slowly sweep back and forth across a set arc. Most rotor heads have two primary adjustments: arc and distance (or radius). The arc setting determines how many degrees the head will rotate (e.g., from 40 degrees to 360 degrees). The distance setting uses a screw that protrudes into the water stream, interrupting and breaking up the water flow, thereby shortening the throw distance. This screw is often called a "radius reduction screw" or "throttle screw." Because rotors cover larger areas (15 to 50+ feet), precise adjustment is key to avoid overspray and ensure even coverage.

Both types rely on adequate water pressure. Too little pressure will result in a weak, dribbling spray that doesn't reach its intended target, creating dry spots. Too much pressure can cause misting (atomization of water), which makes the water susceptible to wind drift and evaporation, again leading to ineffective watering.

Step-by-Step Fix

Before you begin, run a full cycle of your irrigation system to observe the current spray patterns. Note which heads are spraying too far, not far enough, or in the wrong direction.

Safety Note: Always be aware of your surroundings when working with sprinkler systems. If you notice any exposed wiring or damaged electrical components near the sprinkler heads, do not proceed; contact a licensed electrician immediately. Avoid operating sprinklers when children or pets are playing nearby.

1. Identify Your Sprinkler Type — KNOW YOUR HEADS

Before grabbing any tools, determine if you have spray heads or rotor heads. This dictates your adjustment method.

• Spray Heads: Have a fixed, fan-like spray, often covering 5-15 feet. They typically don't "spin" continuously when operating.
• Rotor Heads: Slowly rotate back and forth (or full circle) and cover a larger distance, usually 15-50+ feet.

2. Isolate the Zone — CONTROL THE FLOW

Turn on only the specific watering zone containing the sprinkler head you wish to adjust. This allows you to work efficiently without soaking your entire yard and provides immediate feedback on your adjustments. Most controllers have a "manual run" or "test" function for individual zones.

3. Clear Debris — UNOBSTRUCTED FLOW

Often, a poor spray pattern is simply due to a clogged nozzle. Gently pull up the pop-up riser (for spray heads and some rotors). Use a small brush or an old toothbrush to clean any visible dirt, grass clippings, or mineral deposits from around the nozzle opening. A small piece of wire or a toothpick can dislodge stubborn debris from the nozzle orifice.

• If this doesn't work: The entire nozzle might need soaking in white vinegar for an hour to dissolve mineral buildup. Some nozzles are removable for easier cleaning or replacement.

4. Adjust a Spray Head (Fixed or Adjustable Arc) — PRECISION AIMING

• Fixed Spray Nozzle: These have a set pattern (e.g., quarter, half, full circle). To change the direction, grasp the body of the pop-up riser and carefully twist it left or right to reorient the spray. You might need to gently pull up the riser while twisting to get it to turn. Do not twist the entire sprinkler body in the ground, as this can break the pipe connection.
• Adjustable Arc Spray Nozzle: These usually have an outer collar or ring that you can twist by hand or with a small flathead screwdriver. Look for an arrow or indicator mark. Turn the collar to widen or narrow the arc of the spray. The starting point of the arc is typically fixed once the riser is oriented, so make sure the fixed side of the pattern is against a boundary (like a fence or house).
  • Tip: Check for manufacturer instructions – some adjustable nozzles require the water to be off for arc adjustment, while others can be adjusted while running.

5. Adjust a Rotor Head (Arc and Distance) — LONG-RANGE ACCURACY

Rotor heads typically require a special adjustment tool or a flathead screwdriver, which usually came with your sprinkler heads. If not, a small flathead screwdriver often works.

• Set the Fixed Left Stop (where applicable): Many rotors have a fixed left stop. With the water running, allow the head to rotate to its furthest left point. If this point isn't where you want the arc to begin, grasp the entire turret (the part that spins) and rotate it to the desired starting position. This effectively moves the fixed left stop. For some rotors, you manually set the right stop relative to the left.

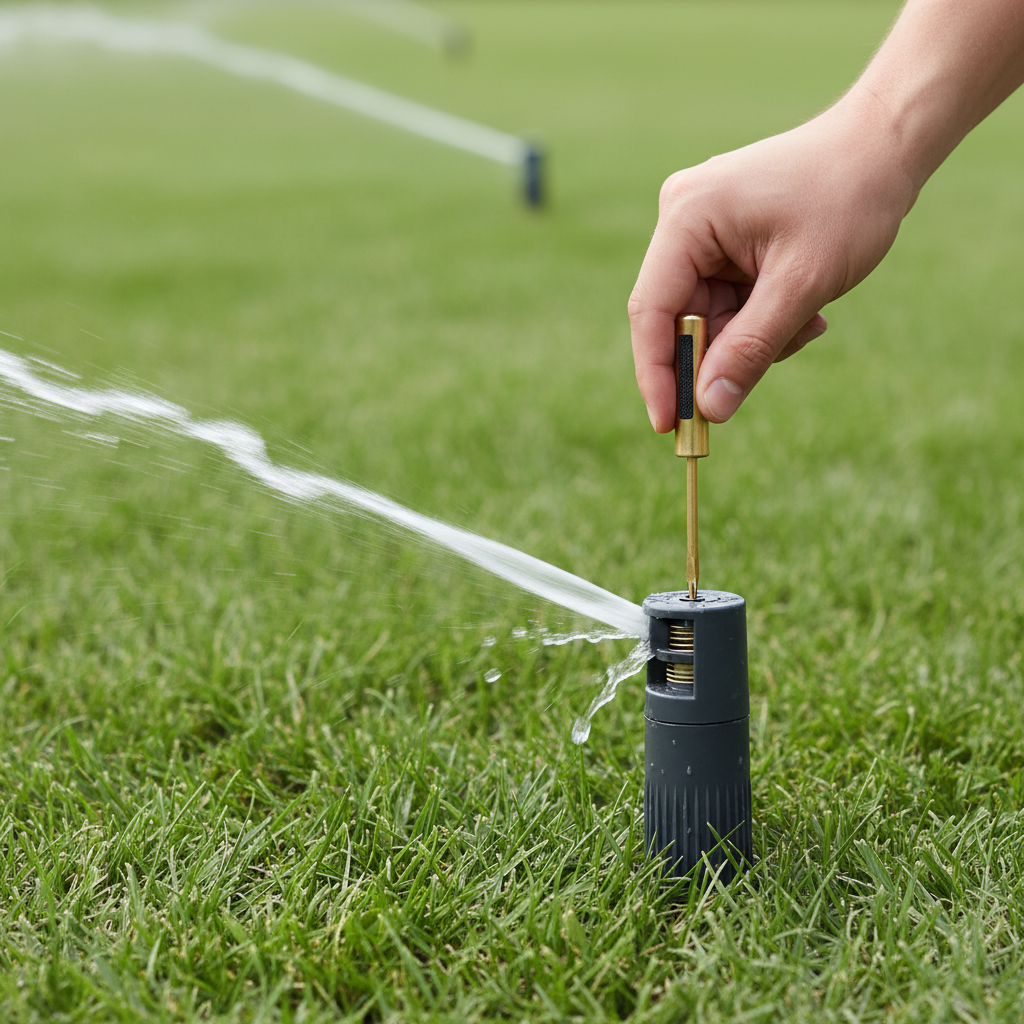

• Adjust the Arc: Locate the arc adjustment slot (often labeled with a "+" and "-" or an arrow indicating direction) on the top of the rotor head. Insert the adjustment tool or flathead screwdriver and turn it clockwise to increase the arc or counter-clockwise to decrease it. Observe the rotation. A full 360-degree rotation means the head sprays in a complete circle.
• Adjust the Distance/Radius: Near the center of the rotor head, you
